SHACMAN X3000 4x2 Tractor Truck 375HP EuroV White Trailer Truck Head

Basic Information
Place of Origin: Shaanxi,Xian
Brand Name: SHACMAN
Certification: ISO 9001/CCC
Model Number: X3000
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude pack, with wax before shipment.
Delivery Time: 30 working days
Payment Terms: T/T, L/C
Supply Ability: 5000 units/month
Detail Information
Modle: SX41885T361 Engine: WP12.375E50
Transmission: 12JSD200T-B Product Name: Trailer Truck Head
Axle: 7.5T/2*13 Single Stage Axle, Axle Speed-3.866 Wheel Base: (940-850)x300(singlge 8)
Tire: 12R22.5 Fuel Tank: 400L
Clutch: φ430 Diaphragm Spring Clutch Air Inlet: Ordinary Air Filter
Suspension: Front /rear Multi-layer Plate Spring 2 Main Plates + 2 U-shaped Bolts Cabin: Extended Flat Roof
Color: Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy

X3000 4x2 Tractor Truck EuroV


4x2 Tractor Truck EuroV


SHACMAN White Trailer Truck Head EuroV

Product Description

SHACMAN X3000 4x2 Tractor Truck 375HP EuroV White


Detailed Product Description
Drive type:4x2
Weight: Gross Vehicle Weight≤50
Engine Brand: WEICHAI
Engine Model:WP12.375E50
Engine Power/(kw/HP): 276kw / 375Hp
Gear box Brand: FAST
Gear box Model: 12JSD200T-B

Tractor Trailer Trucks Parameters

Model SX4185JV361
Drive type 4x2
Weight Gross Vehicle Weight ≤50
Dimensions Wheelbase/(mm) 3600
Performance Maximum speed/(km/h) 50~70/100
Ground clearance >314
Engine Brand WEICHAI
Model WP12.375E50
Power/(kw/HP) 276kw / 375Hp
Maximum torque / (N.M)/rpm 1920 N·M
Displacement/(L) 11.596 L
Emission standard EuroV
Gear box Brand FAST
Model 12JSD200T-B
Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) (940-850)×300(Single 8)
Suspension Front Multiple springs
Rear Multiple springs
Axles Brand HANDE
Front axle 7.5T front axle MAN technology
Rear axle 13T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 3.866
Tires Type 12R22.5
Fuel tank Tank capacity/(L) 400L Aluminum tank
Electrics Type 24V
Battery 165Ah Maintenance-free battery
Cab Type SHACMAN X3000 Extended flat roof
Equipment Air main seat, four-point air suspension cab, electronically controlled automatic constant temperature air conditioner, electric window crank, 165Ah maintenance-free battery, SHACMAN logo, full English logo.


Model: SHACMAN X3000 4x2 Tractor Truck

Drivetrain: The truck has a 4x2 configuration, meaning it has two powered wheels out of the total four. This configuration is commonly used for long-haul transportation on paved roads.

Engine Power: The truck is equipped with a powerful 430 horsepower engine, indicating a high power output. This allows the truck to handle heavy loads and navigate challenging terrains effectively.

Emission Standard: The truck complies with the Euro V emission standard. Euro V is a relatively recent emission standard that sets stringent limits on pollutants emitted by vehicles, aiming to improve air quality and reduce environmental impact.

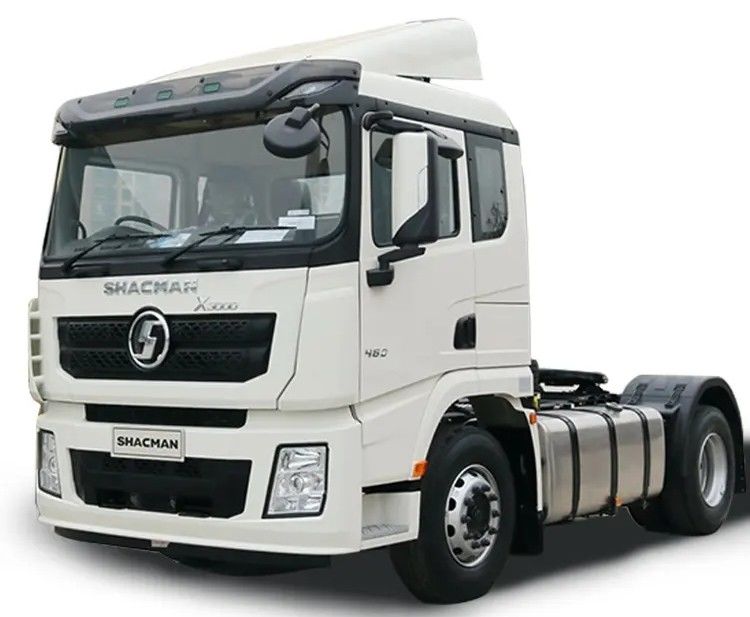

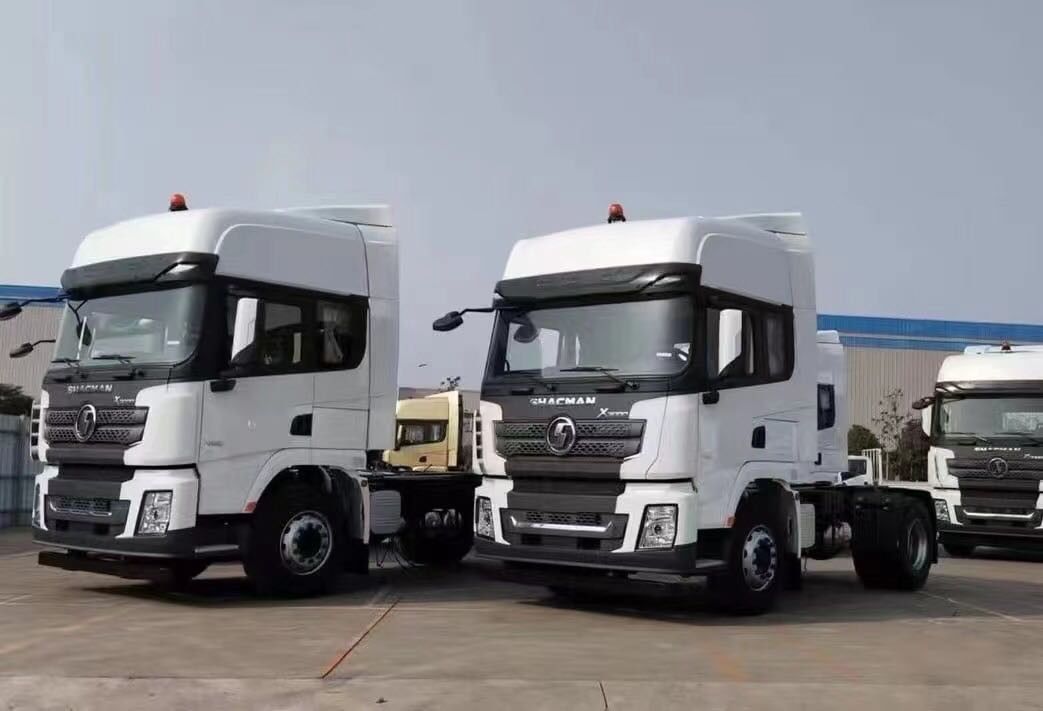

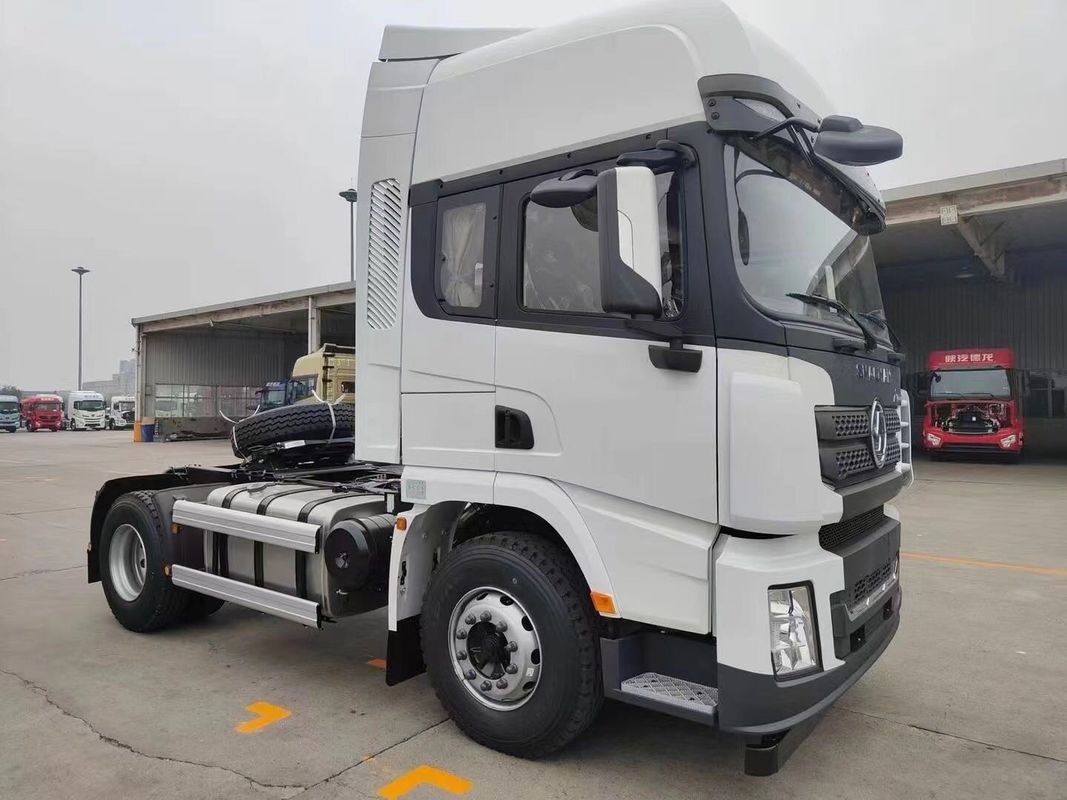

Detailed Image

SHACMAN X3000 4x2 Tractor Truck 375HP EuroV White Trailer Truck Head 0


1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.

3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.

4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
