SHACMAN 4x2 Tractor Truck 6Wheels X3000 430HP EuroV
Detailed Product Description
Model: SX41855V361R SHACMAN
Engine Model:ISME420 30 316kw / 420Hp Euro II
Gear box Model: 12JSD200T-B
Tractor Truck Parameters
| Model |
SX4185JV361R |
| Drive Type |
4x2 |
| Weight |
Gross Vehicle Weight |
≤50 |
| Dimensions |
Wheelbase/(mm) |
3175+1400 mm |
| Performance |
Maximum speed/(km/h) |
45～60/90 |
| Ground clearance |
>314 |
| Engine |
Brand |
CUMMINS |
| Model |
ISME420 30 |
| Power/(kw/HP) |
316kw / 420Hp |
| Maximum torque / (N.M)/rpm |
2000 N·M |
| Displacement/(L) |
11.596 L |
| Emission standard |
Euro II |
| Gearbox |
Brand |
FAST |
| Model |
12JSD200T-B |
| Clutch |
Type |
φ430 Diaphragm spring clutch |
| Cooling |
Type |
Domestic heat sink |
| Air inlet |
Type |
Ordinary air filter |
| Brakes |
Type |
Drum brake |
| Service brake |
Double circuit air brake |
| Park brake |
Rear wheel spring brake |
| Auxiliary brake |
WEVB engine exhaust brake |
| Steering |
Type |
ZF8098 technology, circulating ball steering machine |
| Chassis |
Type |
Parallel trapezoidal frame with variable section |
| Dimensions/(mm) |
850×300(8+7) |
| Suspension |
Front |
Multi-layered leaf springs with 2 Main springs+2 U Bolts |
| Rear |
Multi-layered leaf springs with 2 Main springs+2 U Bolts |
| Axles |
Brand |
HANDE |
| Front axle |
7.5T front axle MAN technology |
| Rear axle |
13T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.266 |
| Tires |
Type |
12.00R20 |
| Fuel tank |
Tank capacity/(L) |
400L Aluminum tank |
| Electrics |
Type |
24V |
| Battery |
165Ah Maintenance-free battery |
| Cab |
Type |
SHACMAN F3000 Extended High Roof cab |
| Equipment |
Air main seat, four-point air-suspended cab, electronically controlled automatic temperature-controlled air conditioning, electric window rollers, manual flip, telescopic axle maneuvering, regular 50 saddle, split fenders, 165Ah maintenance-free battery, SHACMAN logo, full English logo. |
SHACMAN Tractor Truck
The X3000 4x2 Tractor Truck comes with a robust chassis, engineered to withstand heavy loads and challenging road conditions.
The X3000 4x2 Tractor Truck has a towing capacity suitable for hauling trailers, containers, or other heavy loads.
The X3000 4x2 Tractor Truck incorporates advanced emission control technologies, meeting international environmental standards.
The SHACMAN X3000 4x2 Tractor Truck 375Hp is a reliable and efficient choice for businesses involved in long-haul transportation, logistics, and other heavy-duty applications, offering power, performance, and comfort.

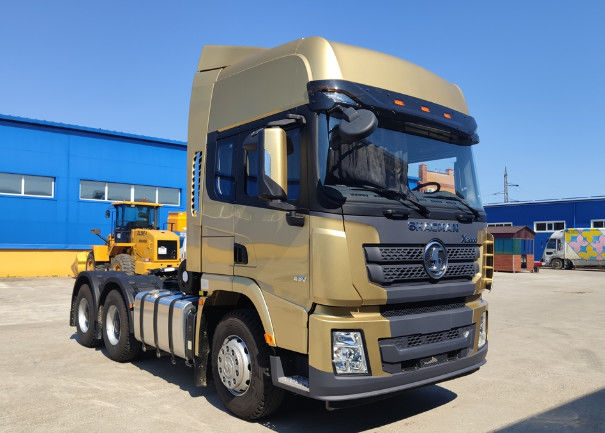

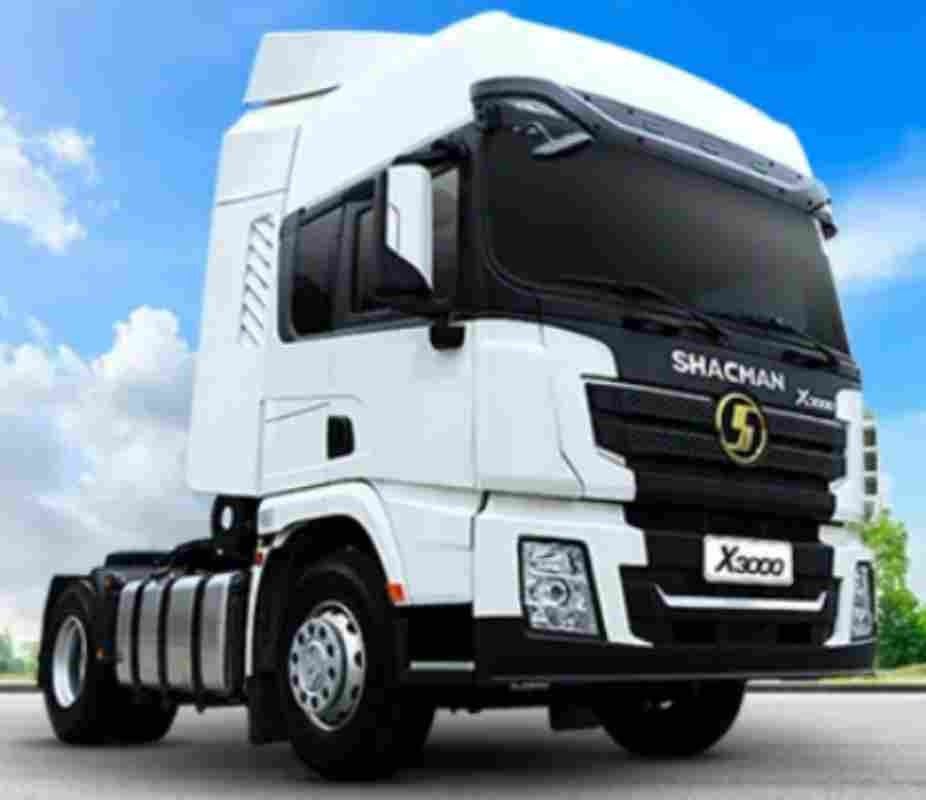

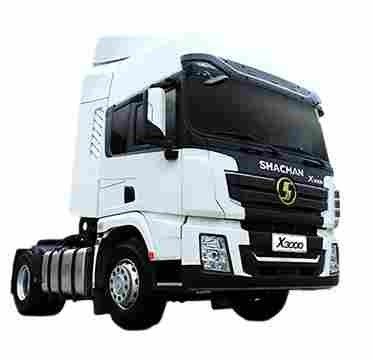

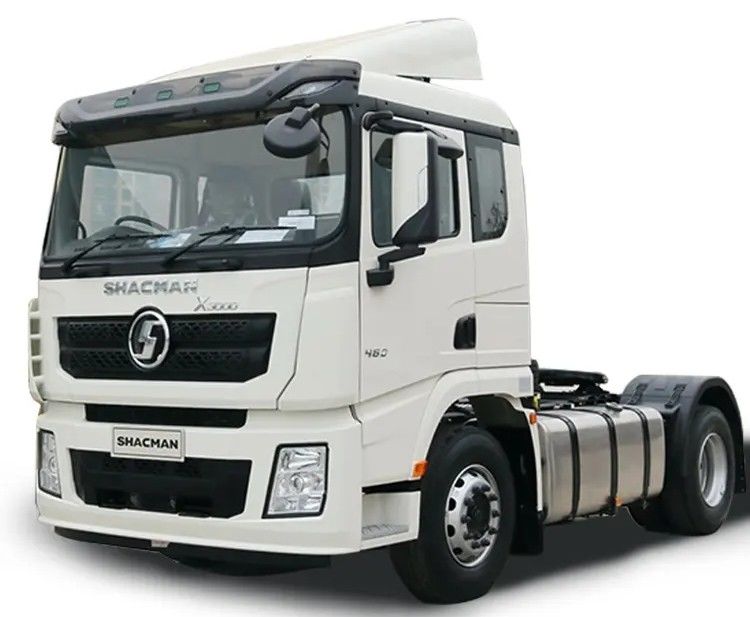

SHACMAN Truck X3000 4x2 430Hp Detailed Image Show
FAQ
1. Who are we?
In the Middle East, our SHACMAN Trucks are known for their power, efficiency, and ability to handle heavy loads in extreme weather conditions.
Eastern Asian customers value the technological advancements and innovative features present in our SHACMAN Trucks.
South Asian markets recognize the cost-effectiveness and versatility of our trucks, making them a preferred choice for various industries.
2. How can we guarantee quality?
By meticulously examining the pre-production sample, we can identify any potential issues or improvements that need to be addressed before proceeding with mass production.
The final inspection covers all aspects of the truck, including its mechanical components, electrical systems, safety features, and overall functionality.
3. What can you buy from us?
SHACMAN Dump truck, track truck, lorry truck, Van truck, Mixer truck.
4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
