| Place of Origin: | Shaanxi,Xian |
|---|---|
| Brand Name: | SHACMAN |
| Certification: | ISO 9001/CCC |
| Model Number: | X3000 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude pack, with wax before shipment. |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5000 units/month |
| Modle: | SX42555V321 | Engine: | WP12.430E22 |
|---|---|---|---|
| Transmission: | 12JSD200T-B | Axle: | 7.5T/2*13 Single Stage Axle， Axle Speed-3.866 |
| Wheel Base: | 850×300(8+5) | Tire: | 12.00R20 |
| Fuel Tank: | 400L | Clutch: | φ430 Diaphragm Spring Clutch |
| Air Inlet: | Ordinary Air Filter | Suspension: | Front /rear Multi-layer Plate Spring 2 Main Plates + 2 U-shaped Bolts |
| Cabin: | Extended High Roof | Color: | Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy |
| Highlight: | SHACMAN X3000 Tractor Truck,Tractor Truck 430HP 4x2 EuroII,EuroII White Tractor Head |
||

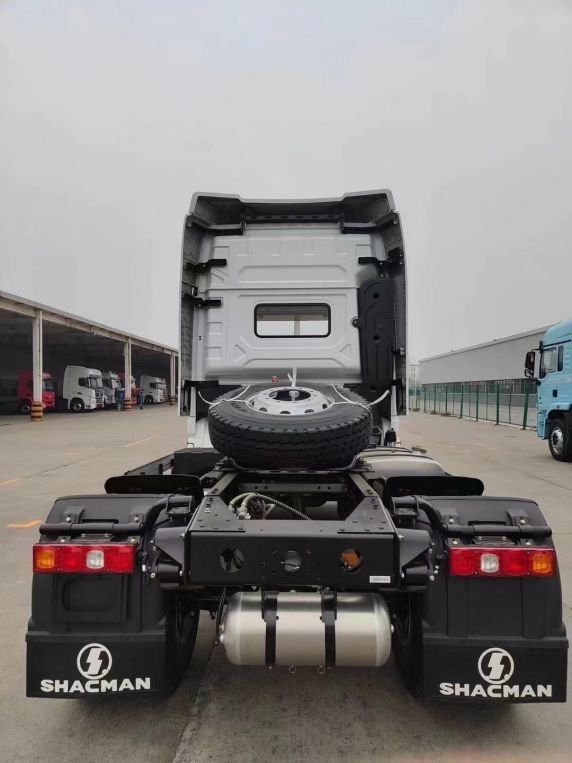

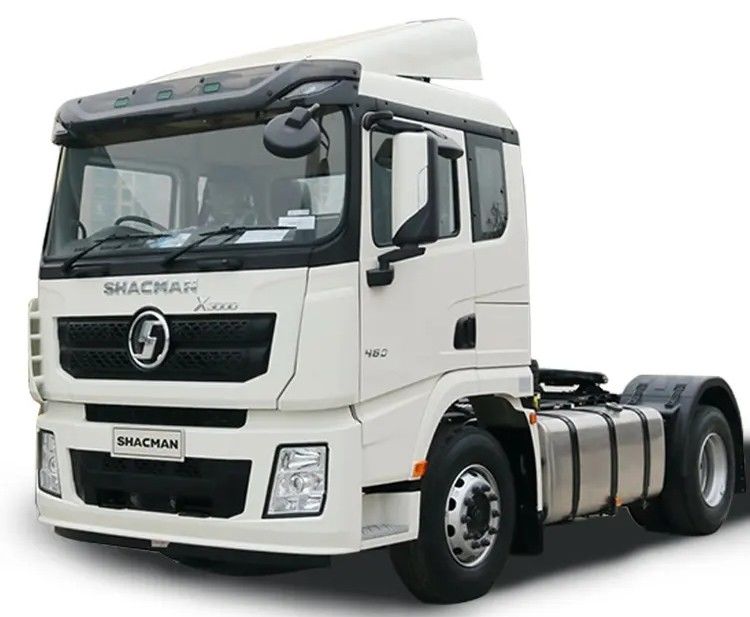

SHACMAN X3000 4x2 Tractor Truck 430HP EuroII White
Detailed Product Description
Model:SX42555V321
Drive type:4x2
Weight: Gross Vehicle Weight≤90
Engine Brand: WEICHAI
Engine Model:WP12.430E201
Engine Power/(kw/HP): 316kw / 430Hp
Gear box Brand: FAST
Gear box Model: 12JSD200T-B
Tractor Trailer Trucks Parameters
| Model | SX42555V321 | |
| Drive type | 4x2 | |
| Weight | Gross Vehicle Weight | ≤90 |
| Dimensions | Wheelbase/(mm) | 3175+1400 |
| Performance | Maximum speed/(km/h) | 45～60/90 |
| Ground clearance | >314 | |
| Engine | Brand | WEICHAI |
| Model | WP12.430E201 | |
| Power/(kw/HP) | 316kw / 430Hp | |
| Maximum torque / (N.M)/rpm | 2060 N·M | |
| Displacement/(L) | 11.596 L | |
| Emission standard | Euro/ II | |
| Gear box | Brand | FAST |
| Model | 12JSD200T-B | |
| Clutch | Type | φ430 Diaphragm spring clutch |
| Cooling | Type | Domestic heat sink |
| Air inlet | Type | Ordinary air filter |
| Brakes | Type | Drum brake |
| Service brake | Double circuit air brake | |
| Park brake | Rear wheel spring brake | |
| Auxiliary brake | WEVB engine exhaust brake | |
| Steering | Type | ZF8098 technology, circulating ball steering machine |
| Chassis | Type | Parallel trapezoidal frame with variable section |
| Dimensions/(mm) | 850×300(8+5) | |
| Suspension | Front | Multi-layered leaf springs with 2 Main springs+2 U Bolts |
| Rear | Multi-layered leaf springs with 2 Main springs+2 U Bolts | |
| Axles | Brand | HANDE |
| Front axle | 7.5T front axle MAN technology | |
| Rear axle | 13 single stage axle, Axle speed-3.866 | |
| Tires | Type | 12.00R20 |
| Fuel tank | Tank capacity/(L) | 400L Aluminum tank |
| Electrics | Type | 24V |
| Battery | 165Ah Maintenance-free battery | |
| Cab | Type | SHACMAN X3000 Extended High Roof Cab |
| Equipment | Air main seat, four-point air suspension, electronically controlled automatic thermostatic air conditioning, electric window crank, electric heated mirrors, electric flip, central locking (dual remote control), multifunction steering wheel, telescopic shaft steering, common air filter, common 90 saddle, 165Ah maintenance-free battery, SHACMAN logo, full English logo. | |
Overview
Model: SHACMAN X3000 4x2 Tractor Truck
Drivetrain: It has a 4x2 configuration, indicating that it has two powered wheels out of the total four wheels. This configuration is commonly used for long-haul transportation on paved roads.
Engine Power: The truck is equipped with a powerful 430 horsepower engine, demonstrating a high power output. This allows the truck to handle heavy loads and navigate challenging terrains with ease.
