Place of Origin:
Shaanxi,China
Brand Name:
SHACMAN
Certification:
ISO9001/CCC
Model Number:
F3000
SHACMAN F3000 Tractor Truck 4x2 430 EuroII white
Detailed Product Description
Model: SX4185JV361R SHACMAN
Engine Model: WP12.430E201WEICHAI 316kw / 430Hp Euro II
Gear box Model: 12JSD200T-B
Tractor Truck Parameters
Model | SX4185JV361R | |
Drive Type | 4x2 | |
Weight | Gross Vehicle Weight | ≤50 |
Dimensions | Wheelbase/(mm) | 3600 |
Performance | Maximum speed/(km/h) | 45~60/90 |
Ground clearance | >314 | |
Engine | Brand | WEICHAI |
Model | WP12.430E201 | |
Power/(kw/HP) | 316kw / 430Hp | |
Maximum torque / (N.M)/rpm | 2000 N·M | |
Displacement/(L) | 11.596 L | |
Emission standard | Euro II | |
Gearbox | Brand | FAST |
Model | 12JSD200T-B | |
Clutch | Type | φ430 Diaphragm spring clutch |
Cooling | Type | Domestic heat sink |
Air inlet | Type | Ordinary air filter |
Brakes | Type | Drum brake |
Service brake | Double circuit air brake | |
Park brake | Rear wheel spring brake | |
Auxiliary brake | WEVB engine exhaust brake | |
Steering | Type | ZF8098 technology, circulating ball steering machine |
Chassis | Type | Parallel trapezoidal frame with variable section |
Dimensions/(mm) | 850×300(8+7) | |
Suspension | Front | Multi-layered leaf springs with 2 Main springs+2 U Bolts |
Rear | Multi-layered leaf springs with 2 Main springs+2 U Bolts | |
Axles | Brand | HANDE |
Front axle | 7.5T front axle MAN technology | |
Rear axle | 13T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.266 | |
Tires | Type | 12.00R20 |
Fuel tank | Tank capacity/(L) | 400L Aluminum tank |
Electrics | Type | 24V |
Battery | 165Ah Maintenance-free battery | |
Cab | Type | SHACMAN F3000 Extended High Roof cab |
Equipment | Air main seat, four-point air-suspended cab, electronically controlled automatic temperature-controlled air conditioning, electric window rollers, manual flip, telescopic axle maneuvering, regular 50 saddle, split fenders, 165Ah maintenance-free battery, SHACMAN logo, full English logo. |
SHACMAN Tractor Truck
The SHACMAN Tractor Truck F3000 4x2 430Hp is a heavy-duty truck known for its robustness, reliability, and superior hauling capabilities. The F3000 4x2 430Hp tractor truck comes with a reliable and durable chassis, engineered to withstand heavy loads and challenging road conditions. We take pride in our ability to meet the specific transportation requirements of African customers, ensuring that our SHACMAN Trucks are tailored to local conditions.
In Southeast Asia, our trucks have gained a reputation for their durability, fuel efficiency, and adaptability to various terrains.

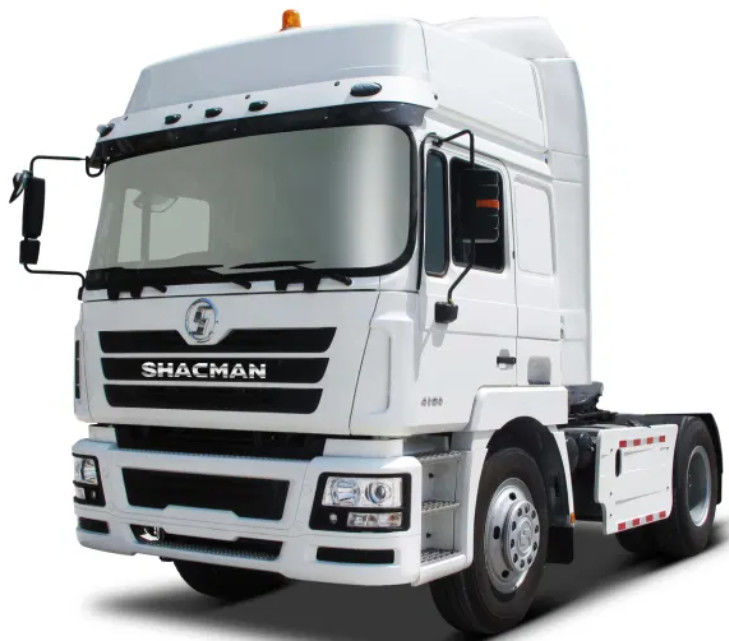

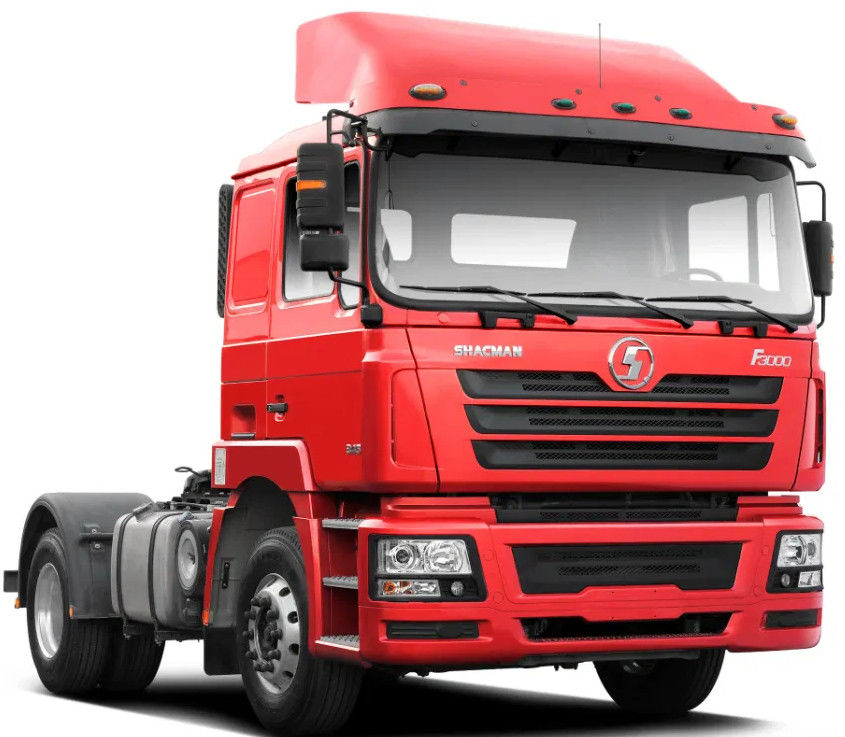

SHACMAN Truck Detailed Image Show
FAQ
1. Who are we?
We pay close attention to every detail, ensuring that the truck's performance, durability, and safety features are in line with our customer's expectations.
Only after successfully passing the final inspection, we proceed with the shipment process, ensuring that our customers receive a reliable and top-quality product.
Our dedication to quality control ensures that our customers can trust the performance and reliability of every SHACMAN Truck they purchase from us.
2. How can we guarantee quality?
It is customary in the industry to produce a pre-production sample before proceeding with mass production to identify and rectify any potential issues. Before SHACMAN trucks feature a driver-centric cabin layout, with all essential controls and switches conveniently placed for ease of access.
3. What can you buy from us?
SHACMAN Dump truck, track truck, lorry truck, Van truck, Mixer truck.
4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
Send your inquiry directly to us
