Name: SHACMAN H3000 Oil Drilling Truck 6x4 380HP EuroII White 50Ton Oil Rig Moving Trucks
Brand: SHACMAN
SKU: H3000
Rating: 5 (184 reviews)

Home > products > Special Trucks >

SHACMAN H3000 Oil Drilling Truck 6x4 380HP EuroII White 50Ton Oil Rig Moving Trucks

SHACMAN H3000 Oil Drilling Truck

Oil Drilling Truck 6x4 380HP

White 50Ton Oil Rig Moving Trucks

Place of Origin:

Shaanxi,Xian

Brand Name:

SHACMAN

Certification:

ISO9001/CCC

Model Number:

H3000

Request A Quote

Product Details

Modle:

SX5255TZJDT434

Engine:

WP12.375E50

Transmission:

10JSD180T+QH50 Flange Extractor

Axle:

7.5T/2*13 Single Stage Axle， Axle Speed-5.262

Wheel Base:

4375+1400 Mm

Tire:

12.00R20

Fuel Tank:

300L

Clutch:

φ430 Diaphragm Spring Clutch

Air Inlet:

Ordinary Air Filter

Chassis:

850×300（8+5）

Suspension:

Front /rear Multi-layer Plate Spring 2 Main Plates + 2 U-shaped Bolts

Cabin:

Medium-length Flat Top

Color:

Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy

Highlight:

SHACMAN H3000 Oil Drilling Truck

Oil Drilling Truck 6x4 380HP

White 50Ton Oil Rig Moving Trucks

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiation

Packaging Details

Nude pack, with wax before shipment.

Delivery Time

45 working days

Payment Terms

T/T, L/C

Supply Ability

1000 units/month

RELATED PRODUCTS

Contact Now

Product Description

EuroII SHACMAN H3000 Oil Drilling Truck 6x4 380HP White 50T

Detailed Product Description

Model: SX32556T384

Drive type: 6x4

Weight: Gross Vehicle Weight≤50

Engine Brand: WEICHAI

Engine Model: WP10.380E22

Engine Power/(kw/HP): 280kW / 380Hp

Gear box Brand: FAST

Gear box Model: 10JSD180

Oil Drilling Truck parameters

Model	SX3255MT384
Drive type	6x4
Weight	Gross Vehicle Weight	≤50
Dimensions	Wheelbase/(mm)	3775+1400
Performance	Maximum speed/(km/h)	40～55/75
Performance	Ground clearance	>314
Engine	Brand	WEICHAI
	Model	WP10.380E22
	Power/(kw/HP)	279kw / 380Hp
	Maximum torque / (N.M)/rpm	1600 N·M
	Displacement/(L)	9.726 L
	Emission standard	Euro II
Gear box	Brand	FAST
Gear box	Model	10JSD180+QH50
Clutch	Type	φ430 Diaphragm spring clutch
Cooling	Type	Domestic heat sink
Air inlet	Type	Ordinary air filter
Brakes	Type	Drum brake
	Service brake	Double circuit air brake
	Park brake	Rear wheel spring brake
	Auxiliary brake	WEVB engine exhaust brake
Steering	Type	ZF8098 technology, circulating ball steering machine
Chassis	Type	Parallel trapezoidal frame with variable section
Chassis	Dimensions/(mm)	850×300(8+7)
Suspension	Front	Multi-layered leaf springs with 4 Main springs+4 U Bolts
Suspension	Rear	Multi-layered leaf springs with 4 Main springs+4 U Bolts
Axles	Brand	HANDE
	Front axle	9.5T front axle MAN technology
	Rear axle	16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92
Tires	Type	12.00R20
Fuel tank	Tank capacity/(L)	300L Aluminum tank
Electrics	Type	24V
Electrics	Battery	165Ah Maintenance-free battery
Cab	Type	SHACMAN H3000 Standard cab
Cab	Equipment	Hydraulic main seat, four-point hydraulic suspension cab, lever rearview mirror, electric air conditioner, electric window shaker, 165Ah Maintenance-free battery, SHACMAN logo, full English logo.

Overview
The SHACMAN X3000 Dumper Truck series offers versatility and power with a choice of 6x4 and 8x4 configurations and engine options ranging from 380Hp to 430Hp. These trucks are designed to handle heavy-duty hauling and are ideal for a wide range of construction and transport applications, making them a reliable choice for demanding workloads

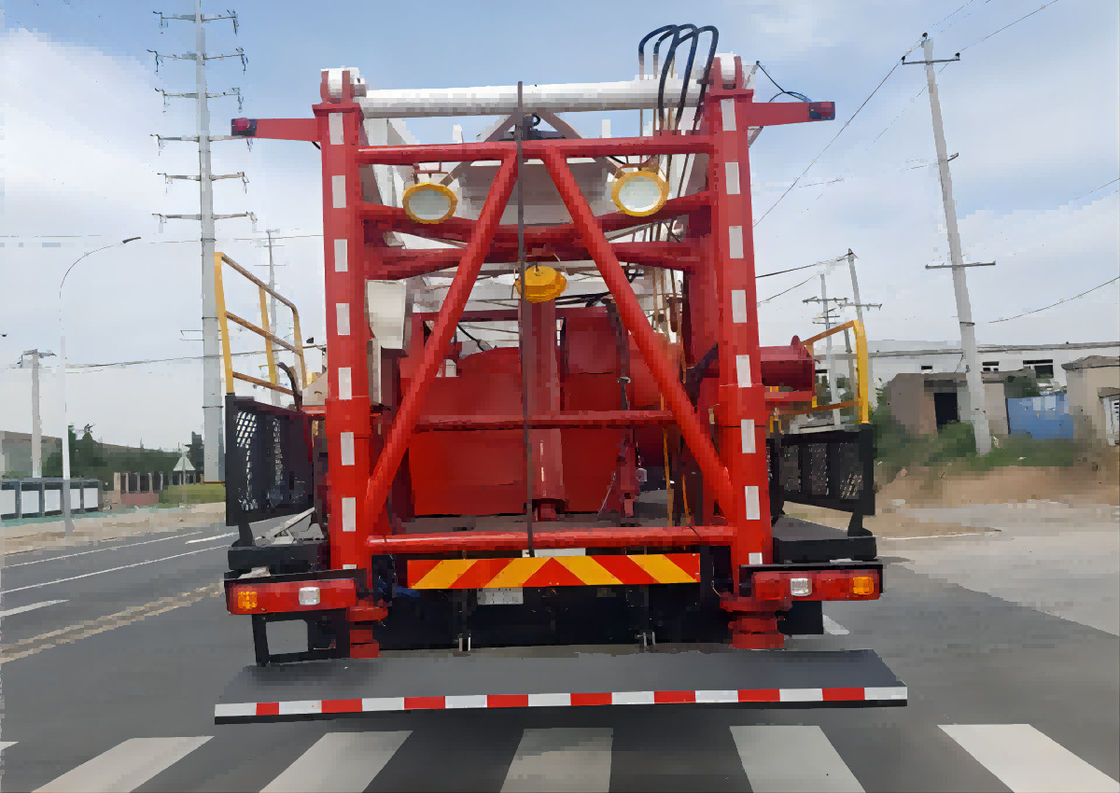

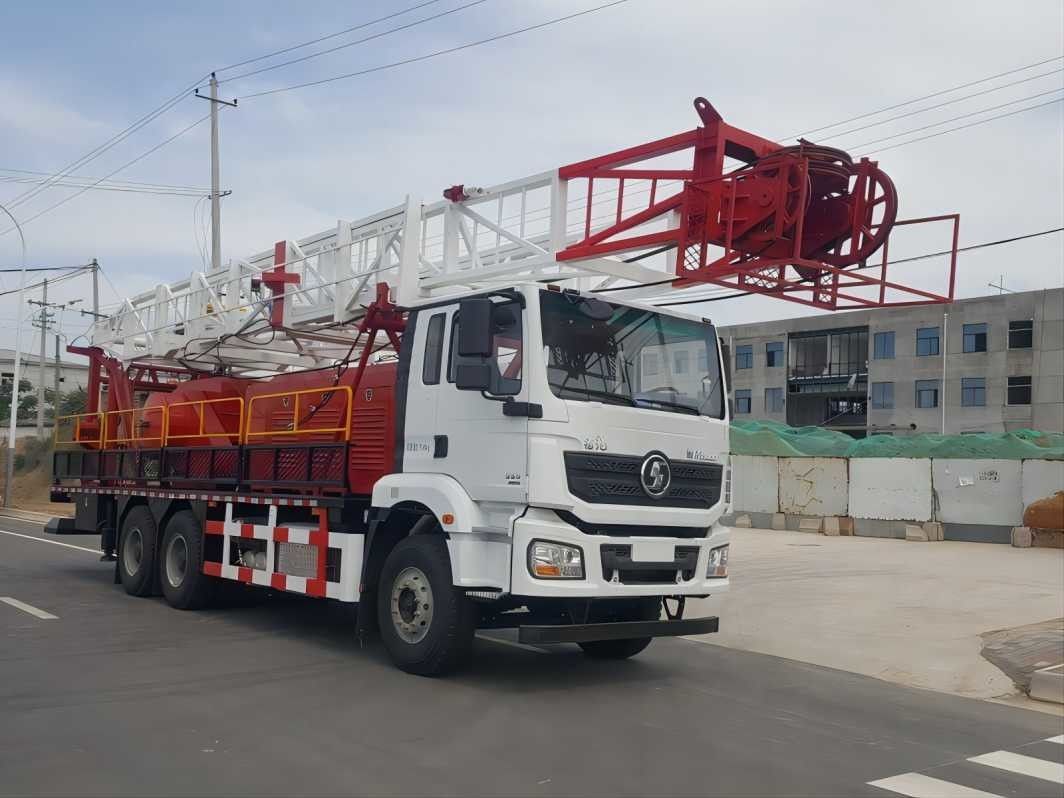

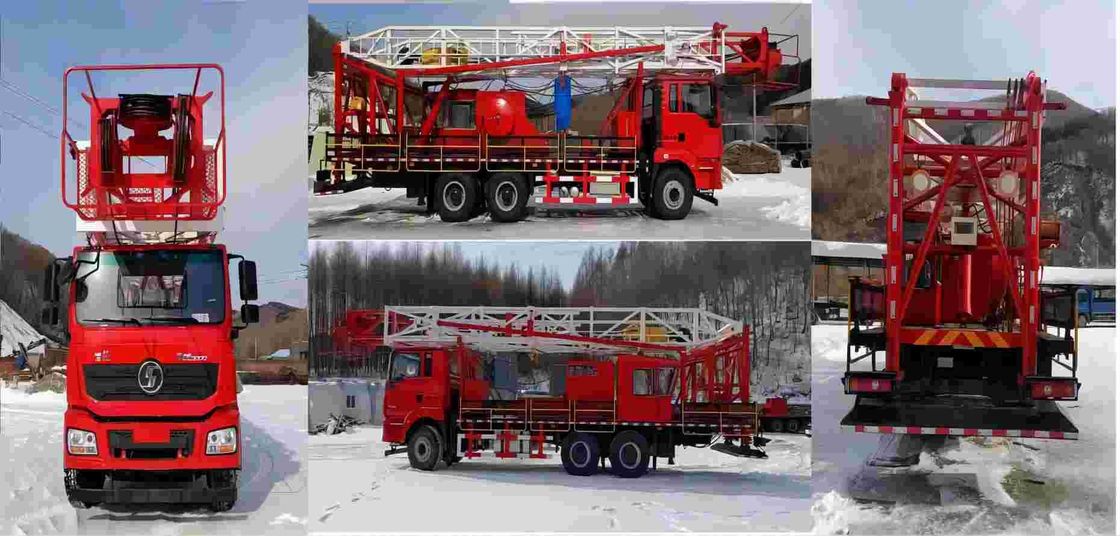

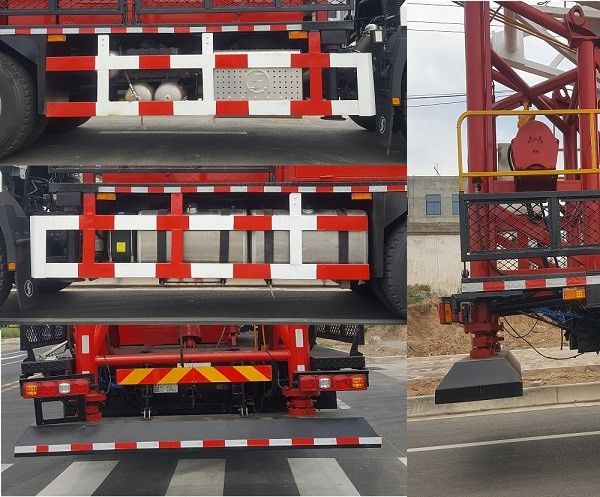

Detailed Image

SHACMAN H3000 Oil Drilling Truck 6x4 380HP EuroII White 50Ton Oil Rig Moving Trucks 0

FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.

3.What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.

4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
