SQZ10000 Folding Boom Crane Truck SHACMAN 10x4 450HP EuroII

Basic Information
Place of Origin: Shaanxi,Xian
Brand Name: SHACMAN
Certification: ISO9001/CCC
Model Number: X3000
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude pack, with wax before shipment.
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 1000 units/month
Detail Information
Modle: SX5185GXFDT434 Engine: WP12.450E50
Transmission: 12JSD200T-B+QH50 Flange Extractor Axle: 7.5T/2*13 Single Stage Axle, Axle Speed-5.262
Tire: 12.00R20 Fuel Tank: 300L
Clutch: φ430 Diaphragm Spring Clutch Air Inlet: Ordinary Air Filter
Chassis: 850×300(8+7+8) Suspension: Front /rear Multi-layer Plate Spring 2 Main Plates + 2 U-shaped Bolts
Cabin: Medium-length Flat Top Color: Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy
Highlight:

H3000 Fire Rescue Truck

,

Fire Rescue Truck SHACMAN

,

SHACMAN Water Tank Fire Fighting Truck


Product Description

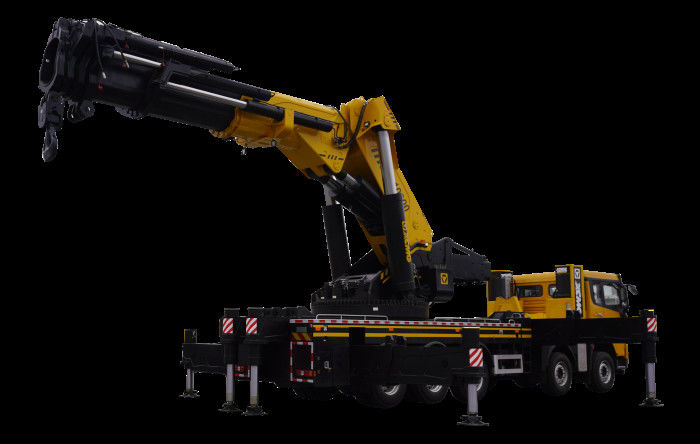

XCMG SQZ10000 Folding Boom Crane



Item                                                Parameter
Maximum lifting moment                1000t-m
Maximum lifting mass                     220000kg
Max. hydraulic boom length           17.2m
Maximum lifting height                    19.2m
Slewing angle                                  360°total rotation
Outrigger span                                7800mm


SQZ10000 Folding Boom Crane

Boom: five-section telescopic boom, four-section double push, with stronger lifting capacity and telescopic capacity with load, cushioning sequential outstretching cylinders, sequential outstretching more reliably, telescopic more ...
Maximum lifting mass: 220000kg
Maximum hydraulic boom length: 17.2m
Maximum lifting height: 19.2m



Product Selling Points



1. Boom: five-section telescopic boom, four-section double push, with stronger lifting capacity and loaded telescopic capacity, cushioning sequential outstretched cylinders, more reliable sequential outstretched, smoother and smoother telescopic, convenient and precise operation.

2,Balanced counterweight mechanism: quick dismounting counterweight mechanism, dismounting can reduce the slewing space, retrofitting can improve the stability of the whole vehicle, enhance the lifting performance; maximum 45t with the turntable activities of the balanced counterweight, can be self-loading and self-unloading, simple and fast.

3, slewing mechanism: three high-torque reducers, slewing power, and braking effect are good, to ensure that the slewing more stable, safer operation.

4,Dismounting structure: more powerful integrated square box frame + 6 legs structure, so that the crane has a strong all-round operation ability; can achieve the maximum side lifting 160t.

5,Hydraulic system: Load-sensitive proportional control system, with good micro-motion and linkage, convenient for equipment positioning and installation; Extension arm adopts differential system, more efficient; Adopt XCMG's special wide-temperature hydraulic oil (-23℃~88℃), which can be used in winter and summer.

6,Electrical system: Equipped with force limitation system, anti-tipping control system, operation warning system, night lighting system and wireless remote control, which improves operation safety and manoeuvring comfort;

7, the whole vehicle: the whole vehicle is lightweight design, lightweight, does not exceed the limit, in full compliance with regulatory requirements; short body, turning radius is small, is conducive to the movement of small space; low height, can be free to enter and exit all kinds of workshops and plants.

Translated with www.DeepL.com/Translator (free version)
