Place of Origin: | Shaanxi,Xian |
---|---|
Brand Name: | SHACMAN |
Certification: | ISO9001/CCC |
Model Number: | H3000 |
Minimum Order Quantity: | 1 |
Price: | Negotiation |
Packaging Details: | Nude pack, with wax before shipment. |
Delivery Time: | 45 working days |
Payment Terms: | T/T, L/C |
Supply Ability: | 5000 units/month |
Modle: | SX5255GXWDT434 | Engine: | WP10.380E22 |
---|---|---|---|
Transmission: | RTD-11509C+QH50 Flange Extractor | Axle: | 7.5T/2*13 Single Stage Axle, Axle Speed-5.262 |
Wheel Base: | 4375+1400 Mm | Tire: | 12.00R20 |
Fuel Tank: | 300L | Clutch: | φ430 Diaphragm Spring Clutch |
Air Inlet: | Ordinary Air Filter | Chassis: | 850×300(8+5) |
Suspension: | Front /rear Multi-layer Plate Spring 2 Main Plates + 2 U-shaped Bolts | Cabin: | Medium-length Flat Top |
Color: | Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy | ||
Highlight: | X3000 Special Trucks,6x6 Sewage Suction Truck,Shacman Sewage Suction Truck |
Shacman X3000 6x6 10 Wheels Suction Truck Payload Capacity 380HP For Sale 70 Ton
Detailed Product Description
Model: SX5255GXWDT434
Drive type: 6x6
Weight: Gross Vehicle Weight≤70
Engine Brand: WEICHAI
Engine Model: WP10.380E22
Engine Power/(kw/HP): 279kw / 380Hp
Gear box Brand: FAST
Gear box Model: RTD-11509C+QH50 flange extractor
Suction Truck parameters
Model | SX5255GXWDT434 | |
Drive type | 6x6 | |
Weight | Gross Vehicle Weight | ≤70 |
Dimensions | Wheelbase/(mm) | 1800+3575+1400 |
Performance | Maximum speed/(km/h) | 45~60/85 |
Ground clearance | >314 | |
Engine | Brand | WEICHAI |
Model | WP10.380E22 | |
Power/(kw/HP) | 279kw / 380Hp | |
Maximum torque / (N.M)/rpm | 1600 N·M | |
Displacement/(L) | 9.726 L | |
Emission standard | Euro II | |
Gear box | Brand | FAST |
Model | RTD-11509C+QH50 flange extractor | |
Clutch | Type | φ430 Diaphragm spring clutch |
Cooling | Type | Domestic heat sink |
Air inlet | Type | Ordinary air filter |
Brakes | Type | Drum brake |
Service brake | Double circuit air brake | |
Park brake | Rear wheel spring brake | |
Auxiliary brake | WEVB engine exhaust brake | |
Steering | Type | ZF8098 technology, circulating ball steering machine |
Chassis | Type | Parallel trapezoidal frame with variable section |
Dimensions/(mm) | 850×300(8+5) | |
Suspension | Front | Multi-layered leaf springs with 2 Main springs+2 U Bolts |
Rear | Multi-layered leaf springs with 2 Main springs+2 U Bolts | |
Axles | Brand | HANDE |
Front axle | 7.5T front axle MAN technology | |
Rear axle | 13T MAN Single Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.262 | |
Tires | Type | 12.00R20 |
Fuel tank | Tank capacity/(L) | 300L Aluminum tank |
Electrics | Type | 24V |
Battery | 165Ah Maintenance-free battery | |
Cab | Type | SHACMAN H3000 Medium-length flat cab |
Equipment | Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo. |
Overview
Impressive Payload Capacity: With a 70-ton payload capacity, this suction truck is capable of handling substantial loads of liquid or debris, making it suitable for demanding waste management or sewage removal tasks.
6x6 Off-Road Capability: The 6x6 configuration, with six driven wheels, offers excellent off-road capabilities. This is advantageous when accessing remote or challenging terrain, which is often the case in waste management operations.
High-Powered Engine: Equipped with a 380HP engine, the truck can provide the necessary power to operate the suction system effectively, ensuring efficient waste or liquid removal.

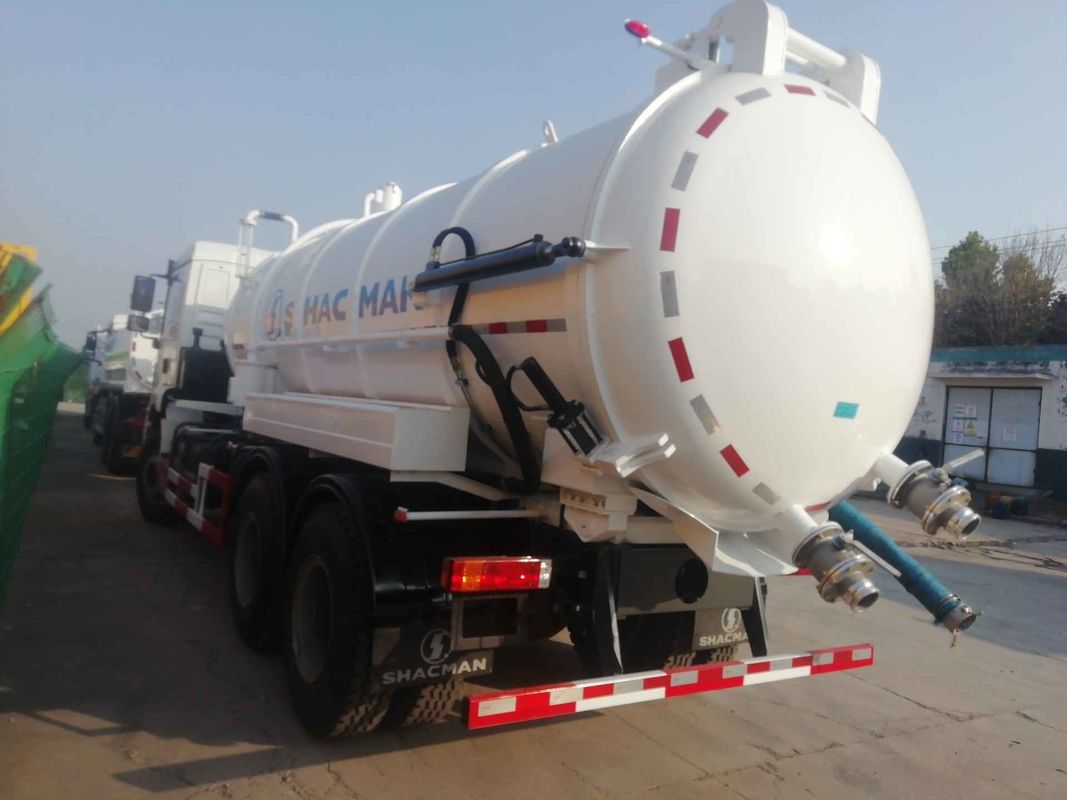

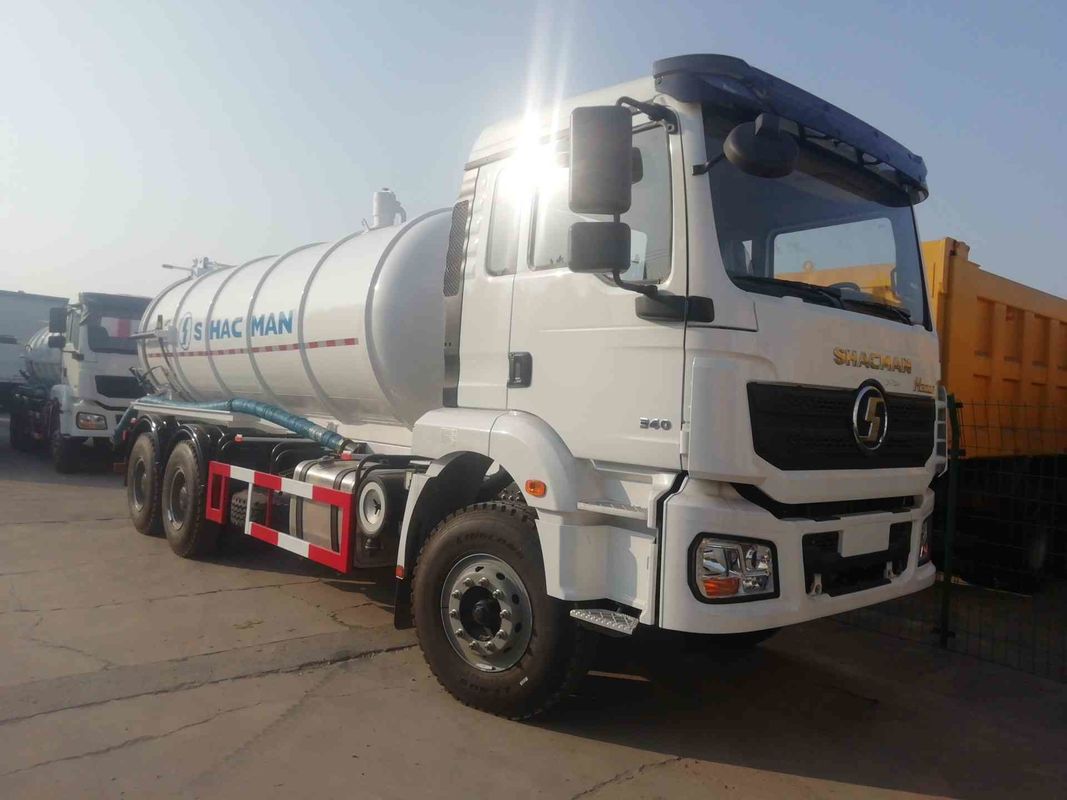

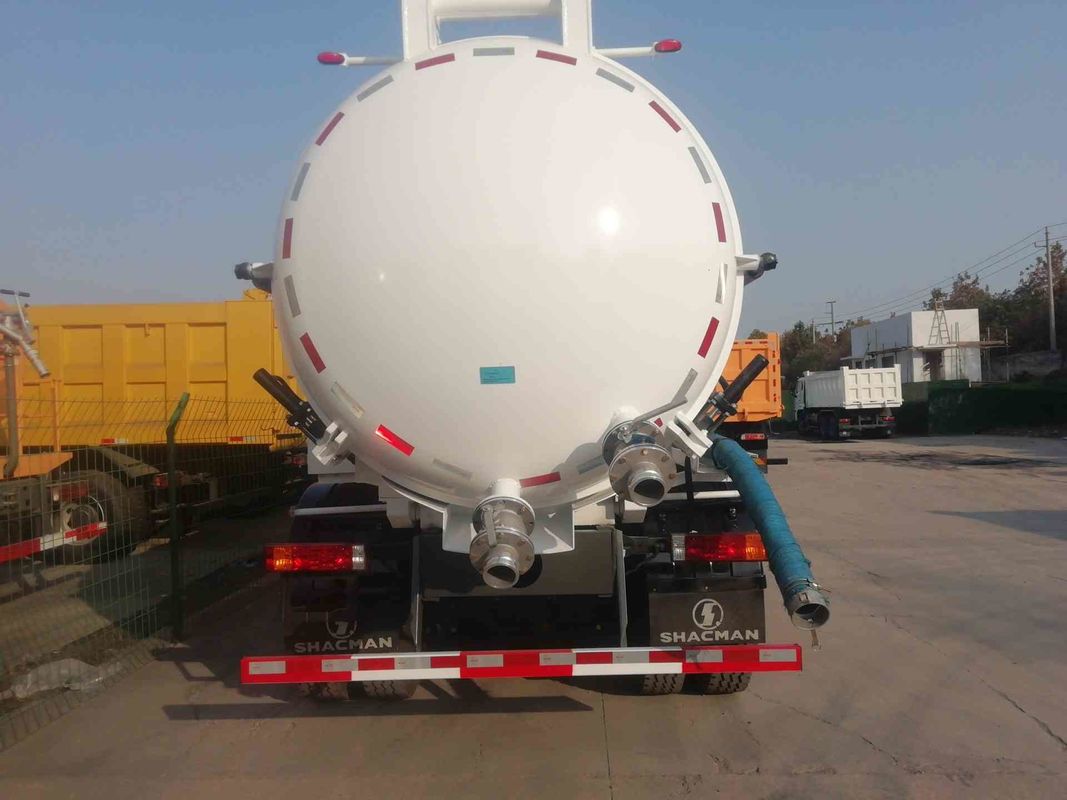

Detailed Image
FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3.What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.
4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
