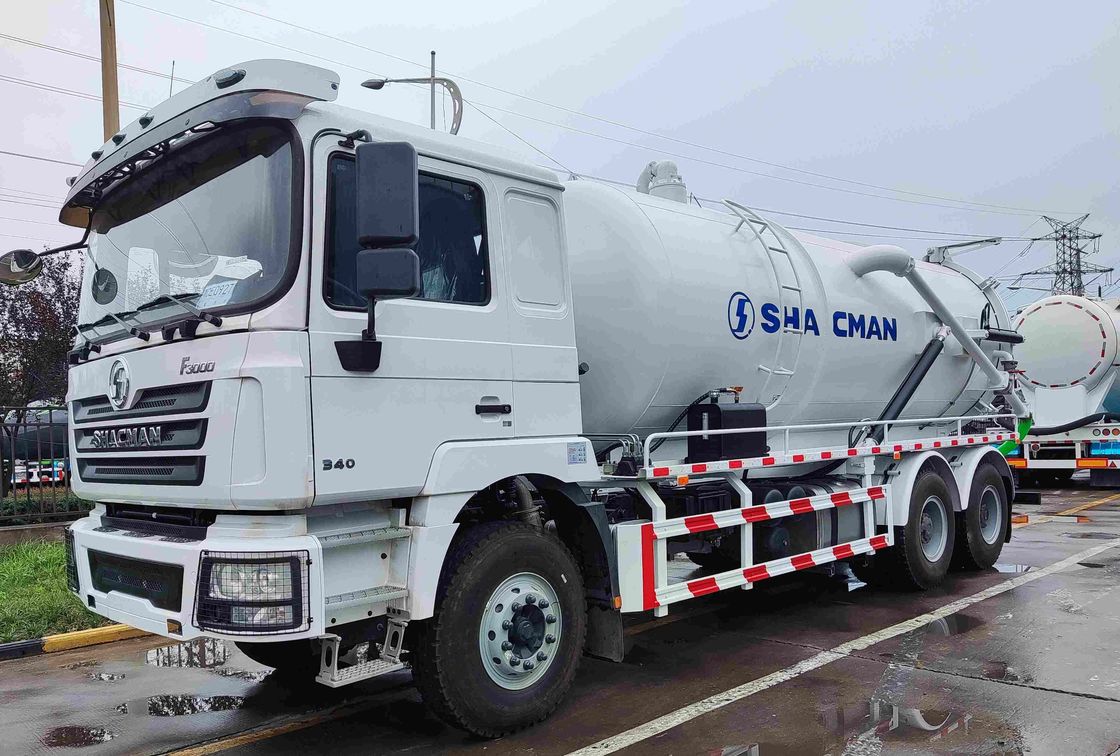

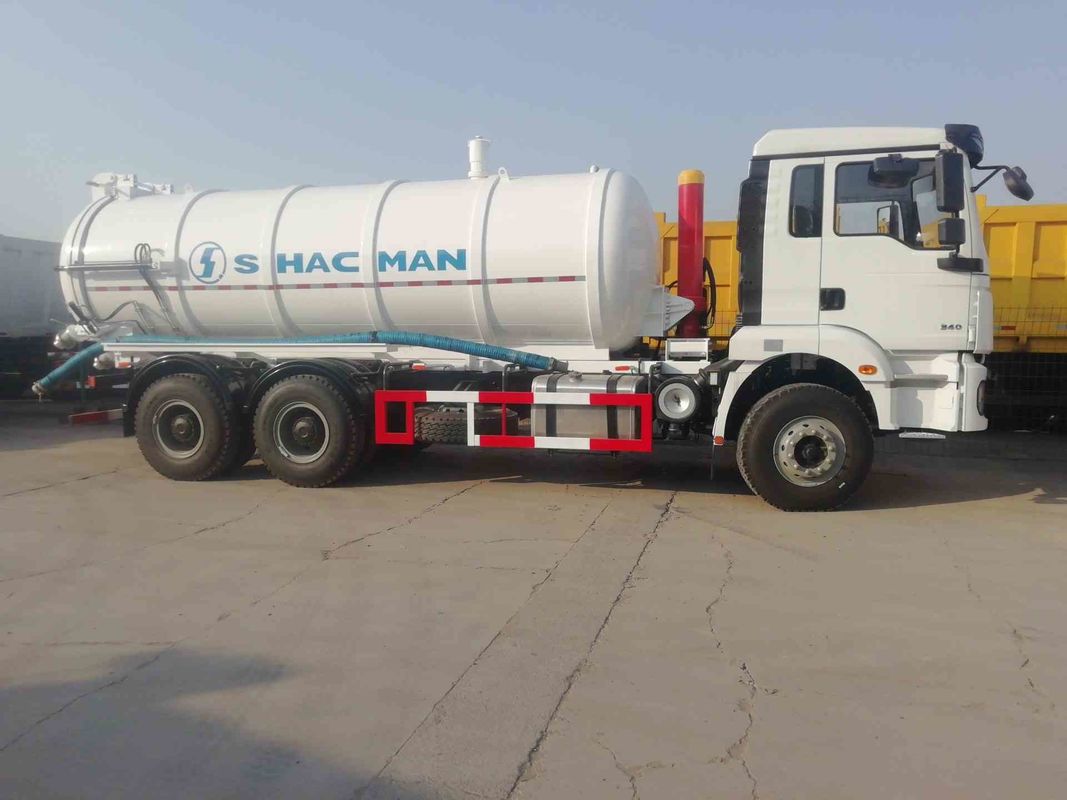

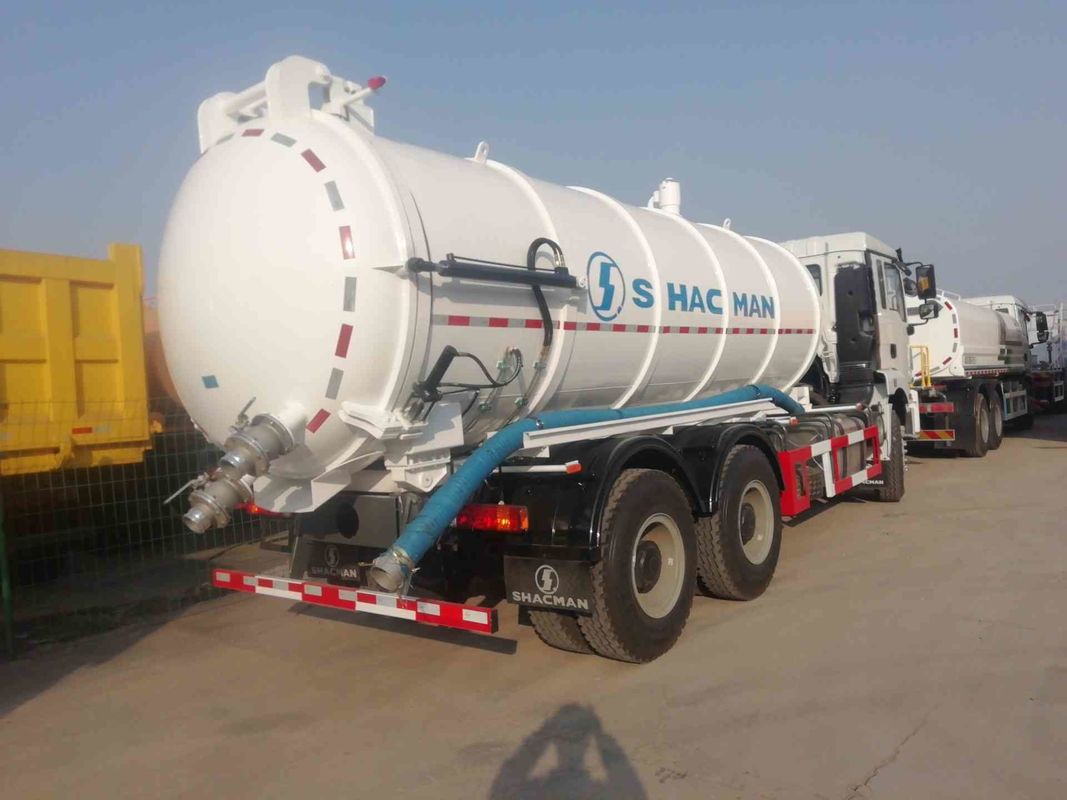

50T SHACMAN F3000 Vacuum Sewage Suction truck 6x6 380HP Euro V White
Detailed Product Description
Model: SX5255GXWDT434
Drive type: 6x4
Weight: Gross Vehicle Weight≤50
Engine Brand: WEICHAI
Engine Model: WP10.380E22
Engine Power/(kw/HP): 280kW / 380Hp
Gear box Brand: FAST
Gear box Model: RTD-11509C+QH50 flange extractor
Suction Truck parameters
| Model |
SX5255GXWDT434 |
| Drive type |
6x4 |
| Weight |
Gross Vehicle Weight |
≤50 |
| Dimensions |
Wheelbase/(mm) |
4600 |
| Performance |
Maximum speed/(km/h) |
50～65/90 |
| Ground clearance |
>314 |
| Engine |
Brand |
WEICHAI |
| Model |
WP10.380E22 |
| Power/(kw/HP) |
280kW / 380Hp |
| Maximum torque / (N.M)/rpm |
1550 N·M |
| Displacement/(L) |
9.726 L |
| Emission standard |
Euro/ II |
| Gear box |
Brand |
FAST |
| Model |
RTD-11509C+QH50 flange extractor |
| Clutch |
Type |
φ430 Diaphragm spring clutch |
| Cooling |
Type |
Domestic heat sink |
| Air inlet |
Type |
Ordinary air filter |
| Brakes |
Type |
Drum brake |
| Service brake |
Double circuit air brake |
| Park brake |
Rear wheel spring brake |
| Auxiliary brake |
WEVB engine exhaust brake |
| Steering |
Type |
ZF8098 technology, circulating ball steering machine |
| Chassis |
Type |
Parallel trapezoidal frame with variable section |
| Dimensions/(mm) |
850×300(8+5) |
| Suspension |
Front |
Multi-layer plate spring 2 main plates + 2 U-shaped bolts |
| Rear |
Multi-layer plate spring 2 main plates + 2 U-shaped bolts |
| Axles |
Brand |
HANDE |
| Front axle |
7.5T front axle MAN technology |
| Rear axle |
13T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.262 |
| Tires |
Type |
12.00R20 |
| Fuel tank |
Tank capacity/(L) |
300L Aluminum tank |
| Electrics |
Type |
24V |
| Battery |
165Ah Maintenance-free battery |
| Cab |
Type |
SHACMAN F3000 Medium-length flat cab |
| Equipment |
Hydraulic main seat, four-point hydraulic suspension cab, manual window crank, ordinary rear-view mirror, F3000 cooling system, square muffler, 165Ah maintenance-free battery, SHACMAN logo, full English logo. |
Overview
Model and Specifications: This is the SHACMAN F3000 model, designed for vacuum sewage suction operations. It is a 6x6 truck, meaning it has six wheels with power to all of them. It features a powerful 375HP engine, which should provide ample performance for its intended purpose. Additionally, it meets Euro V emissions standards, which indicates it has relatively low emissions and adheres to environmental regulations.
Function: As a vacuum sewage suction truck, its primary purpose is to suction and transport sewage or wastewater from various sources, such as septic tanks, sewers, or other sanitation systems. These trucks play a crucial role in maintaining sanitation and cleanliness in urban and rural areas.
