6x4 F3000 Fuel Oil Truck 340Hp Euro II Red SHACMAN Oil Container Truck

6x4 F3000 Fuel Oil Truck 340Hp Euro II Red SHACMAN Oil Container Truck

F3000 6x4 Fuel Oil Truck

Fuel Oil Truck 340Hp Euro II

SHACMAN Oil Container Truck

Place of Origin:

Shaanxi,Xian

Brand Name:

SHACMAN

Certification:

ISO 9001/CCC

Model Number:

F3000

Contact Us
Request A Quote
Product Details
Modle:
SX5255GYYDR434
Engine:
W10.340E22
Transmission:
10JSD180 With QH50 Flange Extractor
Axle:
7.5T/2*13 Double Stage Axle, Axle Speed-5.262
Wheel Base:
4375+1400mm
Tire:
12.00R20
Fuel Tank:
300L
Clutch:
φ430 Diaphragm Spring Clutch
Air Inlet:
Ordinary Air Filter
Chassis:
850×300(8+5)
Suspension:
Front /rear Multi-layer Plate Spring 2 Main Plates + 2 U-shaped Bolts
Cabin:
Medium-length Flat Roof
Color:
Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy
Highlight:

F3000 6x4 Fuel Oil Truck

,

Fuel Oil Truck 340Hp Euro II

,

SHACMAN Oil Container Truck

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
Nude pack, with wax before shipment.
Delivery Time
45 working days
Payment Terms
T/T
Supply Ability
5000 units/month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
SHACMAN F3000 6x4 Oil Truck 340Hp Euro II Red
Detailed Product Description

Model:SX5255GYYDR434
Drive type:6x4
Engine Brand: WEICHAI
Engine Model: WP10.340E22
Engine Power/(kw/HP): 250kw / 340Hp
Gear box Brand: FAST
Gear box Model: RTD-11509C with QH50 flange extractor



Oil Truck Parameters

Model SX5255GYYDR434
Drive type 6x4
Weight Gross Vehicle Weight ≤40
Dimensions Wheelbase/(mm) 4375+1400
Performance Maximum speed/(km/h) 50~70/90
Ground clearance >314
Engine Brand WEICHAI
Model WP10.340E22
Power/(kw/HP) 250kw / 340Hp
Maximum torque / (N.M)/rpm 1400 N·M
Displacement/(L) 9.726 L
Emission standard Euro/ II
Gear box Brand FAST
Model 10JSD180 with QH50 flange extractor
Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) 850×300(8+5)
Suspension Front Front /rear multi-layer plate spring 2 main plates + 2 U-shaped bolts
Rear Front /rear multi-layer plate spring 2 main plates + 2 U-shaped bolts
Axles Brand HANDE
Front axle 7.5T front axle MAN technology
Rear axle 13T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.262
Tires Type 12.00R20
Fuel tank Tank capacity/(L) 300L Aluminum tank
Electrics Type 24V
Battery 165Ah Maintenance-free battery
Cab Type SHACMAN F3000 medium-length flat roof cab
Equipment Hydraulic main seat, four-point hydraulic suspension cab, manual window crank, ordinary rear-view mirror, square muffler, 165Ah maintenance-free battery, SHACMAN logo, full English logo

Overview

  1. Safety and Technology: Depending on the specific model and features, the truck may incorporate safety technologies such as anti-lock braking systems (ABS), airbags, and modern driver assistance features.
  2. Oil Transportation: The SHACMAN L3000 4x2 Oil Truck is purpose-built for transporting oil and fuel. It is equipped with features that ensure safe loading, transportation, and unloading of these valuable resources.
  3. Durability and Reliability: Built to meet the demands of commercial use, the vehicle is designed to be durable and reliable. This is important for maintaining consistent and efficient oil transportation operations.

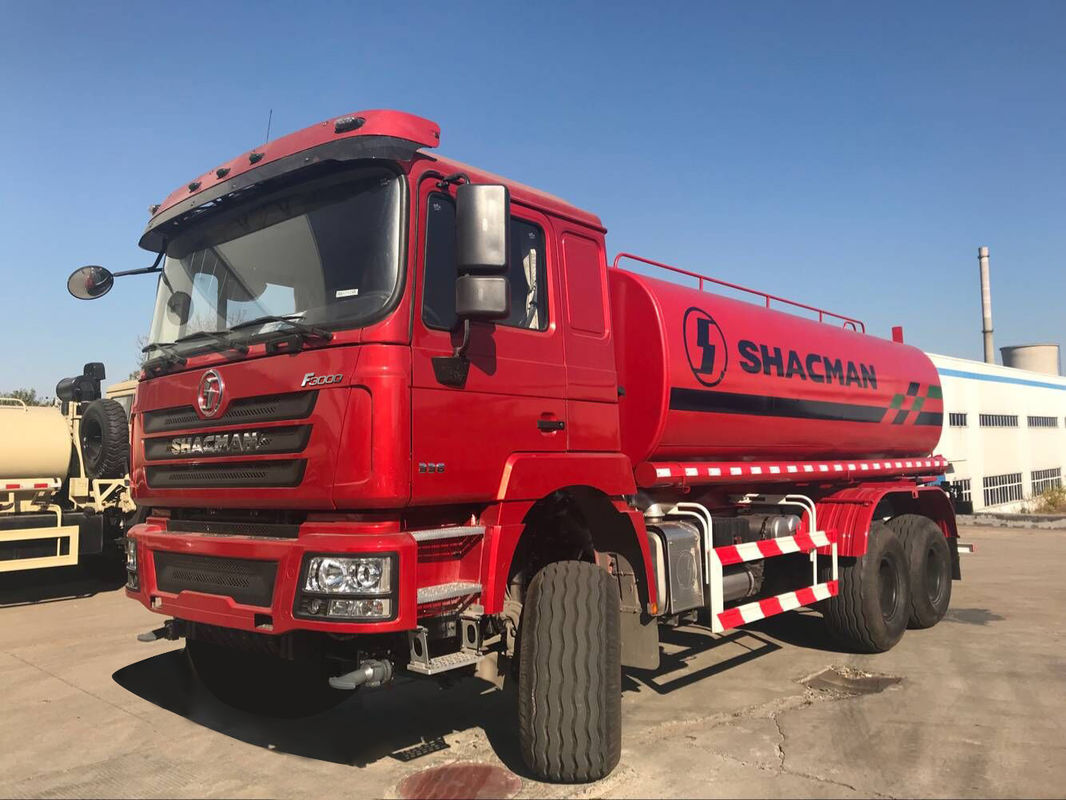

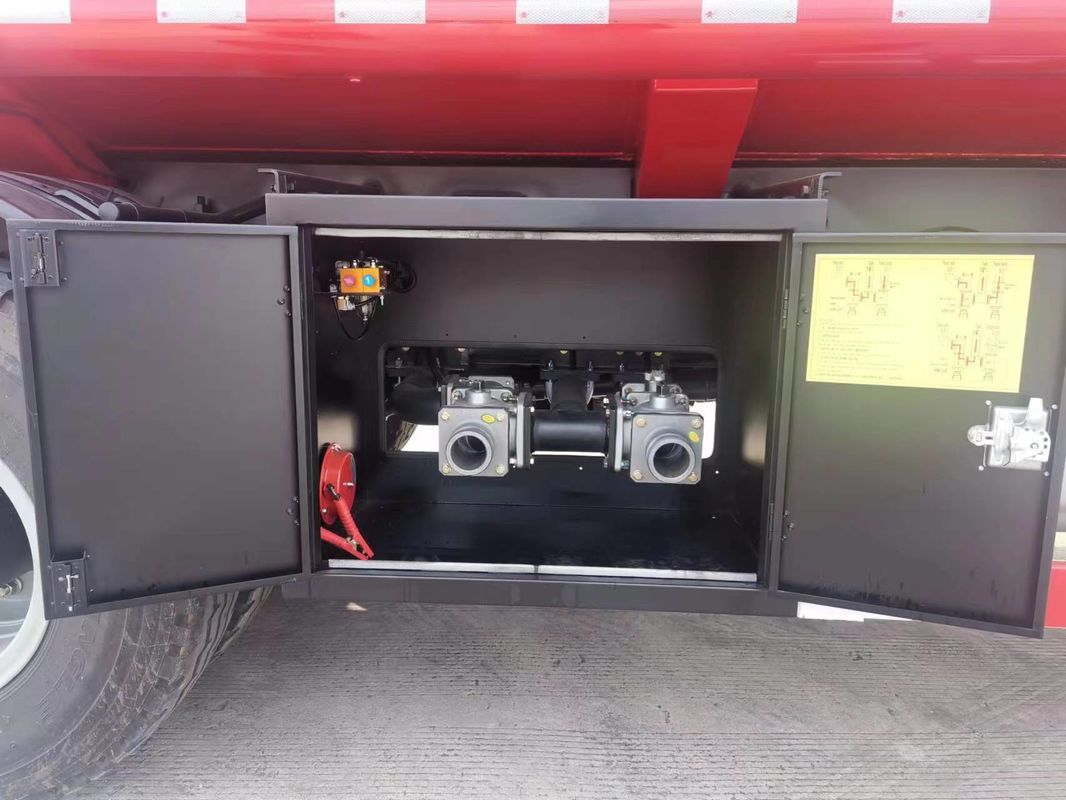

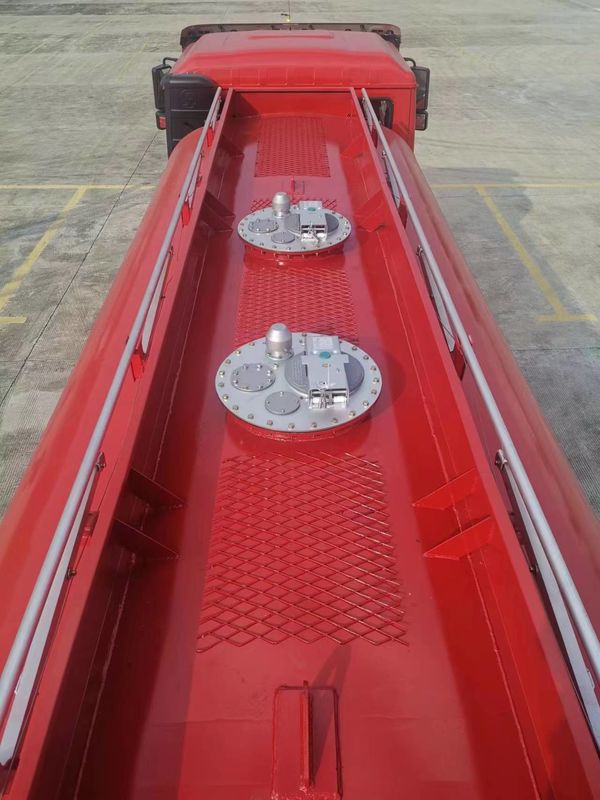

Detailed Image

6x4 F3000 Fuel Oil Truck 340Hp Euro II Red SHACMAN Oil Container Truck 0



FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.

3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.

4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
