H3000 SHACMAN Water Truck 4x2 1000 Gallon Water Truck 300hp Euro II White

Basic Information
Place of Origin: Shaanxi,Xian
Brand Name: SHACMAN
Certification: ISO 9001/CCC
Model Number: H3000
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude pack, with wax before shipment.
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 5000UNITS
Detail Information
Modle: SX5185GSSMN461 Engine: WP10.300E22
Transmission: RTD-11509C With QH50 Flange Extractor Axle: 7.5T/2*13 Double Stage Axle, Axle Speed-5.262
Wheel Base: 4600mm Tire: 12.00R20
Fuel Tank: 300L Clutch: φ430 Diaphragm Spring Clutch
Air Inlet: Ordinary Air Filter Chassis: 850×270 (8+4)
Suspension: Front /rear Multi-layer Plate Spring Cabin: H3000 Standard Cabin
Color: Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy
Highlight:

H3000 Shacman Water Truck

,

Shacman Water Truck 4x2

,

1000 Gallon Water Truck 300hp


Product Description

SHACMAN H3000 4x2 Water Truck 300Hp Euro II White



Detailed Product Description
Model:SX5185GSSMN461
Drive type:4x2
Weight: Gross Vehicle Weight≤20
Engine Brand: WEICHAI
Engine Model:WP10.300E22
Engine Power/(kw/HP): 220kw /300Hp
Gear box Brand: FAST
Gear box Model:RTD-11509C with QH50 flange extractor



Water Tank Truck Parameters

Model SX5185GSSMN461
Drive type 4x2
Weight Gross Vehicle Weight ≤20
Dimensions Wheelbase/(mm) 4600
Performance Maximum speed/(km/h) 50~70/90
Ground clearance >314
Engine Brand WEICHAI
Model WP10.300E22
Power/(kw/HP) 220w / 300Hp
Maximum torque / (N.M)/rpm 1240 N·M
Displacement/(L) 9.726 L
Emission standard Euro/ II
Gear box Brand FAST
Model RTD-11509C with QH50 flange extractor
Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) 850×270 (8+4)
Suspension Front Multi-layer plate spring
Rear Multi-layer plate spring
Axles Brand HANDE
Front axle MAN 7.5T
Rear axle 2*13 double stage axle, Axle speed-5.262
Tires Type 12.00R20
Fuel tank Tank capacity/(L) 300L Aluminum
Electrics Type 24V
Battery 165Ah Maintenance-free battery
Cab Type SHACMAN H3000 standard cabin
Equipment Hydraulic main seat, four-point hydraulic suspension cab, electronically controlled automatic constant temperature air conditioner, electric window crank, 165Ah maintenance-free battery, SHACMAN logo, full English logo.



Advantages

  • Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction.
  • The SHACMAN F3000 Water Tank Truck mainly used for city road cleaning, water and green trees, green belts, lawn, as well as the construction site dust float in the sky.Can also be used for drinking water, fire, etc.
  • The truck offers customizable tank option



Detailed Image

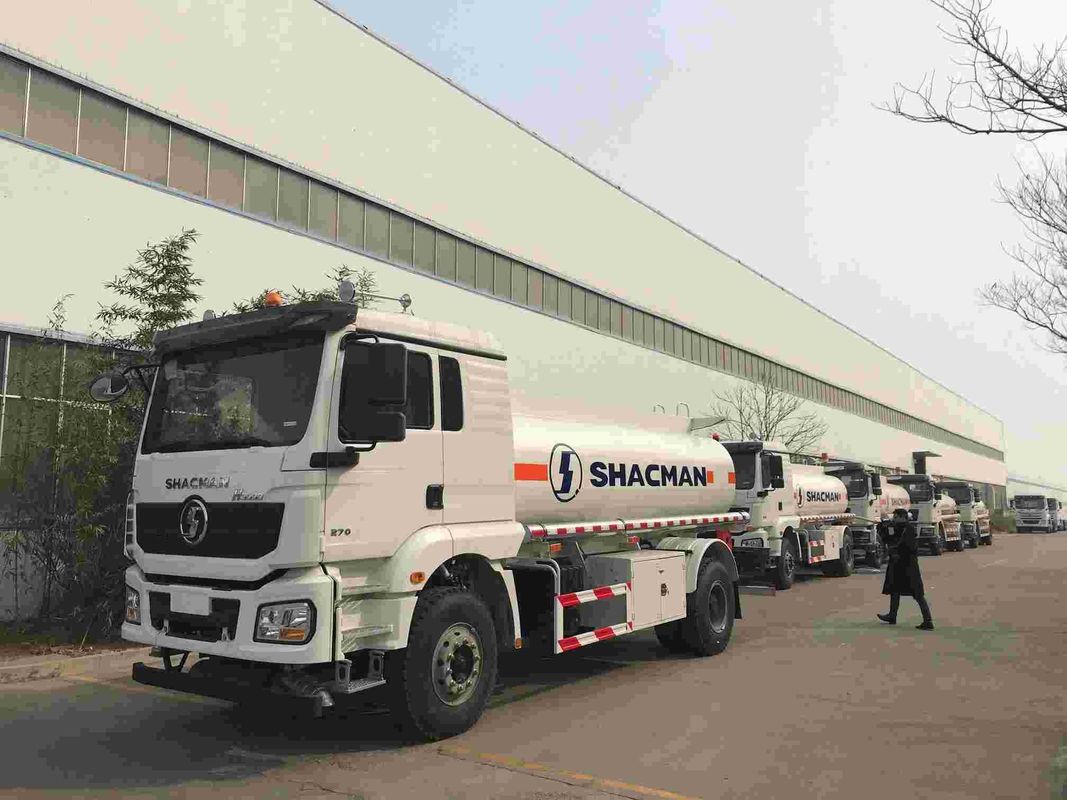

H3000 SHACMAN Water Truck 4x2 1000 Gallon Water Truck 300hp Euro II White 0



FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.

3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.

4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
