| Place of Origin: | Shaanxi,Xian |
|---|---|
| Brand Name: | SHACMAN |
| Certification: | ISO9001/CCC |
| Model Number: | F3000 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude pack, with wax before shipment. |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 units/month |
| Modle: | SX1258DR564 | Engine: | WP12.366E53 |
|---|---|---|---|
| Transmission: | 10JSD180 | Axle: | 7.5T/2*13 Double Stage Axle， Axle Speed-4.769 |
| Wheel Base: | 5575+1400 Mm | Tire: | 12.00R20 |
| Fuel Tank: | 400L | Clutch: | φ430 Diaphragm Spring Clutch |
| Air Inlet: | Ordinary Air Filter | Chassis: | 850×300（8+5） |
| Suspension: | Front /rear Multi-layer Plate Spring 2 Main Plates + 2 U-shaped Bolts | Cabin: | Medium-length Flat Top |
| Color: | Neon Red/Mountain Green/Starry Blue/Aurora White/Klein Blue/Burgundy | ||
| Highlight: | Shacman F3000 35 Ton Truck,35 Ton Truck 6x4 WEICHAI,336Hp Euro V White Cargo Truck |
||
SHACMAN 35t F3000 Lorry truck 6x4 WEICHAI 336Hp Euro V White Cargo Truck
Detailed Product Description
Model: SX1258DR564
Drive type: 6x4
Weight: Gross Vehicle Weight≤50
Engine Brand: WEICHAI
Engine Model: WP12.336E53
Engine Power/(kw/HP): 247kw / 336Hp
Gear box Brand: FAST
Gear box Model: 10JSD180
Lorry Truck Parameters
| Model | SX1258DR564 | |
| Drive type | 6x4 | |
| Weight | Gross Vehicle Weight | ≤50 |
| Dimensions | Wheelbase/(mm) | 5575+1400 |
| Performance | Maximum speed/(km/h) | 50～65/90 |
| Ground clearance | >314 | |
| Engine | Brand | WEICHAI |
| Model | WP12.336E53 | |
| Power/(kw/HP) | 247kw / 336Hp | |
| Maximum torque / (N.M)/rpm | 1550 N·M | |
| Displacement/(L) | 9.726 L | |
| Emission standard | Euro V | |
| Gear box | Brand | FAST |
| Model | 10JSD180 | |
| Clutch | Type | φ430 Diaphragm spring clutch |
| Cooling | Type | Domestic heat sink |
| Air inlet | Type | Ordinary air filter |
| Brakes | Type | Drum brake |
| Service brake | Double circuit air brake | |
| Park brake | Rear wheel spring brake | |
| Auxiliary brake | WEVB engine exhaust brake | |
| Steering | Type | ZF8098 technology, circulating ball steering machine |
| Chassis | Type | Parallel trapezoidal frame with variable section |
| Dimensions/(mm) | 850×300(8+5) | |
| Suspension | Front | Multi-layered leaf springs with 2 Main springs+2 U Bolts |
| Rear | Multi-layered leaf springs with 2 Main springs+2 U Bolts | |
| Axles | Brand | HANDE |
| Front axle | 7.5T front axle MAN technology | |
| Rear axle | 13T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.769 | |
| Tires | Type | 12.00R20 |
| Fuel tank | Tank capacity/(L) | 400L Aluminum tank |
| Electrics | Type | 24V |
| Battery | 165Ah Maintenance-free battery | |
| Cab | Type | SHACMAN F3000 Medium-length flat top |
| Equipment | Hydraulic main seat, four-point hydraulic suspension cab, common rear view mirror, electric automatic thermostatic air conditioner, electric window crank, 165Ah maintenance-free battery, spare tire carrier, SHACMAN logo, full English logo. |
|
Overview
Lorry truck is a truck whose case can be raised at the front end in order to dump the contents out of the back.Dump trucks are often used to transport construction waste, sand, gravel, and other similar items.
Shakman dump truck has X3000, F3000, H3000, F2000, L3000 five series, to meet the needs of different customers. Available in a variety of configurations; From standard dump trucks to highly specialized vehicles, SHACMAN has everything you need.No matter what your job need, our professional staff will help you pick out the most suitable vehicle.

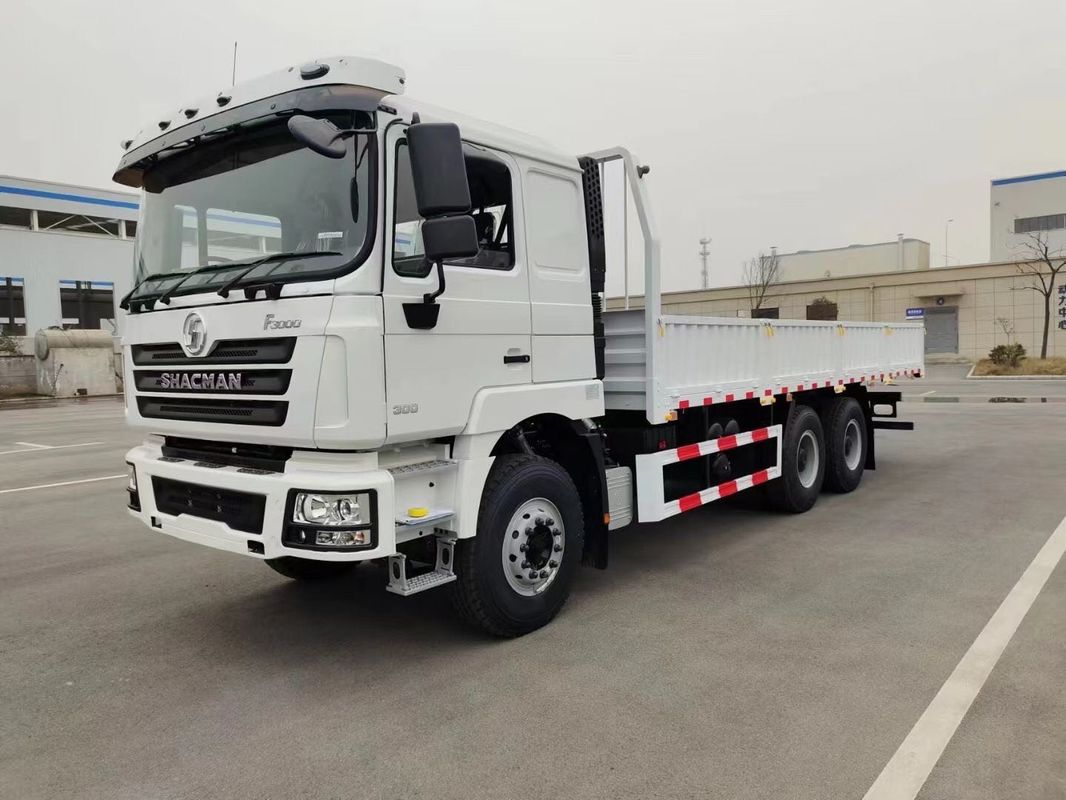

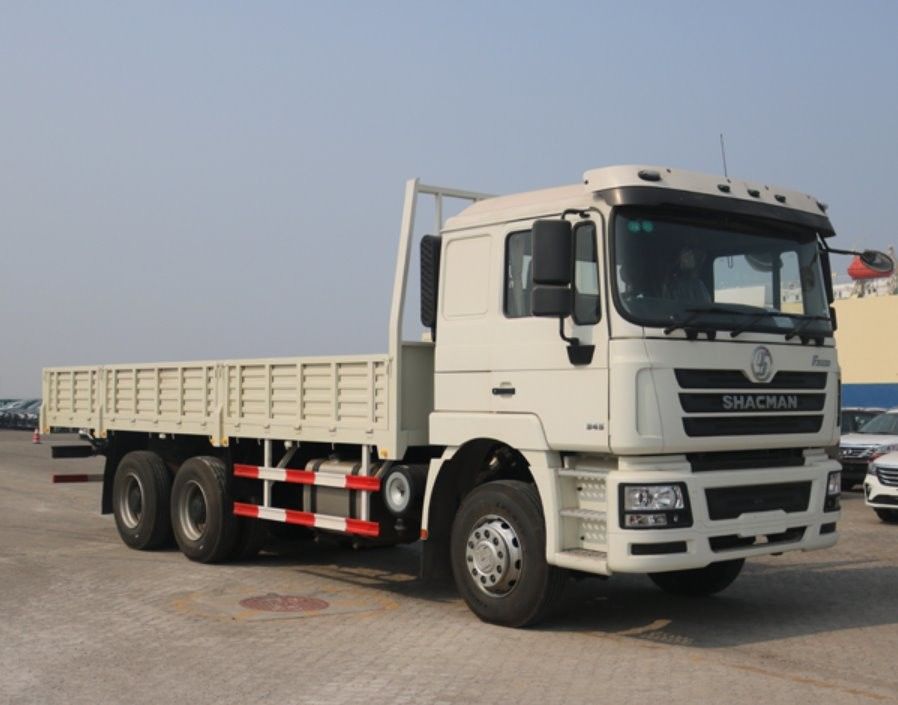

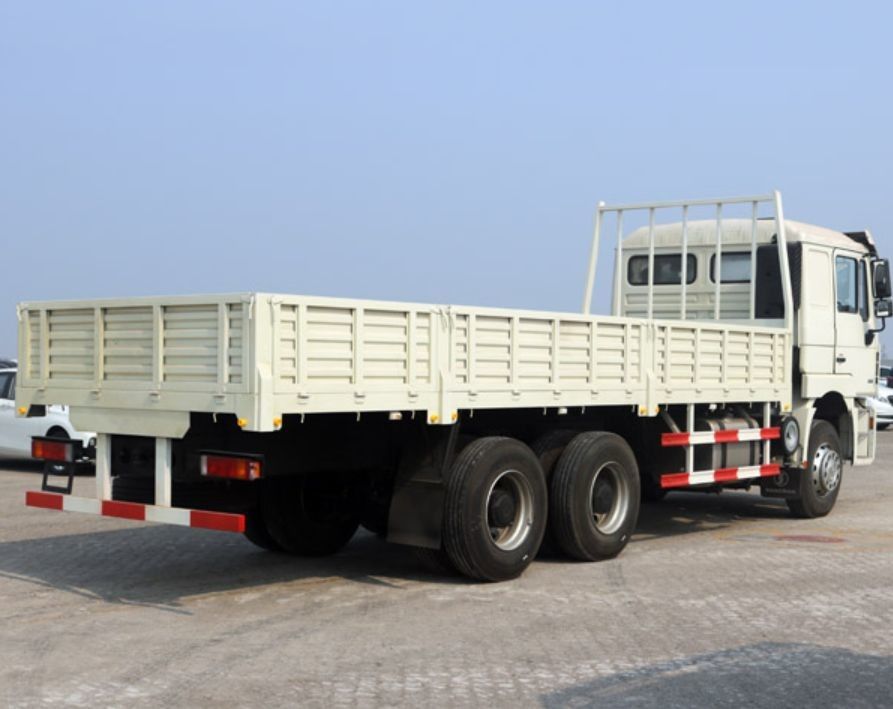

Detailed Image
FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.
4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
