F3000 6x4 Crane Truck SHACMAN Boom Truck 375hp Euro V White

Basic Information
Place of Origin: Shaanxi,Xian
Brand Name: SHACMAN
Certification: ISO 9001/CCC
Model Number: F3000
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude pack, with wax before shipment.
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 5000UNITS
Detail Information
Modle: SX5258JSQDT584 Engine: WP12.375E53
Transmission: RTD-11509C+QH50 Axle: 7.5T/2*16 Double Stage Axle, Axle Speed-4.769
Wheel Base: 5775+1400mm Tire: 12.00R20
Fuel Tank: 300L Clutch: φ430 Diaphragm Spring Clutch
Air Inlet: Ordinary Air Filter Chassis: 850×300(8+5+8)
Suspension: Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts Cabin: Low Roof Cab
Color: Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy

F3000 6x4 Crane Truck


6x4 Crane Truck Shacman


Boom Truck 375hp Euro V

Product Description

SHACMAN F3000 6x4 Crane Truck 375HP Euro V White


Detailed Product Description
Model: SX5258JSQDT584
Drive type: 6x4
Weight: Gross Vehicle Weight≤ 35
Engine Brand: WEICHAI
Engine Model: WP12.375E53
Engine Power/(kw/HP): 276kw / 3475Hp
Gear box Brand: FAST-RTD-11509C+QH50


Cargo Crane Truck Parameters

Model SX5258JSQDT584
Drive type 6x4
Weight Gross Vehicle Weight ≤35
Dimensions Wheelbase/(mm) 5775+1400
Performance Maximum speed/(km/h) 50~70/90
Ground clearance >314
Engine Brand WEICHAI
Model WP12.375E53
Power/(kw/HP) 276kw / 375Hp
Maximum torque / (N.M)/rpm 1650 N·M
Displacement/(L) 9.726 L
Emission standard Euro/ V
Gear box Brand FAST
Model RTD-11509C+QH50
Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) 850×300(8+5+8)
Suspension Front Multi-layer plate spring 4 main plates + 4 U-shaped bolts
Rear Multi-layer plate spring 4 main plates + 4 U-shaped bolts
Axles Brand HANDE
Front axle 7.5T front axle MAN technology
Rear axle 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.769
Tires Type 12.00R20
Fuel tank Tank capacity/(L) 300L Aluminum tank
Electrics Type 24V
Battery 165Ah Maintenance-free battery
Cab Type SHACMAN F3000 Medium-length flat cab
Equipment Hydraulic main seat, four-point hydraulic suspension cab, manual window crank, ordinary rear-view mirror,square muffler, 165Ah maintenance-free battery, SHACMAN logo, full English logo.




  • Crane adopts high-strength steel plate. Compared with traditional steelgrades,it has higher toughness, greatly improves the yield strength, and at the same time hasgood elongation performance, cold bending performance, welding performance and impactresistance.
  • Famous brand crane boom welding, column welding, frame welding, leg welding, floating bridgewelding are meticulous, superb and mature welding technology, one-time forming weldingmachine, the welding seam is neat and smooth, and the crane strength is higher.


Detailed Image

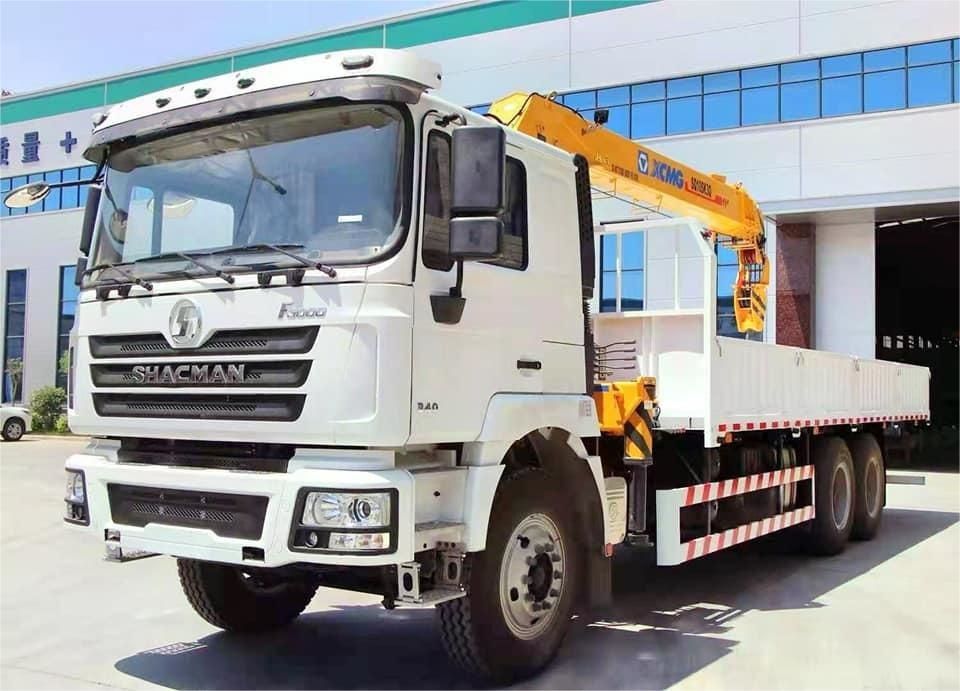

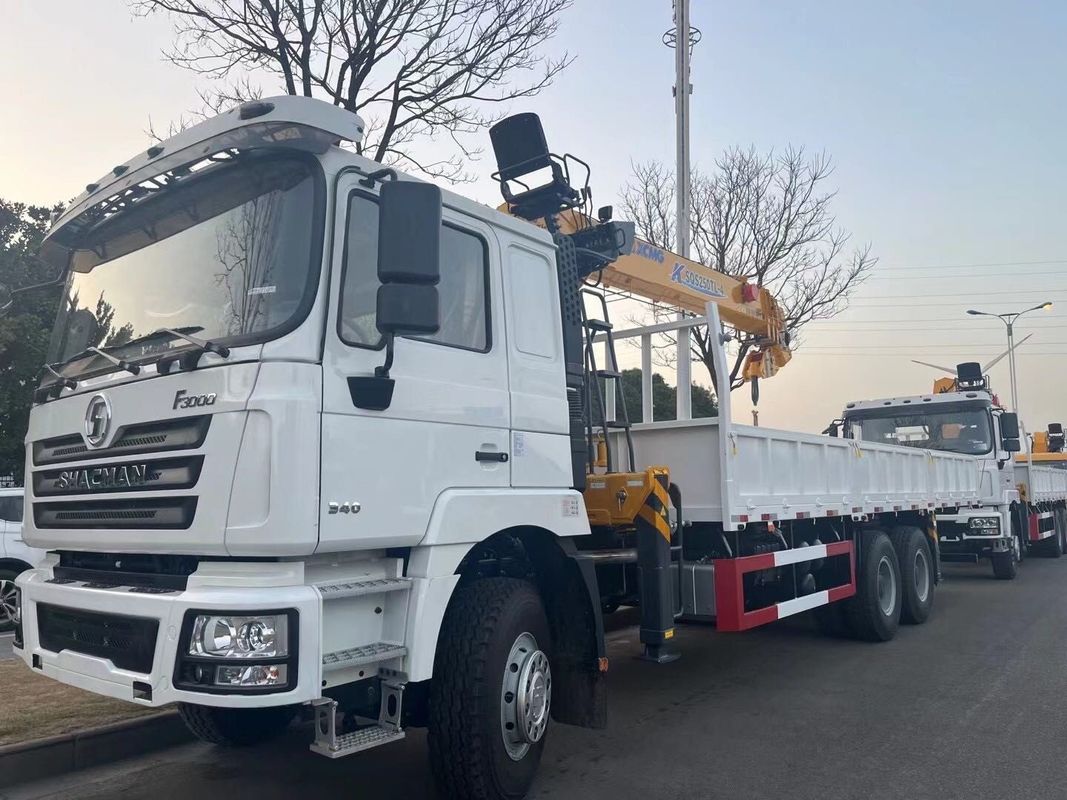

F3000 6x4 Crane Truck SHACMAN Boom Truck 375hp Euro V White 0
