White SHACMAN H3000 Cement Mixer Lorry 6x4 336HP Concrete Mixer Lorry

Basic Information
Place of Origin: Shaanxi,Xian
Brand Name: SHACMAN
Certification: ISO 9001/CCC
Model Number: H3000
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude pack, with wax before shipment.
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 1000 units/month
Detail Information
Modle: SX5258GJBHR384 Engine: WP10.336E53+PTO
Transmission: 10JSD180 Axle: MAN 9.5T/2*16T MAN Dual Stage -5.92
Wheel Base: 3775+1400 Tire: 12.00R20
Fuel Tank: 300L Clutch: φ430 Diaphragm Spring Clutch
Air Inlet: Ordinary Air Filter Chassis: 850×300(8+7)
Suspension: Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts Cabin: Extended Flat Roof
Color: Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy
Highlight:

SHACMAN H3000 Cement Mixer Lorry

,

Cement Mixer Lorry 6x4 336HP

,

Concrete Mixer Lorry SHACMAN H3000


Product Description

SHACMAN H3000 6x4 Mixer Truck 336HP White



Detailed Product Description
Model:SX5258GJBHR384
Drive type: 6x4
Weight: Gross Vehicle Weight≤50
Engine Brand: WEICHAI
Engine Model:WP10.336E53+PTO
Engine Power/(kw/HP): 247kw /336 Hp
Gear box Brand: FAST
Gear box Model:10JSD180



Concrete Mixer  Truck Parameters

Model SX5258GJBHR384
Drive type 6x4
Weight Gross Vehicle Weight ≤50
Dimensions Wheelbase/(mm) 3775+1400
Performance Maximum speed/(km/h) 50~65/90
Ground clearance >314
Engine Brand WEICHAI
Model WP10.336E53+PTO
Power/(kw/HP) 247kw / 336Hp
Maximum torque / (N.M)/rpm 1550 N·M
Displacement/(L) 9.726 L
Emission standard Euro/ II
Gear box Brand FAST
Model 10JSD180
Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) 850×300(8+7)
Suspension Front Multi-layer plate spring 4 main plates + 4 U-shaped bolts
Rear Multi-layer plate spring 4 main plates + 4 U-shaped bolts
Axles Brand HANDE
Front axle 9.5T front axle MAN technology
Rear axle 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92
Tires Type 12.00R20
Fuel tank Tank capacity/(L) 400L Aluminum tank
Electrics Type 24V
Battery 165Ah Maintenance-free battery
Cab Type SHACMAN H3000 Medium-length flat cab
Equipment Hydraulic main seat, four-point hydraulic suspension cab, manual window crank, ordinary rear-view mirror, H3000 cooling system, square muffler, 165Ah maintenance-free battery, SHACMAN logo, full English logo.



Advantages

  1. Powerful Engine: The 336HP engine provides ample power and torque for carrying heavy loads of concrete and other materials, ensuring efficient transportation and mixing on construction sites.
  2. Effective Mixing Capability: Equipped with a mixer drum, the truck can efficiently mix concrete on-site, reducing the need for separate mixing equipment and minimizing downtime.
  3. Construction Site Accessibility: The 6x4 configuration provides good off-road capabilities, enabling the truck to access construction sites that might have rough or uneven terrain.
  4. Versatility: Mixer trucks are versatile and can be used for various construction projects that require concrete mixing, such as road construction, building foundations, and infrastructure development.

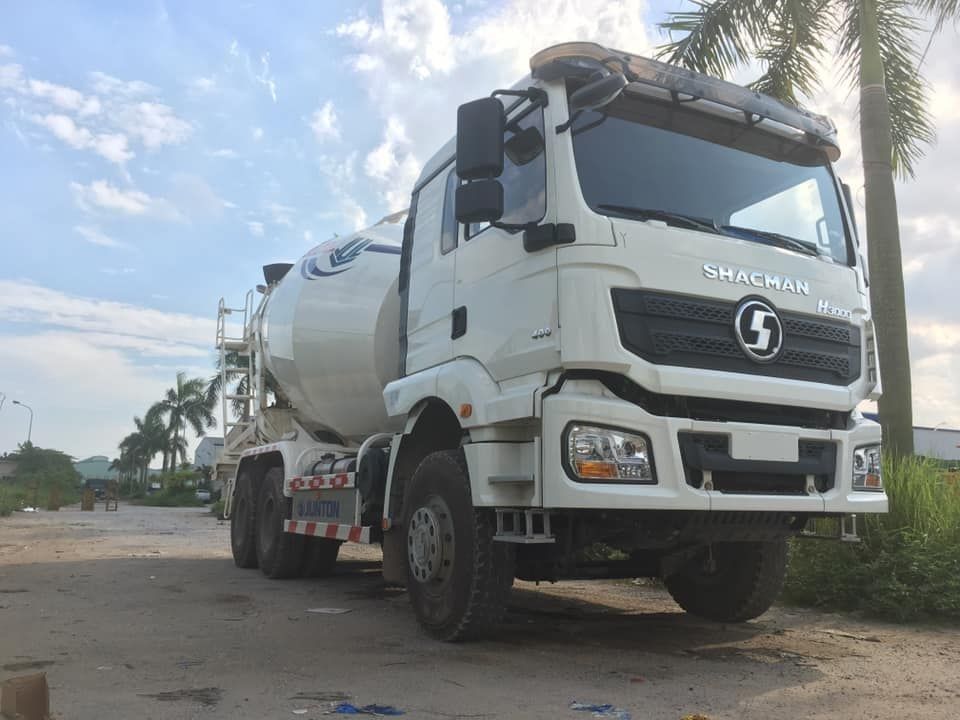

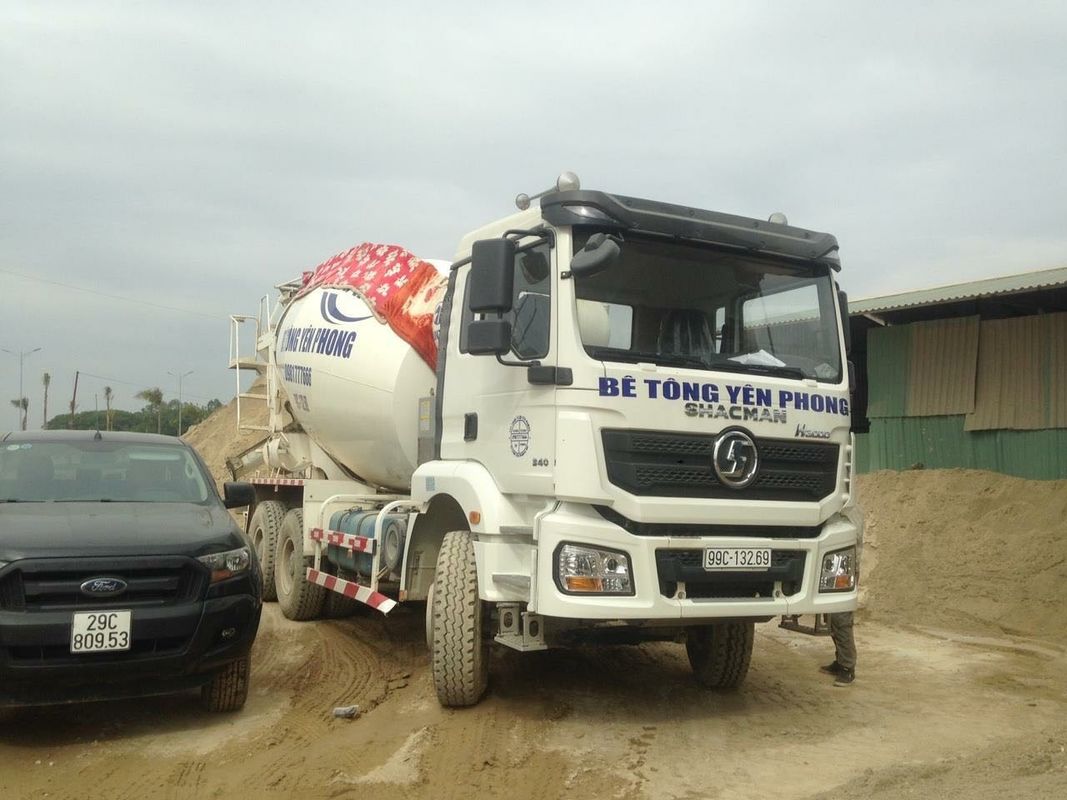

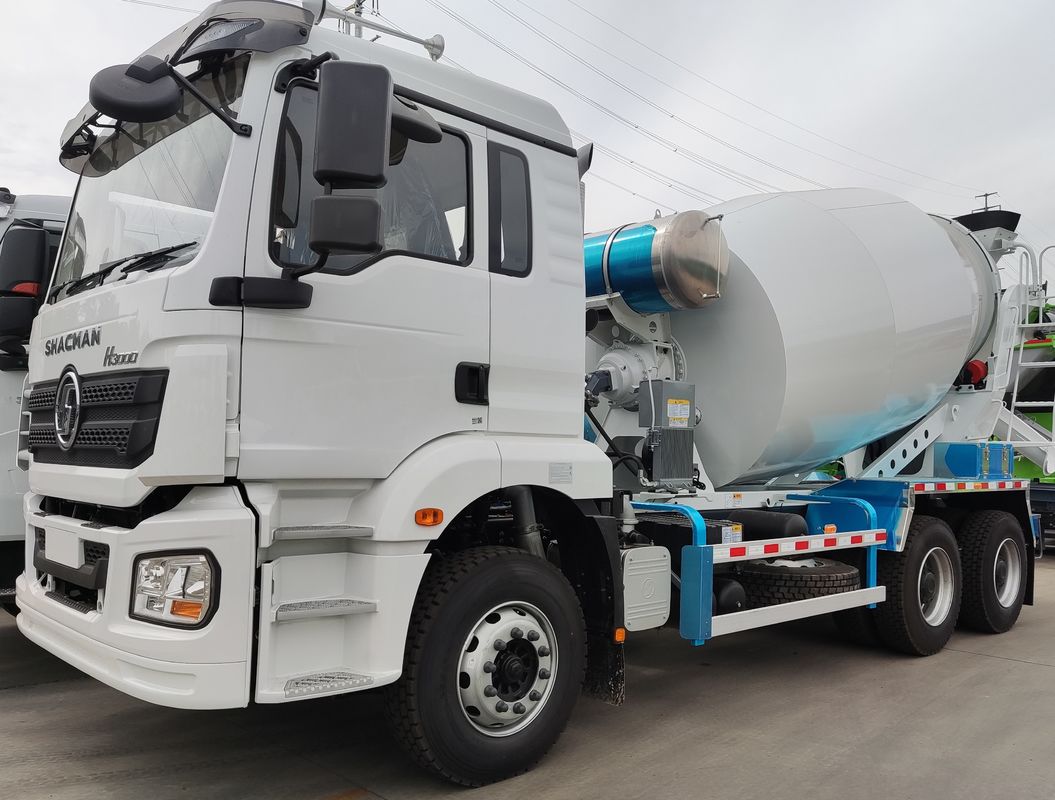

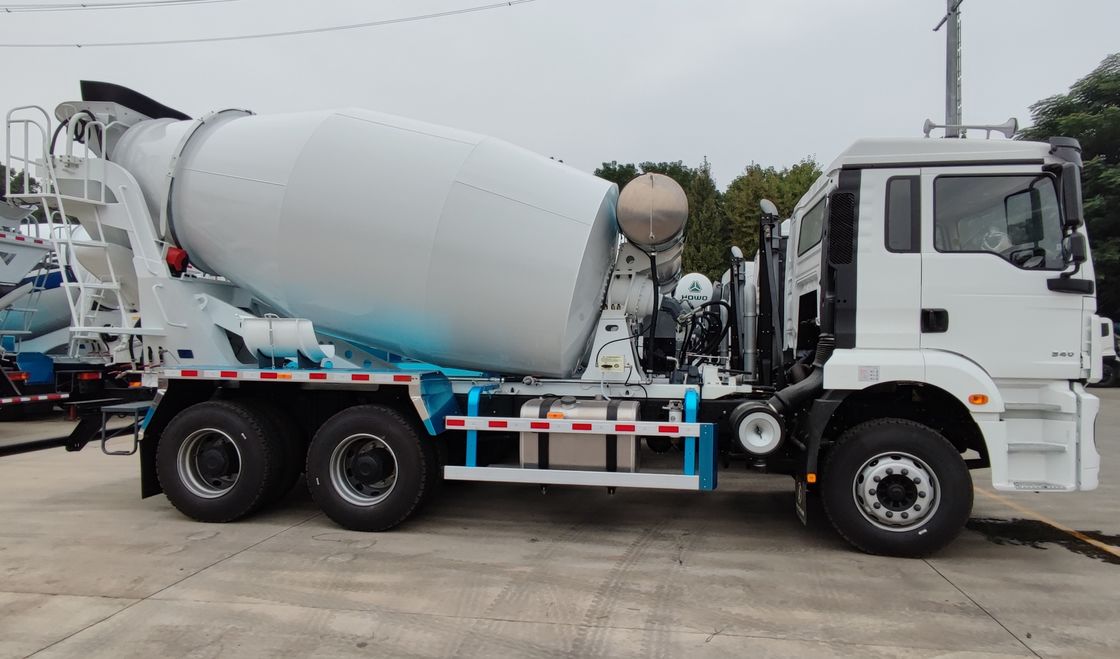

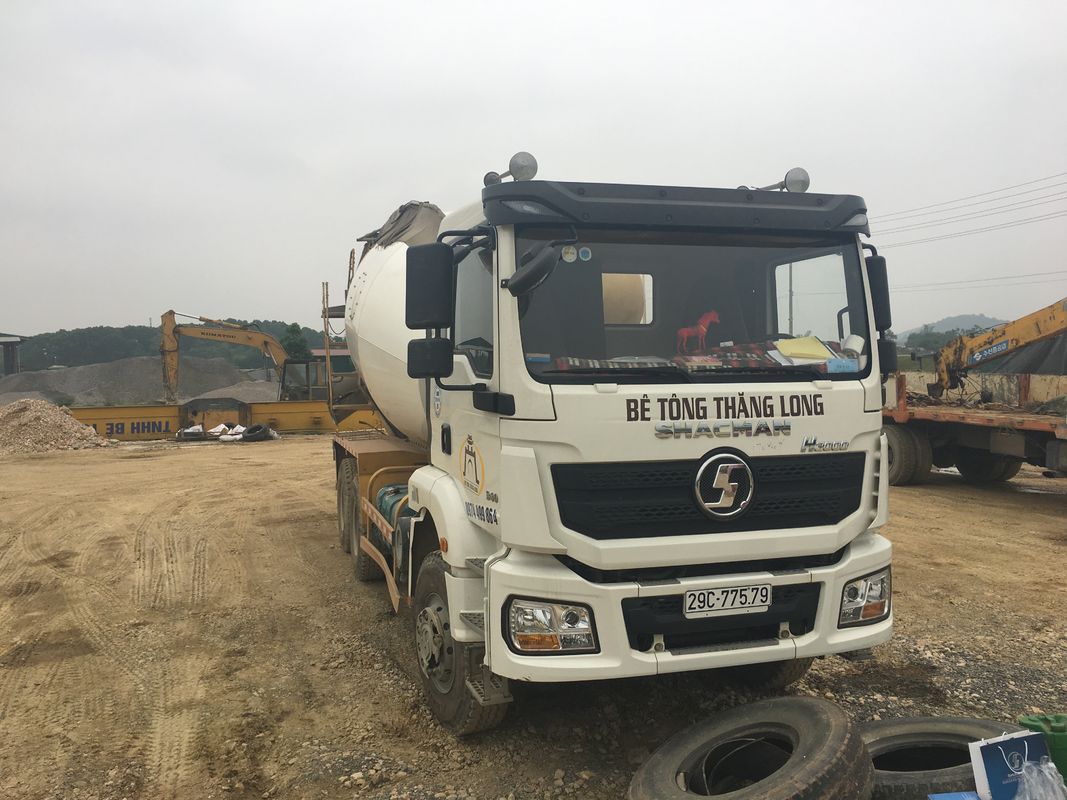

Detailed Image

White SHACMAN H3000 Cement Mixer Lorry 6x4 336HP Concrete Mixer Lorry 0





FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.

3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.

4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
