50ton Heavy Dump Truck SHACMAN F3000 Dump Truck Trailer 6*4 Driving

Basic Information
Place of Origin: Shaanxi,Xian
Brand Name: SHACMAN
Certification: ISO 9001/CCC
Model Number: F3000
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Nude pack, with wax before shipment.
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 1000 units/month
Detail Information
Modle: SX3255DV384 Engine: WP12.375E50
Transmission: 10JSD180+QH50 Axle: 9.5T /2*16 T Double-stage,speed Ratio-5.262
Wheel Base: 3775+1400mm Tire: 12.00R20
Fuel Tank: 300L Clutch: φ430 Diaphragm Spring Clutch
Air Inlet: Ordinary Air Filter Chassis: 850×300(8+7)
Suspension: Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts Cabin: Medium-length Flat Top
Color: Yellow; Red; Green; Blue
Highlight:

50ton Heavy Dump Truck

,

Heavy Dump Truck SHACMAN F3000

,

SHACMAN F3000 Dump Truck Trailer


Product Description

SHACMAN F3000 6X4 Dump Truck Yellow



Detailed Product Description
Model: SX3255DV384
Engine Model: W10.375E50 WEICHAI 275kw /375Hp Euro V

Gearbox Model: 10JSD180+QH50 FAST

Axle : 9.5T /2*16 T Double-stage,speed ratio-5.92



Dump Truck Parameters

Model SX3255DV384
Drive Type 6x4
Weight Gross Vehicle Weight ≤50
Dimensions Wheelbase/(mm) 3775+1400
Performance Maximum speed/(km/h) 40~55/75
Ground clearance >314
Engine Brand WEICHAI
Model W10.375E50
Power/(Kw/HP) 275kw / 375Hp
Maximum torque / (N.M)/rpm 1600 N·M
Displacement/(L) 9.726 L
Emission standard Euro II
Gearbox Brand FAST
Model 10JSD180-B+QH50
Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) 850×300(8+7)
Suspension Front Multi-layered leaf springs with 4 Main springs+4 U Bolts
Rear Multi-layered leaf springs with 4 Main springs+4 U Bolts
Axles Brand HANDE
Front axle 9.5T front axle MAN technology
Rear axle 2*16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92
Tires Type 12.00R20
Fuel tank Tank capacity/(L) 300L Aluminum tank
Electrics Type 24V
Battery 165Ah Maintenance-free battery
Cab Type SHACMAN F3000 Medium-length flat cab
Equipment Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo.


Why SHACMAN?

  • The SHACMAN F3000 series is known for its robustness, reliability, and versatility. It is designed to handle demanding tasks in various industries, including construction, mining, transportation, and more. The trucks in this series are built to withstand harsh operating conditions and deliver high performance.
  • The inclusion of electronic brake-force distribution systems in SHACMAN trucks optimizes brake force distribution across all wheels, improving braking performance and stability.

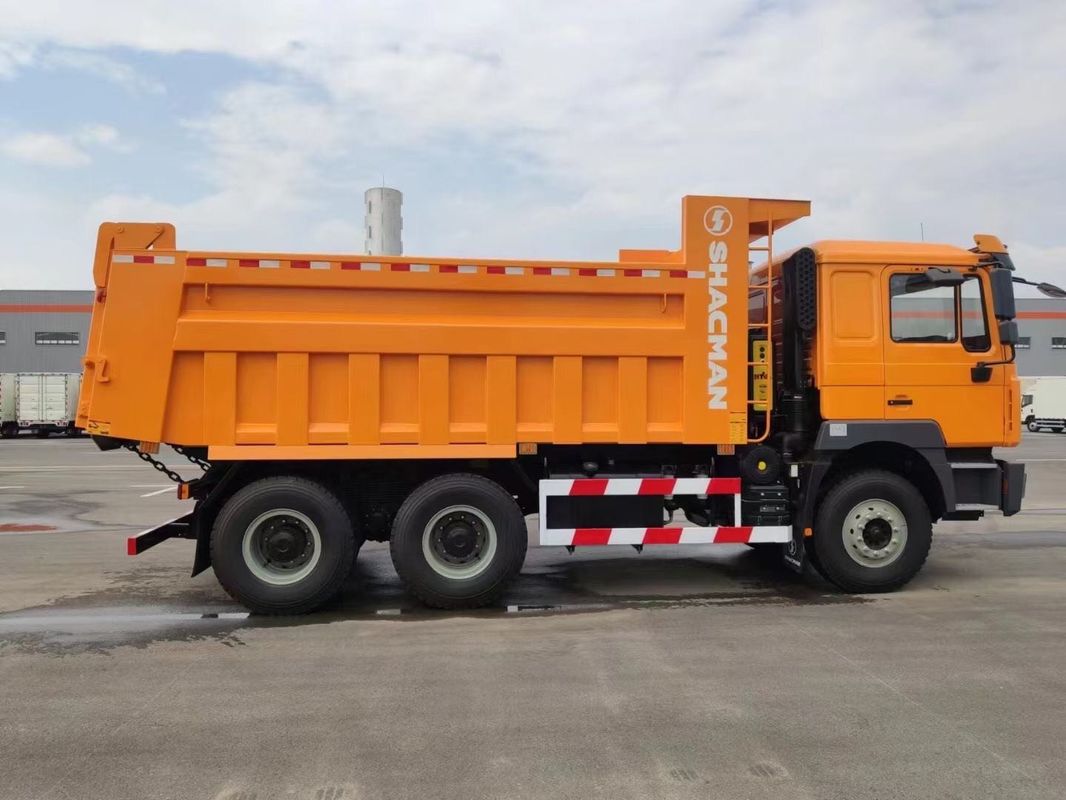

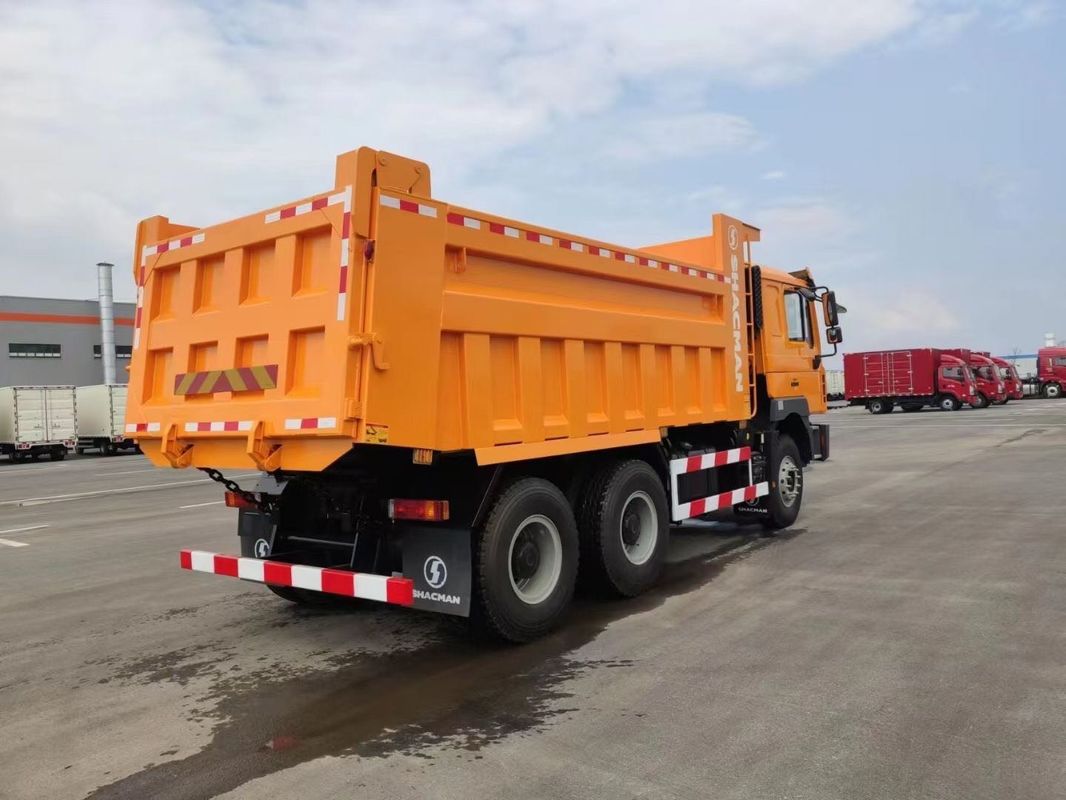

Detailed Image

50ton Heavy Dump Truck SHACMAN F3000 Dump Truck Trailer 6*4 Driving 0



FAQ
1. Who are we?
Eastern Asia, including countries like China, Japan, and South Korea, contributes 2.00% to our overall sales.
South Asia, comprising nations like India, Pakistan, and Bangladesh, is another region where our SHACMAN Trucks have gained traction, representing 2.00% of our market.

2. How can we guarantee quality?
The development of a pre-production sample is crucial for verifying that the product meets all required standards and specifications before proceeding with full-scale manufacturing.
A pre-production sample is a necessary step in the production process to minimize risks and ensure that the final product meets the desired quality standards.


3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.

4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, FCA
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
