6x4 Heavy Tipper Trucks SHACMAN F3000 Dump Truck 375hp EuroV Yellow

Basic Information
Place of Origin: Shaanxi,Xian
Brand Name: SHACMAN
Certification: ISO 9001/CCC
Model Number: F3000
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude pack, with wax before shipment.
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 1000 units/month
Detail Information
Modle: SX3258DT384-WEICHAI Engine: WP12.375E50
Transmission: 10JSD180+QH50 Axle: 9.5T /2*16 T Double-stage,speed Ratio-5.92
Wheel Base: 3775+1400mm Tire: 12.00R20
Fuel Tank: 300L Clutch: φ430 Diaphragm Spring Clutch
Air Inlet: Ordinary Air Filter Chassis: 850×300(8+7)
Suspension: Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts Cabin: Medium-length Flat Top
Color: Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy
Highlight:

EuroV 6x4 Heavy Tipper Trucks CCC

,

EuroV SHACMAN X3000 Dump Truck

,

EuroV Heavy Tipper Trucks


Product Description

SHACMAN F3000 Dump Truck 375hp EuroV



Detailed Product Description

Model:SX3258DT384
Drive type:6x4
Engine Brand: WEICHAI
Engine Model:WP12.375E50
Engine Power/(kw/HP): 279kw / 375Hp
Gear box Brand: FAST
Gear box Model: 10JSD180+QH50



Dump Truck Parameters

Model SX3258DT384
Drive type 6x4
Weight Gross Vehicle Weight ≤50
Dimensions Wheelbase/(mm) 3775+1400 mm
Performance Maximum speed/(km/h) 45~60/80
Ground clearance >314
Engine Brand WEICHAI
Model WP12.375E50
Power/(kw/HP) 279kw / 375Hp
Maximum torque / (N.M)/rpm 1600 N·M
Displacement/(L) 9.726 L
Emission standard Euro V
Gear box Brand FAST
Model 10JSD180+QH50
Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) 850×300(8+7)
Suspension Front Multi-layered leaf springs with 4 Main springs+4 U Bolts
Rear Multi-layered leaf springs with 4 Main springs+4 U Bolts
Axles Brand HANDE
Front axle 9.5T front axle MAN technology
Rear axle 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92
Tires Type 12.00R20
Fuel tank Tank capacity/(L) 300L Aluminum tank
Electrics Type 24V
Battery 165Ah Maintenance-free battery
Cab Type SHACMAN F3000 Medium-length flat cab
Equipment Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo.

Truck Advantages

  • The F3000 dump truck is equipped with an intelligent control system that monitors and optimizes various parameters, such as engine performance, fuel consumption, and safety features. This system enhances operational efficiency, performance, and safety while providing real-time data for diagnostics and maintenance.
  • SHACMAN has always been committed to the development of new energy vehicles, and has become a new energy vehicle development technology leader in China.

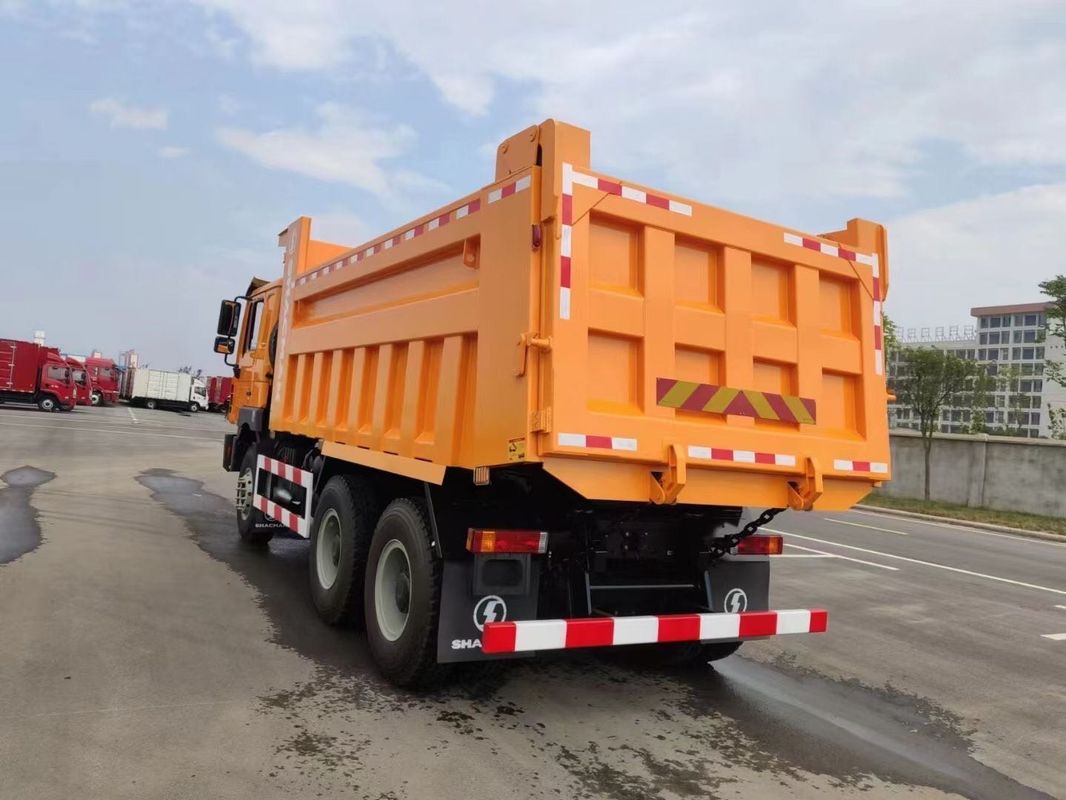

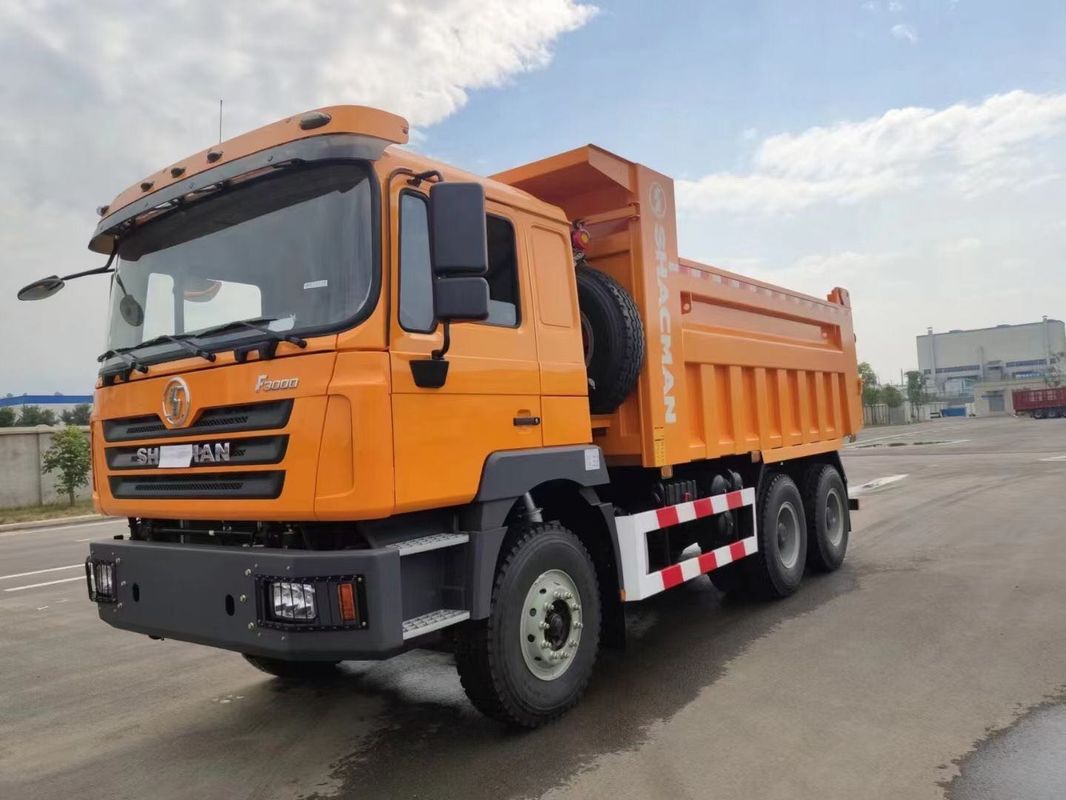

Detailed Image

SHACMAN 12Wheels Tipper Truck F3000 6x4 400Hp Euro II Red 0





FAQ
1. Who are we?
We are based in Shaanxi, China, start in 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are a total of about 11-50 people in our office.


2. How can we guarantee quality?
During the final inspection, trained inspectors thoroughly examine the products for any defects, damages, or deviations from the desired specifications. This inspection may include visual checks, functional tests, measurements, and other quality control procedures


3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck,


4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, DAF, EXW, CIP, DDU;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French, Russian, Spanish
