Name: 10 Tries SHACMAN Red Dumper Truck F3000 Dump Truck Vehicle 380HP For Mining
Brand: SHACMAN
SKU: L3000
Rating: 4.5 (112 reviews)

Home > products > Heavy Dump Truck >

10 Tries SHACMAN Red Dumper Truck F3000 Dump Truck Vehicle 380HP For Mining

6 Tries SHACMAN Red Dumper Truck

Red Dumper Truck L3000

Dump Truck Vehicle 240HP

Place of Origin:

Xi'an, Shaanxi

Brand Name:

SHACMAN

Certification:

ISO 9001/CCC

Model Number:

L3000

Request A Quote

10 Tries SHACMAN Red Dumper Truck F3000 Dump Truck Vehicle 380HP For Mining

Product Details

Modle:

SX3255DT384-WEICHAI

Engine:

W10.380E22

Transmission:

12JSD200T-B+QH50-FAST

Axle:

9.5T /16T Double-stage, Speed Ratio-5.92

Wheel Base:

3775+1400mm

Tire:

12.00R20 (10+1)

Fuel Tank:

300L

Clutch:

φ430 Diaphragm Spring Clutch

Air Inlet:

Ordinary Air Filter

Chassis:

850×300(8+7)

Suspension:

Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts

Cabin:

Medium-length Flat Top

Color:

Neon Red/Green Mountain/Aurora White

Highlight:

6 Tries SHACMAN Red Dumper Truck

Red Dumper Truck L3000

Dump Truck Vehicle 240HP

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

Nude pack, with wax before shipment.

Delivery Time

45 working days

Payment Terms

T/T, L/C

Supply Ability

1000 units/month

RELATED PRODUCTS

Contact Now

Product Description

SHACMAN Red Dump Truck H3000 380HP

Detailed Product Description
Model: SX3255DT384
Engine Model: W10.380E22 WEICHAI 280kw / 380Hp Euro II
Gearbox Model: 12JSD200T-B+QH50 FAST

Tipper Dump Truck Parameters

Model	SX3255DT384
Drive type	6x4
Weight	Gross Vehicle Weight	≤50
Dimensions	Wheelbase/(mm)	3775+1400
Performance	Maximum speed/(km/h)	40～55/75
Performance	Ground clearance	>314
Engine	Brand	WEICHAI
	Model	W10.380E22
	Power/(kw/HP)	280kw / 380Hp
	Maximum torque / (N.M)/rpm	1600 N·M
	Displacement/(L)	9.726 L
	Emission standard	Euro II
Gearbox	Brand	FAST
Gearbox	Model	12JSD200T-B+QH50
Clutch	Type	φ430 Diaphragm spring clutch
Cooling	Type	Domestic heat sink
Air inlet	Type	Ordinary air filter
Brakes	Type	Drum brake
	Service brake	Double circuit air brake
	Park brake	Rear wheel spring brake
	Auxiliary brake	WEVB engine exhaust brake
Steering	Type	ZF8098 technology, circulating ball steering machine
Chassis	Type	Parallel trapezoidal frame with variable section
Chassis	Dimensions/(mm)	850×300(8+7)
Suspension	Front	Multi-layered leaf springs with 4 Main springs+4 U Bolts
Suspension	Rear	Multi-layered leaf springs with 4 Main springs+4 U Bolts
Axles	Brand	HANDE
	Front axle	9.5T front axle MAN technology
	Rear axle	16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92
Tires	Type	12.00R20
Fuel tank	Tank capacity/(L)	300L Aluminum tank
Electrics	Type	24V
Electrics	Battery	165Ah Maintenance-free battery
Cab	Type	SHACMAN F3000 Medium-length flat cab
Cab	Equipment	Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo.

SHACMAN Truck Advantages

SHACMAN trucks are known for their luxurious and expansive cabins, providing the driver with unparalleled comfort during long-haul journeys.
SHACMAN trucks pay attention to the smallest details in the cabin, such as soft-touch materials and refined finishes, creating a sense of luxury and sophistication.
SHACMAN trucks incorporate soundproofing materials in the cabin, effectively isolating the driver from external noise and creating a peaceful driving environment.

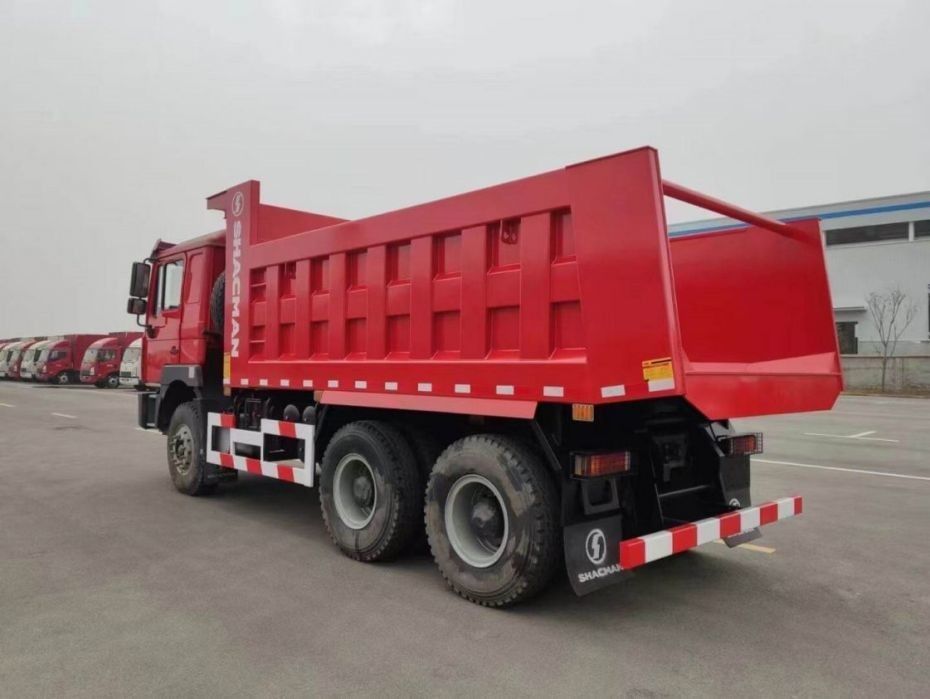

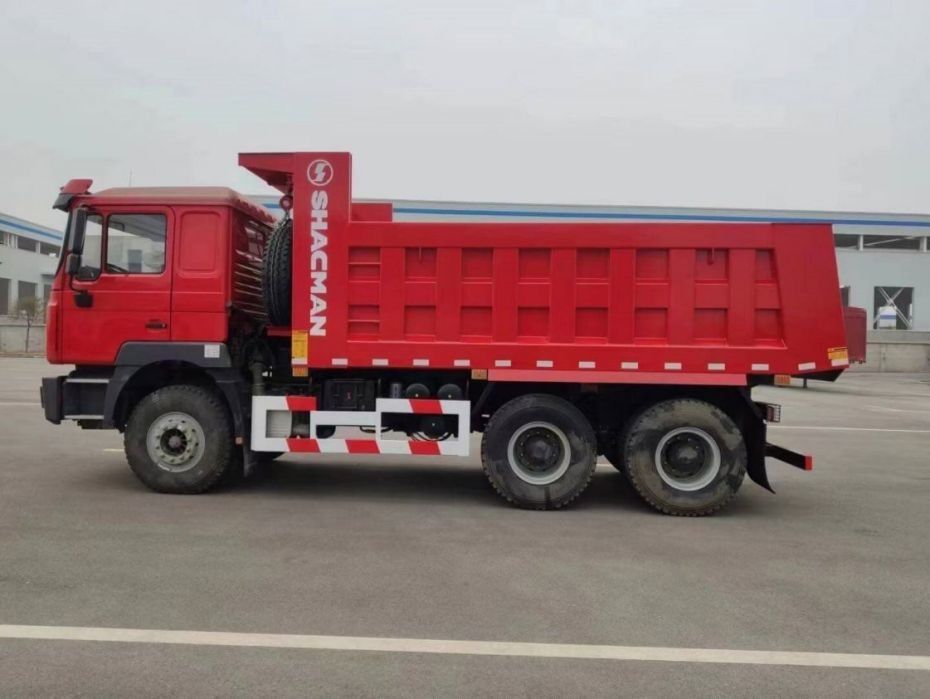

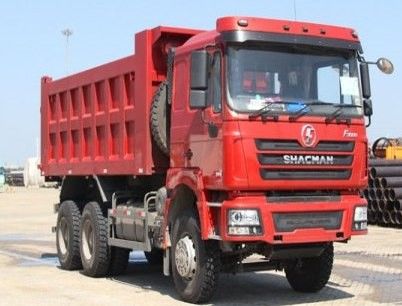

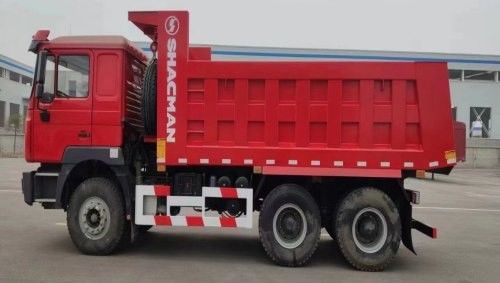

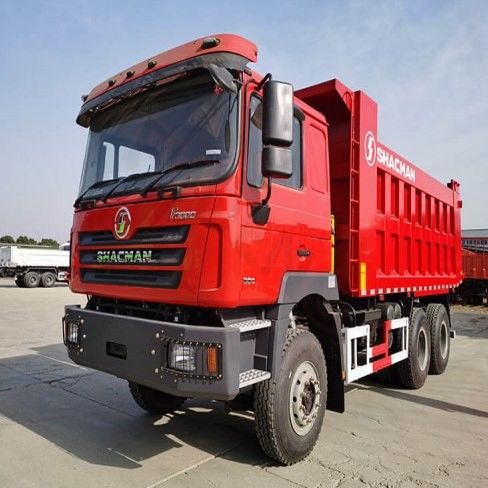

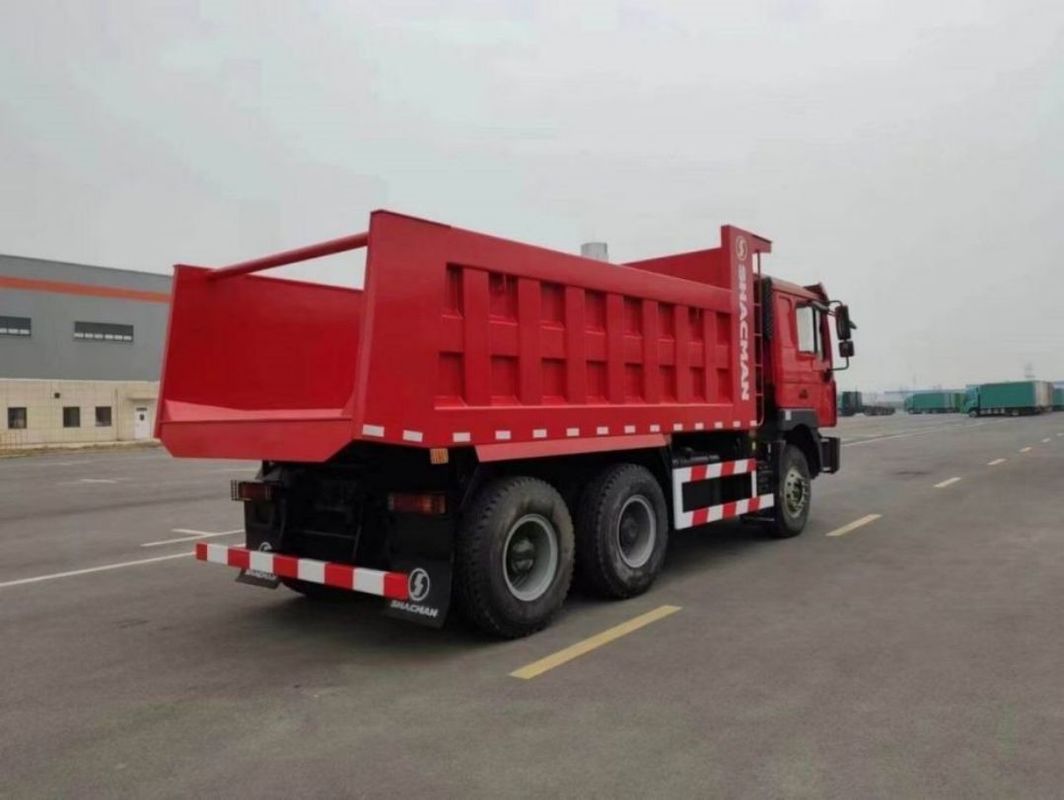

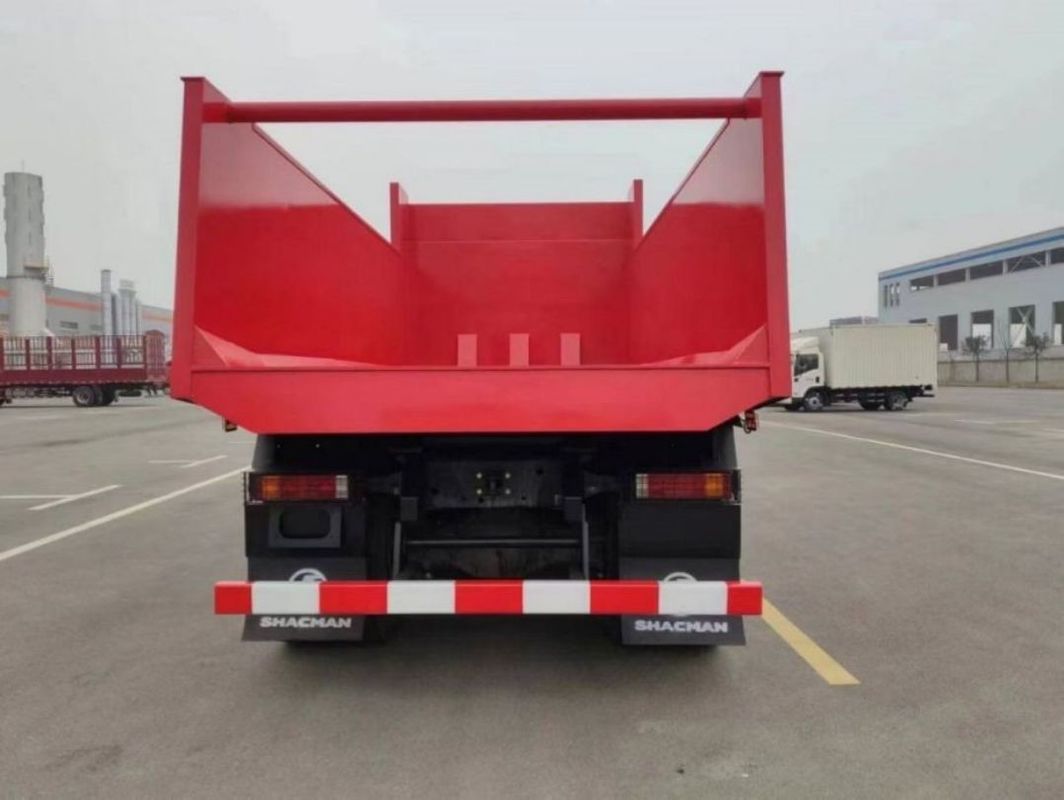

Dump Truck Image

50T SHACMAN Tipper Truck F3000 6x4 380hp EuroII Red Side Dumper Truck 0

FAQ
1. Who are we?
Our presence in South America is growing steadily, with our trucks capturing 4.00% of the market in the region.
The Middle East is an emerging market for us, where our trucks hold a 2.00% market share.
Eastern Asia, including countries like China, Japan, and South Korea, contributes 2.00% to our overall sales.

2. How can we guarantee quality?
A pre-production sample is a crucial step in the production process, allowing for adjustments and improvements to be made before full-scale production.

3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck. Oil Truck,

4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW,
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
