SHACMAN F3000 Dump Truck 6x4 10 tries 380Hp Euro II
Product Description
Since its introduction in 2009, the F3000 series has been an example and an icon of SHACMAN. Using technology derived from MAN, the F3000 brings both comfort and power under the same roof. Making no compromises, it is truly a force to be reckoned with in the heavy-duty truck industry.
Product parameters
| Model |
SX3255DT384 |
| Drive type |
6*4 |
| Weight |
Gross Vehicle Weight |
≤50 |
| Dimensions |
Wheelbase/(mm) |
3975+1400 |
| Performance |
Maximum speed/(km/h) |
42～52/66 |
| Ground clearance |
>314 |
| Engine |
Brand |
WEICHAI |
| Model |
WP10.380E22 |
| Power/(kw/HP) |
279kw / 380Hp |
| Maximum torque /(N.m)/rpm |
1600 N·m |
| Displacement/(L) |
9.726 L |
| Emission standard/ |
Euro/ II |
| Gear box |
Brand |
FAST |
| Model |
10JSD180+QH50 |
| Clutch |
Type |
φ430 Diaphragm spring clutch |
| Cooling |
Type |
Domestic heat sink |
| Air inlet |
Type |
Ordinary air filter |
| Brakes |
Type |
Drum brake |
| Service brake |
Double circuit air brake |
| Park brake |
Rear wheel spring brake |
| Auxiliary brake |
WEVB engine exhaust brake |
| Steering |
Type |
ZF8098 technology, circulating ball steering machine |
| Chassis |
Type |
Parallel trapezoidal frame with variable section |
| Dimensions/(mm) |
850×300(8+7) |
| Suspension |
Front |
Multi-layered leaf springs with 4 Main springs+4 U Bolts |
| Rear |
Multi-layered leaf springs with 4 Main springs+4 U Bolts |
| Axles |
Brand |
HANDE |
| Front axle |
9.5T front axle MAN technology |
| Rear axle |
2*16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92 |
| Tires |
Type |
12.00R20 |
| Fuel tank |
Tank capacity/(L) |
300L Aluminium tank |
| Electrics |
Type |
24V |
| Battery |
165Ah Maintenance-free battery |
| Cab |
Type |
SHACMAN F3000 Medium-length flat roof cab |
| Equipment |
Hydraulic main seat, four-point hydraulic suspension cab, common rearview mirror, electric automatic thermostatic air conditioner, electric window shaker, manual flip, common air filter, metal bumper, two-stage pedal, water tank protection grill, 165Ah maintenance-free battery, SHACMAN logo, full English logo |
Product Advantages
Driving is a stressful endeavor, which is why the F3000 is designed with an improved driver’s cab utilizing advanced technologies from the German truck giant, MAN. Spacious, comfortable, and safe, the F3000 cab will bring peace of mind to you on the job.
■ Frame type structure, local strengthening design, for maximum safety
■ Industry-leading torsional stiffness and bending stiffness
■ Highly efficient cabin design; reducing drag and increasing air intake to the engine
■ Toughened laminated windshield glass, ensuring safe operation
■ Greater driver field of vision; allowing better driver awareness
■ Spacious interior and storage space, up to 620mm wide cushioned bed

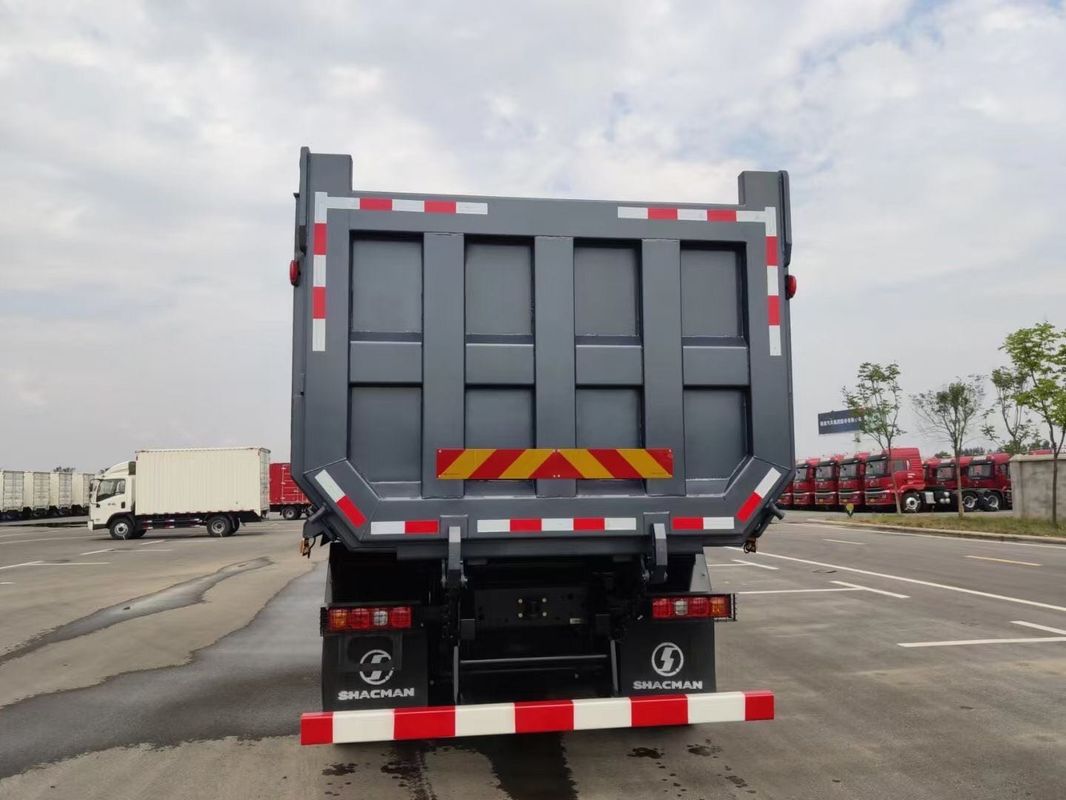

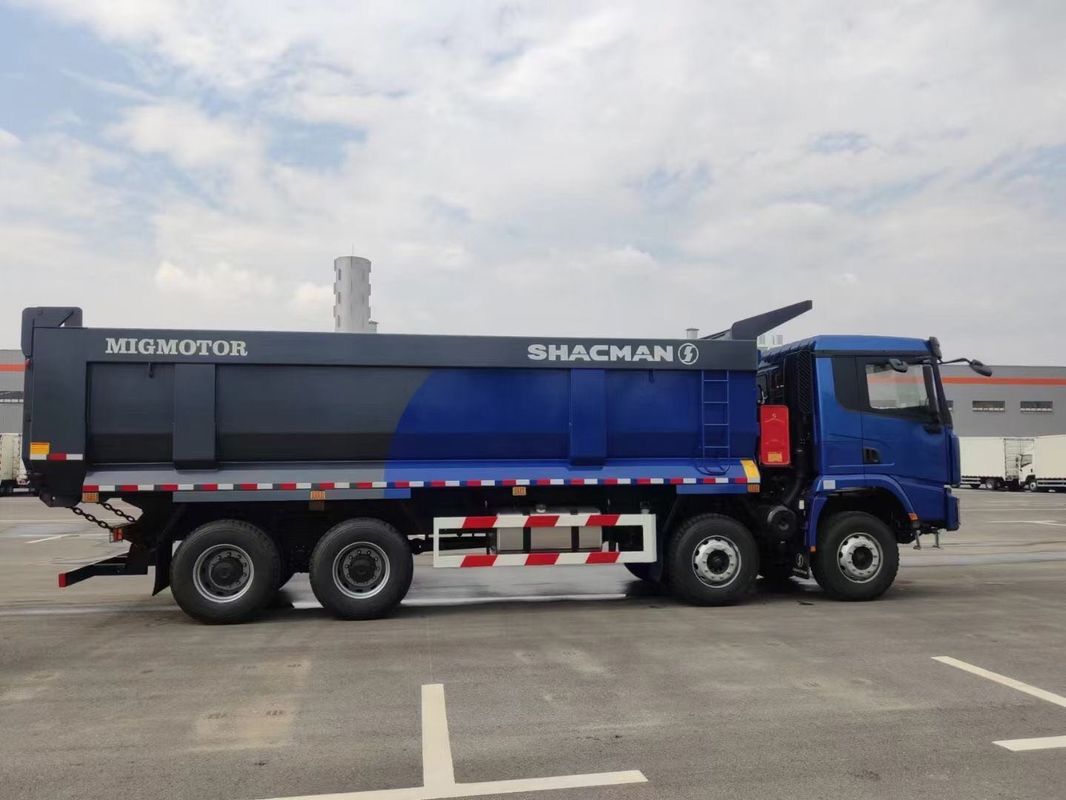

Detailed Image
FAQ
1. Who are we?
We are based in Shaanxi, China, start in 2015, sell to Africa(70.00%), Southeast Asia(10.00%), Central America(10.00%), South America(4.00%), Mid East(2.00%), Eastern Asia(2.00%), South Asia(2.00%). There are a total of about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3. What can you buy from us?
Dump truck,track truck,lorry truck,Van truck, Mixer truck,
4. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,DDU；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A
Language Spoken:English,French
