Place of Origin: | Shaanxi,China |
---|---|
Brand Name: | SHACMAN |
Certification: | ISO9001/CCC |
Model Number: | H3000 |
Minimum Order Quantity: | 1 |
Price: | Negotiation |
Packaging Details: | Nude pack, with wax before shipment. |
Delivery Time: | 45 working days |
Payment Terms: | T/T, L/C |
Supply Ability: | 5000 units/month |
Modle: | SX3318MV366R SHACMAN | Engine: | WP12.430E50 WEICHAI |
---|---|---|---|
Axle: | 7.5T/2*13 Single Stage Axle, Axle Speed-4.266 | Wheel Base: | 3775+1400 Mm |
Tire: | 12.00R20 | Fuel Tank: | 300L |
Clutch: | φ430 Diaphragm Spring Clutch | Air Inlet: | Ordinary Air Filter |
Chassis: | 850×300(8+7) | Suspension: | Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts |
Cabin: | H3000 Standard Cabin | Color: | Neon Red/Mountain Green/Starry Blue/Aurora White/Klein Blue/Burgundy |
Highlight: | EuroV SHACMAN H3000 Dump Truck,EuroV 8x4 Green Dumper Truck,EuroV Green Dumper Truck CCC |
SHACMAN H3000 Dump Truck 8x4 430 EuroV Green MAN Axles 9.5T /2*16T
Detailed Product Description
Model: SX3318MT366R 8x4 12 wheels
Transmission: 12JSD200T-B+QH50 FAST
Axle: 2*9.5T/2*16 double stage axle, speed ratio: 5.262
SHACMAN Dump Truck MAIn parameters
Model | SX3318MT366R | |
Drive type | 8x4 | |
Weight | Gross Vehicle Weight | ≤70 |
Dimensions | Wheelbase/(mm) | 1800+3575+1400 |
Performance | Maximum speed/(km/h) | 40~55/75 |
Ground clearance | >314 | |
Engine | Brand | WEICHAI |
Model | WP12.430E50 | |
Power/(kw/HP) | 316kw / 430Hp | |
Maximum torque / (N.M)/rpm | 2000 N·M | |
Displacement/(L) | 11.596 L | |
Emission standard | Euro V | |
Gearbox | Brand | FAST |
Model | 12JSD200T-B+QH50 | |
Clutch | Type | φ430 Diaphragm spring clutch |
Cooling | Type | Domestic heat sink |
Air inlet | Type | Ordinary air filter |
Brakes | Type | Drum brake |
Service brake | Double circuit air brake | |
Park brake | Rear wheel spring brake | |
Auxiliary brake | WEVB engine exhaust brake | |
Steering | Type | ZF8098 technology, circulating ball steering machine |
Chassis | Type | Parallel trapezoidal frame with variable section |
Dimensions/(mm) | 850×300(8+7) | |
Suspension | Front | Multi-layered leaf springs with 4 Main springs+4 U Bolts |
Rear | Multi-layered leaf springs with 4 Main springs+4 U Bolts | |
Axles | Brand | HANDE |
Front axle | 2*9.5T front axle MAN technology | |
Rear axle | 2*16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.262 | |
Tires | Type | 12.00R20 |
Fuel tank | Tank capacity/(L) | 300L Aluminum tank |
Electrics | Type | 24V |
Battery | 165Ah Maintenance-free battery | |
Cab | Type | SHACMAN H3000 Medium-length flat cab |
Equipment | Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo. |
Why SHCMAN Trucks?
SHACMAN's commitment to safety and driving comfort is evident in its advanced driver-assistance systems, which effectively reduce driver workload and offer support in critical driving functions like lane keeping and adaptive cruise control.
SHACMAN's state-of-the-art driver-assistance systems go beyond enhancing safety on the road; they also alleviate driver stress and workload by offering assistance in various driving tasks, such as lane keeping and adaptive cruise control.

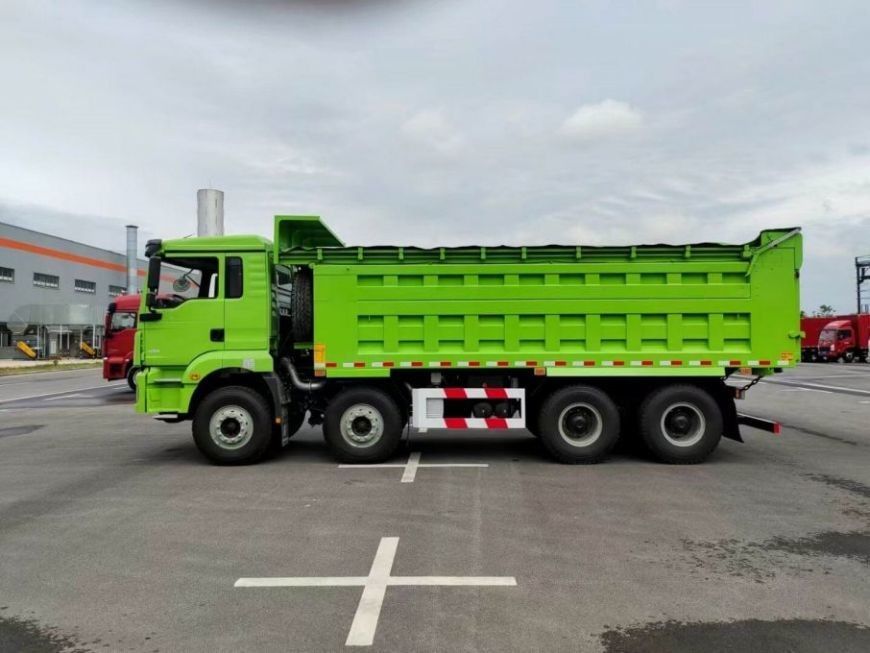

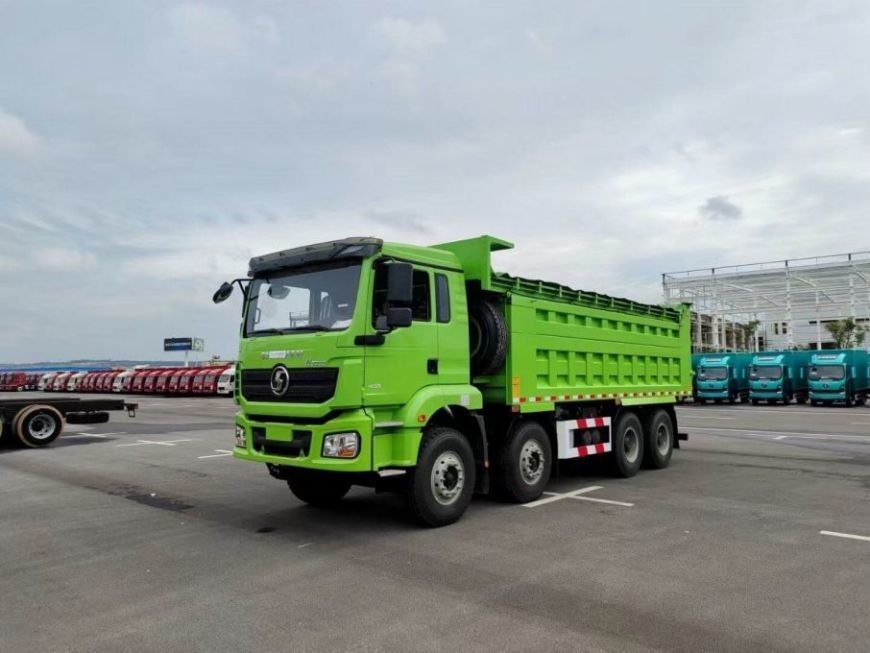

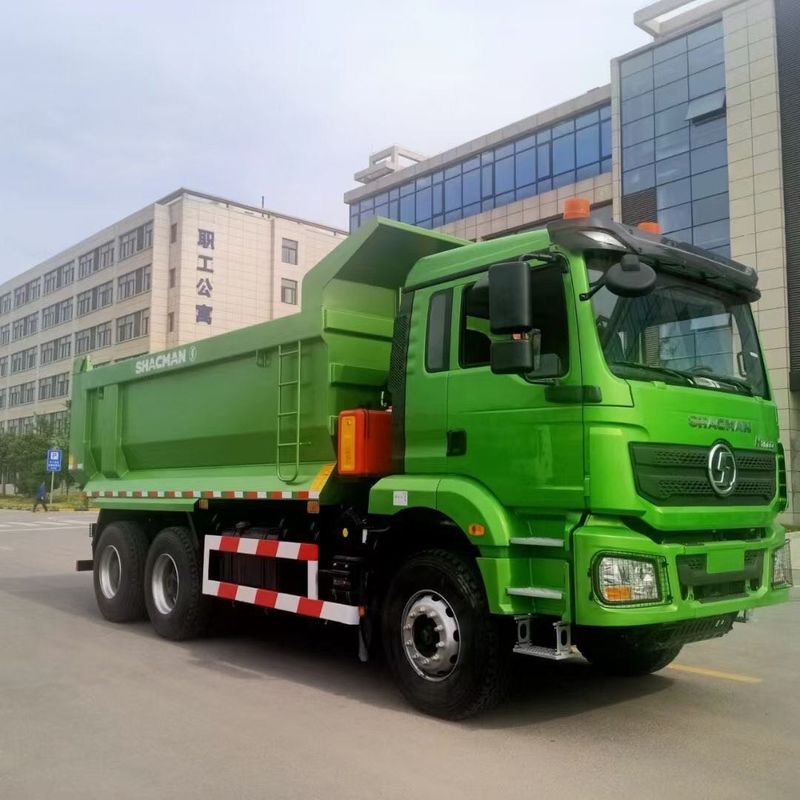

SHACMAN Truck Detailed Image
