Modle: | SX3188MR381R | Engine: | WP10.336E53 WEICHAI EuroV |
---|---|---|---|
Transmission: | 10JSD180+QH50 | Axle: | 7.5T/*13 Double- Stage Axle, Axle Speed-5.92 |
Wheel Base: | 3800mm | Tire: | 11.00R20 |
Fuel Tank: | 300L | Clutch: | φ430 Diaphragm Spring Clutch |
Air Inlet: | Ordinary Air Filter | Chassis: | 850×300(8+7) |
Suspension: | Front And Rear Multi-plate Springs | Cabin: | Medium-length Flat Top |
Color: | Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy | ||
Highlight: | eurov Red Dump Truck,eurov Dump Truck SHACMAN H3000,CCC 4 Wheel Drive Dump Truck EuroV |
SHACMAN Dump Truck H3000 4x2 336 EuroV Red
Detailed Product Description
Model: SX3188MR381R
Engine Model:WP10.336E53 WEICHAI 247Kw/336 Hp EuroV
Transmission:8JS85TM +QH50
Axle:7.5T/*13 Double-stage axle, Axle speed-5.92
SHACMAN Dump Truck parameters
Model | SX3188MR381R | |
Drive type | 4x2 | |
Weight | Gross Vehicle Weight | 12~18 |
Dimensions | Wheelbase/(mm) | 5700 |
Performance | Maximum speed/(km/h) | 60~80/110 |
Ground clearance | >314 | |
Engine | Brand | WEICHAI |
Model | WP10.336E53 | |
Power/(kw/HP) | 247w / 336Hp | |
Maximum torque / (N.M)/rpm | 1550N·M | |
Displacement/(L) | 9.726 L | |
Emission standard | Euro V | |
Gear box | Brand | FAST |
Model | 8JS85TM | |
Clutch | Type | φ430 Diaphragm spring clutch |
Cooling | Type | Domestic heat sink |
Air inlet | Type | Ordinary air filter |
Brakes | Type | Drum brake |
Service brake | Double circuit air brake | |
Park brake | Rear wheel spring brake | |
Auxiliary brake | WEVB engine exhaust brake | |
Steering | Type | ZF8098 technology, circulating ball steering machine |
Chassis | Type | Parallel trapezoidal frame with variable section |
Dimensions/(mm) | 5700mm | |
Suspension | Front | Multi-layered leaf springs |
Rear | Multi-layered leaf springs | |
Axles | Brand | HANDE |
Front axle | 4.8T (disc brake) | |
Rear axle | 10T MAN Single Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.625 | |
Tires | Type | 10.00R20 |
Fuel tank | Tank capacity/(L) | 200L iron |
Electrics | Type | 24V |
Battery | 135Ah Maintenance-free battery | |
Cab | Type | SHACMAN L3000 cab |
Equipment | Electric air conditioning, electric window cranks, LED daytime running lights, central locking (dual remote control), front fixed rear hydraulic suspension, 135Ah maintenance-free battery, fixed pedals, flexible shaft steering, spare tire carrier, aluminum alloy air reservoir, hydraulic main seat with third seat, manual flip. |
Overview
SHACMAN trucks are equipped with advanced electronic stability control systems, ensuring optimal vehicle stability and reducing the chances of skidding or loss of control.
The spacious cabin of a SHACMAN truck provides a comfortable and ergonomic environment for drivers, enhancing their productivity on long hauls.
By meticulously examining the pre-production sample, we can identify any potential issues or improvements that need to be addressed before proceeding with mass production.

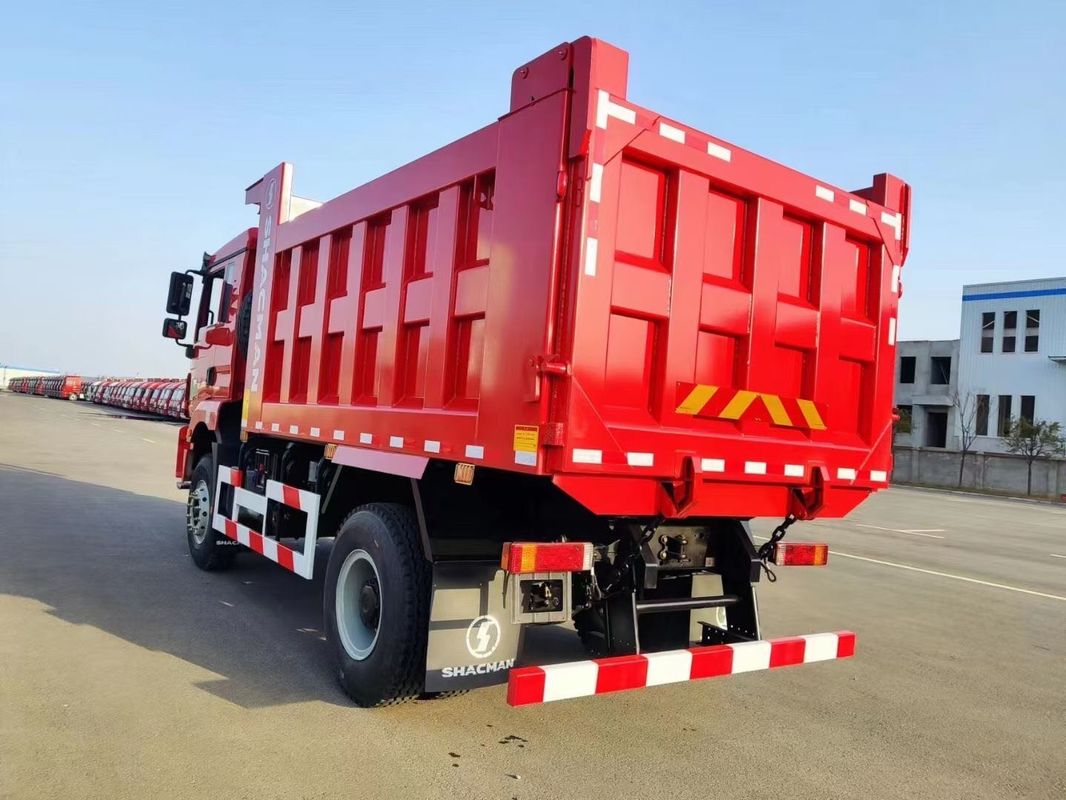

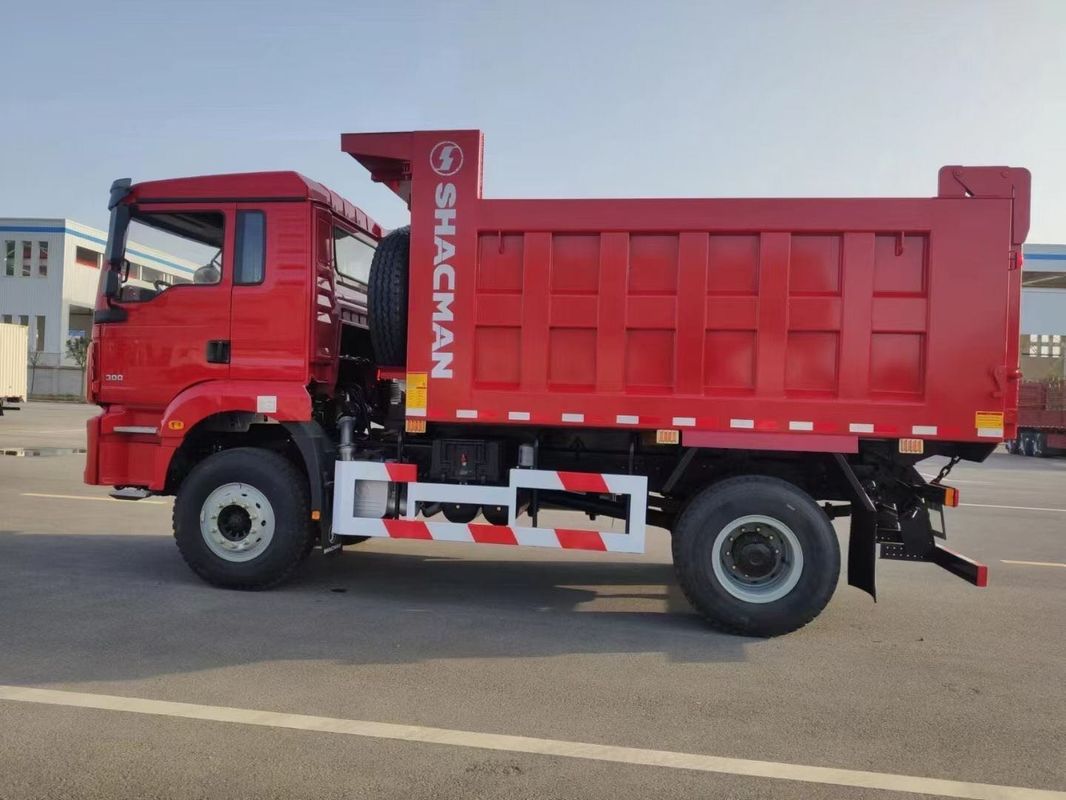

Detailed Image
