Place of Origin:
Shaanxi,Xian
Brand Name:
SHACMAN
Certification:
ISO 9001/CCC
Model Number:
H3000

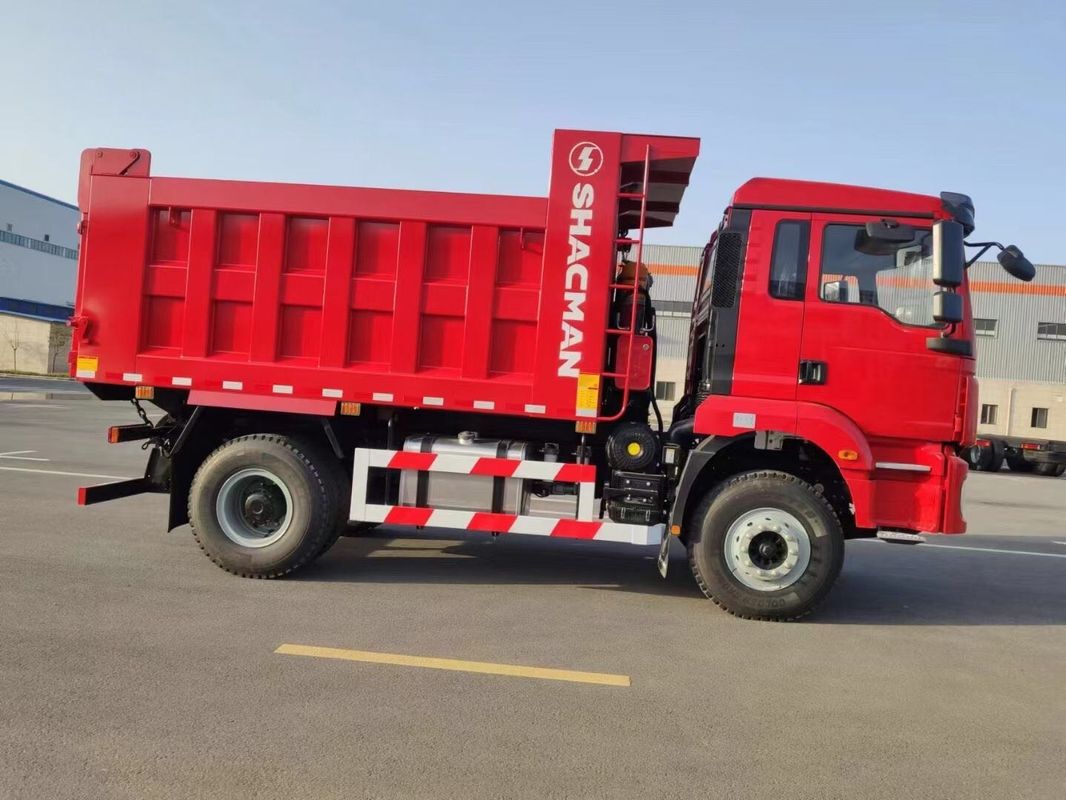

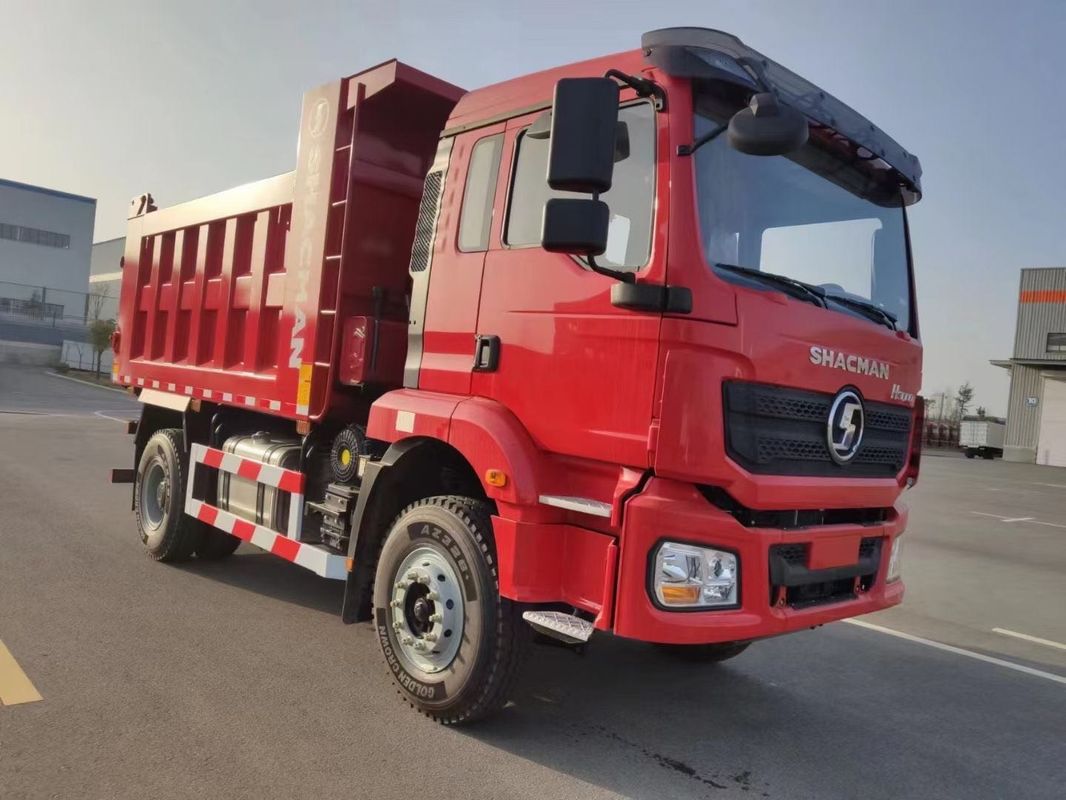

SHACMAN Dump Truck H3000 4x2 300 EuroII Red
Detailed Product Description
Model: SX3185MN381R
Engine Model:WP10.300E53 WEICHAI 220Kw/300 Hp EuroV
Transmission:8JS85TM +QH50
Axle:7.5T/*13 Double-stage axle, Axle speed-5.92
SHACMAN Dump Truck parameters
Model | SX3188MR381R | |
Drive type | 4x2 | |
Weight | Gross Vehicle Weight | 12~18 |
Dimensions | Wheelbase/(mm) | 5700 |
Performance | Maximum speed/(km/h) | 60~80/110 |
Ground clearance | >314 | |
Engine | Brand | WEICHAI |
Model | WP10.300EII | |
Power/(kw/HP) | 220w / 300Hp | |
Maximum torque / (N.M)/rpm | 1550N·M | |
Displacement/(L) | 9.726 L | |
Emission standard | Euro II | |
Gear box | Brand | FAST |
Model | 8JS85TM+QH50 | |
Clutch | Type | φ430 Diaphragm spring clutch |
Cooling | Type | Domestic heat sink |
Air inlet | Type | Ordinary air filter |
Brakes | Type | Drum brake |
Service brake | Double circuit air brake | |
Park brake | Rear wheel spring brake | |
Auxiliary brake | WEVB engine exhaust brake | |
Steering | Type | ZF8098 technology, circulating ball steering machine |
Chassis | Type | Parallel trapezoidal frame with variable section |
Dimensions/(mm) | 5700mm | |
Suspension | Front | Multi-layered leaf springs |
Rear | Multi-layered leaf springs | |
Axles | Brand | HANDE |
Front axle | 4.8T (disc brake) | |
Rear axle | 10T MAN Single Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.625 | |
Tires | Type | 10.00R20 |
Fuel tank | Tank capacity/(L) | 200L iron |
Electrics | Type | 24V |
Battery | 135Ah Maintenance-free battery | |
Cab | Type | SHACMAN L3000 cab |
Equipment | Electric air conditioning, electric window cranks, LED daytime running lights, central locking (dual remote control), front fixed rear hydraulic suspension, 135Ah maintenance-free battery, fixed pedals, flexible shaft steering, spare tire carrier, aluminum alloy air reservoir, hydraulic main seat with third seat, manual flip. |
Overview
The creation of a pre-production sample is an integral part of the manufacturing process, providing an opportunity to identify and address any potential issues or defects.
The standard procedure involves creating a pre-production sample to ensure that all manufacturing specifications are met before full-scale production.
It is customary in the industry to produce a pre-production sample before proceeding with mass production to identify and rectify any potential issues.
Detailed Image
FAQ
1. Who are we?
With our establishment in 2015, we are proud to be based in Shaanxi, China. Our sales operations primarily revolve around the African market, contributing to 70.00% of our revenue. Furthermore, we have a presence in Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), the Middle East (2.00%), Eastern Asia (2.00%), and South Asia (2.00%). Our11. Since our inception in 2015, our company operates from Shaanxi, China, serving various regions. Our main market focus is Africa, representing 70.00% of our sales, followed by Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), the Middle East (2.00%), Eastern Asia (2.00%), and South Asia (2.00%). Within our office, we have a dedicated team comprising approximately 11-50 employees.
2. How can we guarantee quality?
The standard procedure involves creating a pre-production sample to ensure that all manufacturing specifications are met before full-scale production.
3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.
4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF,FCA
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
