Place of Origin: | Shaanxi,Xian |
---|---|
Brand Name: | SHACMAN |
Certification: | ISO 9001/CCC |
Model Number: | F3000 |
Minimum Order Quantity: | 1 |
Price: | Negotiation |
Packaging Details: | Nude pack, with wax before shipment. |
Delivery Time: | 45 working days |
Payment Terms: | T/T, L/C |
Supply Ability: | 5000 units/month |
Modle: | SX3315DT366R | Engine: | WP10.380E22 WEICHAI |
---|---|---|---|
Transmission: | 10JSD180+QH50 FAST | Axle: | 2*9.5T /2*16 T Double-stage,speed Ratio-5.92 |
Wheel Base: | 1800+3575+1400 Mm | Tire: | 12R22.5 (12+1) |
Fuel Tank: | 300L Aluminium | Clutch: | φ430 Diaphragm Spring Clutch |
Air Inlet: | Oil Bath Air Filter | Chassis: | 850×300(8+7) |
Suspension: | Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts | Cabin: | Medium-length Flat Top |
Color: | Star And Moon Blue/Aurora White/Klein Blue/Brandy | ||
Highlight: | Red SHACMAN 8x4 Dump Truck,SHACMAN 8x4 Dump Truck F3000,8 Wheeler Dump Truck 380hp |
SHACMAN Dump Truck F3000 8x4 380 EuroII Red
SHACMAN Truck Main Detail Description
Model: SX3315DT366R
Engine Model: WEICHAI WP10.380E22 280kw / 380Hp Euro II
Transmission Model: FAST 12JSD200T-B+QH50
Axle:2*7.5T/2*16 Double-stage axle, Axle speed-5.262
SHACMAN Tipper dump truck parameters
Model | SX3315DT366R | |
Drive type | 8x4 | |
Weight | Gross Vehicle Weight | ≤70 |
Dimensions | Wheelbase/(mm) | 1800+3975+1400 |
Performance | Maximum speed/(km/h) | 43~60/80 |
Ground clearance | >314 | |
Engine | Brand | WEICHAI |
Model | WP10.380E22 | |
Power/(kw/HP) | 280kw / 380Hp | |
Maximum torque / (N.M)/rpm | 1600 N·M | |
Displacement/(L) | 9.726 L | |
Emission standard | Euro II | |
Gearbox | Brand | FAST |
Model | 12JSD200T-B+QH50 /spline | |
Clutch | Type | φ430 Diaphragm spring clutch |
Cooling | Type | Domestic heat sink |
Air inlet | Type | Ordinary air filter |
Brakes | Type | Drum brake |
Service brake | Double circuit air brake | |
Park brake | Rear wheel spring brake | |
Auxiliary brake | WEVB engine exhaust brake | |
Steering | Type | ZF8098 technology, circulating ball steering machine |
Chassis | Type | Parallel trapezoidal frame with variable section |
Dimensions/(mm) | 850×300(8+7) | |
Suspension | Front | Multi-layered leaf springs with 4 Main springs+4 U Bolts |
Rear | Multi-layered leaf springs with 4 Main springs+4 U Bolts | |
Axles | Brand | HANDE |
Front axle | 2*9.5T front axle MAN technology | |
Rear axle | 2*16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.769 | |
Tires | Type | 12.00R20 |
Fuel tank | Tank capacity/(L) | 400L Aluminum tank |
Electrics | Type | 24V |
Battery | 165Ah Maintenance-free battery | |
Cab | Type | SHACMAN F3000 Standard cab |
Equipment | Hydraulic main seat, four-point hydraulic suspension cab, lever rear-view mirror, electric air conditioner, electric window shaker, manual flip, telescopic shaft control, ordinary air filter, metal bumper, two-stage pedals, water tank protection grille, 165Ah Maintenance-free battery, SHACMAN logo, full English logo. |
SHACMAN Truck Specialty
TSHACMAN trucks prioritize driver and passenger safety by equipping their vehicles with essential safety features like ABS (Anti-lock Braking System), which prevents wheel lock-up and enhances braking efficiency.

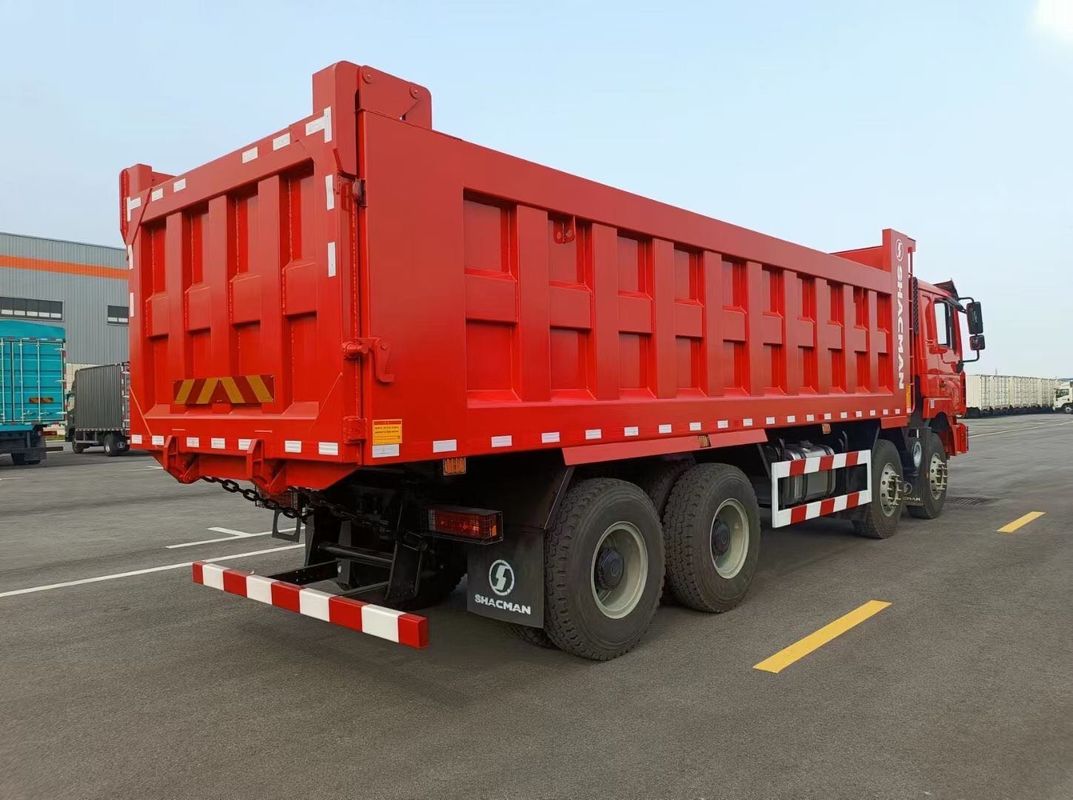

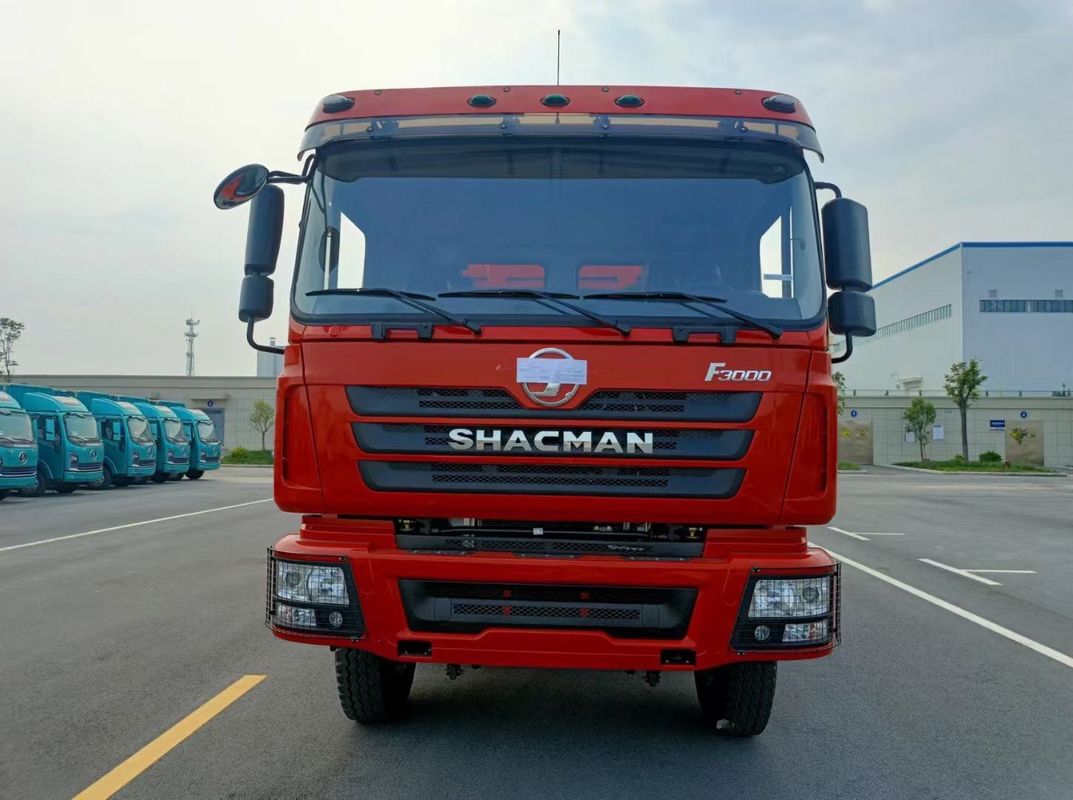

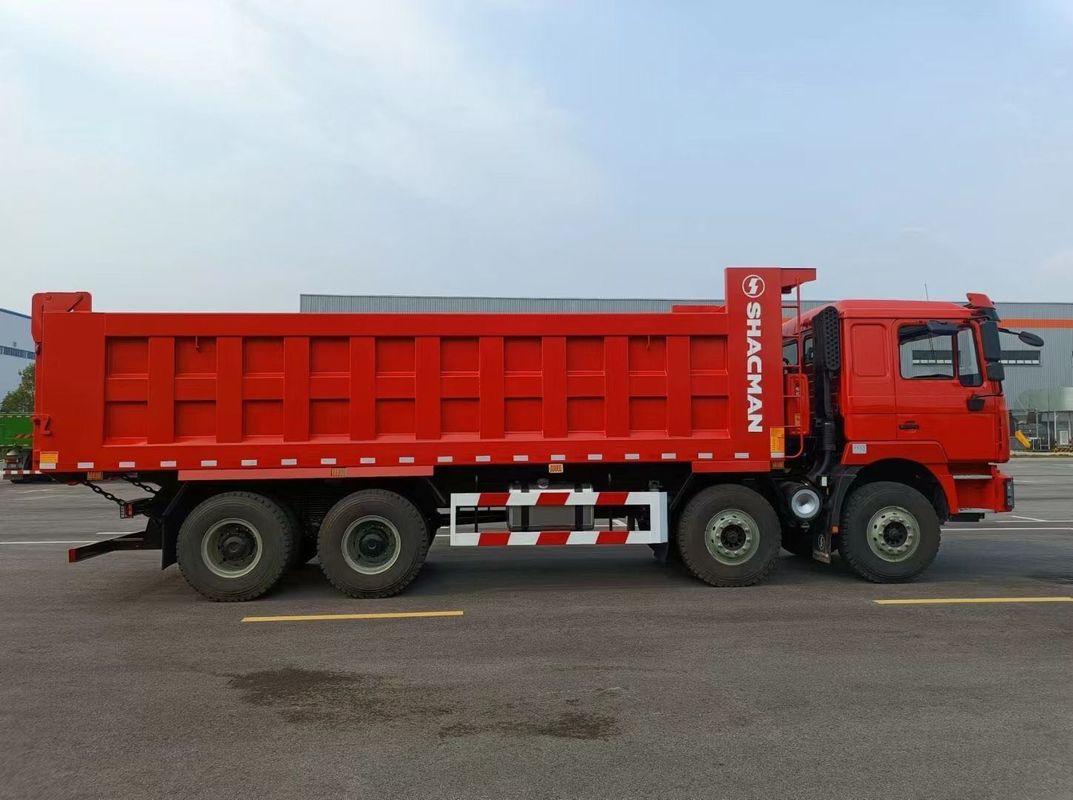

SHACMAN Truck Detailed Image
FAQ
1. Who are we?
SHACMAN trucks are designed with reinforced cabins and structures, ensuring enhanced crashworthiness and passenger protection in the event of a collision.
The inclusion of electronic brake-force distribution systems in SHACMAN trucks optimizes brake force distribution across all wheels, improving braking performance and stability.
2. How can we guarantee quality?
To ensure SHACMAN product integrity, a pre-production sample is meticulously inspected and tested to meet the desired standards before initiating mass manufacturing.
3. What can you buy from us?
Dump truck, tractor truck, lorry truck, Crane truck, Mixer truck. Sime-trucks.
4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
