SHACMAN Dump Truck F3000 8x4 375 EuroV Red

Basic Information
Place of Origin: Shaanxi,Xian
Brand Name: SHACMAN
Certification: ISO 9001/CCC
Model Number: F3000
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude pack, with wax before shipment.
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 5000UNITS
Detail Information
Modle: SX3318DT366 Engine: WP12.375E50
Transmission: 10JSD180+QH50 Axle: 9.5T /2*16 T Double-stage,speed Ratio-5.92
Wheel Base: 1800+3575+1400 Mm Tire: 12.00R20
Fuel Tank: 300L Clutch: φ430 Diaphragm Spring Clutch
Air Inlet: Ordinary Air Filter Chassis: 850×300(8+7)
Suspension: Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts Cabin: Medium-length Flat Top
Color: Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy

Product Description

SHACMAN Dump Truck F3000 8x4 375 EuroV Red



Detailed Product Description
Model: SX3318DT366
Drive type: 8x4
Weight: Gross Vehicle Weight≤70
Engine Brand: WEICHAI
Engine Model: WP12.375E50
Engine Power/(kw/HP): 276kw / 375Hp
Gear box Brand: FAST
Gear box Model: 10JSD180+QH50



Tipper  Dump Truck Parameters

ModelSX3318DT366
Drive type8x4
WeightGross Vehicle Weight≤70
DimensionsWheelbase/(mm)1800+3575+1400
PerformanceMaximum speed/(km/h)45~60/85
Ground clearance>314
EngineBrandWEICHAI
ModelWP12.375E50
Power/(kw/HP)276kw / 375Hp
Maximum torque / (N.M)/rpm1800 N·M
Displacement/(L)11.596 L
Emission standardEuro V
Gear boxBrandFAST
Model10JSD180+QH50
ClutchTypeφ430 Diaphragm spring clutch
CoolingTypeDomestic heat sink
Air inletTypeOrdinary air filter
BrakesTypeDrum brake
Service brakeDouble circuit air brake
Park brakeRear wheel spring brake
Auxiliary brakeWEVB engine exhaust brake
SteeringTypeZF8098 technology, circulating ball steering machine
ChassisTypeParallel trapezoidal frame with variable section
Dimensions/(mm)850×300(8+7)
SuspensionFrontMulti-layered leaf springs with 4 Main springs+4 U Bolts
RearMulti-layered leaf springs with 4 Main springs+4 U Bolts
AxlesBrandHANDE
Front axle9.5T front axle MAN technology
Rear axle16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92
TiresType12.00R20
Fuel tankTank capacity/(L)300L Aluminum tank
ElectricsType24V
Battery165Ah Maintenance-free battery
CabTypeSHACMAN F3000 Medium-length flat cab
EquipmentHydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo.





Advantages

  1. Expectations and demands are on the raise and the F3000 series is the solution. With many configurations available to choose. No matter what the job entails, our qualified professionals can help you pick out the perfect vehicle.
  2. Frame type structure, local strengthening design, for maximum safety.
  3. Industry leading torsional stiffness and bending stiffness.

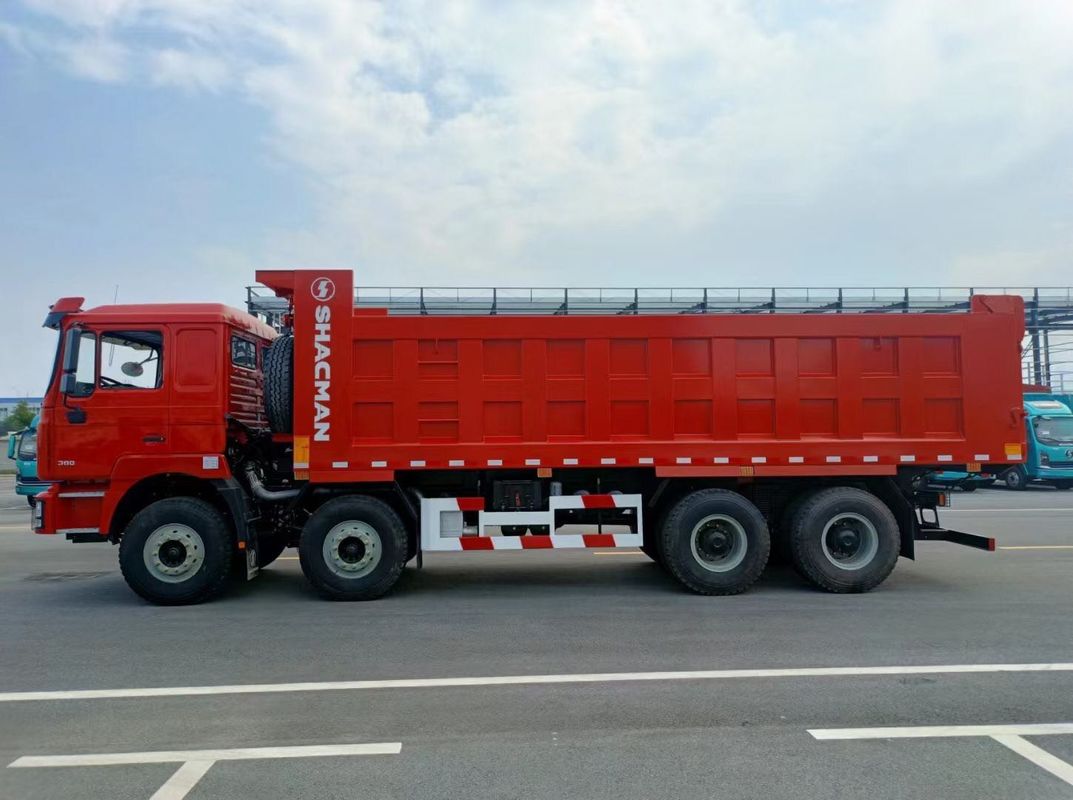

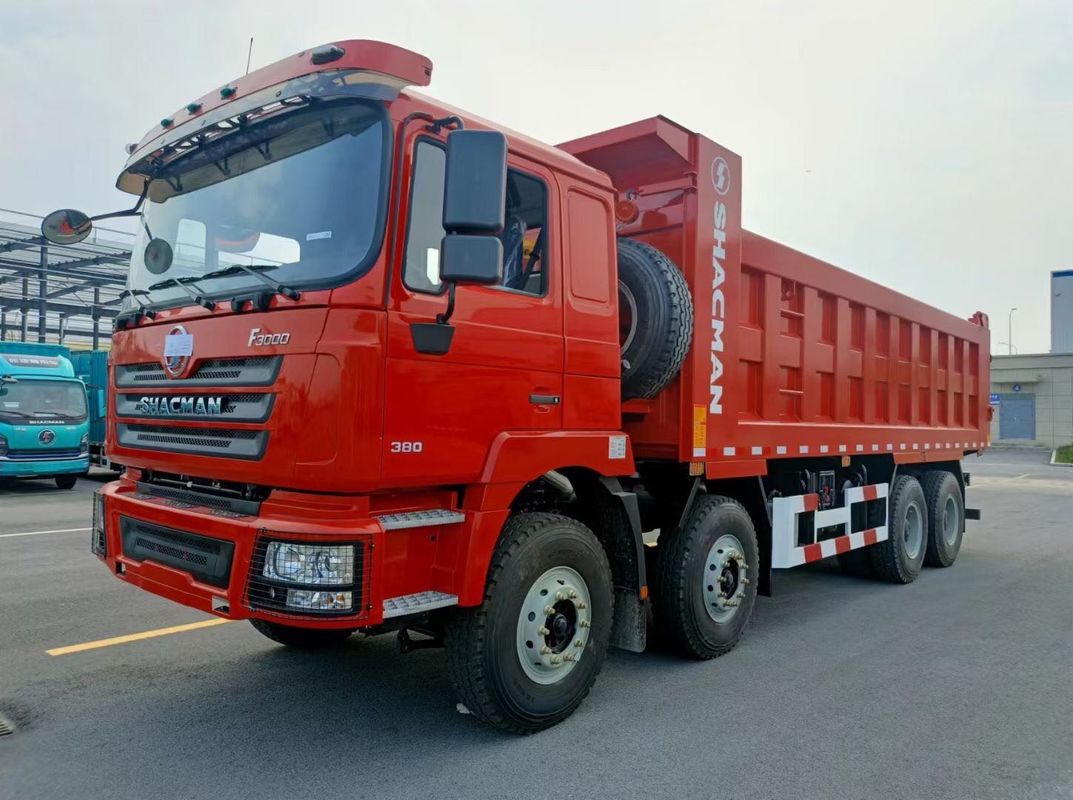

Detailed Image

SHACMAN  Dump Truck F3000 8x4 375 EuroV  Red 0
