8x4 SHACMAN Heavy Dump Truck F3000 70ton 375hp EuroV 12 Wheeler Dump Truck

Basic Information
Place of Origin: Shaanxi,Xian
Brand Name: SHACMAN
Certification: ISO 9001/CCC
Model Number: F3000
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude pack, with wax before shipment.
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 5000 units/month
Detail Information
Modle: SX3318DT366R Engine: WP12.375E50 EuroV
Transmission: 10JSD180+QH50 FAST Axle: 2*9.5T /2*16 T Double-stage,speed Ratio-5.92
Wheel Base: 1800+3575+1400 Mm Tire: 12.00R20
Fuel Tank: 300L Clutch: φ430 Diaphragm Spring Clutch
Air Inlet: Ordinary Air Filter Chassis: 850×300(8+7)
Suspension: Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts Cabin: Medium-length Flat Top
Color: Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy
Highlight:

eurov SHACMAN Heavy Dump Truck

,

eurov Heavy Dump Truck F3000

,

eurov 375hp 10 Wheeler Dump Truck


Product Description

SHACMAN Dump Truck F3000 8x4 375 EuroV Yellow


SHACMAN Truck Main Detail Description

Model: SX3315DT366R

Engine Model: WEICHAI WP12.375E50 EuroV 275kw / 375Hp Euro V

Transmission Model: FAST 12JSD200T-B+QH50

Axle:2*7.5T/2*16 Double-stage axle, Axle speed-5.262



SHACMAN Tipper dump truck parameters

Model SX3315DT366R
Drive type 8x4
Weight Gross Vehicle Weight ≤70
Dimensions Wheelbase/(mm) 1800+3975+1400
Performance Maximum speed/(km/h) 43~60/80
Ground clearance >314
Engine Brand WEICHAI
Model WP12.375E50 EuroV
Power/(kw/HP) 275kw / 375Hp
Maximum torque / (N.M)/rpm 1600 N·M
Displacement/(L) 11.596 L
Emission standard Euro II
Gearbox Brand FAST
Model 12JSD200T-B+QH50 /spline
Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) 850×300(8+7)
Suspension Front Multi-layered leaf springs with 4 Main springs+4 U Bolts
Rear Multi-layered leaf springs with 4 Main springs+4 U Bolts
Axles Brand HANDE
Front axle 2*9.5T front axle MAN technology
Rear axle 2*16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.769
Tires Type 12.00R20
Fuel tank Tank capacity/(L) 400L Aluminum tank
Electrics Type 24V
Battery 165Ah Maintenance-free battery
Cab Type SHACMAN F3000 Standard cab
Equipment Hydraulic main seat, four-point hydraulic suspension cab, lever rear-view mirror, electric air conditioner, electric window shaker, manual flip, telescopic shaft control, ordinary air filter, metal bumper, two-stage pedals, water tank protection grille, 165Ah Maintenance-free battery, SHACMAN logo, full English logo.




SHACMAN Truck Specialty

TSHACMAN trucks prioritize driver and passenger safety by equipping their vehicles with essential safety features like ABS (Anti-lock Braking System), which prevents wheel lock-up and enhances braking efficiency.

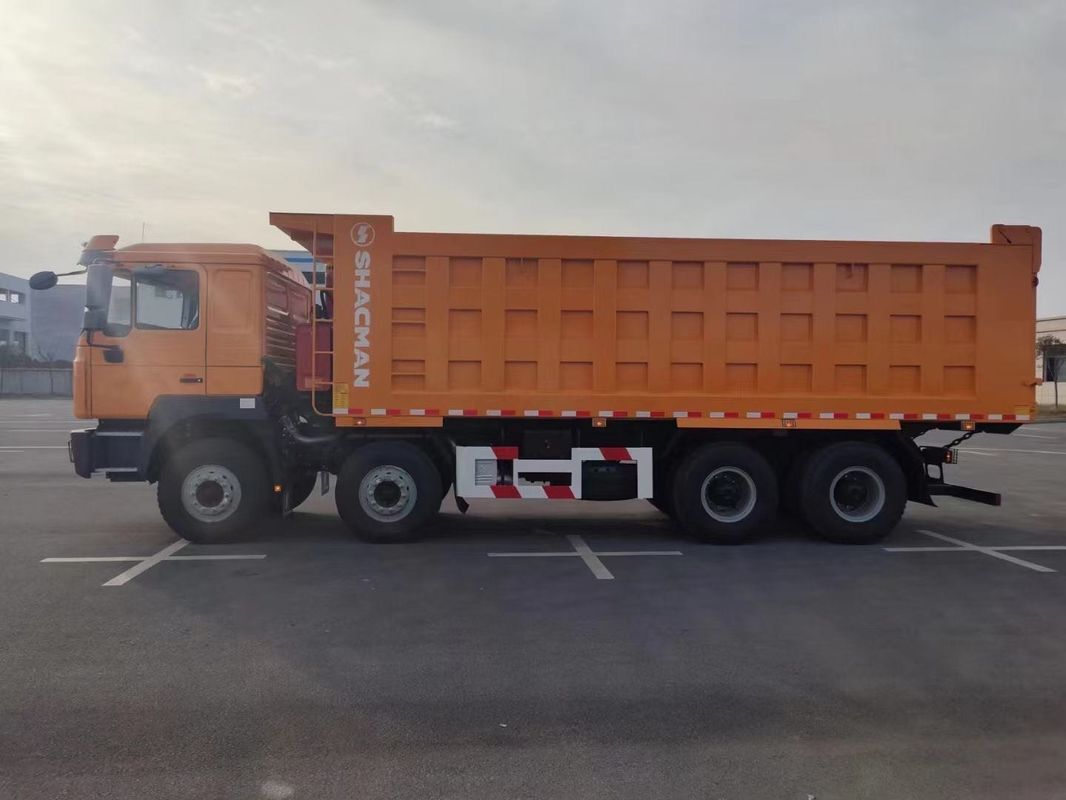

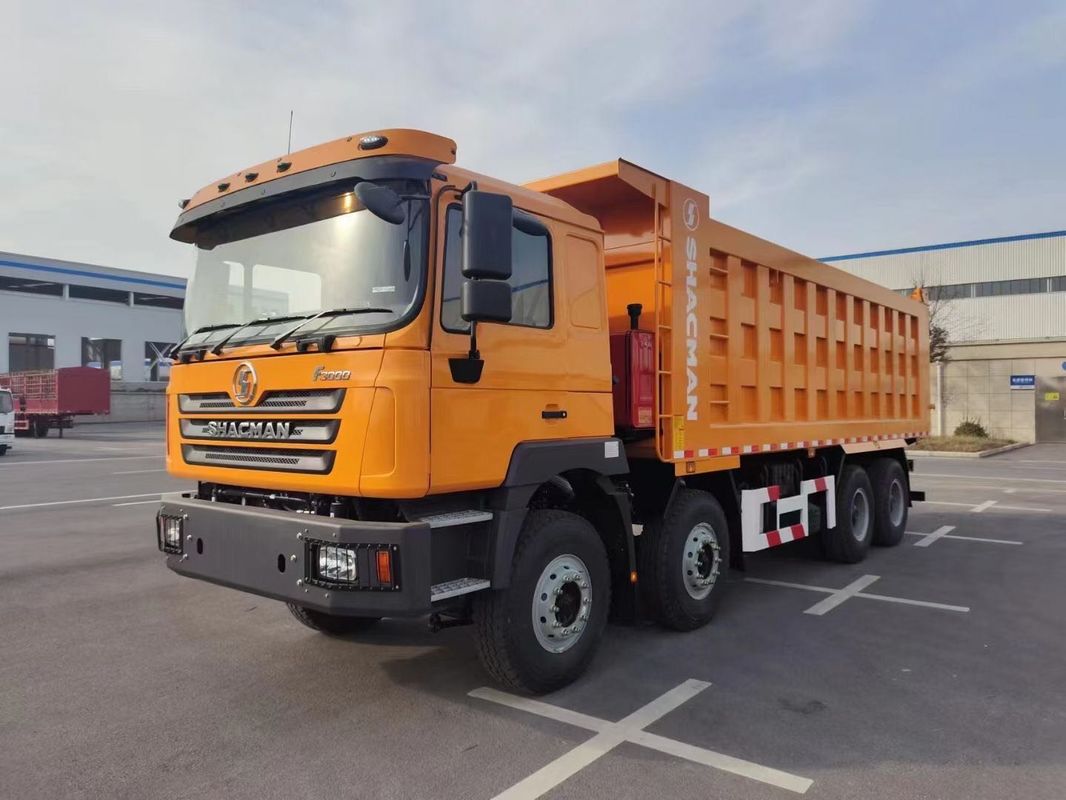

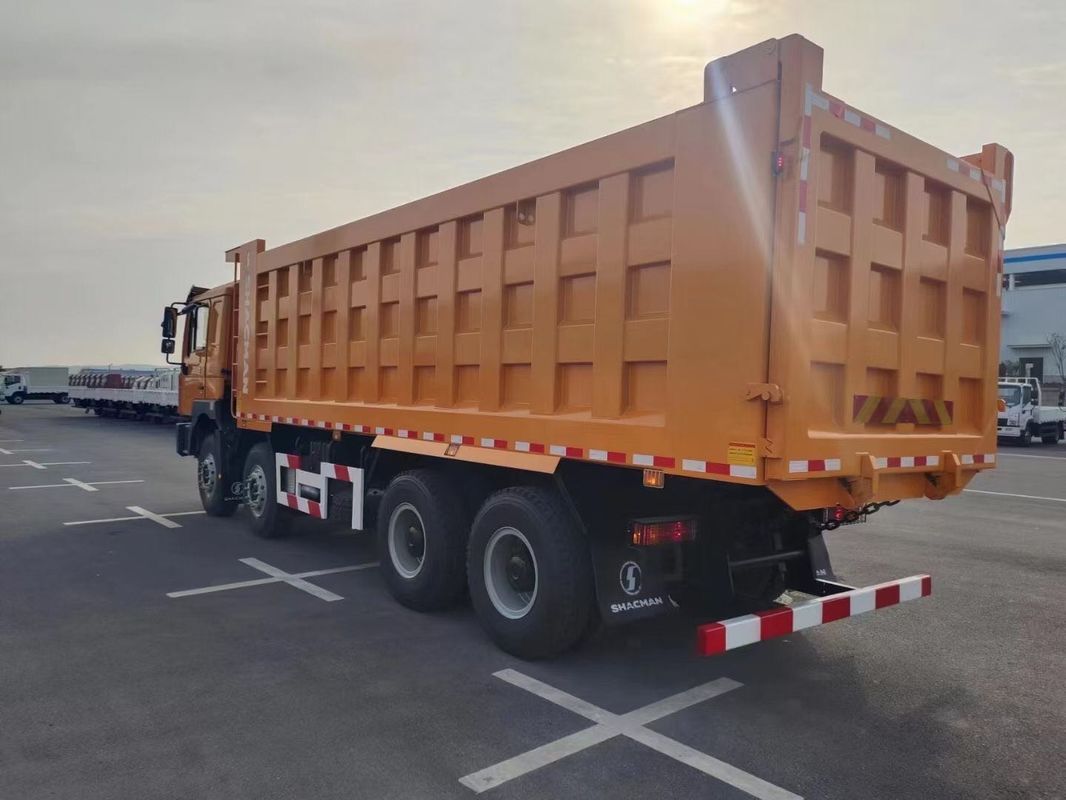

SHACMAN Truck Detailed Image

8x4 SHACMAN Heavy Dump Truck F3000 70ton 375hp EuroV 12 Wheeler Dump Truck 0





FAQ

1. Who are we?
SHACMAN trucks are designed with reinforced cabins and structures, ensuring enhanced crashworthiness and passenger protection in the event of a collision.
The inclusion of electronic brake-force distribution systems in SHACMAN trucks optimizes brake-force distribution across all wheels, improving braking performance and stability.


2. How can we guarantee quality?
To ensure SHACMAN product integrity, a pre-production sample is meticulously inspected and tested to meet the desired standards before initiating mass manufacturing.

3. What can you buy from us?
Dump truck, tractor truck, lorry truck, Crane truck, Mixer truck. Sime-trucks.

4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
