Name: SHACMAN X3000 Tipper Dump truck 6x4 10 tries 380Hp Euro II
Brand: SHACMAN
SKU: X3000
Rating: 4.9 (126 reviews)

Home > products > Heavy Dump Truck >

SHACMAN X3000 Tipper Dump truck 6x4 10 tries 380Hp Euro II

Place of Origin:

Shaanxi,Xian

Brand Name:

SHACMAN

Certification:

ISO 9001/CCC

Model Number:

X3000

Request A Quote

Product Details

Modle:

SX32556T384

Engine:

WP10.380E22

Transmission:

10JSD180+QH50

Axle:

9.5T /2*16 T Double-stage,speed Ratio-5.92

Wheel Base:

3775+1400mm

Tire:

12.00R20

Fuel Tank:

300L

Clutch:

φ430 Diaphragm Spring Clutch

Air Inlet:

Ordinary Air Filter

Chassis:

850×300（8+7）

Suspension:

Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts

Cabin:

Medium-length Flat Top

Color:

Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

Nude pack, with wax before shipment.

Delivery Time

45 working days

Payment Terms

T/T, L/C

Supply Ability

1000 units/month

RELATED PRODUCTS

Contact Now

Product Description

SHACMAN X3000 Tipper Dump truck 6x4 10 tries 380Hp Euro II

Detailed Product Description

Model:SX32556T384
Drive type:6x4
Weight: Gross Vehicle Weight≤50
Engine Brand: WEICHAI
Engine Model:WP10.380E22
Engine Power/(kw/HP): 279kw / 380Hp
Gear box Brand: FAST
Gear box Model: 10JSD180+QH50

Tipper Dump truck Parameters

Model	SX32556T384
Drive type	6x4
Weight	Gross Vehicle Weight	≤50
Dimensions	Wheelbase/(mm)	3775+1400
Performance	Maximum speed/(km/h)	40～55/75
Performance	Ground clearance	>314
Engine	Brand	WEICHAI
	Model	WP10.380E22
	Power/(kw/HP)	279kw / 380Hp
	Maximum torque / (N.M)/rpm	1600 N·M
	Displacement/(L)	9.726 L
	Emission standard	Euro II
Gear box	Brand	FAST
Gear box	Model	10JSD180+QH50
Clutch	Type	φ430 Diaphragm spring clutch
Cooling	Type	Domestic heat sink
Air inlet	Type	Ordinary air filter
Brakes	Type	Drum brake
	Service brake	Double circuit air brake
	Park brake	Rear wheel spring brake
	Auxiliary brake	WEVB engine exhaust brake
Steering	Type	ZF8098 technology, circulating ball steering machine
Chassis	Type	Parallel trapezoidal frame with variable section
Chassis	Dimensions/(mm)	850×300(8+7)
Suspension	Front	Multi-layered leaf springs with 4 Main springs+4 U Bolts
Suspension	Rear	Multi-layered leaf springs with 4 Main springs+4 U Bolts
Axles	Brand	HANDE
	Front axle	9.5T front axle MAN technology
	Rear axle	16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92
Tires	Type	12.00R20
Fuel tank	Tank capacity/(L)	300L Aluminum tank
Electrics	Type	24V
Electrics	Battery	165Ah Maintenance-free battery
Cab	Type	SHACMAN X3000 Medium-length flat cab
Cab	Equipment	Hydraulic main seat, four-point hydraulic suspension cab, electronically controlled automatic constant temperature air conditioner, electric window shaker, ordinary rearview mirror, 165Ah maintenance-free battery, SHACMAN logo, full English logo.

Overview

Configuration: The SHACMAN X3000 Tipper Dump Truck has a 6x4 configuration, meaning it has six wheels with four of them powered. This configuration provides good traction and load-carrying capacity, making it suitable for various terrains and load requirements.
Engine: Equipped with a 380 horsepower engine, the truck offers ample power for hauling heavy loads and ensures satisfactory performance and acceleration.
Dumping Capacity: With its 10 tires, the truck has a significant hauling capacity, allowing it to transport substantial amounts of material. It is well-suited for construction, mining, and other industries that require efficient transportation of bulk materials.

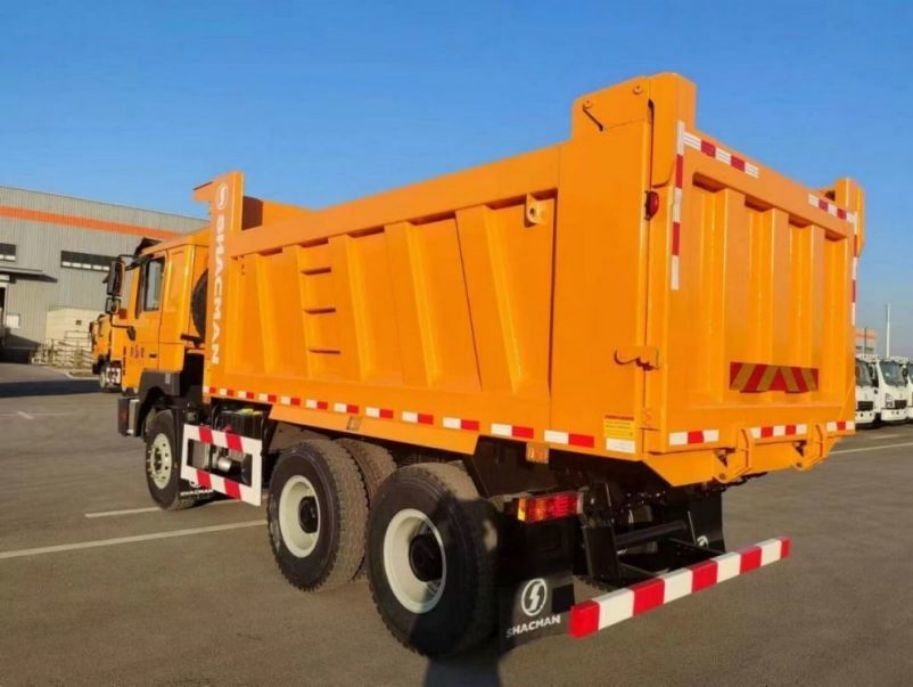

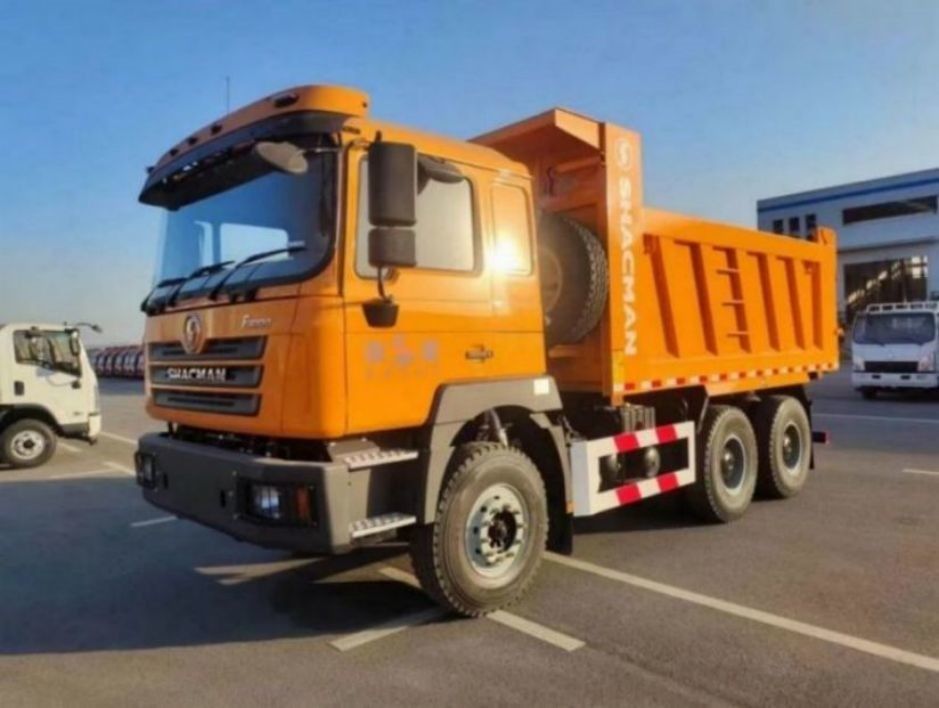

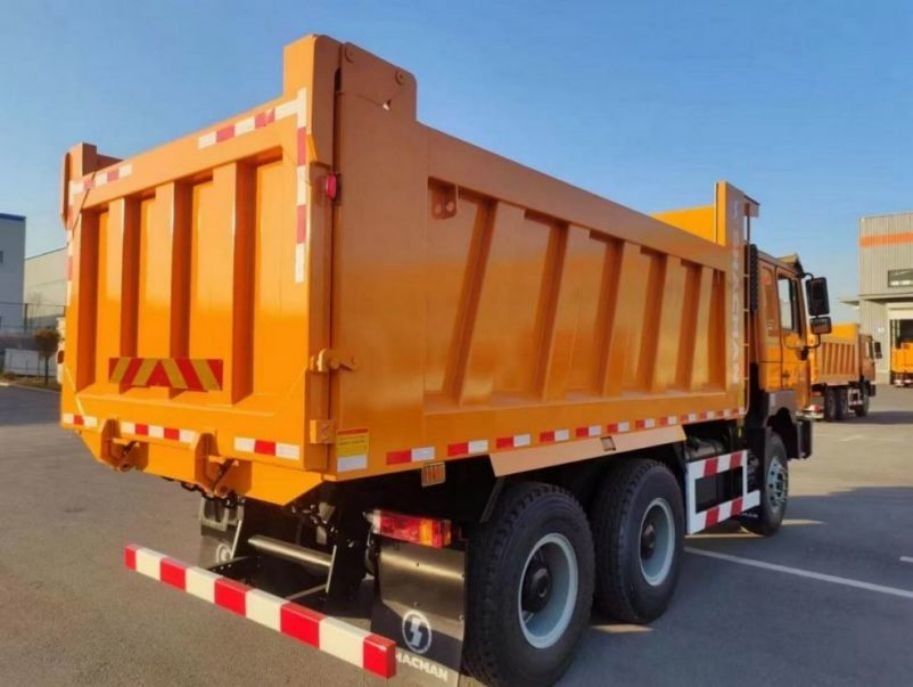

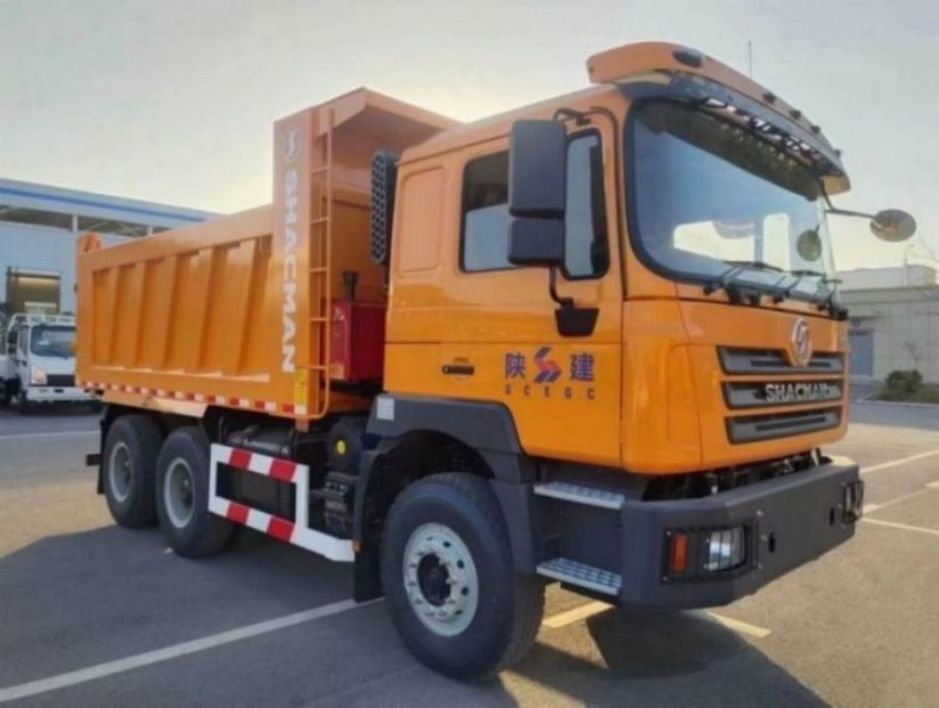

Detailed Image
