Place of Origin: | Shaanxi,Xian |
---|---|
Brand Name: | SHACMAN |
Certification: | ISO 9001/CCC |
Model Number: | F3000 |
Minimum Order Quantity: | 1 |
Price: | Negotiation |
Packaging Details: | Nude pack, with wax before shipment. |
Delivery Time: | 45 working days |
Payment Terms: | T/T, L/C |
Supply Ability: | 5000 units/month |
Modle: | SX3255DU384R | Engine: | WP12.375E50 EuroV |
---|---|---|---|
Transmission: | 10JSD180+QH50 FAST | Axle: | 9.5T /2*16 T Double-stage,speed Ratio-5.92 |
Wheel Base: | 3775+1400mm | Tire: | 12.00R20 (10+1) |
Fuel Tank: | 300L | Clutch: | φ430 Diaphragm Spring Clutch |
Air Inlet: | Ordinary Air Filter | Chassis: | 850×300(8+7) |
Suspension: | Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts | Cabin: | Medium-length Flat Top |
Color: | Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy | ||
Highlight: | EuroV SHACMAN Dump Truck,EuroV SHACMAN Dump Truck F3000,SHACMAN 6 Wheel Dump Truck EuroV |
SHACMAN Dump Truck F3000 6x4 375 EuroV White
Detailed Product Description
Model: SX3258MT384R
Engine Model: W10.375E50 WEICHAI 275kw /375Hp Euro V
Gearbox Model: 10JSD180+QH50 FAST
Axle : 9.5T /2*16 T Double-stage,speed ratio-5.92
SHACMAN Tipper Dump Truck parameters
Model | SX3258MT384R | |
Drive Type | 6x4 | |
Weight | Gross Vehicle Weight | ≤50 |
Dimensions | Wheelbase/(mm) | 3775+1400 |
Performance | Maximum speed/(km/h) | 40~55/75 |
Ground clearance | >314 | |
Engine | Brand | WEICHAI |
Model | W10.375E50 | |
Power/(Kw/HP) | 275kw / 375Hp | |
Maximum torque / (N.M)/rpm | 1800 N·M | |
Displacement/(L) | 11.596 L | |
Emission standard | Euro II | |
Gearbox | Brand | FAST |
Model | 12JSD200T-B+QH50 | |
Clutch | Type | φ430 Diaphragm spring clutch |
Cooling | Type | Domestic heat sink |
Air inlet | Type | Ordinary air filter |
Brakes | Type | Drum brake |
Service brake | Double circuit air brake | |
Park brake | Rear wheel spring brake | |
Auxiliary brake | WEVB engine exhaust brake | |
Steering | Type | ZF8098 technology, circulating ball steering machine |
Chassis | Type | Parallel trapezoidal frame with variable section |
Dimensions/(mm) | 850×300(8+7) | |
Suspension | Front | Multi-layered leaf springs with 4 Main springs+4 U Bolts |
Rear | Multi-layered leaf springs with 4 Main springs+4 U Bolts | |
Axles | Brand | HANDE |
Front axle | 9.5T front axle MAN technology | |
Rear axle | 2*16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92 | |
Tires | Type | 12.00R20 |
Fuel tank | Tank capacity/(L) | 300L Aluminum tank |
Electrics | Type | 24V |
Battery | 165Ah Maintenance-free battery | |
Cab | Type | SHACMAN F3000 Medium-length flat cab |
Equipment | Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo. |
Why SHACMAN?
The inclusion of electronic brake-force distribution systems in SHACMAN trucks optimizes brake force distribution across all wheels, improving braking performance and stability.

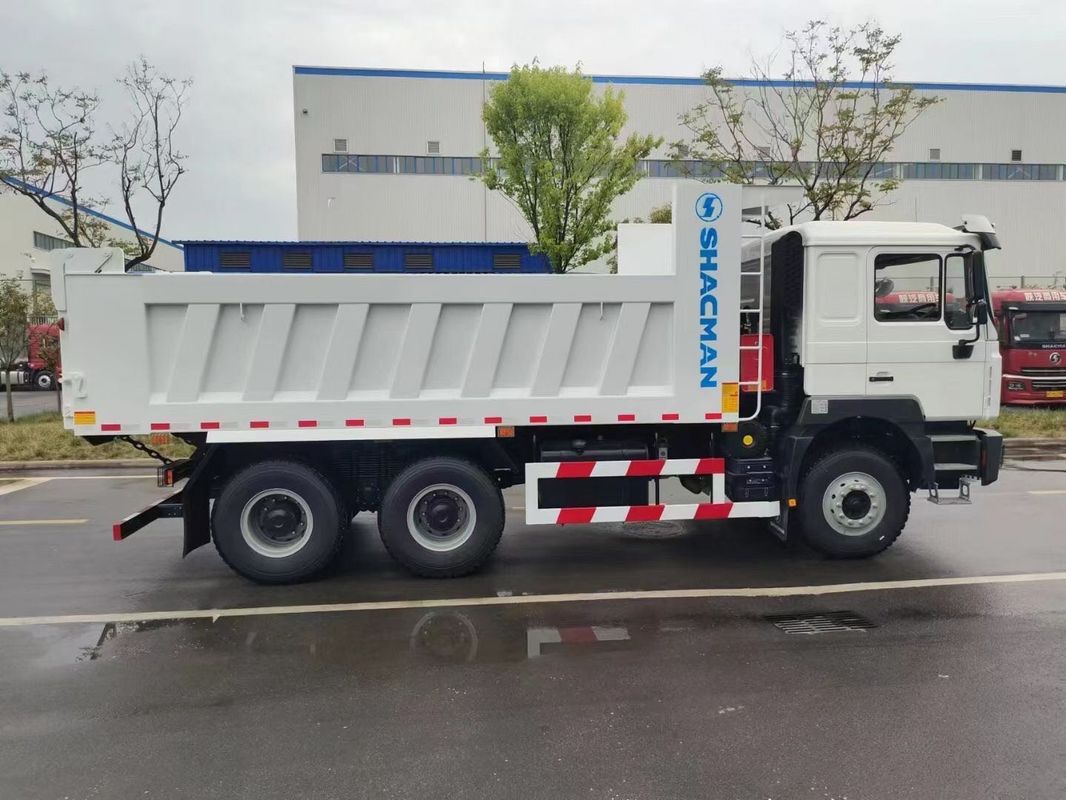

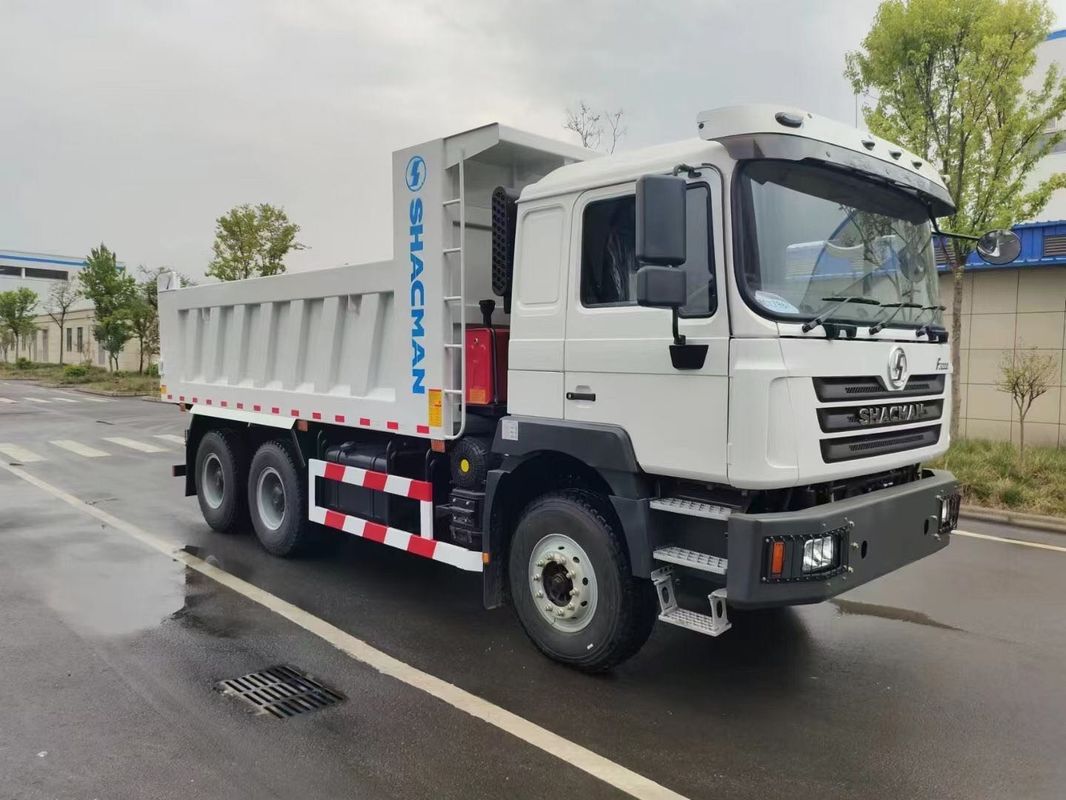

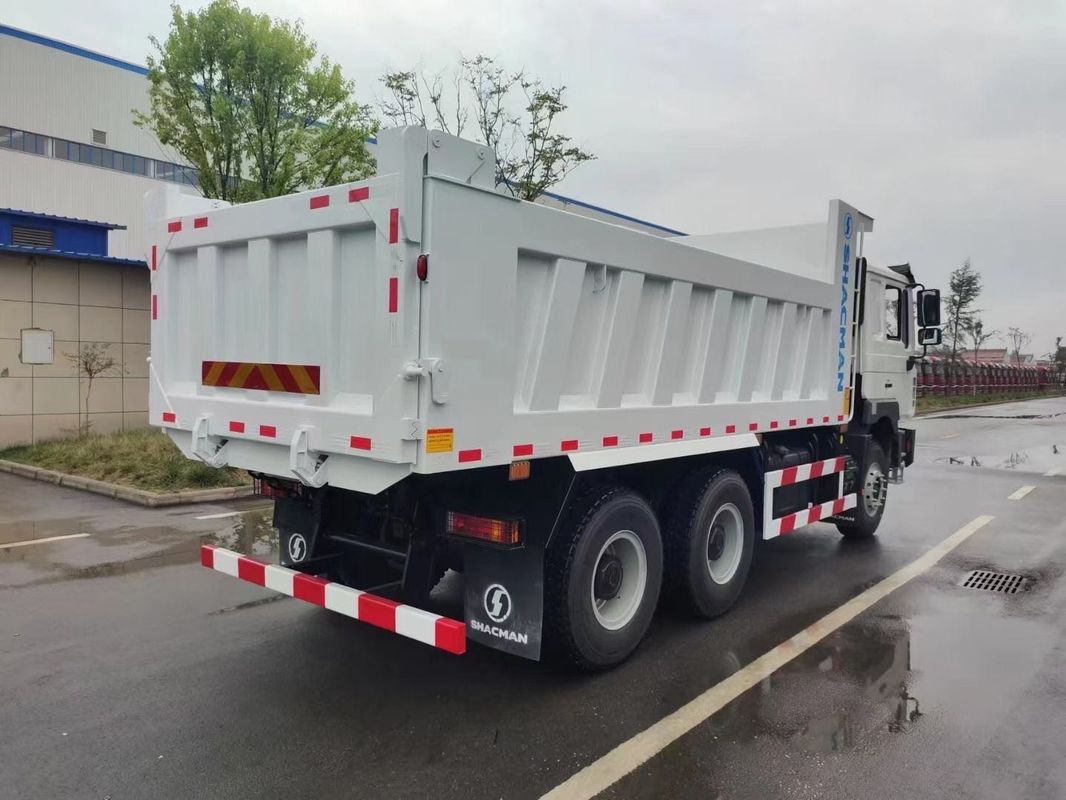

SHACMAN Truck Detailed Image Show
FAQ
1. Who are we?
Eastern Asia, including countries like China, Japan, and South Korea, contributes 2.00% to our overall sales.
South Asia, comprising nations like India, Pakistan, and Bangladesh, is another region where our SHACMAN Trucks have gained traction, representing 2.00% of our market.
2. How can we guarantee quality?
The development of a pre-production sample is crucial for verifying that the product meets all required standards and specifications before proceeding with full-scale manufacturing.
A pre-production sample is a necessary step in the production process to minimize risks and ensure that the final product meets the desired quality standards.
3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.
4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, FCA
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
