Place of Origin: | Shaanxi,Xian |
---|---|
Brand Name: | SHACMAN |
Certification: | ISO 9001/CCC |
Model Number: | F3000 |
Minimum Order Quantity: | 1 |
Price: | Negotiation |
Packaging Details: | Nude pack, with wax before shipment. |
Delivery Time: | 45 working days |
Payment Terms: | T/T, L/C |
Supply Ability: | 5000 units/month |
Modle: | SX3255DT384R | Engine: | WEICHIA WP10.380E22 |
---|---|---|---|
Transmission: | FAST 10JSD180+QH50 | Axle: | MAN 9.5T /2*16 T Double-stage,speed Ratio-5.92 |
Wheel Base: | 3775+1400mm | Tire: | 12.00R20 (10+1) |
Fuel Tank: | 300L | Air Inlet: | Ordinary Air Filter |
Chassis: | 850×300(8+7) | Suspension: | Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts |
Cabin: | Medium-length Flat Top | ||
Highlight: | 50T SHACMAN Tipper Truck,380hp Side Dumper Truck,EuroII Red Side Dumper Truck |
SHACMAN Dump Truck F3000 6x4 380 EuroII Red Right Driver
Detailed Product Description
Model: SX3255DT384R
Engine Model: W10.380E22 WEICHAI 280kw / 380Hp Euro II
Gearbox Model: 12JSD200T-B+QH50 FAST
Dump Truck Parameters
Model | SX3255DT384R | |
Drive type | 6x4/ Right Driver | |
Weight | Gross Vehicle Weight | ≤50 |
Dimensions | Wheelbase/(mm) | 3775+1400 |
Performance | Maximum speed/(km/h) | 40~55/75 |
Ground clearance | >314 | |
Engine | Brand | WEICHAI |
Model | W10.380E22 | |
Power/(kw/HP) | 280kw / 380Hp | |
Maximum torque / (N.M)/rpm | 1600 N·M | |
Displacement/(L) | 9.726 L | |
Emission standard | Euro II | |
Gearbox | Brand | FAST |
Model | 10JSD180+QH50 | |
Clutch | Type | φ430 Diaphragm spring clutch |
Cooling | Type | Domestic heat sink |
Air inlet | Type | Ordinary air filter |
Brakes | Type | Drum brake |
Service brake | Double circuit air brake | |
Park brake | Rear wheel spring brake | |
Auxiliary brake | WEVB engine exhaust brake | |
Steering | Type | ZF8098 technology, circulating ball steering machine |
Chassis | Type | Parallel trapezoidal frame with variable section |
Dimensions/(mm) | 850×300(8+7) | |
Suspension | Front | Multi-layered leaf springs with 4 Main springs+4 U Bolts |
Rear | Multi-layered leaf springs with 4 Main springs+4 U Bolts | |
Axles | Brand | HANDE |
Front axle | 9.5T front axle MAN technology | |
Rear axle | 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92 | |
Tires | Type | 12.00R20 |
Fuel tank | Tank capacity/(L) | 300L Aluminum tank |
Electrics | Type | 24V |
Battery | 165Ah Maintenance-free battery | |
Cab | Type | SHACMAN F3000 Medium-length flat cab |
Equipment | Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo. |
SHACMAN Truck Advantages

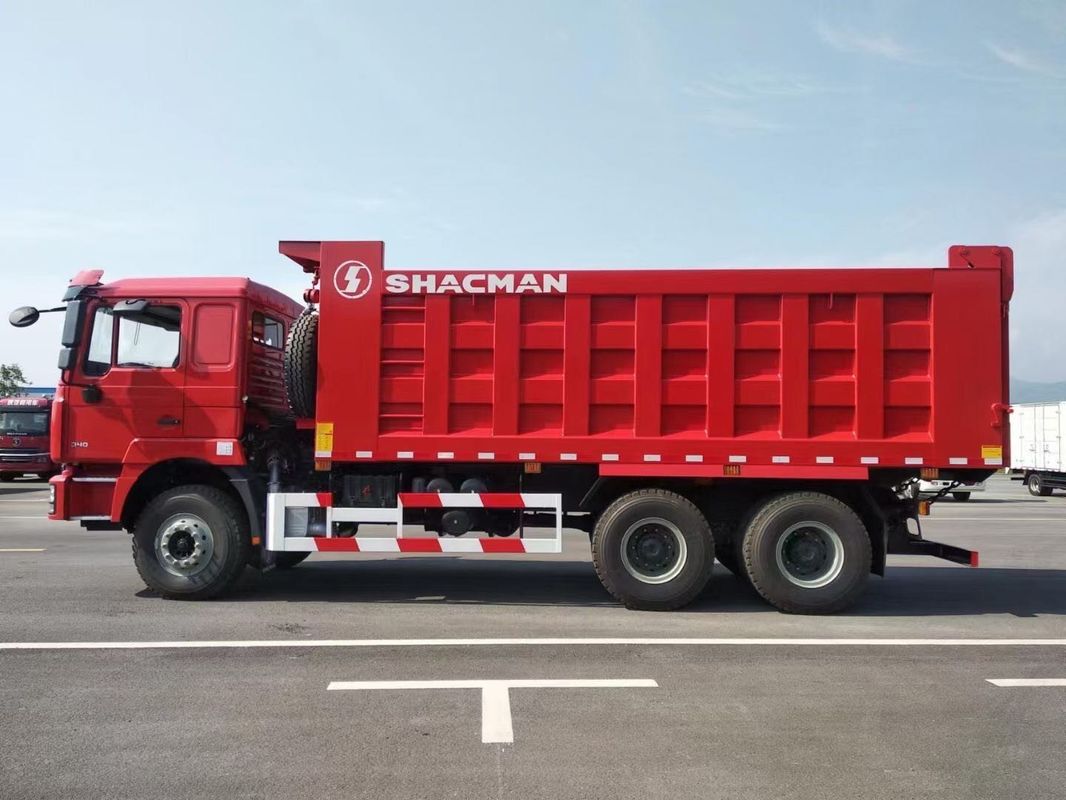

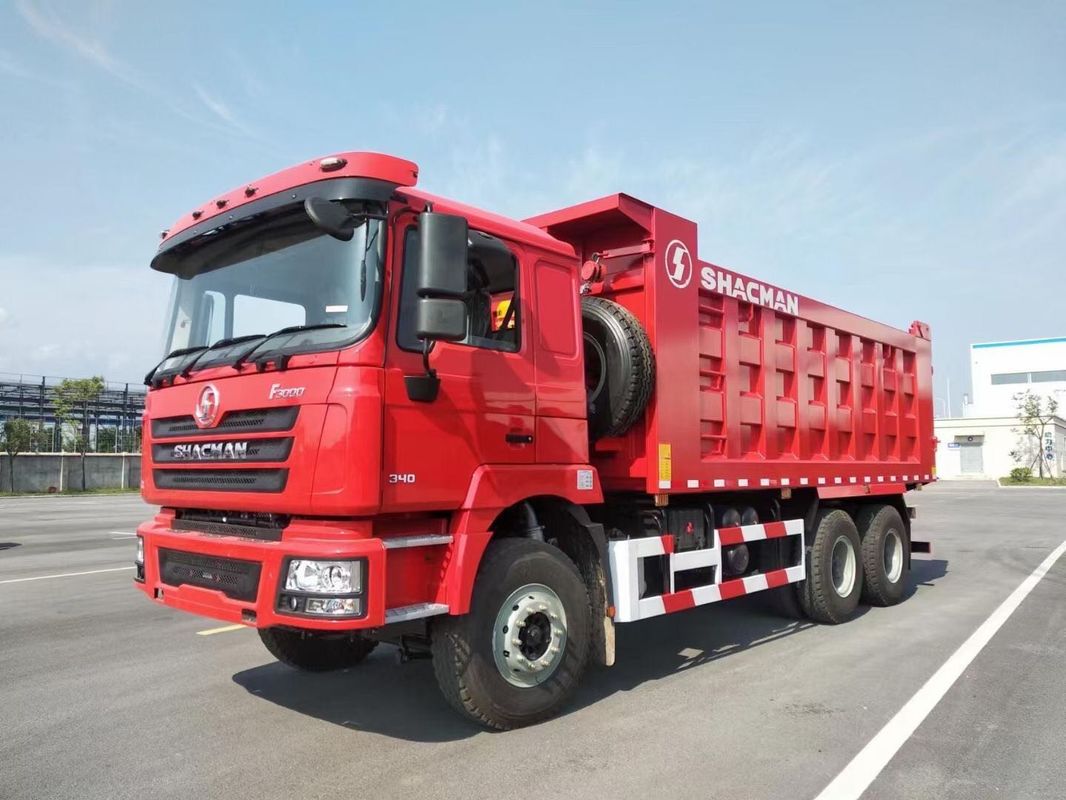

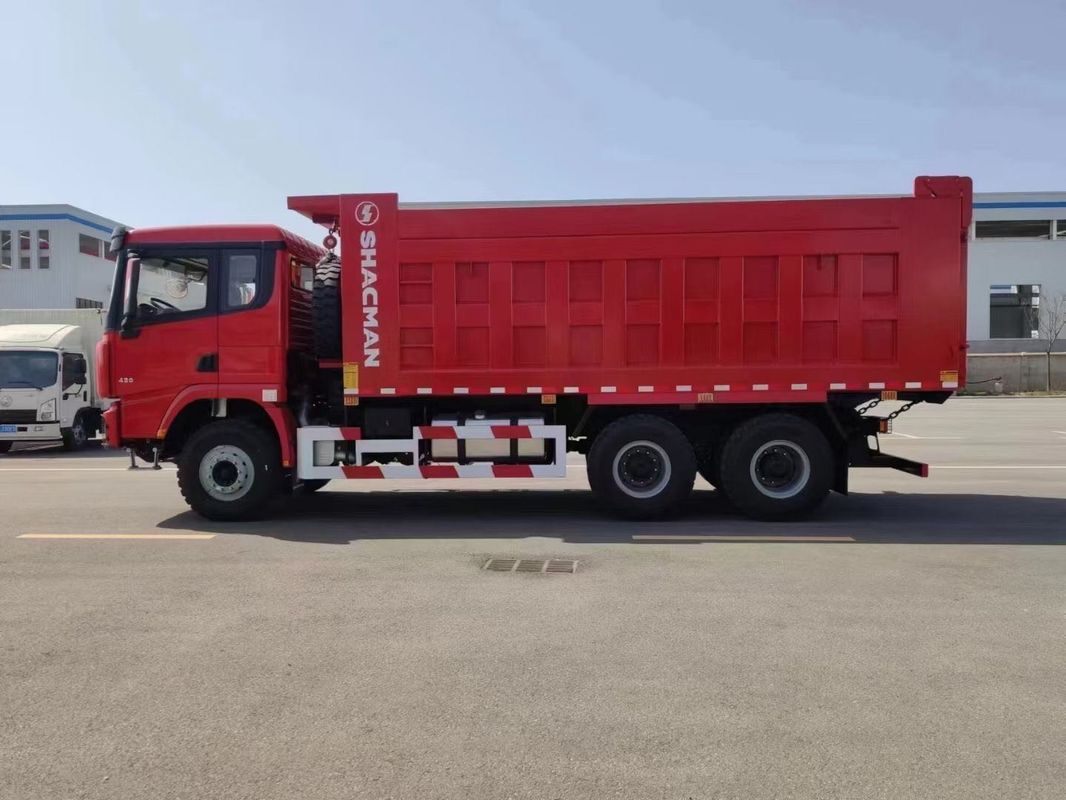

Truck Image
FAQ
1. Who are we?
Our presence in South America is growing steadily, with our trucks capturing 4.00% of the market in the region.
The Middle East is an emerging market for us, where our trucks hold a 2.00% market share.
Eastern Asia, including countries like China, Japan, and South Korea, contributes 2.00% to our overall sales.
2. How can we guarantee quality?
A pre-production sample is a crucial step in the production process, allowing for adjustments and improvements to be made before full-scale production.
3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck. Oil Truck,
4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW,
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
