SHACMAN Dump Truck F3000 6x4 8x4 430 Euro V Red

Basic Information
Place of Origin: Shaanxi,Xian
Brand Name: SHACMAN
Certification: ISO 9001/CCC
Model Number: F3000
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude pack, with wax before shipment.
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 5000 units/month
Detail Information
Modle: SX3255DV384R Engine: WP12.430E50 WEICHAI EuroV
Transmission: 12JSD200T-B+QH50 FAST Axle: 9.5T /2*16 T Double-stage,speed Ratio-5.92
Wheel Base: 3775+1400mm Tire: 12.00R20
Fuel Tank: 300L Clutch: φ430 Diaphragm Spring Clutch
Air Inlet: Ordinary Air Filter Chassis: 850×300(8+7)
Suspension: Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts

Product Description

SHACMAN Dump Truck F3000 6x4 8x4 430 Euro V Red


Detailed Product Description

Model: SX3255DV384R

Drive type: 8x4

Engine Brand: WEICHAI

Engine Model: WP12.430E50

Engine Power/(kw/HP): 316kw / 430Hp

Gear box Brand: FAST

Gear box Model: 12JSD200T-B+QH50


Heavy Dump Truck Parameters


Model SX3255DV384R
Drive type 8x4
Weight Gross Vehicle Weight ≤70
Dimensions Wheelbase/(mm) 1800+3975+1400
Performance Maximum speed/(km/h) 43~60/80
Ground clearance >314
Engine Brand WEICHAI
Model WP12.430E50
Power/(kw/HP) 280kw / 430Hp
Maximum torque / (N.M)/rpm 1600 N·M
Displacement/(L) 9.726 L
Emission standard Euro II
Gearbox Brand FAST
Model 12JSD200T-B+QH50 /spline
Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) 850×300(8+7)
Suspension Front Multi-layered leaf springs with 4 Main springs+4 U Bolts
Rear Multi-layered leaf springs with 4 Main springs+4 U Bolts
Axles Brand HANDE
Front axle 2*9.5T front axle MAN technology
Rear axle 2*16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92
Tires Type 12.00R20
Fuel tank Tank capacity/(L) 400L Aluminum tank
Electrics Type 24V
Battery 165Ah Maintenance-free battery
Cab Type SHACMAN F3000 Standard cab
Equipment Hydraulic main seat, four-point hydraulic suspension cab, lever rear-view mirror, electric air conditioner, electric window shaker, manual flip, telescopic shaft control, ordinary air filter, metal bumper, two-stage pedals, water tank protection grille, 165Ah Maintenance-free battery, SHACMAN logo, full English logo.
Detailed Image

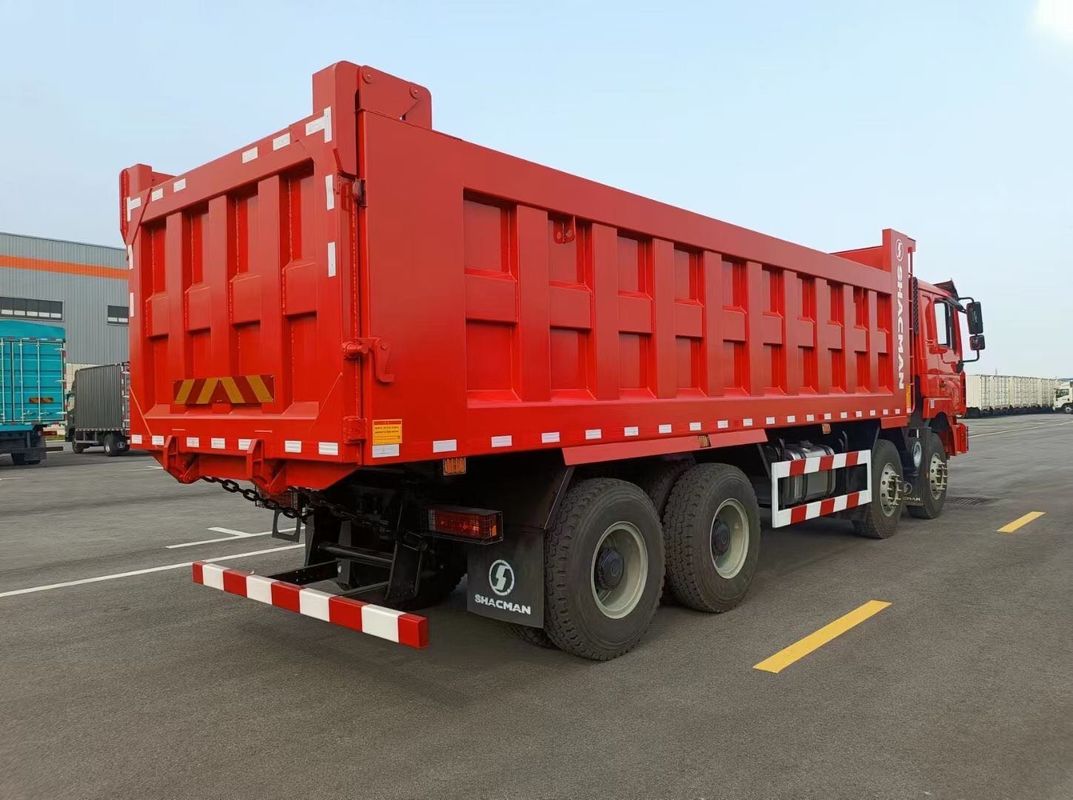

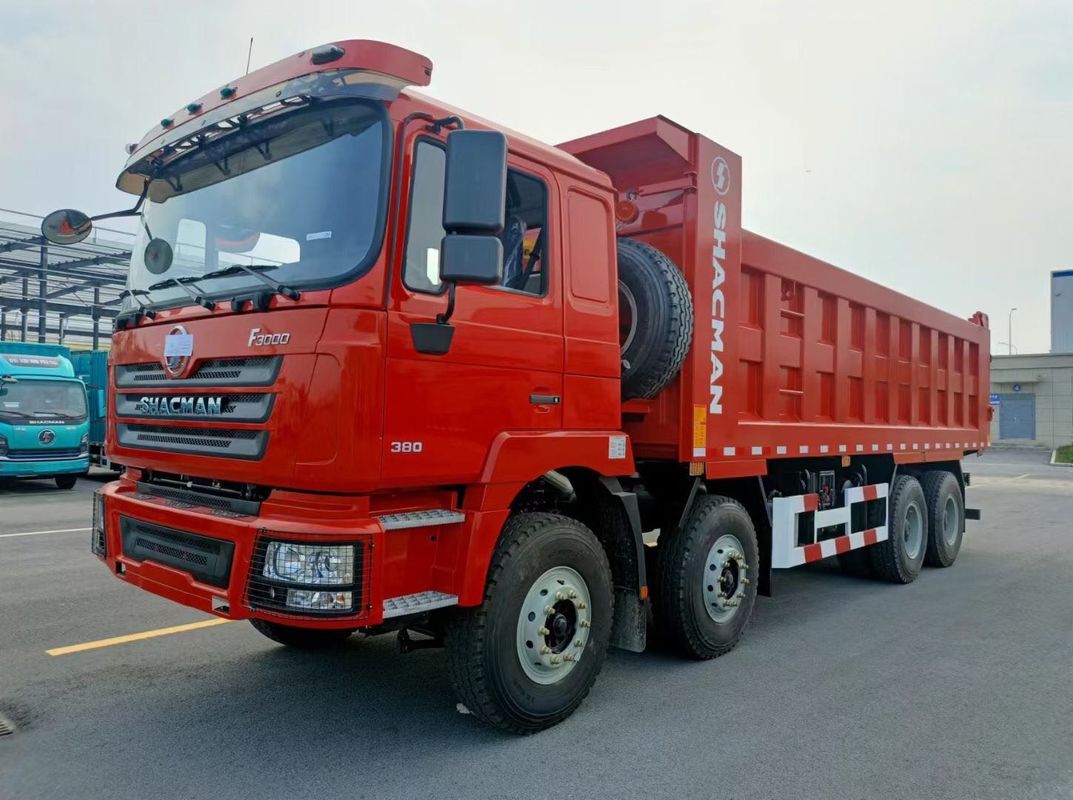

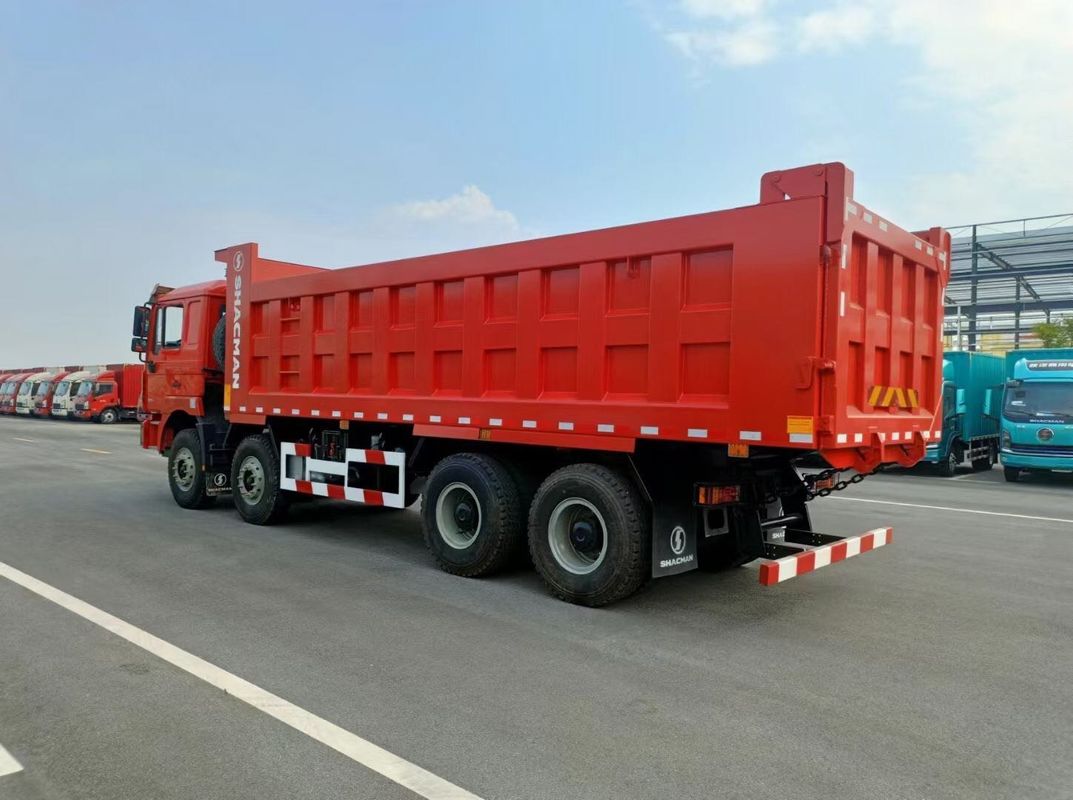

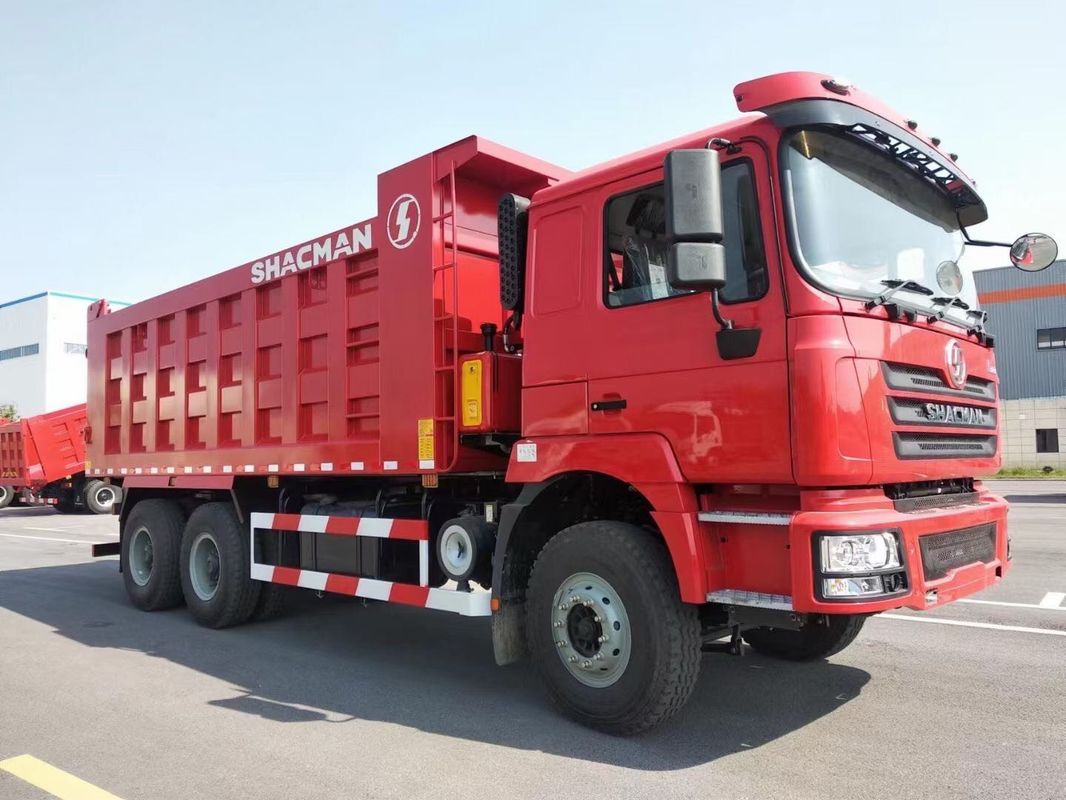

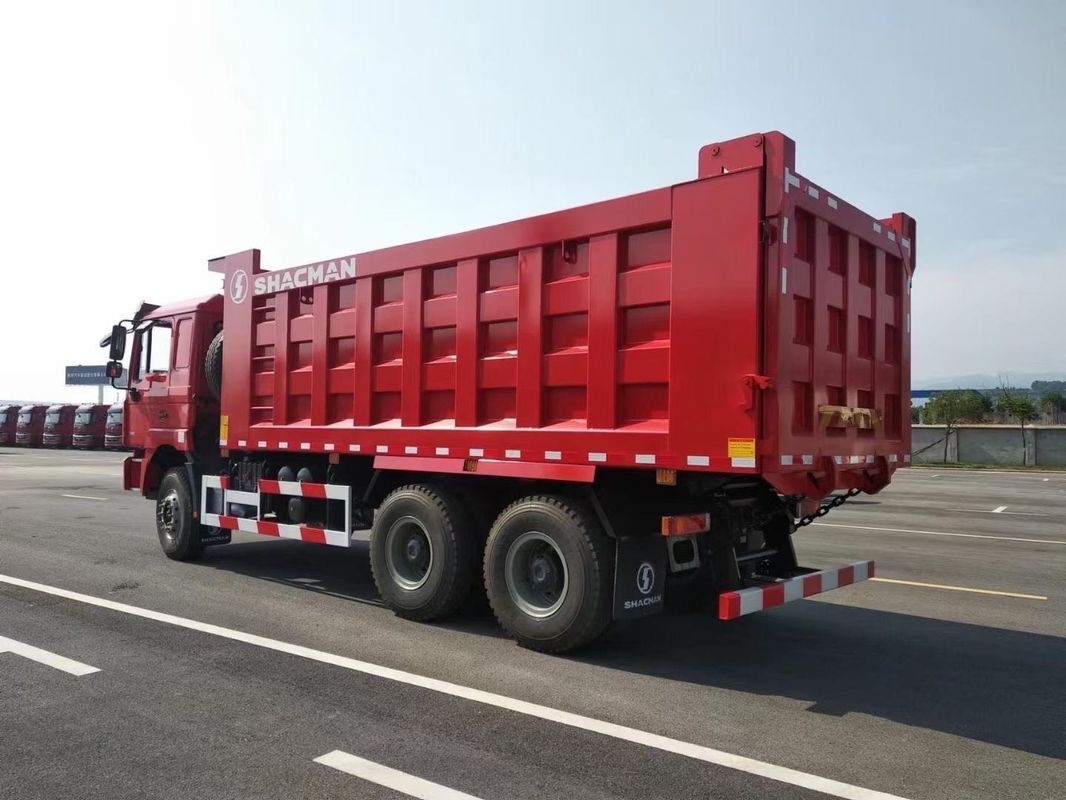

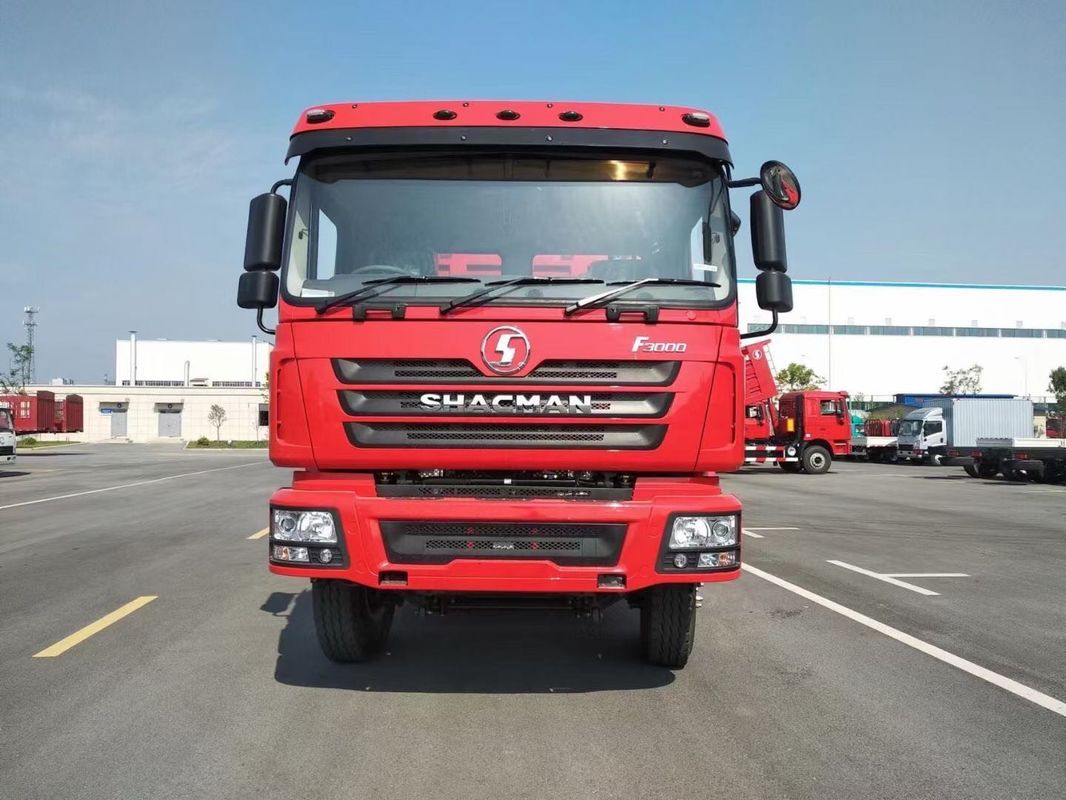

SHACMAN  Dump Truck F3000 6x4 8x4 430 Euro V Red 0



1. Who are we?
Introduced in 2009, the F3000 series has become an iconic symbol of SHACMAN's prowess, seamlessly blending comfort and power by integrating cutting-edge technology derived from MAN.

Founded in 2015, our company operates from its headquarters in Shaanxi, China. Our main target market is Africa, accounting for 70.00% of our sales, followed by Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), the Middle East (2.00%), Eastern Asia (2.00%), and South Asia (2.00%). With a team size of around 11-50 employees, our office supports our business operations effectively.


2. How can we guarantee quality?
SHACMAN Truck is common practice to have a pre-production sample before proceeding with mass production. This step allows for the evaluation of the product's quality, functionality, and adherence to specifications before committing to large-scale manufacturing.

3. What can you buy from us?
Dump truck, tractor truck, lorry truck, Crane truck, Mixer truck. Sime-trucks.

4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
