Place of Origin: | Shaanxi,Xian |
---|---|
Brand Name: | SHACMAN |
Certification: | ISO 9001/CCC |
Model Number: | L3000 |
Minimum Order Quantity: | 1 |
Price: | Negotiation |
Packaging Details: | Nude pack, with wax before shipment. |
Delivery Time: | 45 working days |
Payment Terms: | T/T, L/C |
Supply Ability: | 5000 units/month |
Modle: | SX32556N384 | Engine: | W10.300E22 |
---|---|---|---|
Transmission: | 10JSD180+QH50 | Axle: | 9.5T /2*16 T Double-stage,speed Ratio- 5.262 |
Wheel Base: | 3575+1400mm | Tire: | 12R22.5 (GCC) |
Fuel Tank: | 300L | Clutch: | φ430 Diaphragm Spring Clutch |
Air Inlet: | Ordinary Air Filter | Chassis: | 850×300(8+7) |
Suspension: | Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts | Cabin: | Medium-length Flat Top |
Color: | Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy |
SHACMAN X3000 6X4 Dump Truck
Detailed Product Description
Model:SX32556N384
Drive type:6x4
Engine Brand: WEICHAI
Engine Model:W10.300E22
Engine Power/(kw/HP): 247kw / 300Hp
Gear box Brand: FAST
Gear box Model: 10JSD180+QH50
Dump truck Parameters
Model | SX32556N384 | |
Drive type | 6x4 | |
Weight | Gross Vehicle Weight | ≤50 |
Dimensions | Wheelbase/(mm) | 3575+1400mm |
Performance | Maximum speed/(km/h) | 60~70/100 |
Ground clearance | >314 | |
Engine | Brand | WEICHAI |
Model | W10.300E22 | |
Power/(kw/HP) | 247kw / 300Hp | |
Maximum torque / (N.M)/rpm | 750 N·M | |
Displacement/(L) | 6.75 L | |
Emission standard | Euro II | |
Gear box | Brand | FAST |
Model | 10JSD180+QH50 | |
Clutch | Type | φ430 Diaphragm spring clutch |
Cooling | Type | Domestic heat sink |
Air inlet | Type | Ordinary air filter |
Brakes | Type | Drum brake |
Service brake | Double circuit air brake | |
Park brake | Rear wheel spring brake | |
Auxiliary brake | WEVB engine exhaust brake | |
Steering | Type | ZF8098 technology, circulating ball steering machine |
Chassis | Type | Parallel trapezoidal frame with variable section |
Dimensions/(mm) | 850×300(8+7) | |
Suspension | Front | Multi-layer plate spring 4 main plates + 4 U-shaped bolts |
Rear | Multi-layer plate spring 4 main plates + 4 U-shaped bolts | |
Axles | Brand | HANDE |
Front axle | 9.5T (disc brake) | |
Rear axle | 16 T Double-stage,speed ratio- 5.262 | |
Tires | Type | 12R22.5 (GCC) |
Fuel tank | Tank capacity/(L) | 300L |
Electrics | Type | 24V |
Battery | 135Ah Maintenance-free battery | |
Cab | Type | SHACMAN L3000 cab |
Equipment | Electric air conditioning, electric window cranks, LED daytime running lights, central locking (dual remote control), front fixed rear hydraulic suspension, 135Ah maintenance-free battery, fixed pedals, flexible shaft steering, spare tire carrier, aluminum alloy air reservoir, hydraulic main seat with third seat, manual flip. |
Overview
Tipper Body: The truck is equipped with a hydraulically operated tipper body that allows the cargo bed to be raised and tipped to unload the materials at the desired location.
Payload Capacity: The specific payload capacity may vary depending on the configuration and design of the truck, but construction tipper trucks are typically designed to carry heavy loads.
Cabin: The truck might have a comfortable and spacious cabin with features like air conditioning, power steering, and other amenities for the driver's comfort.

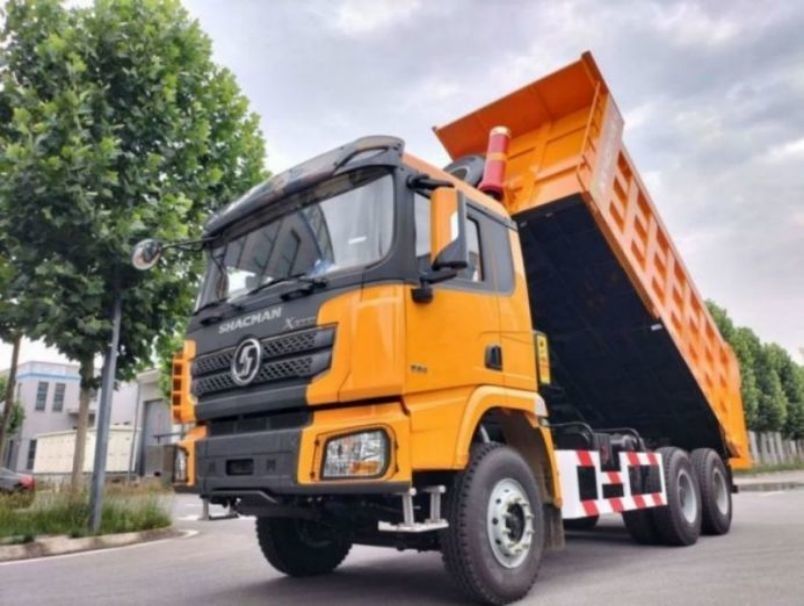

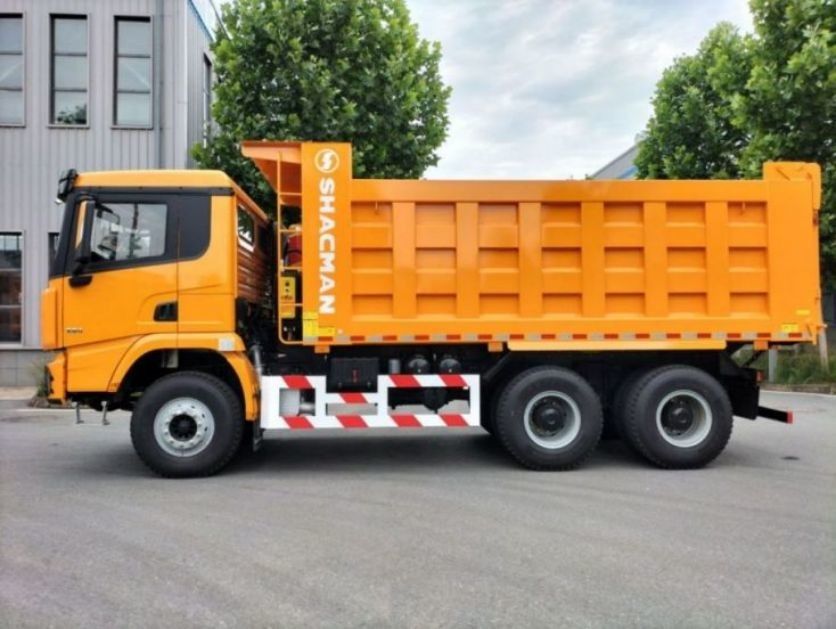

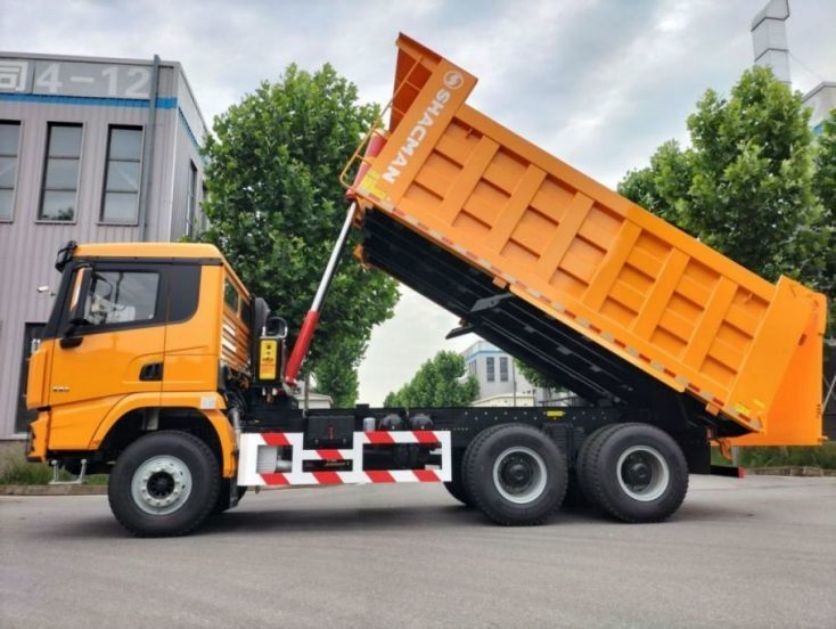

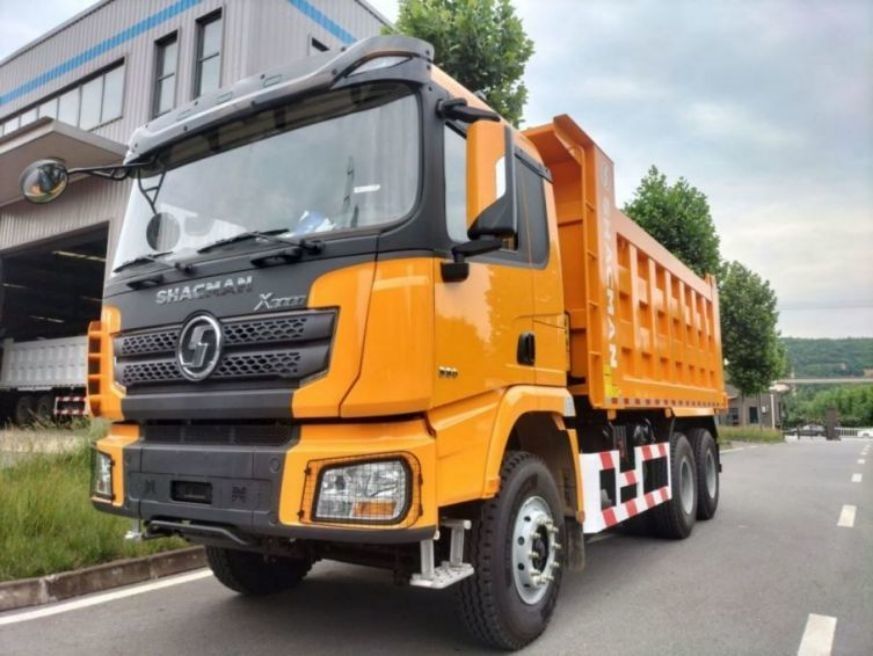

Detailed Image
FAQ
1. Who are we?
We are based in Shaanxi, China, start in 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are a total of about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck,
4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, DAF, EXW, CIP, DDU;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French, Russian, Spanish
