Name: SHACMAN CNG Dump Truck F3000 6x4 with 8×150L CNG Tank WP12.375N Engine and 10JSD180+QH50 Transmission
Brand: SHAAN XI HAN OCEAN CO . , LTD
SKU: F3000
Price: 1,000.00 USD
Availability: InStock

Home > Products > Heavy Dump Truck >

SHACMAN CNG Dump Truck F3000 6x4 with 8×150L CNG Tank WP12.375N Engine and 10JSD180+QH50 Transmission

375 Dump Truck

EuroII Green Dump Truck

Place of Origin:

Shaanxi,Xian

Brand Name:

SHACMAN

Certification:

ISO 9001/CCC

Model Number:

F3000

Request A Quote

Product Details

Modle:

SX3258DT464T

Engine:

WP12.375N

Transmission:

10JSD180+QH50 Spline, Pull Up

Axle:

MAN 9.5T /2*16 T Double-stage,speed Ratio-5.92

Wheel Base:

4375+1400mm

Tire:

12.00R20

CNG Tank:

8×150L

Clutch:

φ430 Diaphragm Spring Clutch

Air Inlet:

Ordinary Air Filter

Chassis:

970-850×300（8+7）

Suspension:

Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts

Cabin:

Medium-length Flat Top

Color:

Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy

Highlight:

375 Dump Truck

EuroII Green Dump Truck

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

Nude pack, with wax before shipment.

Delivery Time

45 working days

Payment Terms

T/T, L/C

Supply Ability

1000 units/month

RELATED PRODUCTS

Contact Now

Product Description

SHACMAN CNG Dump Truck F3000 6x4 375 EuroII Green

SHACMAN CNG Dump Truck F3000 6x4 375 EuroII Green is a high-performance heavy-duty vehicle designed for demanding transportation tasks while maintaining environmental responsibility.

Detailed Product Specifications

Model	SX3258DT464T
Drive type	6X4
Engine Brand	WEICHAI
Engine Model	WP12.375N
Gear box Brand	FAST
Gear box Model	10JSD180+QH50 spline, pull up

Dump Truck Technical Parameters

Category	Specification
Weight	Gross Vehicle Weight ≤50
Dimensions	Wheelbase: 4375+1400mm
Performance	Maximum speed: 40～55/75 km/h Ground clearance: >314
Engine	Brand: WEICHAI Model: WP12.375N Power: 279kw / 375Hp Maximum torque: 1600 N*M Displacement: 9.726 L Emission standard: EuroII
Gear box	Brand: FAST Model: 10JSD180+QH50 spline, pull up
Clutch	Type: φ430 Diaphragm spring clutch
Cooling	Type: Domestic heat sink
Brakes	Type: Drum brake Service brake: Double circuit air brake Park brake: Rear wheel spring brake Auxiliary brake: WEVB engine exhaust brake
Steering	Type: ZF8098 technology, circulating ball steering machine
Chassis	Type: Parallel trapezoidal frame with variable section Dimensions: 970-850×300(8+7)mm
Suspension	Front: Multi-layered leaf springs with 4 Main springs+4 U Bolts Rear: Multi-layered leaf springs with 4 Main springs+4 U Bolts
Axles	Brand: HANDE Front axle: 9.5T front axle MAN technology Rear axle: 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92
Tires	Type: 12.00R20
CNG tank	Tank capacity: 8×150L
Electrics	Type: 24V Battery: 165Ah Maintenance-free battery
Cab	Type: SHACMAN F3000 Medium-length flat cab Equipment: Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo.

Key Features

Outstanding combination of performance, versatility, and safety for heavy haulage operations
Environmentally responsible CNG-powered system meeting EuroII emission standards
Improved driver's cab with advanced MAN technologies for enhanced comfort and safety
Spacious and ergonomic cabin design reduces driver fatigue during long hauls

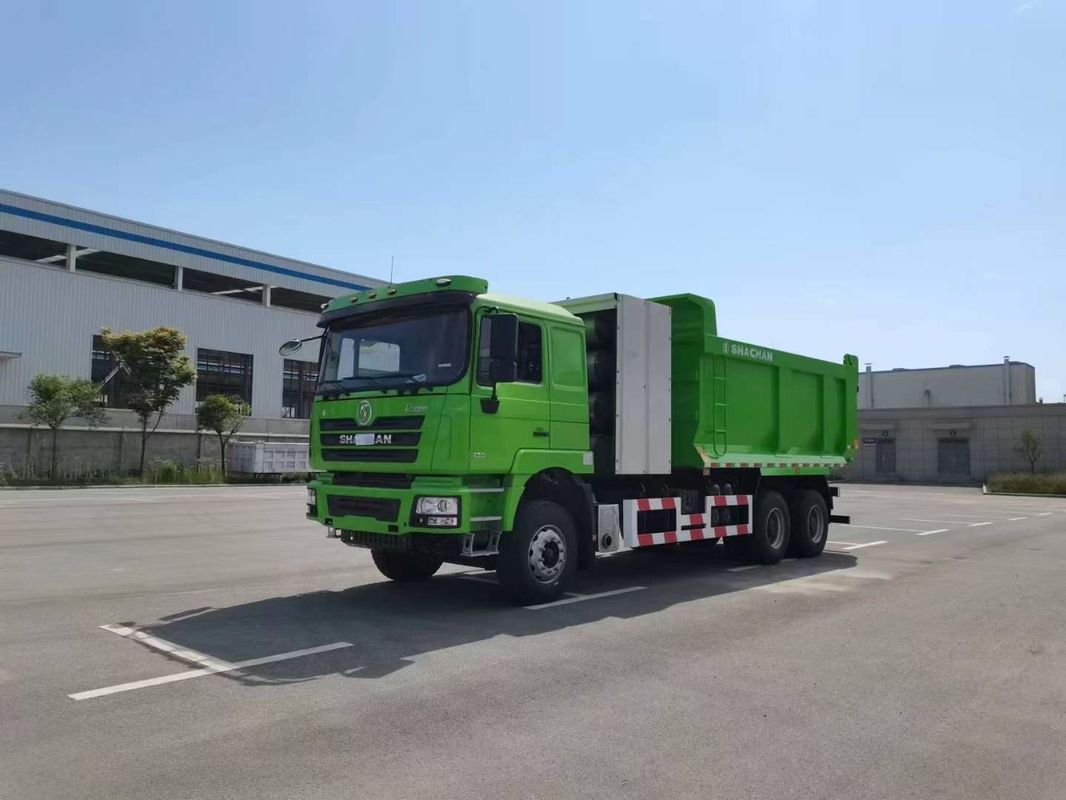

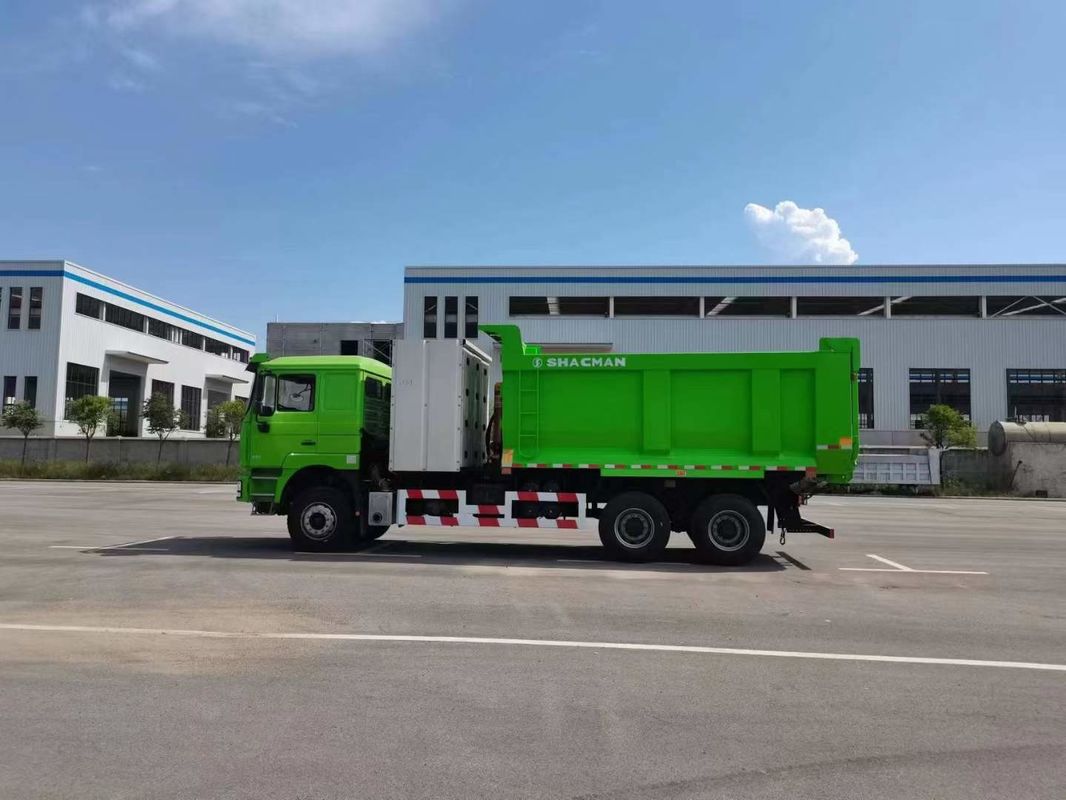

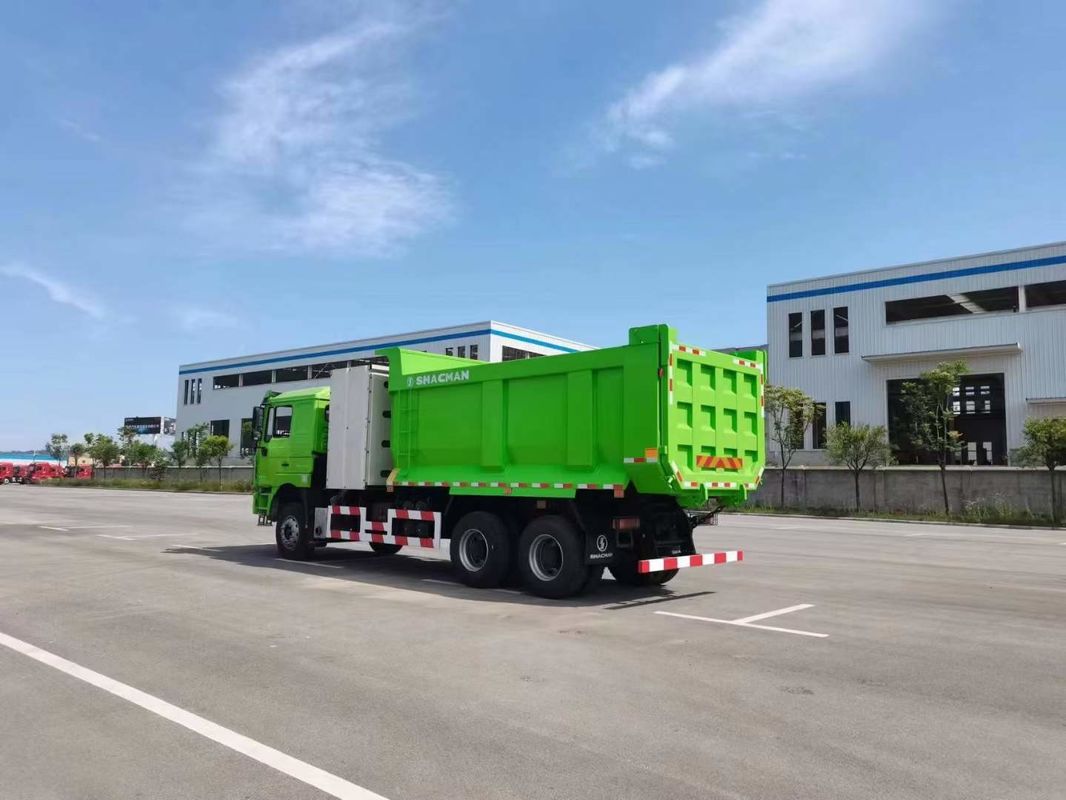

Product Image

Frequently Asked Questions

Who are we?

We are based in Shaanxi, China, operating since 2015. Our primary markets include Africa (70%), Southeast Asia (10%), Central America (10%), South America (4%), Mid East (2%), Eastern Asia (2%), and South Asia (2%). Our team consists of 11-50 professionals.

How can we guarantee quality?

We implement strict quality control measures including pre-production samples and final inspection before shipment.

What can you buy from us?

Our product range includes dump trucks, track trucks, lorry trucks, van trucks, and mixer trucks.

What services can we provide?

We accept various delivery terms (FOB, CFR, CIF, EXW, CIP, DDU) and payment methods (T/T, L/C, D/P D/A) in multiple currencies (USD, EUR, CNY). Our team communicates in English and French.
