| Place of Origin: | Shaanxi,Xian |
|---|---|
| Brand Name: | SHACMAN |
| Certification: | ISO 9001/CCC |
| Model Number: | F3000 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Nude pack, with wax before shipment. |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 units/month |
| Modle: | SX3258DT464T | Engine: | WP12.375N |
|---|---|---|---|
| Transmission: | 10JSD180+QH50 Spline, Pull Up | Axle: | MAN 9.5T /2*16 T Double-stage,speed Ratio-5.92 |
| Wheel Base: | 4375+1400mm | Tire: | 12.00R20 |
| CNG Tank: | 8×150L | Clutch: | φ430 Diaphragm Spring Clutch |
| Air Inlet: | Ordinary Air Filter | Chassis: | 970-850×300（8+7） |
| Suspension: | Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts | Cabin: | Medium-length Flat Top |
| Color: | Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy |
SHACMAN CNG Dump Truck F3000 6x4 375 EuroII Green
Detailed Product Description
Model: SX3258DT464T
Drive type: 6X4
Engine Brand: WEICHAI
Engine Model: WP12.375N
Gear box Brand: FAST
Gear box Model: 10JSD180+QH50 spline, pull up
Dump Truck Parameters
| Model | SX3258DT464T | |
| Drive type | 6x4 | |
| Weight | Gross Vehicle Weight | ≤50 |
| Dimensions | Wheelbase/(mm) | 4375+1400mm |
| Performance | Maximum speed/(km/h) | 40～55/75 |
| Ground clearance | >314 | |
| Engine | Brand | WEICHAI |
| Model | WP12.375N | |
| Power/(kw/HP) | 279kw / 375Hp | |
| Maximum torque / (N.M)/rpm | 1600 N·M | |
| Displacement/(L) | 9.726 L | |
| Emission standard | EuroII | |
| Gear box | Brand | FAST |
| Model | 10JSD180+QH50 spline, pull up | |
| Clutch | Type | φ430 Diaphragm spring clutch |
| Cooling | Type | Domestic heat sink |
| Air inlet | Type | Ordinary air filter |
| Brakes | Type | Drum brake |
| Service brake | Double circuit air brake | |
| Park brake | Rear wheel spring brake | |
| Auxiliary brake | WEVB engine exhaust brake | |
| Steering | Type | ZF8098 technology, circulating ball steering machine |
| Chassis | Type | Parallel trapezoidal frame with variable section |
| Dimensions/(mm) | 970-850×300(8+7) | |
| Suspension | Front | Multi-layered leaf springs with 4 Main springs+4 U Bolts |
| Rear | Multi-layered leaf springs with 4 Main springs+4 U Bolts | |
| Axles | Brand | HANDE |
| Front axle | 9.5T front axle MAN technology | |
| Rear axle | 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92 | |
| Tires | Type | 12.00R20 |
| CNG tank | Tank capacity/(L) | 8×150L |
| Electrics | Type | 24V |
| Battery | 165Ah Maintenance-free battery | |
| Cab | Type | SHACMAN F3000 Medium-length flat cab |
| Equipment | Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo. | |

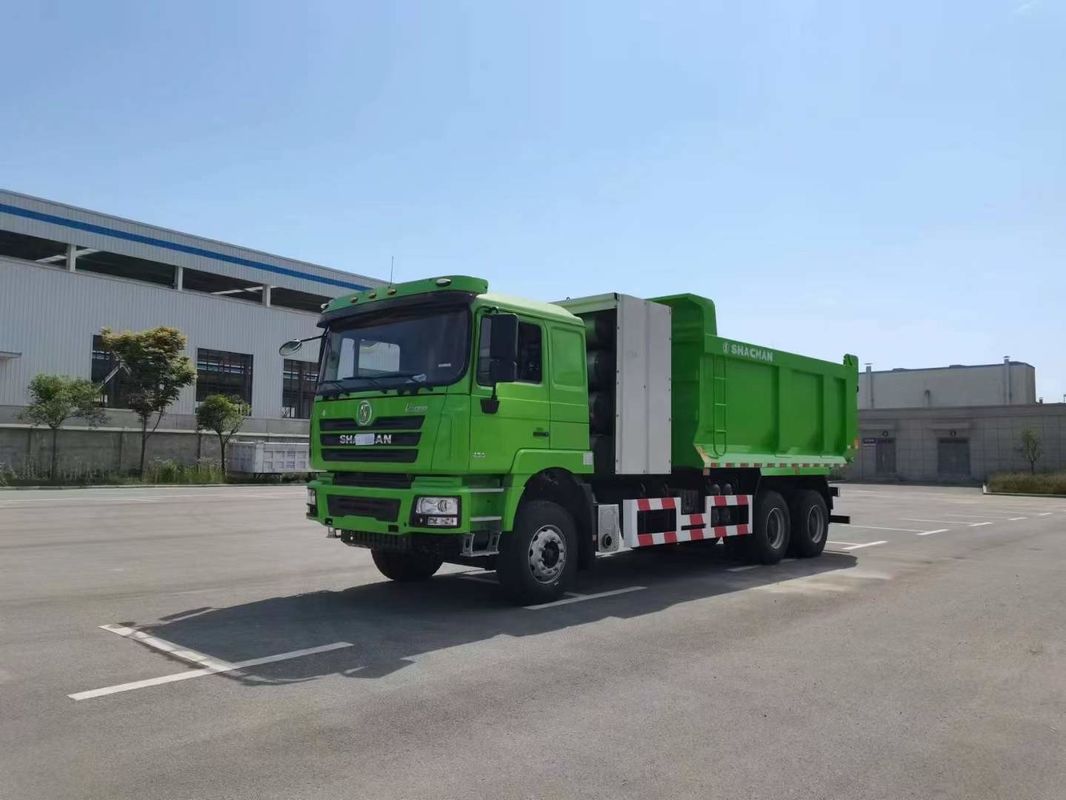

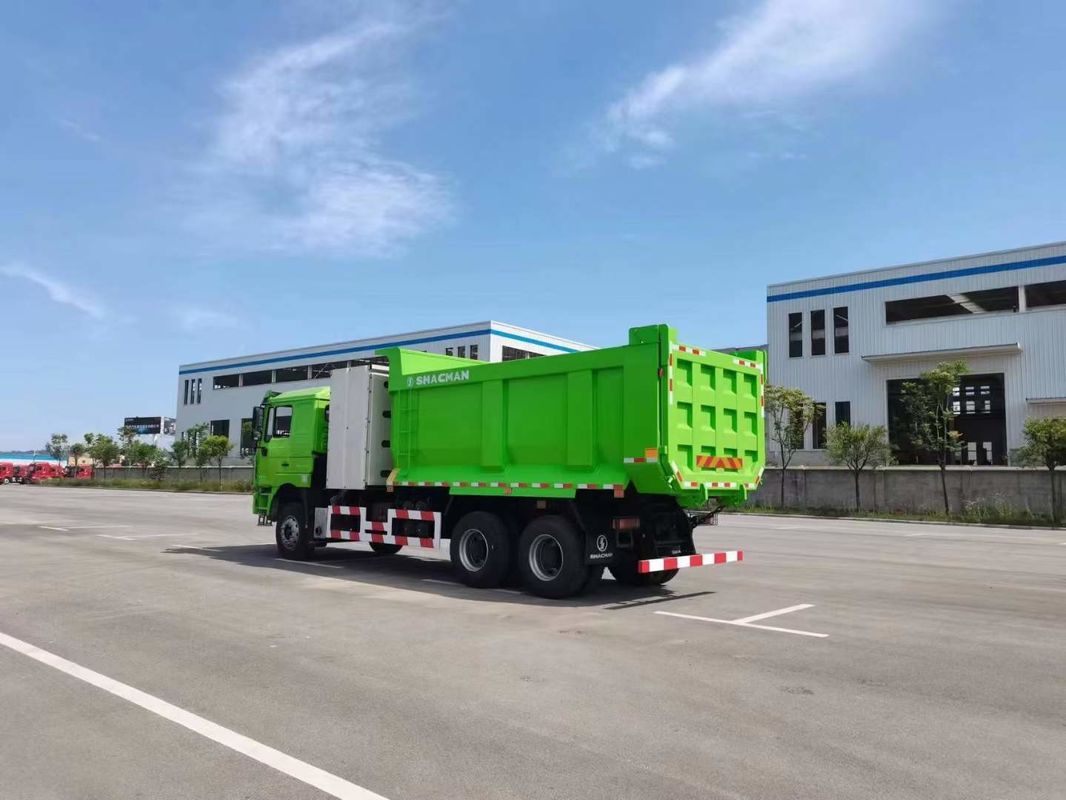

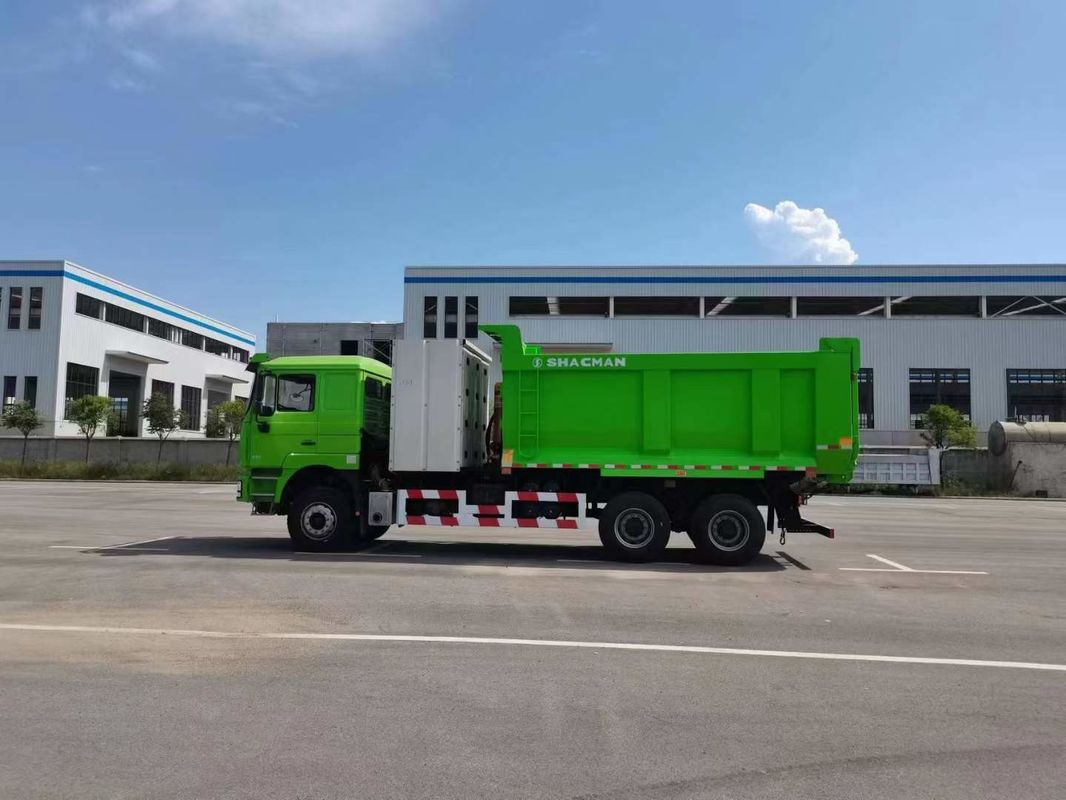

Detailed Image
FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.
4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
