Name: CNG Heavy Dump Truck SHACMAN F3000 8x4 Tipper Truck 380hp EuroV Yellow
Brand: SHACMAN
SKU: F3000
Rating: 4.5 (132 reviews)

Detail Information

Modle:	SX3258DT464T	Engine:	WP12NG380E51 CNG
Transmission:	10JSD180+QH50 Spline, Pull Up	Axle:	9.5T /2*16 T Double-stage,Axle Speed Ratio-5.262
Wheel Base:	4375+1400mm	Tire:	12.00R20
CNG Tank:	8×150L	Clutch:	φ430 Diaphragm Spring Clutch
Air Inlet:	Ordinary Air Filter	Chassis:	970-850×300（8+7）
Suspension:	Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts	Cabin:	Medium-length Flat Top
Color:	Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy
Highlight:	EuroV CNG Heavy Dump Truck , EuroV 8x4 Tipper Truck , EuroV 8x4 Tipper Truck Yellow

Product Description

SHACMAN CNG Dump Truck F3000 8x4 380 EuroV Yellow

Detailed Product Description
Model: SX3258DT464T
Drive Type: 6x4
Engine Model: WP10.300E22 WEICHAI 280Kw/380Hp EuroV
Gearbox Brand: FAST 12JSD200T-B +QH50

Heavy Truck parameters

Model	SX3258DT464T
Drive Type	6x4
Weight	Gross Vehicle Weight	≤50
Dimensions	Wheelbase/(mm)	4375+1400
Performance	Maximum speed/(km/h)	45～55/75
Performance	Ground clearance	>314
Engine	Brand	WEICHAI
	Model	WP10.380E22
	Power/(kw/HP)	290w / 380Hp
	Maximum torque / (N.M)/rpm	N·M
	Displacement/(L)	9.726 L
	Emission standard	Euro/ II
Gearbox	Brand	FAST
Gearbox	Model	10JSD180+QH50
Clutch	Type	φ430 Diaphragm spring clutch
Cooling	Type	Domestic heat sink
Air inlet	Type	Ordinary air filter
Brakes	Type	Drum brake
	Service brake	Double circuit air brake
	Park brake	Rear wheel spring brake
	Auxiliary brake	WEVB engine exhaust brake
Steering	Type	ZF8098 technology, circulating ball steering machine
Chassis	Type	Parallel trapezoidal frame with variable section
Chassis	Dimensions/(mm)	(950-850)×300(8+7)
Suspension	Front	Multi-layered leaf springs with 4 Main springs+4U Bolts
Suspension	Rear	Multi-layered leaf springs with 4 Main springs+24U Bolts
Axles	Brand	HANDE
	Front axle	MAN 9.5T
	Rear axle	2*16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.262
Tires	Type	12.00R20
Fuel tank	Tank capacity/(L)	300L Aluminum
Electrics	Type	24V
Electrics	Battery	165Ah Maintenance-free battery
Cab	Type	SHACMAN F3000 Medium-length flat cab
Cab	Equipment	Hydraulic main seat, four-point hydraulic suspension cab, electronically controlled automatic constant temperature air conditioner, electric window crank, 165Ah maintenance-free battery, SHACMAN logo, full English logo.

The F3000 series is the model and icon of SHACMAN. the F3000 utilizes MAN-sourced technology that combines comfort and power. It is uncompromising and a force to be reckoned with in the heavy-duty truck industry.

Detailed Image

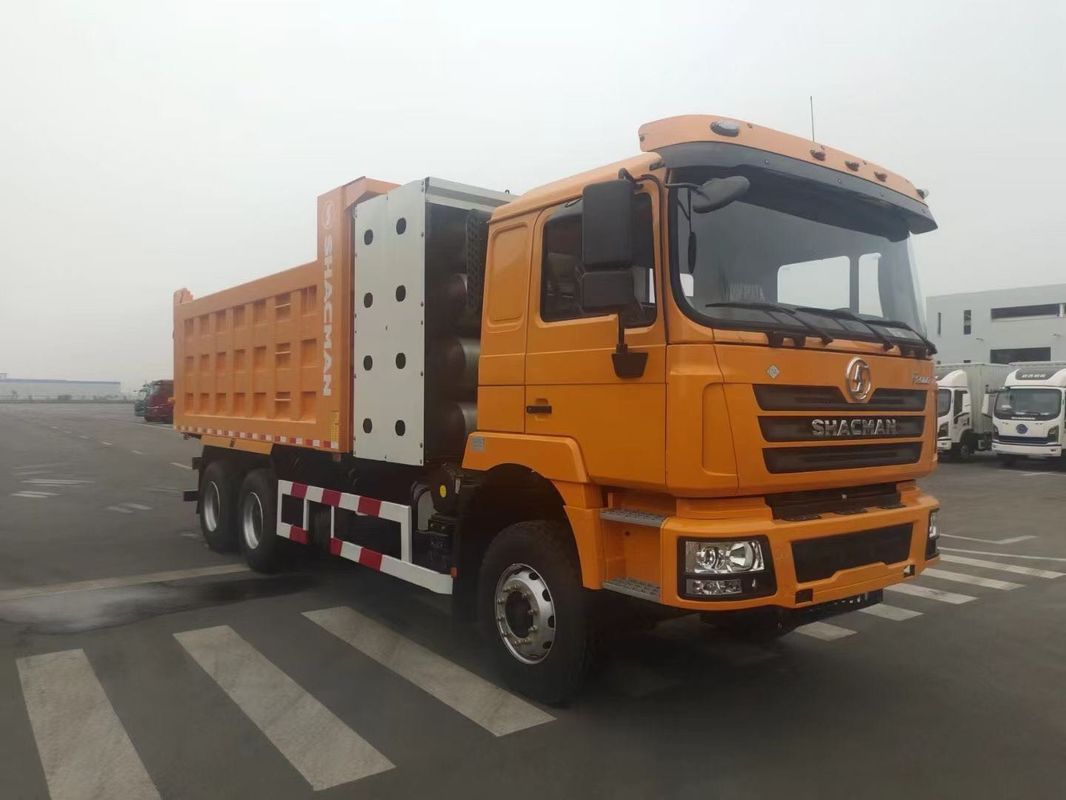

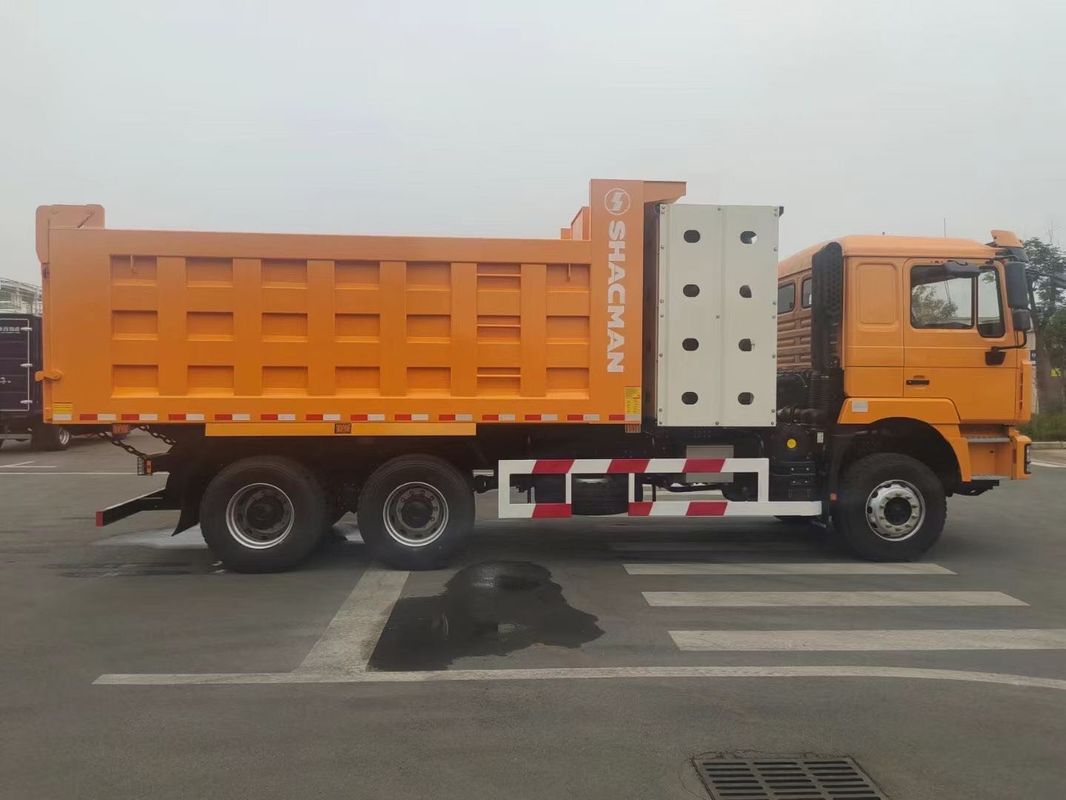

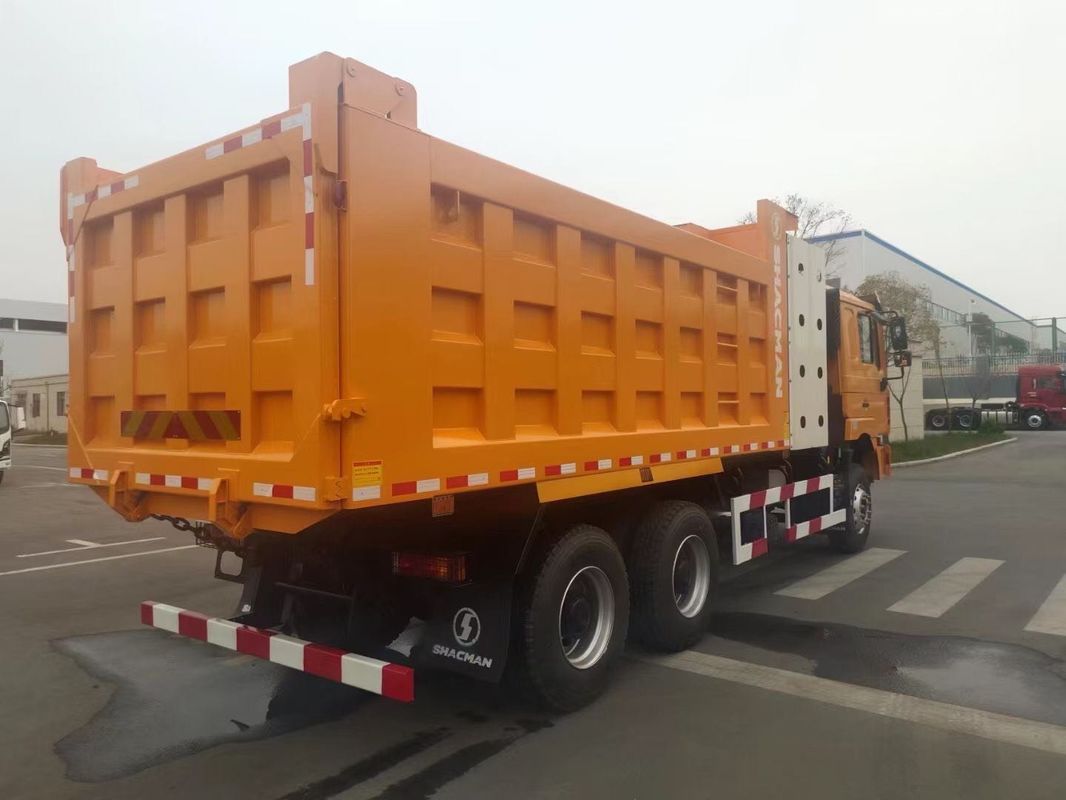

CNG Heavy Dump Truck SHACMAN F3000 8x4 Tipper Truck 380hp EuroV Yellow 0

FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.

3. What can you buy from us?
SHACMAN Dump truck, track truck, lorry truck, Van truck, Mixer truck.

4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF,
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French

Tag:

Place of Origin:	Shaanxi,Xian
Brand Name:	SHACMAN
Certification:	ISO 9001/CCC
Model Number:	F3000

Minimum Order Quantity:	1
Price:	Negotiation
Delivery Time:	45 working days
Payment Terms:	T/T, L/C
Supply Ability:	1000 units/month
