| Place of Origin: | Shaanxi,Xian |
|---|---|
| Brand Name: | SHACMAN |
| Certification: | ISO 9001/CCC |
| Model Number: | F3000 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude pack, with wax before shipment. |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5000 units/month |
| Modle: | SX3258DV464T | Engine: | WP13NG430E51 CNG |
|---|---|---|---|
| Transmission: | 12JSD200T-B+QH70 Spline, Pull Up | Axle: | 9.5T /2*16 T Double-stage,Axle Speed Ratio-5.92 |
| Wheel Base: | 4375+1400mm | Tire: | 12.00R20 |
| CNG Tank: | 8×150L | Clutch: | φ430 Diaphragm Spring Clutch |
| Air Inlet: | Ordinary Air Filter | Chassis: | 970-850×300（8+7） |
| Suspension: | Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts | Cabin: | Medium-length Flat Top |
| Color: | White/ Others | ||
| Highlight: | 430hp Heavy Dump Truck EuroV,SHACMAN CNG Dump Truck EuroV,Dump Truck White F3000 EuroV |
||
430hp Heavy Dump Truck SHACMAN CNG Dump Truck White F3000 6x4 Eurov
Detailed Product Description
Model: SX3258DV464T
Engine Model:WP13NG430E51 CNG 316kw / 430Hp Euro V
Gearbox Model: FAST 10JSD180+QH50
Heavy Dump Truck Parameters
| Model | SX3258DV464T | |
| Drive type | 6x4 | |
| Weight | Gross Vehicle Weight | ≤90 |
| Dimensions | Wheelbase/(mm) | 4575+1400 |
| Performance | Maximum speed/(km/h) | 45～55/75 |
| Ground clearance | >314 | |
| Engine | Brand | WEICHAI |
| Model | WP13NG430E51 CNG | |
| Power/(kw/HP) | 316kw / 430Hp | |
| Maximum torque / (N.M)/rpm | 2060 N·M | |
| Displacement/(L) | 11.596 L | |
| Emission standard | Euro V | |
| Gear box | Brand | FAST |
| Model | 12JSD200TA-B-QH70 flange pull-up | |
| Clutch | Type | φ430 Diaphragm spring clutch |
| Cooling | Type | Domestic heat sink |
| Air inlet | Type | desert air filter |
| Brakes | Type | Drum brake |
| Service brake | Double circuit air brake | |
| Park brake | Rear wheel spring brake | |
| Auxiliary brake | WEVB engine exhaust brake | |
| Steering | Type | ZF8098 technology, circulating ball steering machine |
| Chassis | Type | Parallel trapezoidal frame with variable section |
| Dimensions/(mm) | 970-850×300 (8+7) | |
| Suspension | Front | Multi-layered leaf springs with 4 Main springs+4 U Bolts |
| Rear | Multi-layered leaf springs with 4 Main springs+4 U Bolts | |
| Axles | Brand | HANDE |
| Front axle | 9.5T front axle MAN technology | |
| Rear axle | 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.262 | |
| Tires | Type | 12.00R20 |
| Gas cylinders | Type | Gas cylinders 8×150L cylinders/ECE standard gas cylinders/dual refueling integrated refueling compartment, snap-in NGV1+pin type (Russia)/steel shroud |
| Electrics | Type | 24V |
| Battery | 180Ah Maintenance-free battery | |
| Cab | Type | SHACMAN F3000 Mid-length flat roof cab |
| Equipment | Hydraulic main seat, four-point hydraulic suspension, ordinary rearview mirror, electric automatic thermostatic air conditioning, electric window shaker, manual flip, metal bumper, three-stage boarding pedal, desert air filter, water tank protection grille, taillight protection grille, iron gas storage brief, spare tire carrier, four-channel ABS, 180Ah maintenance-free battery, an electrostatic towing belt, 2kg fire extinguisher, parking wedge, SHACMAN logo, full English logo; rear surround guard, dual side door chrome horsepower mark, sunshade decorative light. | |

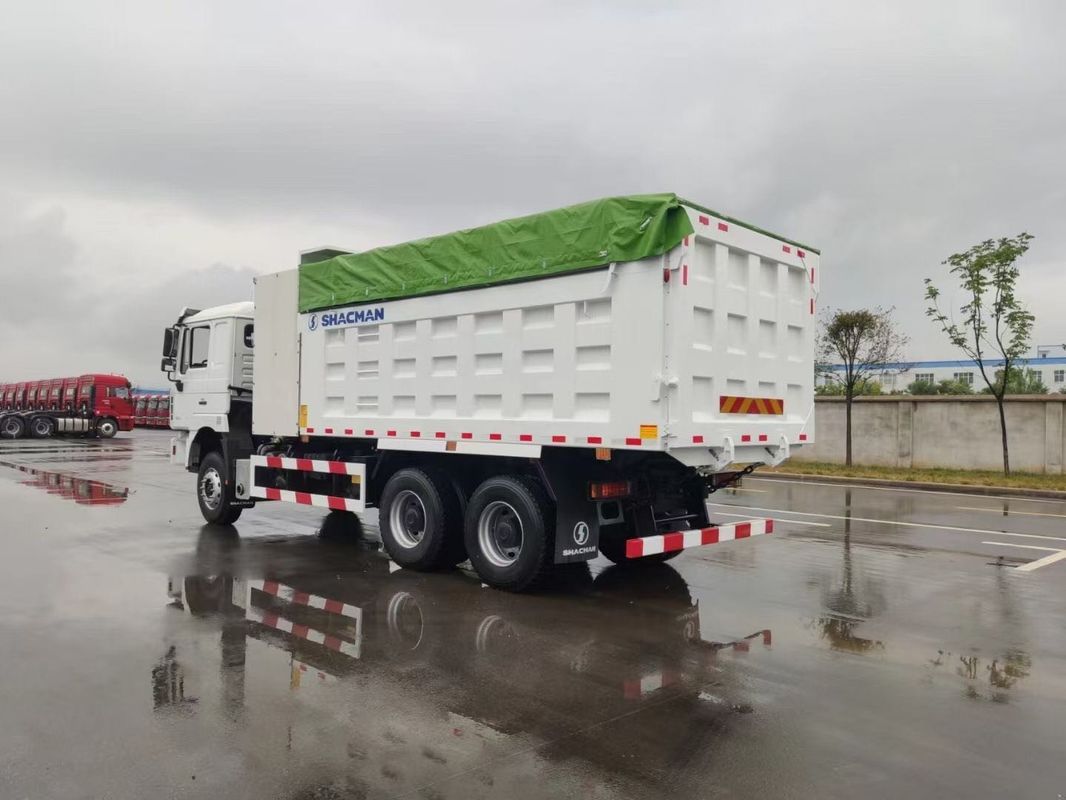

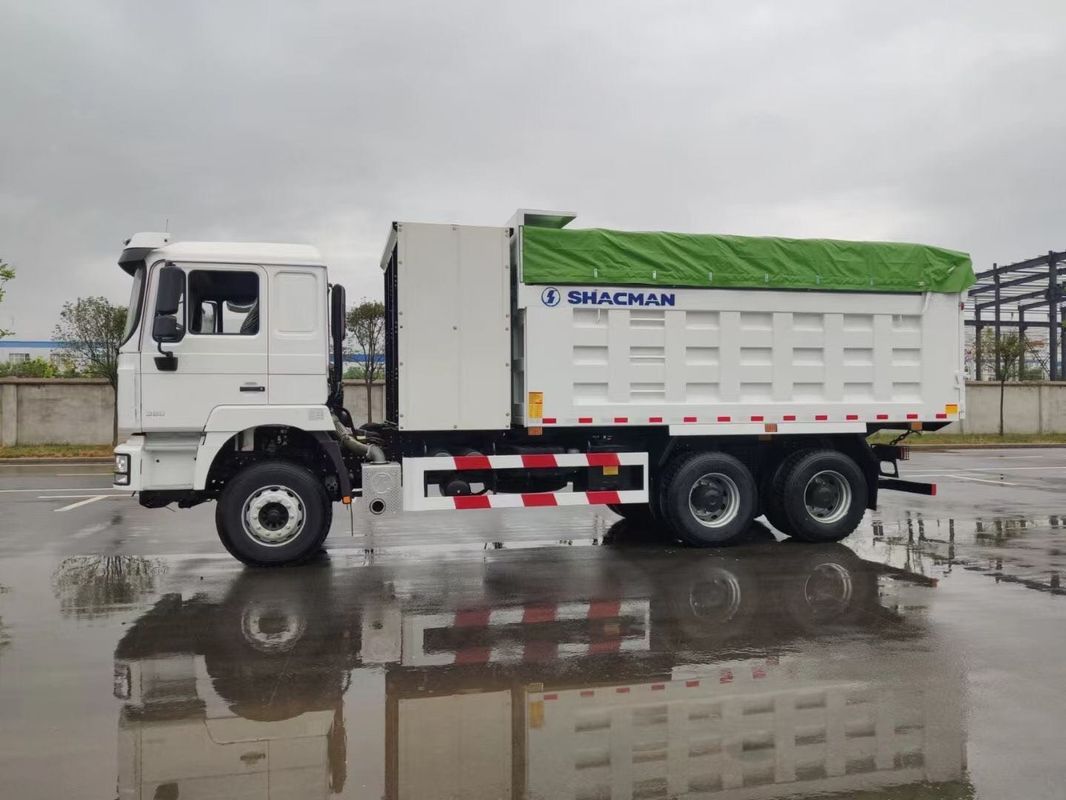

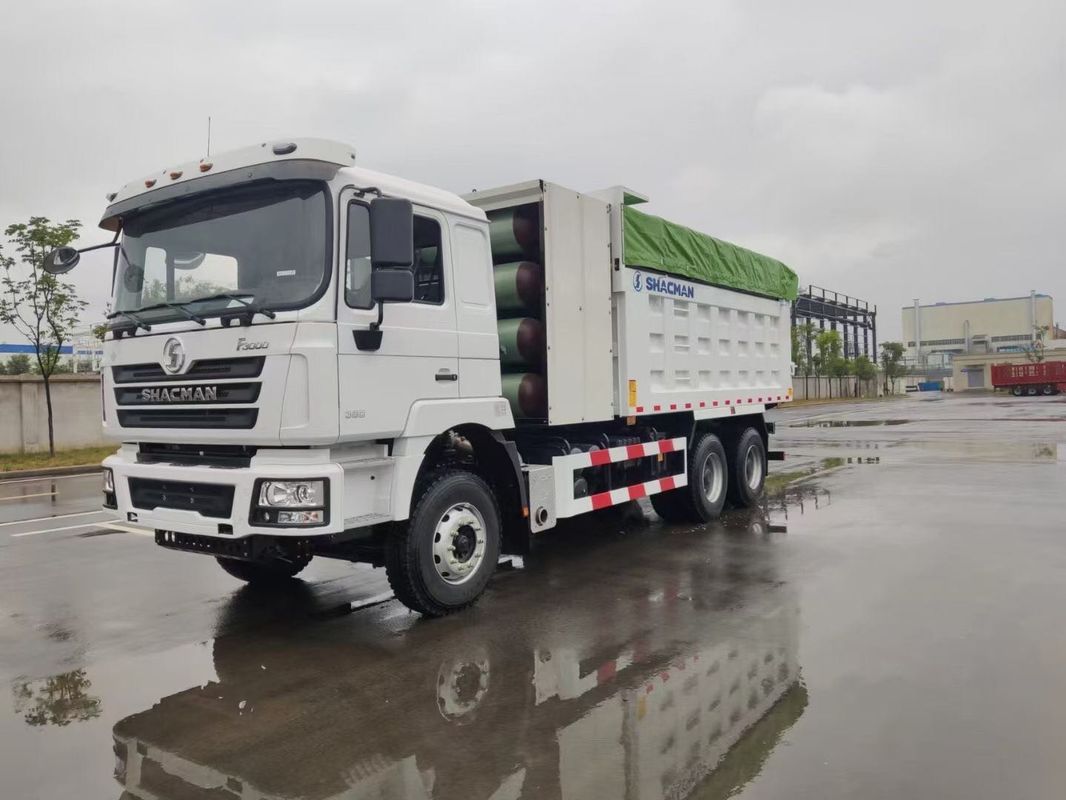

Detailed Image
FAQ
1. Who are we?
We are based in Shaanxi, China, start in 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total of about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.
4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
