| Place of Origin: | Shaanxi,Xian |
|---|---|
| Brand Name: | SHACMAN |
| Certification: | ISO9001/CCC |
| Model Number: | L3000 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude pack, with wax before shipment. |
| Delivery Time: | 45 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 units /month |
| Modle: | SX5185GYY8J451 | Engine: | WP6.210E32 (No.2 Flywheel Housing) |
|---|---|---|---|
| Transmission: | 8JS85TM+QD40J | Axle: | 4.8T (disc Brake)/10T Single-stage Bridge-4.625 |
| Wheel Base: | 4500mm | Tire: | 12.00R20 |
| Fuel Tank: | 200L | Clutch: | φ430 Diaphragm Spring Clutch |
| Air Inlet: | Ordinary Air Filter | Chassis: | 870×250(7+4) |
| Suspension: | Front And Rear Multi-plate Springs | Cabin: | L3000 Cab |
| Color: | Neon Red/Mountain Green/Starry Blue/Aurora White/Klein Blue/Burgundy | ||
| Highlight: | SHACMAN L3000 Oil Tank Trucks,Oil Tank Trucks 4x2 210hp,210hp Euro II Fuel Tank Truck |
||
Oil Truck Parameters
| Model | SX5185GYY8J451 | |
| Drive type | 6x4 | |
| Weight | Gross Vehicle Weight | ≤40 |
| Dimensions | Wheelbase/(mm) | 4500 |
| Performance | Maximum speed/(km/h) | 50～70/90 |
| Ground clearance | >314 | |
| Engine | Brand | WEICHAI |
| Model | WP6.210E32 (No.2 flywheel housing) | |
| Power/(kw/HP) | 155kw / 210Hp | |
| Maximum torque / (N.M)/rpm | 750 N·M | |
| Displacement/(L) | 6.23 L | |
| Emission standard | Euro/ II | |
| Gear box | Brand | FAST |
| Model | 8JS85TM+QD40J | |
| Clutch | Type | φ430 Diaphragm spring clutch |
| Cooling | Type | Domestic heat sink |
| Air inlet | Type | Ordinary air filter |
| Brakes | Type | Drum brake |
| Service brake | Double circuit air brake | |
| Park brake | Rear wheel spring brake | |
| Auxiliary brake | WEVB engine exhaust brake | |
| Steering | Type | ZF8098 technology, circulating ball steering machine |
| Chassis | Type | Parallel trapezoidal frame with variable section |
| Dimensions/(mm) | 870×250(7+4) | |
| Suspension | Front | Multiple springs |
| Rear | Multiple springs | |
| Axles | Brand | HANDE |
| Front axle | 4.8T (disc brake) | |
| Rear axle | 10T MAN Single Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.625 | |
| Tires | Type | 10.00R20 |
| Fuel tank | Tank capacity/(L) | 200L Aluminum tank |
| Electrics | Type | 24V |
| Battery | 165Ah Maintenance-free battery | |
| Cab | Type | SHACMAN L3000 cab |
| Equipment | Hydraulic main seat, four-point hydraulic suspension cab, manual window crank, ordinary rear-view mirror, square muffler, 165Ah maintenance-free battery, SHACMAN logo, full English logo | |
Overview

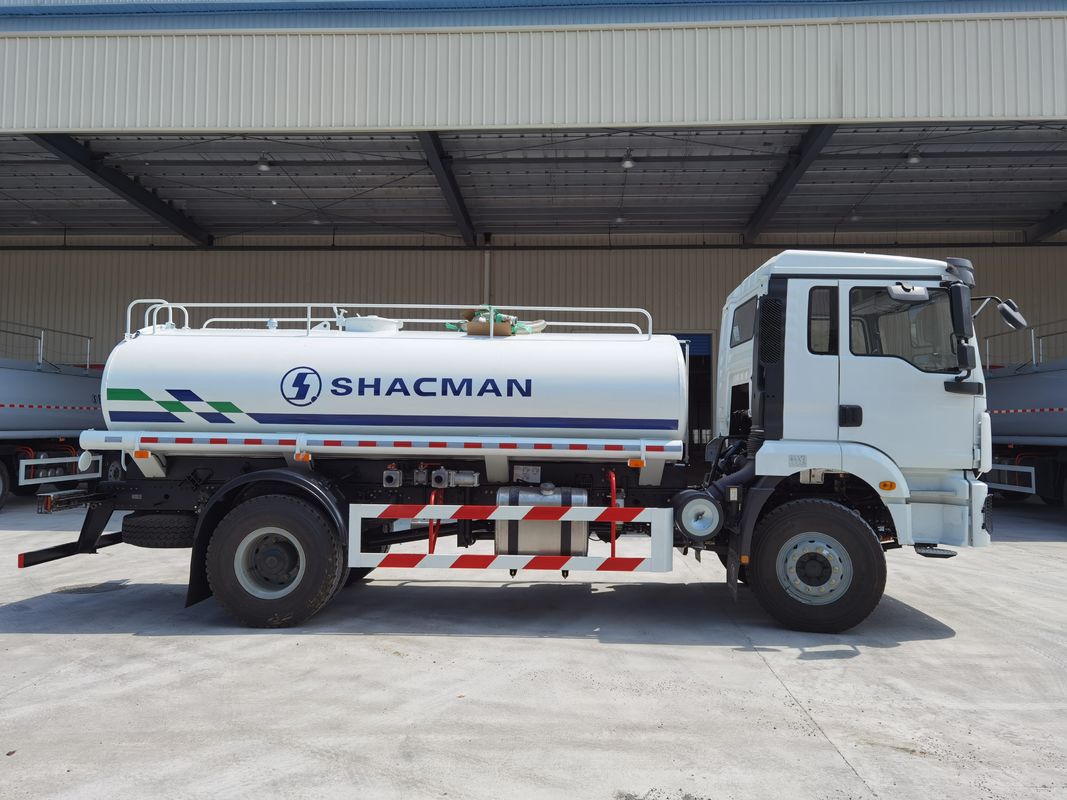

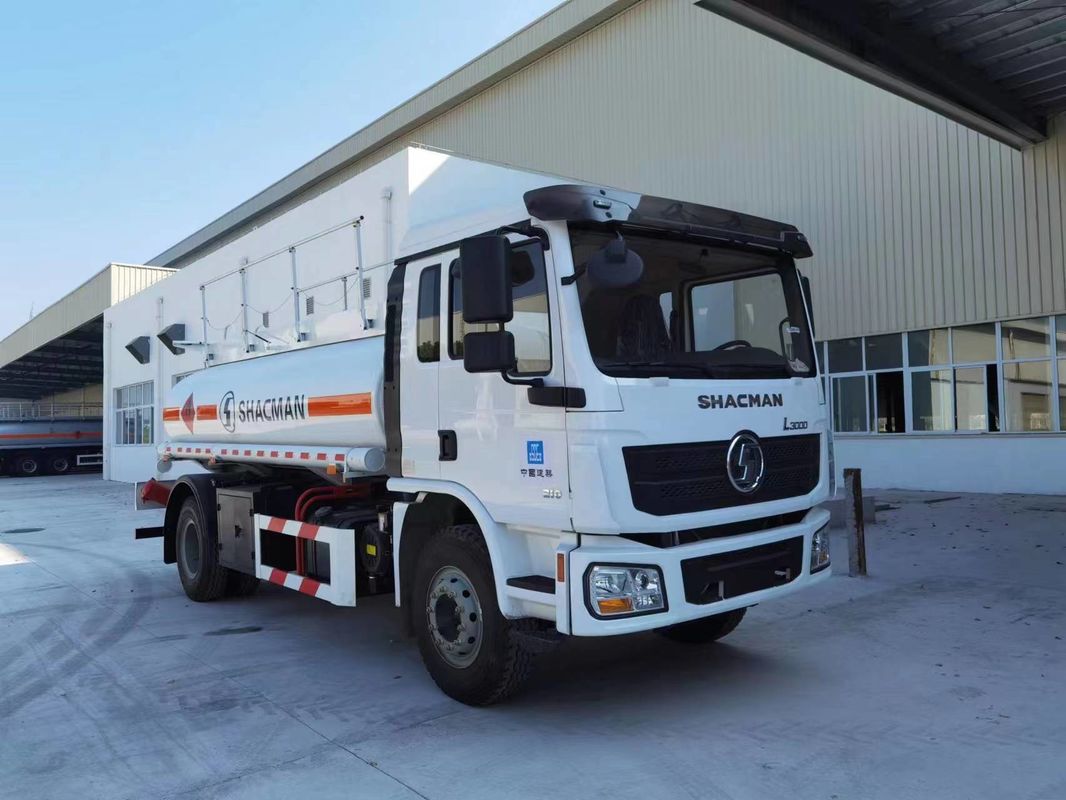

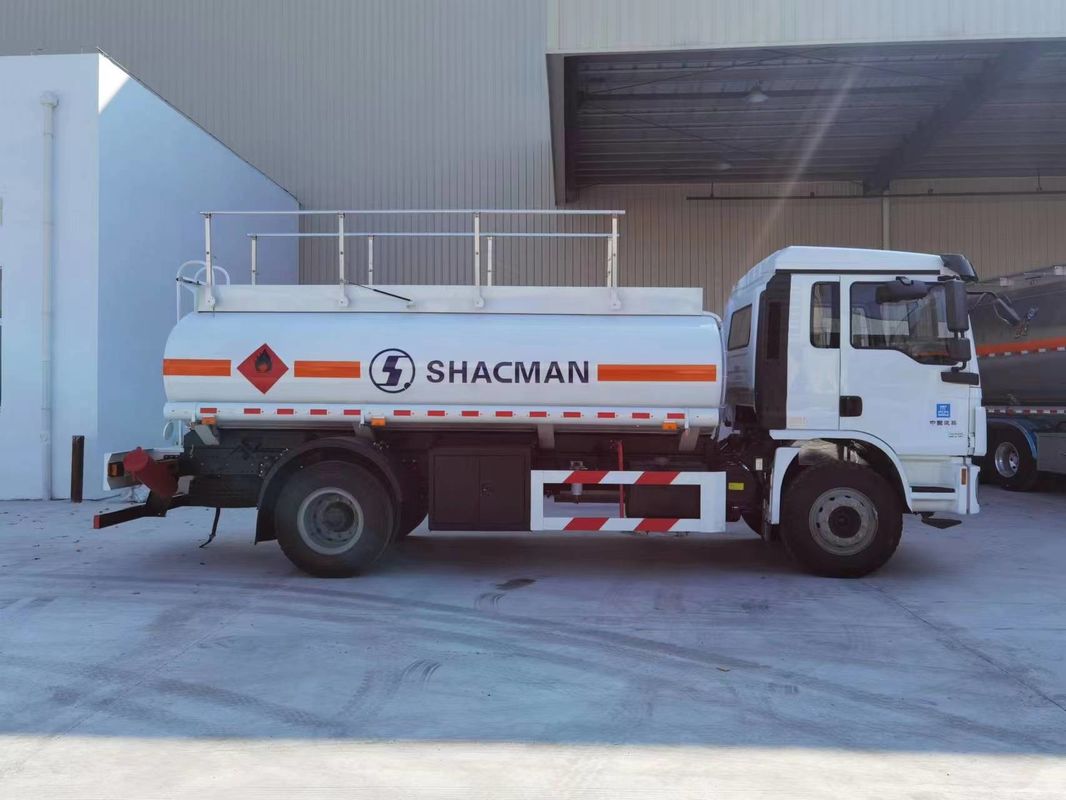

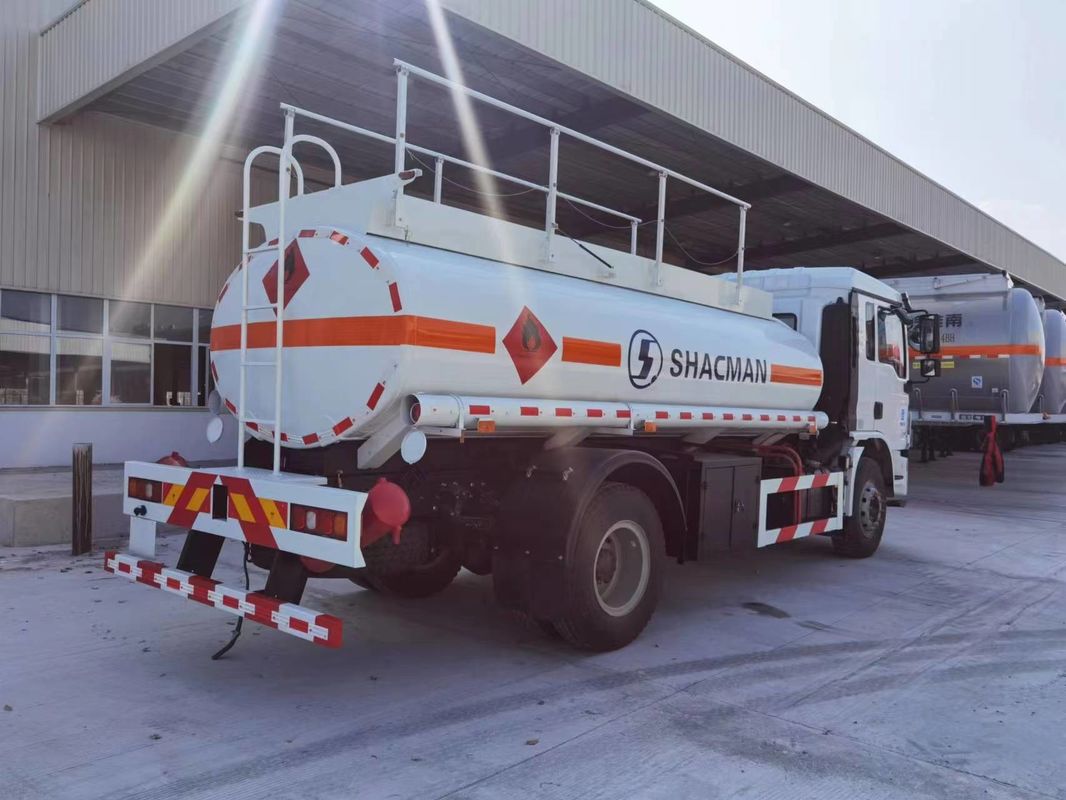

Detailed Image
FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are a total of about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.
4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
