Modle: | SX5255GSSDN434 | Engine: | WP10.300E22 |
---|---|---|---|
Transmission: | RTD-11509C With QH50 Flange Extractor | Axle: | 7.5T/2*13 Double Stage Axle, Axle Speed-5.262 |
Wheel Base: | 4375+1400mm | Tire: | 12.00R20 |
Fuel Tank: | 300L | Clutch: | φ430 Diaphragm Spring Clutch |
Air Inlet: | Ordinary Air Filter | Chassis: | 850×300(8+5) |
Suspension: | Front /rear Multi-layer Plate Spring 2 Main Plates + 2 U-shaped Bolts | Cabin: | Medium-length Flat Top |
Color: | Neon Red/Mountain Green/Starry Blue/Aurora White/Klein Blue/Burgundy | ||
Highlight: | 300hp Water Truck Tank Shacman,Water Truck Tank Shacman F3000,Euroii 2000 Gallon Water Truck |

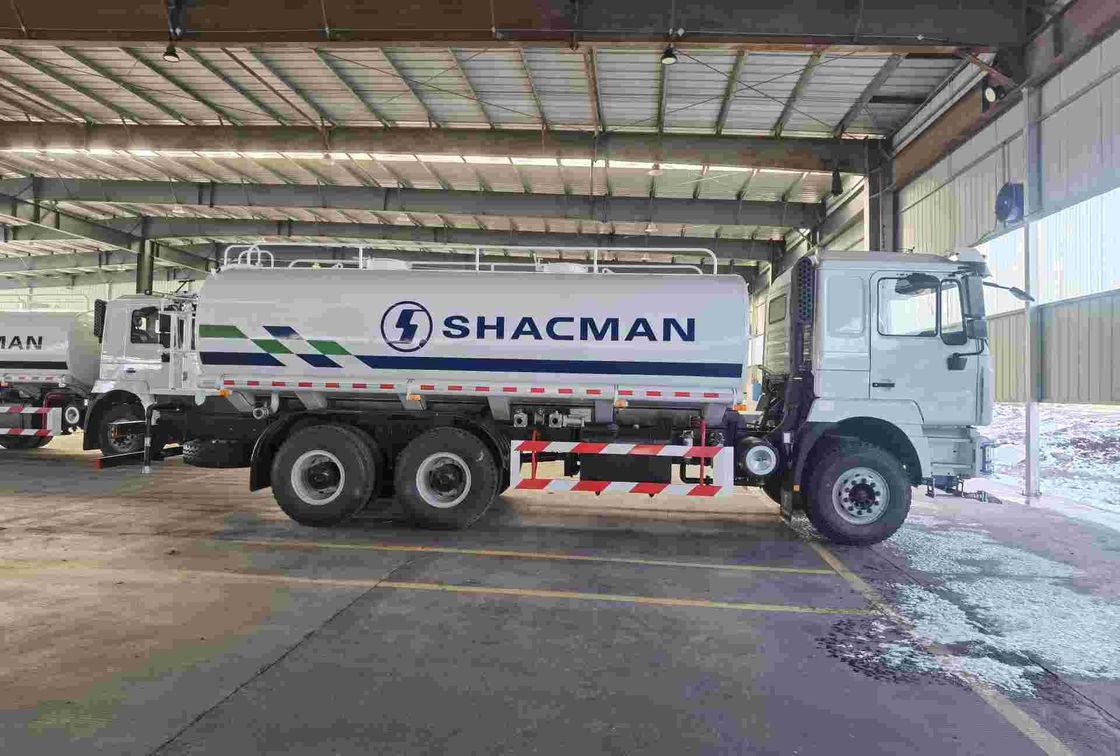

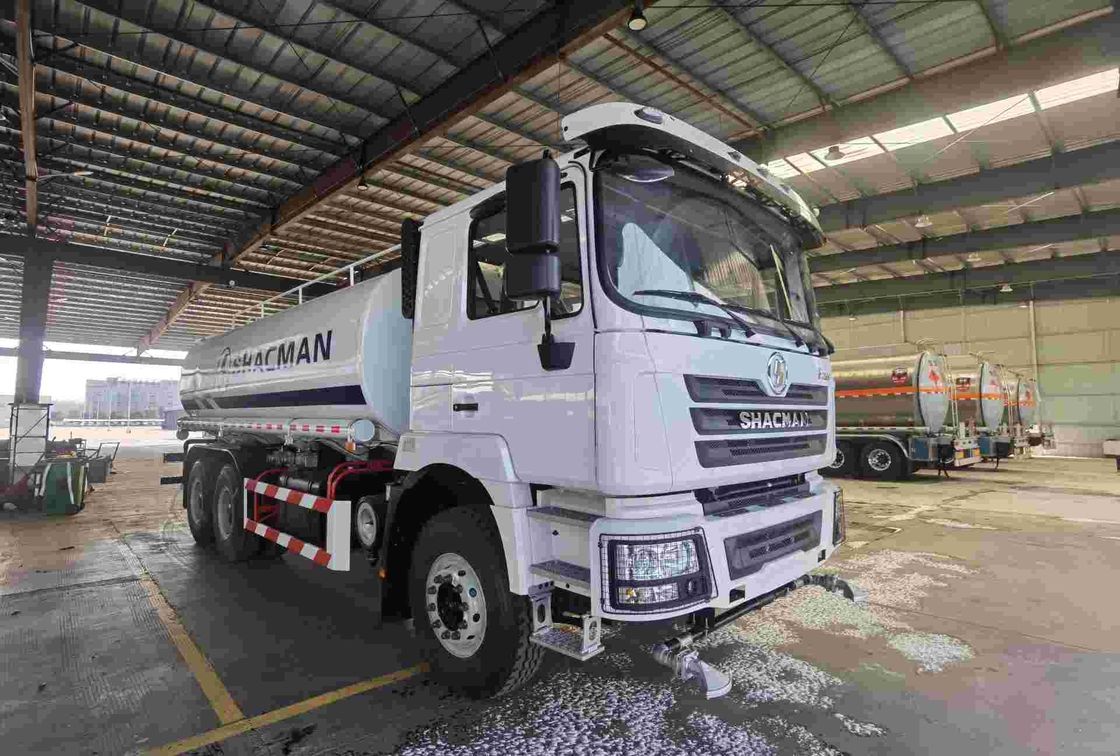

SHACMAN F3000 Water tank Truck 6x4 300 EuroII White
Detailed Product Description
Model: SX5255GSSDN434
Drive type: 6x4
Weight: Gross Vehicle Weight≤50
Engine Brand: WEICHAI
Engine Model: WP10.300E22
Engine Power/(kw/HP): 220kw / 300Hp
Gear box Brand: FAST
Gear box Model: RTD-11509C with QH50 flange extractor
Water Tank Truck Parameters
Model | SX5255GSSDN434 | |
Drive type | 6x4 | |
Weight | Gross Vehicle Weight | ≤50 |
Dimensions | Wheelbase/(mm) | 4375+1400 |
Performance | Maximum speed/(km/h) | 50~70/90 |
Ground clearance | >314 | |
Engine | Brand | WEICHAI |
Model | WP10.300E22 | |
Power/(kw/HP) | 220w / 300Hp | |
Maximum torque / (N.M)/rpm | 1240 N·M | |
Displacement/(L) | 9.726 L | |
Emission standard | Euro/ II | |
Gear box | Brand | FAST |
Model | RTD-11509C with QH50 flange extractor | |
Clutch | Type | φ430 Diaphragm spring clutch |
Cooling | Type | Domestic heat sink |
Air inlet | Type | Ordinary air filter |
Brakes | Type | Drum brake |
Service brake | Double circuit air brake | |
Park brake | Rear wheel spring brake | |
Auxiliary brake | WEVB engine exhaust brake | |
Steering | Type | ZF8098 technology, circulating ball steering machine |
Chassis | Type | Parallel trapezoidal frame with variable section |
Dimensions/(mm) | 850×300(8+5) | |
Suspension | Front | Multi-layered leaf springs with 2 Main springs+2 U Bolts |
Rear | Multi-layered leaf springs with 2 Main springs+2 U Bolts | |
Axles | Brand | HANDE |
Front axle | MAN 7.5T | |
Rear axle | 13T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.262 | |
Tires | Type | 12.00R20 |
Fuel tank | Tank capacity/(L) | 300L Aluminum |
Electrics | Type | 24V |
Battery | 165Ah Maintenance-free battery | |
Cab | Type | SHACMAN F3000 Medium-length flat cab |
Equipment | Hydraulic main seat, four-point hydraulic suspension cab, electronically controlled automatic constant temperature air conditioner, electric window crank, 165Ah maintenance-free battery, SHACMAN logo, full English logo. |
Advantages
Detailed Image
