340hp Cement Mixer Vehicle Shacman X3000 Construction Cement Mixer Truck 6x4

Basic Information
Place of Origin: Shaanxi,Xian
Brand Name: SHACMAN
Certification: ISO 9001/CCC
Model Number: X3000
Minimum Order Quantity: 1
Price: 5000 units/month
Packaging Details: Nude pack, with wax before shipment.
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 1000 units/month
Detail Information
Modle: SX5255GJB6R384 Engine: WP10.340E22+PTO
Transmission: 10JSD180 Axle: 9.5T /2*16 T Double-stage, Axle Speed Ratio-5.262
Wheel Base: 3775+1400 Mm Tire: 12.00R20
Fuel Tank: 300L Clutch: φ430 Diaphragm Spring Clutch
Air Inlet: Ordinary Air Filter Chassis: 850×300(8+7)
Suspension: Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts Cabin: Medium-length Flat Roof
Color: Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy
Highlight:

340hp Cement Mixer Vehicle

,

Cement Mixer Vehicle Shacman X3000

,

X3000 Construction Cement Mixer Truck


Product Description

SHACMAN X3000 Mixer Truck 6x4 340 EuroII white



Detailed Product Description
Model:SX5255GJB6R384
Drive type:6x4
Weight: Gross Vehicle Weight≤50
Engine Brand: WEICHAI
Engine Model:WP10.340E22+PTO
Engine Power/(kw/HP): 250kw / 340Hp
Gear box Brand: FAST
Gear box Model:10JSD180



Concrete Mixer Truck Parameters

Model

SX5255GJB6R384
Drive type 6x4
Weight Gross Vehicle Weight ≤50
Dimensions Wheelbase/(mm) 3775+1400 mm
Performance Maximum speed/(km/h) 50~65/90
Ground clearance >314
Engine Brand WEICHAI
Model WP10.340E22+PTO
Power/(kw/HP) 250kw / 340Hp
Maximum torque / (N.M)/rpm 1250 N·M
Displacement/(L) 9.726 L
Emission standard Euro II
Gear box Brand FAST
Model 10JSD180
Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) 850×300(8+7)
Suspension Front Multi-layer plate spring 4 main plates + 4 U-shaped bolts
Rear Multi-layer plate spring 4 main plates + 4 U-shaped bolts
Axles Brand HANDE
Front axle 9.5T front axle MAN technology
Rear axle 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.262
Tires Type 12.00R20
Fuel tank Tank capacity/(L) 400L Aluminum tank
Electrics Type 24V
Battery 165Ah Maintenance-free battery
Cab Type SHACMAN X3000 Medium-length flat cab
Equipment Hydraulic main seat, four-point hydraulic suspension cab, manual window crank, ordinary rear-view mirror, X3000 cooling system, square muffler, 165Ah maintenance-free battery, SHACMAN logo, full English logo.



Features

  1. Engines and emission standards: Equipped with Euro II compliant diesel engines that meet certain environmental standards in terms of reducing emissions.Power: the truck may be equipped with a 340 - horsepower engine, for heavy-load transportation and high efficient concrete mixing provide enough power and torque.
  2. Chassis configuration: The 6x4 configuration means four wheels on six wheels, providing good traction and carrying capacity suitable for structural and concrete mixing tasks.
  3. Mixing drum: The integrated mixing drum can realize the on-site mixing of concrete materials without separate mixing equipment to ensure the timely delivery of fresh concrete.



Detailed Image

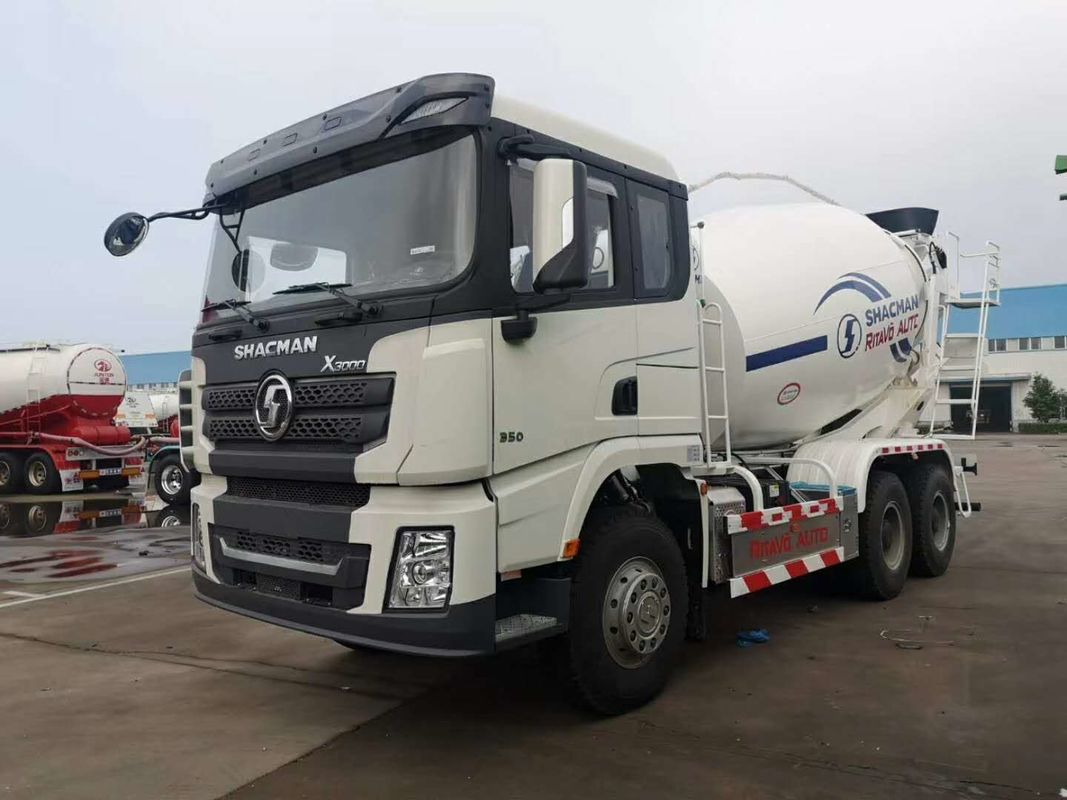

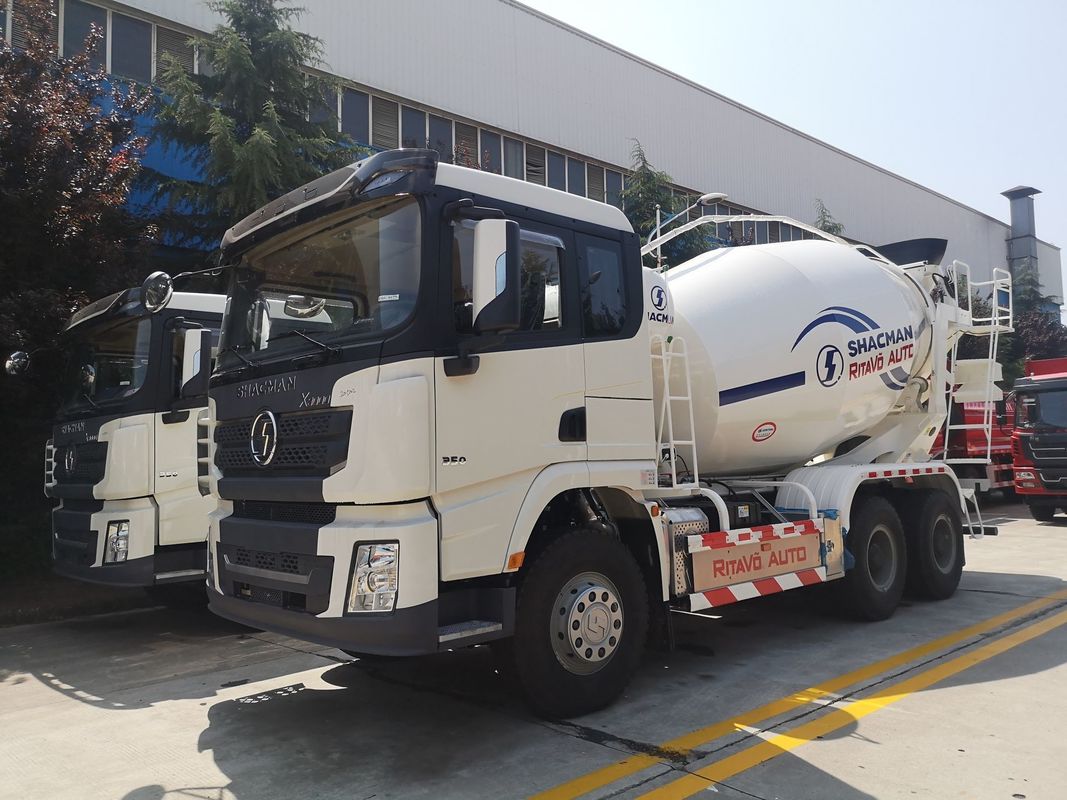

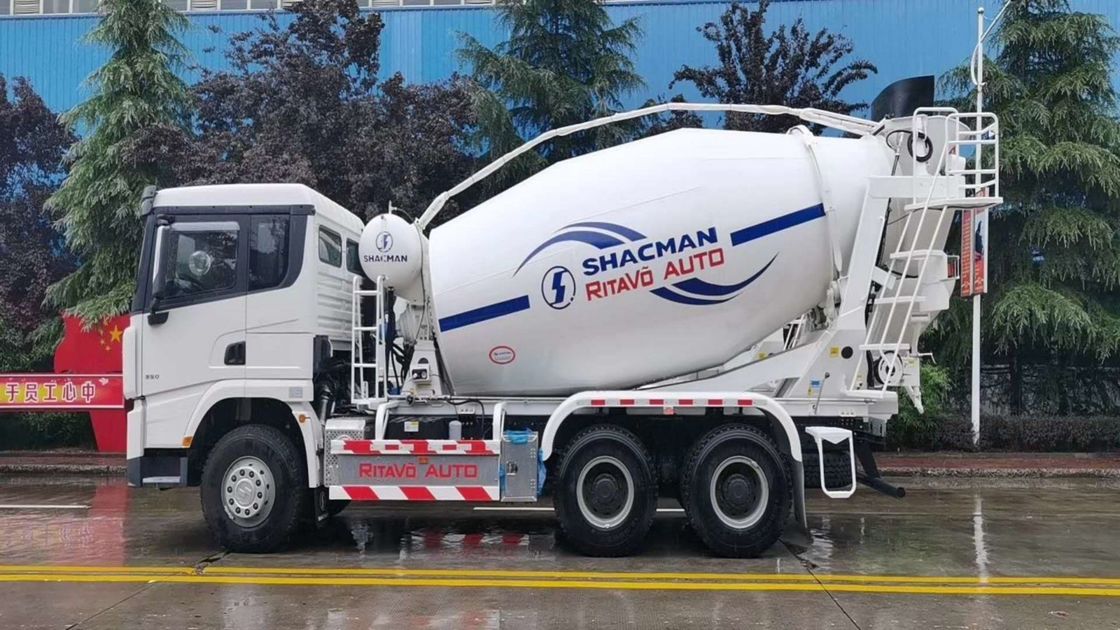

340hp Cement Mixer Vehicle Shacman X3000 Construction Cement Mixer Truck  6x4 0





FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.

3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.

4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
