SHACMAN F3000 Concrete Mixer Truck 6x4 340hp Concrete Machine Truck

SHACMAN F3000 Concrete Mixer Truck 6x4 340hp Concrete Machine Truck

SHACMAN F3000 Concrete Mixer Truck

Concrete Mixer Truck 6x4

340hp Concrete Machine Truck

Place of Origin:

Shaanxi,Xian

Brand Name:

SHACMAN

Certification:

ISO9001/CCC

Model Number:

F3000

Contact Us
Request A Quote
Product Details
Modle:
SX5255GJBDR384
Engine:
WP10.340E22+PTO
Axle:
9.5T/2*16 Double Stage Axle, Axle Speed-5.92
Wheel Base:
3775+1400 Mm
Tire:
12.00R20
Fuel Tank:
300L
Clutch:
φ430 Diaphragm Spring Clutch
Air Inlet:
Ordinary Air Filter
Chassis:
850×300(8+7)
Suspension:
Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts
Cabin:
Medium-length Flat Top
Color:
Neon Red/Mountain Green/Starry Blue/Aurora White/Klein Blue/Burgundy
Highlight:

SHACMAN F3000 Concrete Mixer Truck

,

Concrete Mixer Truck 6x4

,

340hp Concrete Machine Truck

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
Nude pack, with wax before shipment.
Delivery Time
45 working days
Payment Terms
T/T, L/C
Supply Ability
1000 units/month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

SHACMAN F3000 Mixer Truck 6x4 340 EuroII white



Detailed Product Description
Model:SX5255GJBDR384
Drive type:6x4
Weight: Gross Vehicle Weight≤50
Engine Brand: WEICHAI
Engine Model:WP10.340E22+PTO
Engine Power/(kw/HP): 250kw / 340Hp
Gear box Brand: FAST
Gear box Model:RTD-11509C



Concrete Mixer Truck Parameters

Model SX5255GJBDR384
Drive type 6x4
Weight Gross Vehicle Weight ≤50
Dimensions Wheelbase/(mm) 3775+1400 mm
Performance Maximum speed/(km/h) 50~65/90
Ground clearance >314
Engine Brand WEICHAI
Model WP10.340E22+PTO
Power/(kw/HP) 250kw / 340Hp
Maximum torque / (N.M)/rpm 1250 N·M
Displacement/(L) 9.726 L
Emission standard Euro II
Gear box Brand FAST
Model RTD-11509C
Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) 850×300(8+7)
Suspension Front Multiple springs
Rear Multiple springs
Axles Brand HANDE
Front axle 9.5T front axle MAN technology
Rear axle 16 Double stage axle, Axle speed-5.92
Tires Type 12.00R20
Fuel tank Tank capacity/(L) 400L Aluminum tank
Electrics Type 24V
Battery 165Ah Maintenance-free battery
Cab Type SHACMAN F3000 Medium-length flat cab
Equipment Hydraulic main seat, four-point hydraulic suspension cab, manual window crank, ordinary rear-view mirror, F3000 cooling system, square muffler, 165Ah maintenance-free battery, SHACMAN logo, full English logo.



Overview

  1. Engine and Emissions Standard: The truck is likely equipped with a diesel engine that meets the Euro II emissions standard. Euro II is an earlier emissions standard aimed at reducing pollutants from vehicle exhaust.
  2. Horsepower: The 340 horsepower engine provides sufficient power and torque for the truck to handle the transportation of heavy loads and operate the concrete mixing equipment effectively.
  3. Chassis Configuration: The 6x4 configuration indicates six wheels with four driven wheels, offering good traction and load-carrying capacity suitable for construction tasks.
  4. Mixer Drum: The integrated mixer drum is a crucial component of the truck, allowing efficient mixing of concrete materials on-site, reducing the need for separate mixing equipment.



Detailed Image

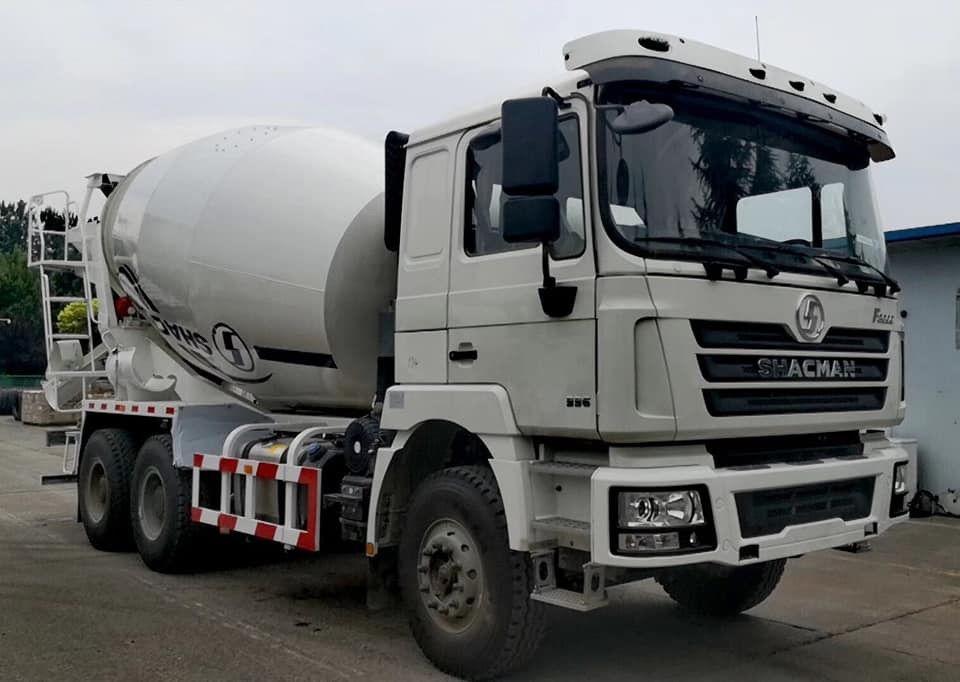

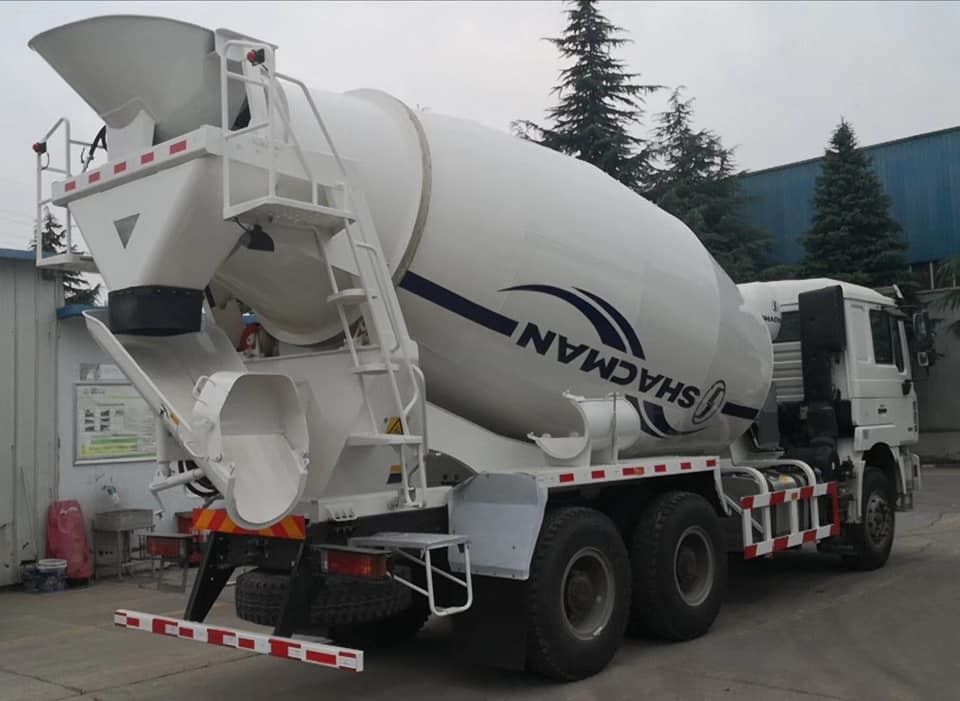

SHACMAN F3000 Concrete Mixer Truck  6x4 340hp Concrete Machine Truck 0
