CIMC 4 axles flatbed semi-trailer with 1000mm sidewall 40Ton transport trailer truck

Basic Information
Place of Origin: China
Brand Name: CIMC
Certification: ISO9001/CCC
Model Number: Flatbed Semi Trailer
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude pack, with wax before shipment.
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 1000 units/month
Detail Information
Use: Truck Trailer Material: Steel
Size: 13000*2550*3780mm Function: Transport Heavy Cargo
Color: Customers Optional Axle: FUWA Brand With Air Suspension
Tire: 12.00R20 Capacity: 60 Tons
Floor Board: 2.5 Mm Flatbed Type Side Door: 11 Sets
Main Beam: T700/Q345 Steel Suspension System: Strength Suspension

SHACMAN L3000 3 Axles Trailer


EuroII 50T Fence cargo Truck


Fence cargo Truck 6x4 420Hp

Product Description

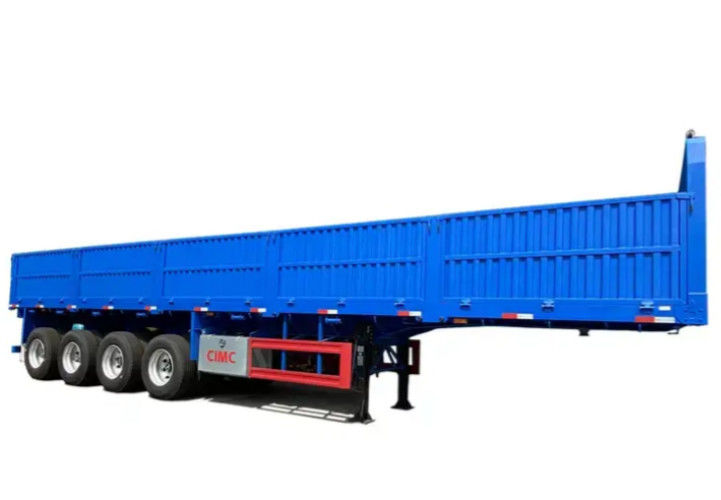

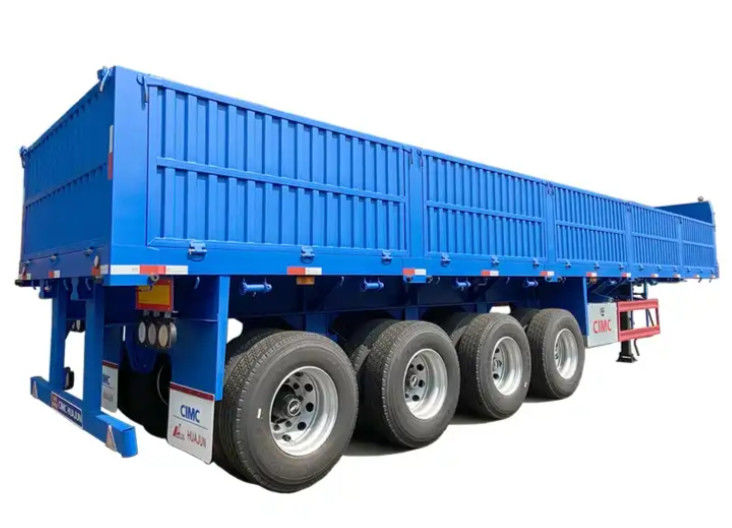

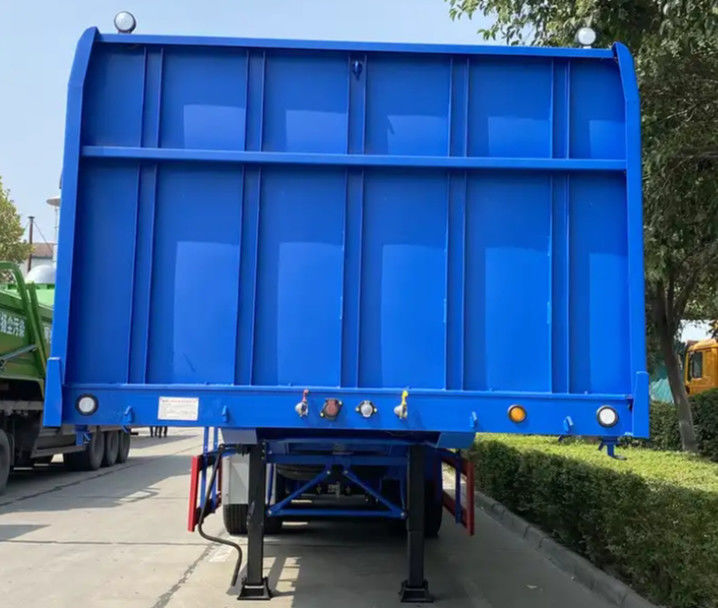

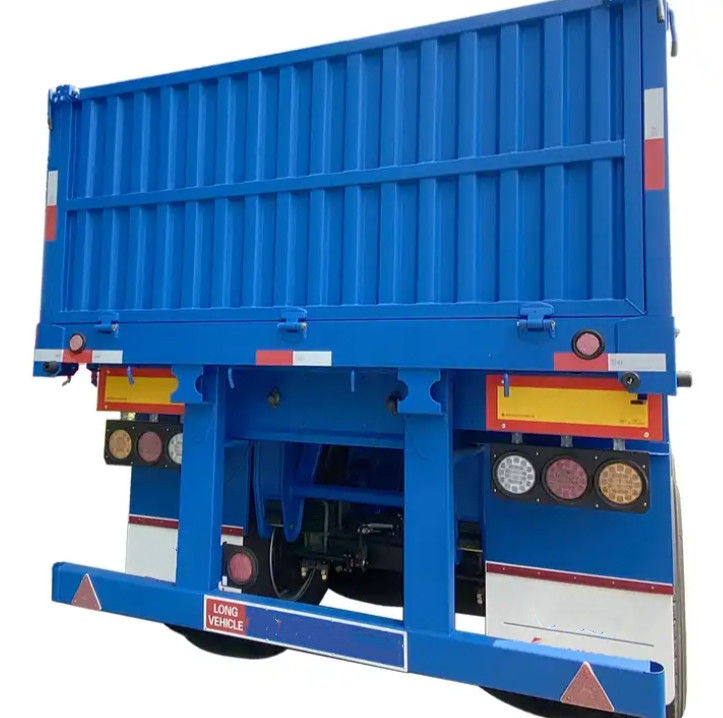

CIMC 4 axles flatbed semi-trailer


Company Introduction

ZHUMADIAN CIMC HUAJUN VEHICLE CO., LTD., a joint venture company, located in ZHUMADIAN, HENAN, with convenient transportation, is a wholly-owned subsidiary of CIMC, one of the most important factories in CIMC VEHICLE GROUP. CIMC VEHICLE GROUP, as one of the nine CIMC major business sectors, owns 22 production bases over the world, producing capacity for all kinds of special vehicles and trailers is more than 0.2 million, which comes to the world leadership position.

Product Description

Item Specification
Size 13000*2550*3850mm.
Body Sheet

Floor thickness: 3mm, checkered plate;

Body material: Q355 steel.

Chassis Heavy duty and extra durability designed I beam; Opting for high tensile steel, welded by automatic Submerged-Arc processes.
Axle 13T FUWA brand axle
Tire 12R22.5
Rim 9.0-22.5
Suspension 4 axles CIMC HUAJUN reinforced type.
Lead spring CIMC HUAJUN reinforced type, 12 pieces and 16mm thickness.
Braking system 2-line air braking system with air tank, WABCO emergency relay valve, braking chambers and mechanical slack adjusters.
Electrical system 24V, LED lights. 7-pin electrical connector. Parking, stop, reverse, number plate and indicator lights conform to European standards, rear front and side reflectors.
Shot blasting The chassis is completely shot blasted to SA 2.5 grade and painted with the first layer of international Zinc Epoxy primer(30 Microns DEF), the second layer of international high-built polyurethane undercoat (40 microns DFT), THIRD AND FORTH LAYERS INTERNATIONAL alkyd FINISH TOP coat. total 80-100 microns. high-quality painting. the whole trailer waxed.
Landing gear 28T, two-side operation.
Chamber Double type
King pin (2') 50# or (3.5') 90#
Spare tire carrier CIMC HUAJUN standard
Tool box CIMC HUAJUN standard
Color According to customers' requirements and RAL color code.


Our Customers

Our factory was established in 1952, and with more than 60 years of experience in the trailer manufacturing industry, we make “CIMC HUAJUN” the leading brand in the world through years of unremitting efforts.

By now, our trailers were shipped to more than 60 countries and areas. Such as The Philippines, Vietnam, Laos, Myanmar, Thailand, Malaysia, Cambodia, Brunei, Singapore, Indonesia, Australia, Mongolia, Algeria, Ethiopia, Djibouti, Kenya, Tanzania, Rwanda, Mauritania, Mali, Guinea, Ghana, Chad, Nigeria, Gabon, Dr. Congo, South Africa, Sudan, Mauritius, Uzbekistan, Kazakhstan, Bangladesh, Saudi Arabia, Egypt, Public of Costa Rica, Ukraine, etc.

More than 90% of our customers cooperated with our factory for more than 15 years.



CIMC 4 axles flatbed semi-trailer with 1000mm sidewall 40Ton transport trailer truck 0




Waxed Packing by RO-RO or Vessel

1. One unit was shipped separately;

2. Two or units were packed as one set ;

Shipping by Containers

1. One or two units were packed in a container;

2. Shipping by containers via CKD or SKD;
