SHACMAN H3000 Dump Truck 8x4 400HP EuroII
Detailed Product Description
Model: SX3315DT366R
Engine Model: WEICHAI WP10.400E22 295kw / 400Hp EuroII
Transmission Model: FAST 10JSD180+QH50
Axle:2*7.5T/2*16 Double-stage axle, Axle speed-5.262
Tipper dump truck parameters
| Model |
SX3315MT366R |
| Drive type |
8x4 |
| Weight |
Gross Vehicle Weight |
≤70 |
| Dimensions |
Wheelbase/(mm) |
1800+3575+1400 |
| Performance |
Maximum speed/(km/h) |
45～60/85 |
| Ground clearance |
>314 |
| Engine |
Brand |
WEICHAI |
| Model |
WP12.400E201 |
| Power/(kw/HP) |
295kw / 400Hp |
| Maximum torque / (N.M)/rpm |
1800 N·M |
| Displacement/(L) |
9.726 L |
| Emission standard |
Euro II |
| Gearbox |
Brand |
FAST |
| Model |
10JSD180+QH50 |
| Clutch |
Type |
φ430 Diaphragm spring clutch |
| Cooling |
Type |
Domestic heat sink |
| Air inlet |
Type |
Ordinary air filter |
| Brakes |
Type |
Drum brake |
| Service brake |
Double circuit air brake |
| Park brake |
Rear wheel spring brake |
| Auxiliary brake |
WEVB engine exhaust brake |
| Steering |
Type |
ZF8098 technology, circulating ball steering machine |
| Chassis |
Type |
Parallel trapezoidal frame with variable section |
| Dimensions/(mm) |
850×300(8+7) |
| Suspension |
Front |
Multi-layered leaf springs with 4 Main springs+4 U Bolts |
| Rear |
Multi-layered leaf springs with 4 Main springs+4 U Bolts |
| Axles |
Brand |
HANDE |
| Front axle |
2*9.5T front axle MAN technology |
| Rear axle |
2*16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.262 |
| Tires |
Type |
12.00R20 |
| Fuel tank |
Tank capacity/(L) |
300L Aluminum tank |
| Electrics |
Type |
24V |
| Battery |
165Ah Maintenance-free battery |
| Cab |
Type |
SHACMAN H3000 Standard cab |
| Equipment |
Hydraulic main seat, four-point hydraulic suspension cab, lever rearview mirror, electric air conditioner, electric window shaker, manual flip, telescopic shaft control, ordinary air filter, metal bumper, two-stage pedals, water tank protection grille, 165Ah Maintenance-free battery, SHACMAN logo, full English logo. |
SHACMAN Truck Specialty
The F3000, X3000, and H3000 series within SHACMAN's new energy range have embraced natural gas (CNG, LNG) as their fuel of choice. These vehicles feature WEICHAI's CNG engines, delivering impressive power and performance, equivalent to diesel vehicles. Additionally, they offer a travel range of 500-700 kilometers before requiring refueling.

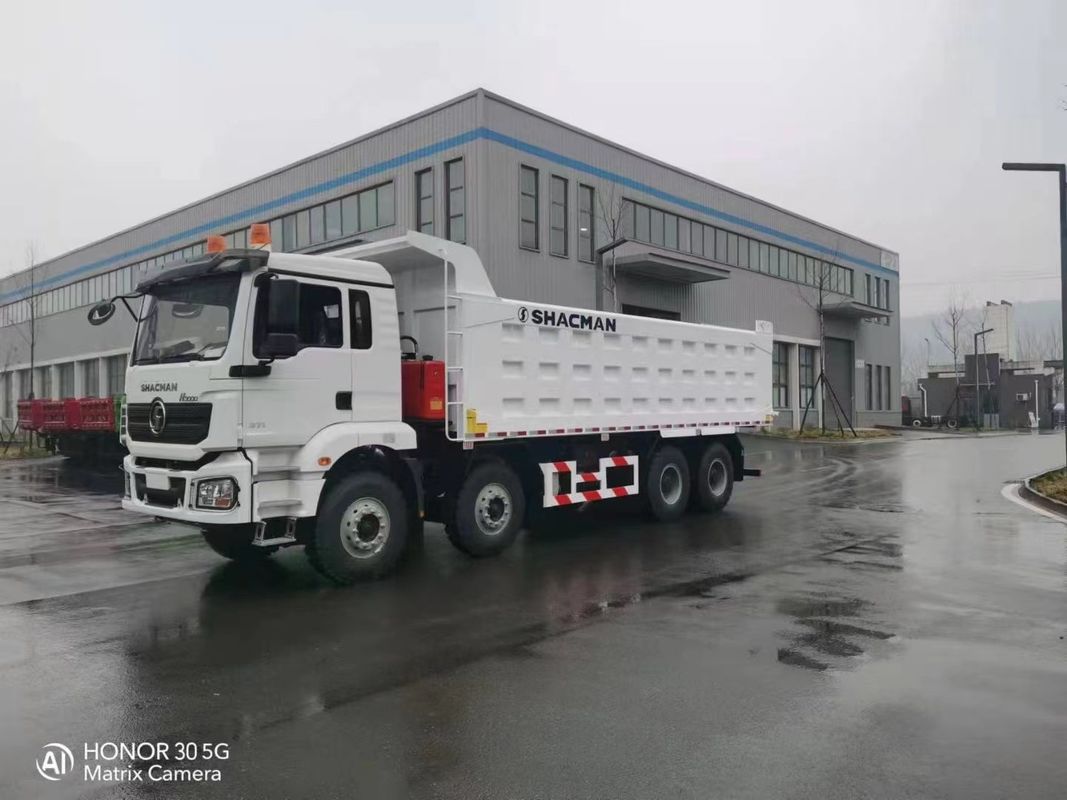

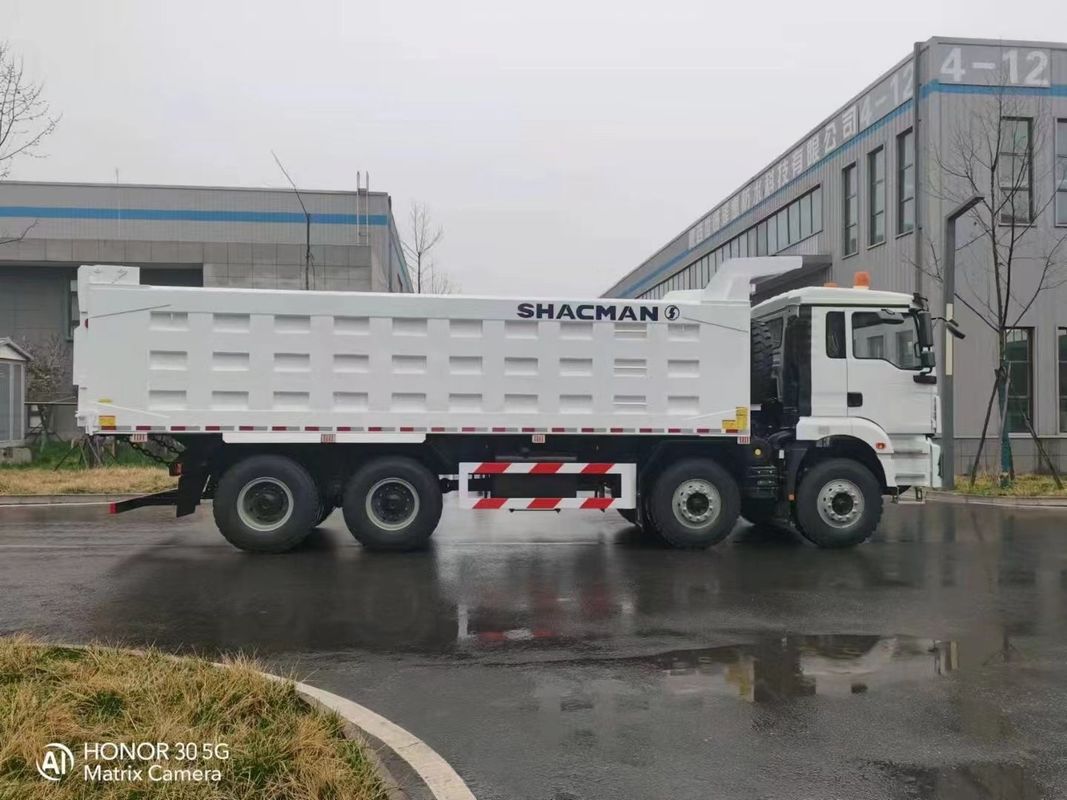

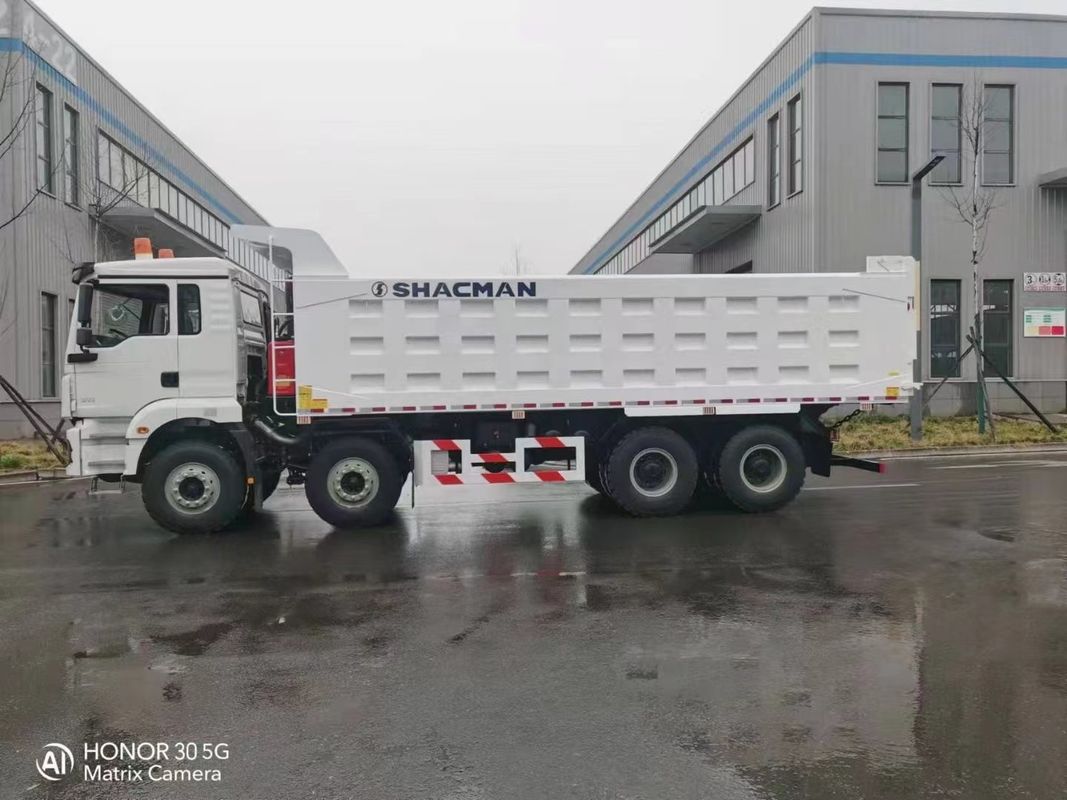

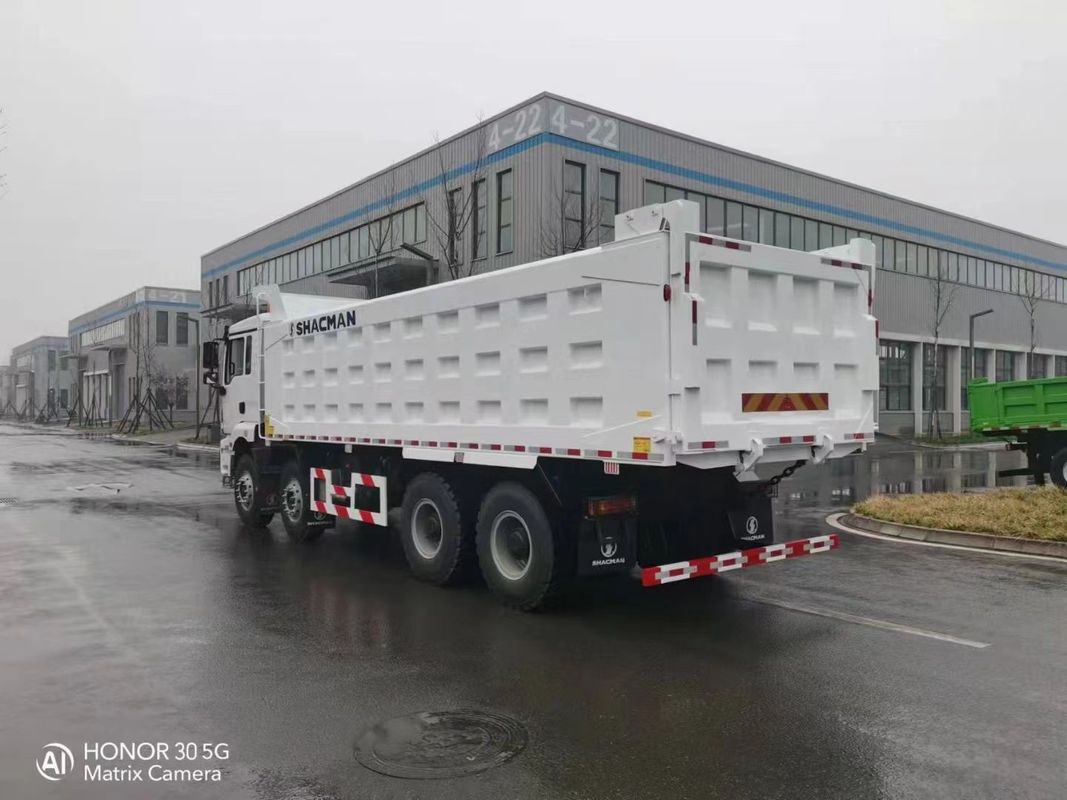

SHACMAN Truck Detailed Image
FAQ
1. Who are we?
Based in Shaanxi, China, we began our business journey in 2015. Our primary market segment is Africa, representing 70.00% of our sales. Moreover, we have a presence in Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), the Middle East (2.00%), Eastern Asia (2.00%), and South Asia (2.00%). At our office, we have a dedicated team of around 11-50 individuals.
2. How can we guarantee quality?
To ensure SHACMAN product integrity, a pre-production sample is meticulously inspected and tested to meet the desired standards before initiating mass manufacturing.
3. What can you buy from us?
Dump truck, tractor truck, lorry truck, Crane truck, Mixer truck. Sime-trucks.
4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
