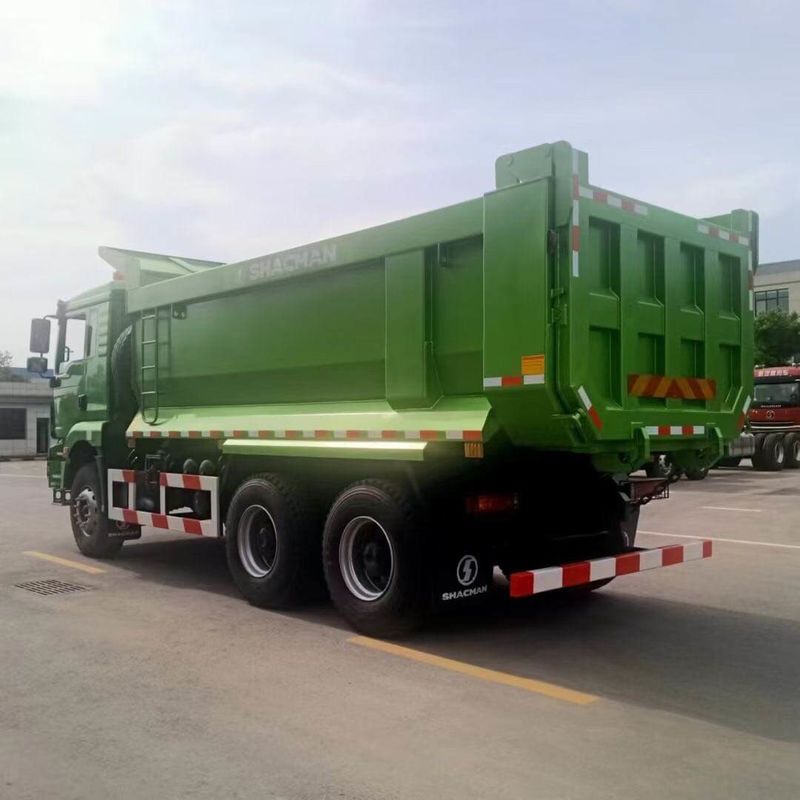

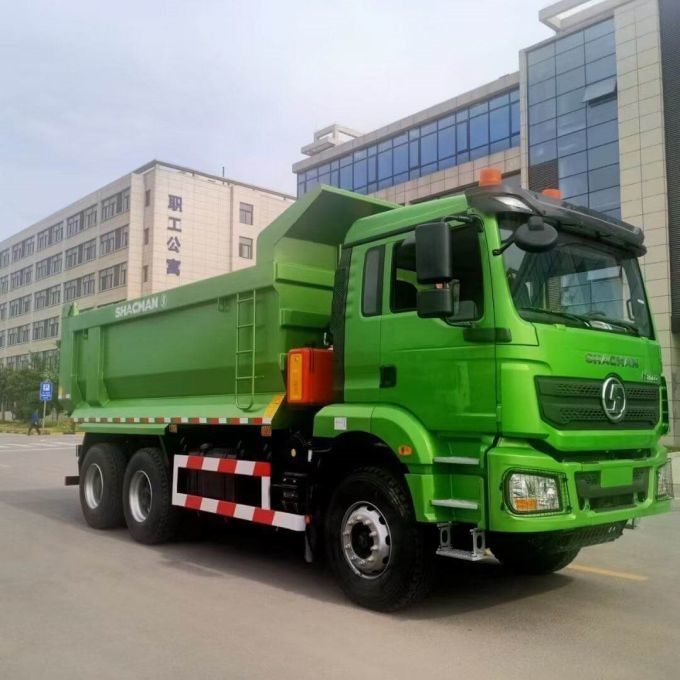

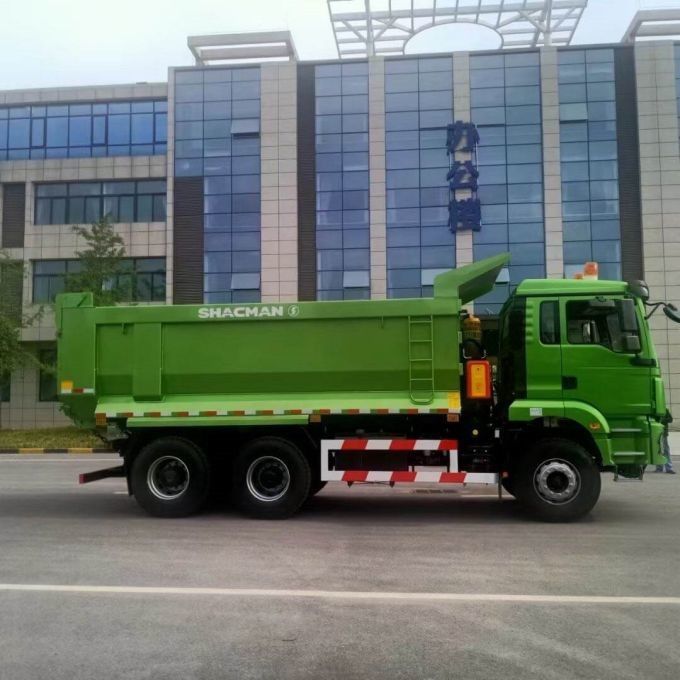

SHACMAN 6x4 Dump Truck H3000 380 EuroII Green
Detailed Product Description
Model:SX4258HU324
Drive type:6x4
Weight: Gross Vehicle Weight≤50
Engine Brand: WEICHAI
Engine Model:W10.380E22
Engine Power/(kw/HP): 280kW /380 Hp
Gear box Brand: FAST
Gear box Model: 10JSD180+QH50
Tipper Dump Truck Parameters
| Model |
SX4258HU324 |
| Drive type |
6x4 |
| Weight |
Gross Vehicle Weight |
≤50 |
| Dimensions |
Wheelbase/(mm) |
3775+1400 |
| Performance |
Maximum speed/(km/h) |
40～55/75 |
| Ground clearance |
>314 |
| Engine |
Brand |
WEICHAI |
| Model |
WP10.380E22 |
| Power/(kw/HP) |
280kW /380 Hp |
| Maximum torque / (N.M)/rpm |
1600 N·M |
| Displacement/(L) |
9.726 L |
| Emission standard |
Euro II |
| Gear box |
Brand |
FAST |
| Model |
10JSD180+QH50 |
| Clutch |
Type |
φ430 Diaphragm spring clutch |
| Cooling |
Type |
Domestic heat sink |
| Air inlet |
Type |
Ordinary air filter |
| Brakes |
Type |
Drum brake |
| Service brake |
Double circuit air brake |
| Park brake |
Rear wheel spring brake |
| Auxiliary brake |
WEVB engine exhaust brake |
| Steering |
Type |
ZF8098 technology, circulating ball steering machine |
| Chassis |
Type |
Parallel trapezoidal frame with variable section |
| Dimensions/(mm) |
850×300(8+5) |
| Suspension |
Front |
Multi-layered leaf springs with 2 Main springs+2 U Bolts |
| Rear |
Multi-layered leaf springs with 4 Main springs+2 U Bolts |
| Axles |
Brand |
HANDE |
| Front axle |
7.5T front axle MAN technology |
| Rear axle |
13T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.266 |
| Tires |
Type |
12.00R20 |
| Fuel tank |
Tank capacity/(L) |
400L Aluminum tank |
| Electrics |
Type |
24V |
| Battery |
165Ah Maintenance-free battery |
| Cab |
Type |
SHACMAN H3000 Standard cab |
| Equipment |
Hydraulic main seat, four-point hydraulic suspension cab, lever rearview mirror, electric air conditioner, electric window shaker, 165Ah Maintenance-free battery, SHACMAN logo, full English logo. |
Overview
SHACMAN: This is the brand name of the manufacturer.
6x4: It indicates the truck's drivetrain configuration, specifically that it has six wheels with power delivered to four of them.
Dump Truck: This indicates that it is a type of truck designed for transporting and unloading loose materials, such as sand, gravel, or construction waste.
H3000: This is the model name of the truck within the SHACMAN lineup.
