SHACMAN H3000 Tipper Dump truck 8x4 380Hp EuroII Yellow

Basic Information
Place of Origin: Shaanxi,China
Brand Name: SHACMAN
Certification: ISO9001/CCC
Model Number: H3000
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude pack, with wax before shipment.
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 5000 units/month
Detail Information
Modle: SX3315MT366 Engine: WP10.380E22
Transmission: 10JSD180+QH50 Axle: 2*9.5T /2*16 T Double-stage,speed Ratio-5.262
Wheel Base: 1800+3575+1400 Mm Tire: 12.00R20
Fuel Tank: 300L Clutch: φ430 Diaphragm Spring Clutch
Air Inlet: Ordinary Air Filter Chassis: 850×300(8+7)
Suspension: Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts Cabin: H3000 Standard Cabin
Color: Neon Red/Mountain Green/Starry Blue/Aurora White/Klein Blue/Burgundy

Product Description

SHACMAN H3000 Tipper Dump truck 8x4 380Hp EuroII Yellow



Detailed Product Description

Model:SX3315MT366
Drive type:8x4
Weight: Gross Vehicle Weight≤70
Engine Brand: WEICHAI
Engine Model:WP10.380E22
Engine Power/(kw/HP): 279kw / 380Hp
Gear box Brand: FAST
Gear box Model:10JSD180+QH50



Tipper Dump truck Parameters

Model SX3315MT366
Drive type 8x4
Weight Gross Vehicle Weight ≤70
Dimensions Wheelbase/(mm) 1800+3575+1400
Performance Maximum speed/(km/h) 45~60/85
Ground clearance >314
Engine Brand WEICHAI
Model WP10.380E22
Power/(kw/HP) 279kw / 380Hp
Maximum torque / (N.M)/rpm 1600 N·M
Displacement/(L) 9.726 L
Emission standard Euro II
Gear box Brand FAST
Model 10JSD180+QH50
Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) 850×300(8+7)
Suspension Front Multi-layered leaf springs with 4 Main springs+4 U Bolts
Rear Multi-layered leaf springs with 4 Main springs+4 U Bolts
Axles Brand HANDE
Front axle 9.5T front axle MAN technology
Rear axle 16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.262
Tires Type 12.00R20
Fuel tank Tank capacity/(L) 300L Aluminum tank
Electrics Type 24V
Battery 165Ah Maintenance-free battery
Cab Type SHACMAN H3000 Standard cab
Equipment Hydraulic main seat, four-point hydraulic suspension cab, lever rearview mirror, electric air conditioner, electric window shaker, 165Ah Maintenance-free battery, SHACMAN logo, full English logo.


Overview

The SHACMAN H3000 is a heavy-duty tipper dump truck manufactured by SHACMAN, a Chinese commercial vehicle manufacturer. The H3000 series is known for its robustness and high performance in construction and mining applications. Here are some specifications for the SHACMAN H3000 Tipper Dump truck 8x4 380Hp Euro II:

  1. Configuration: 8x4 (8-wheel drive, with four of them being powered wheels)
  2. Engine: Euro II emission standard compliant engine
  3. Power: 380 horsepower (380Hp)
  4. Transmission: Manual transmission (number of gears may vary)
  5. Payload Capacity: The specific payload capacity may vary depending on factors like body configuration and local regulations.





Detailed Image

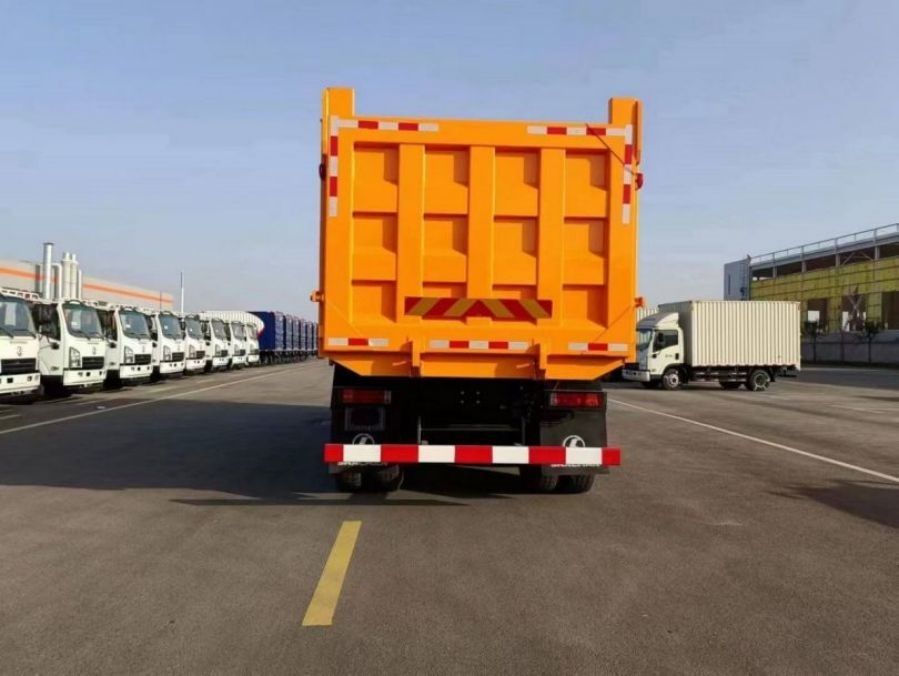

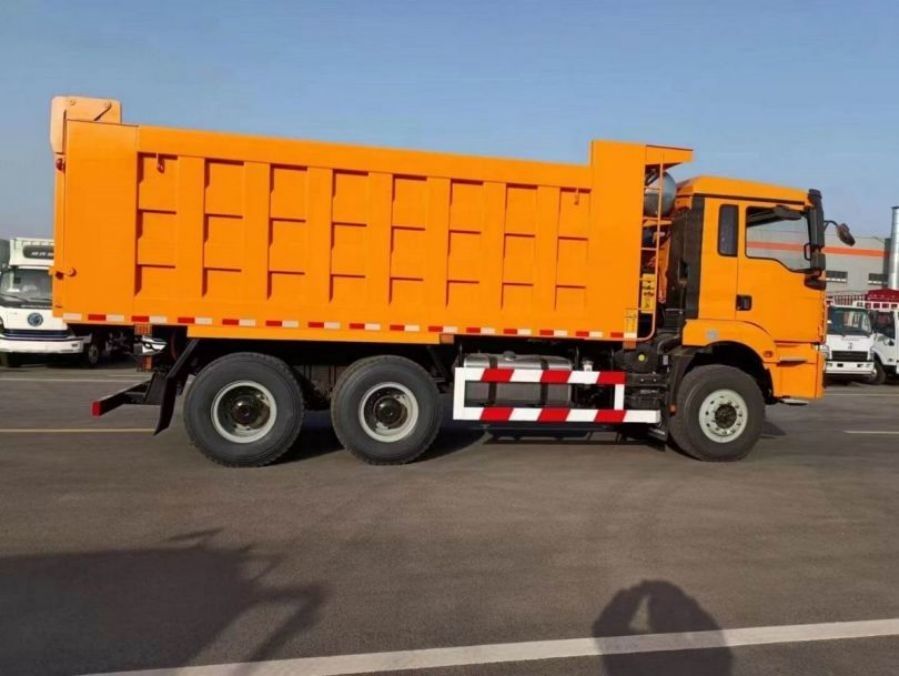

SHACMAN  H3000 Tipper Dump truck 8x4 380Hp EuroII Yellow 0
