SHACMAN Dumper Truck H3000 4x2 300HP EuroII

Basic Information
Place of Origin: Shaanxi,China
Brand Name: SHACMAN
Certification: ISO9001/CCC
Model Number: H3000
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude pack, with wax before shipment.
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 1000 units/month
Detail Information
Modle: SX3185MN381 Engine: WP10.310E22
Transmission: 10JSD180+QH50 Axle: MAN 7.5T /2*13 T Double-stage,speed Ratio-5.92
Wheel Base: 3800 Tire: 11.00R20
Fuel Tank: 300L Clutch: φ430 Diaphragm Spring Clutch
Air Inlet: Ordinary Air Filter Chassis: 850×300(8+7)
Suspension: Front /rear Multi-layer Plate Spring Cabin: Medium-length Flat Top
Color: Neon Red/Mountain Green/Starry Blue/Aurora White/Klein Blue/Burgundy

Product Description

SHACMAN Dumper Truck H3000 4x2 300HP EuroII



Detailed Product Description

Model:SX3185MN381
Drive type: 4x2
Weight: Gross Vehicle Weight≤50
Engine Brand: WEICHAI
Engine Model:WP10.300E22
Engine Power/(kw/HP): 247kw / 300Hp
Gear box Brand: FAST
Gear box Model: 10JSD180+QH50



Tipper Dump Truck Parameters

Model SX3185MN381
Drive type 4x2
Weight Gross Vehicle Weight ≤25
Dimensions Wheelbase/(mm) 3800
Performance Maximum speed/(km/h) 45~60/75
Ground clearance >314
Engine Brand WEICHAI
Model WP10.300E22
Power/(kw/HP) 247kw / 300Hp
Maximum torque / (N.M)/rpm 1550 N·M
Displacement/(L) 9.726 L
Emission standard Euro II
Gear box Brand FAST
Model 10JSD180+QH50
Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) 850×300(8+7)
Suspension Front Multi-layered leaf springs
Rear Multi-layered leaf springs
Axles Brand HANDE
Front axle 7.5T front axle MAN technology
Rear axle 13T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92
Tires Type 11.00R20
Fuel tank Tank capacity/(L) 300L Aluminum tank
Electrics Type 24V
Battery 165Ah Maintenance-free battery
Cab Type SHACMAN H3000 Medium-length flat cab
Equipment Hydraulic main seat, four-point hydraulic suspension cab, pole type rear view mirror, electric automatic thermostatic air conditioner, electric window crank, 165Ah maintenance-free battery, SHACMAN logo, full English logo.


Overview

SHACMAN: This is the brand name of the manufacturer.
Dumper Truck: It indicates that it is a type of truck designed for transporting and unloading loose materials, such as sand, gravel, or construction waste.
H3000: This is the model name of the truck within the SHACMAN lineup.
4x2: It indicates the drivetrain configuration of the truck, specifically that it has four wheels with power delivered to two of them. This configuration is commonly used for smaller trucks or those intended for lighter-duty applications.
300HP: It refers to the horsepower rating of the truck's engine, indicating that it has a power output of 300 horsepower.





Detailed Image

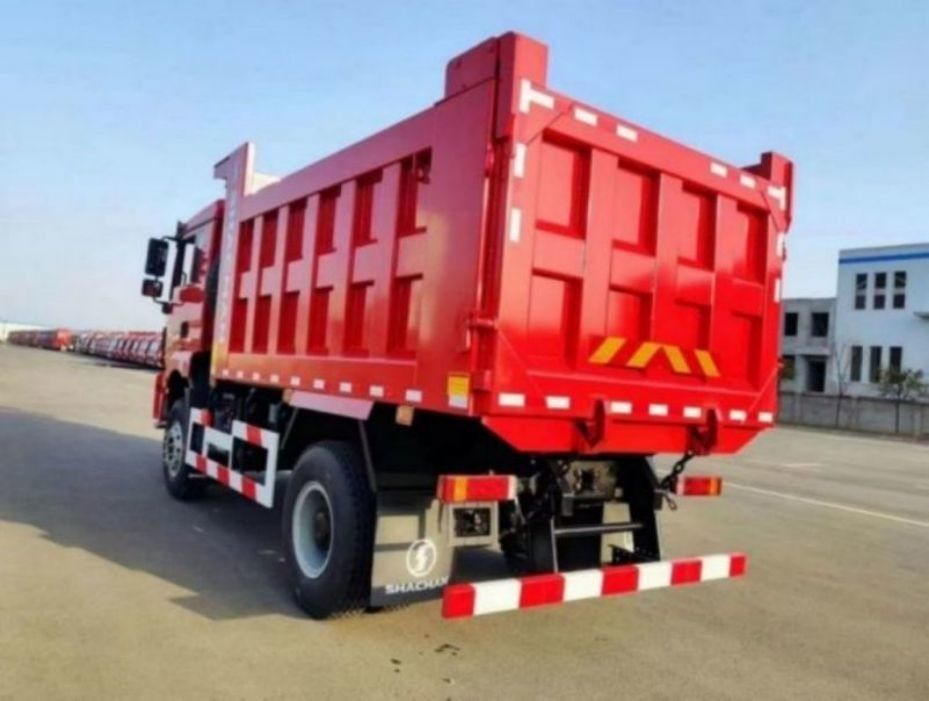

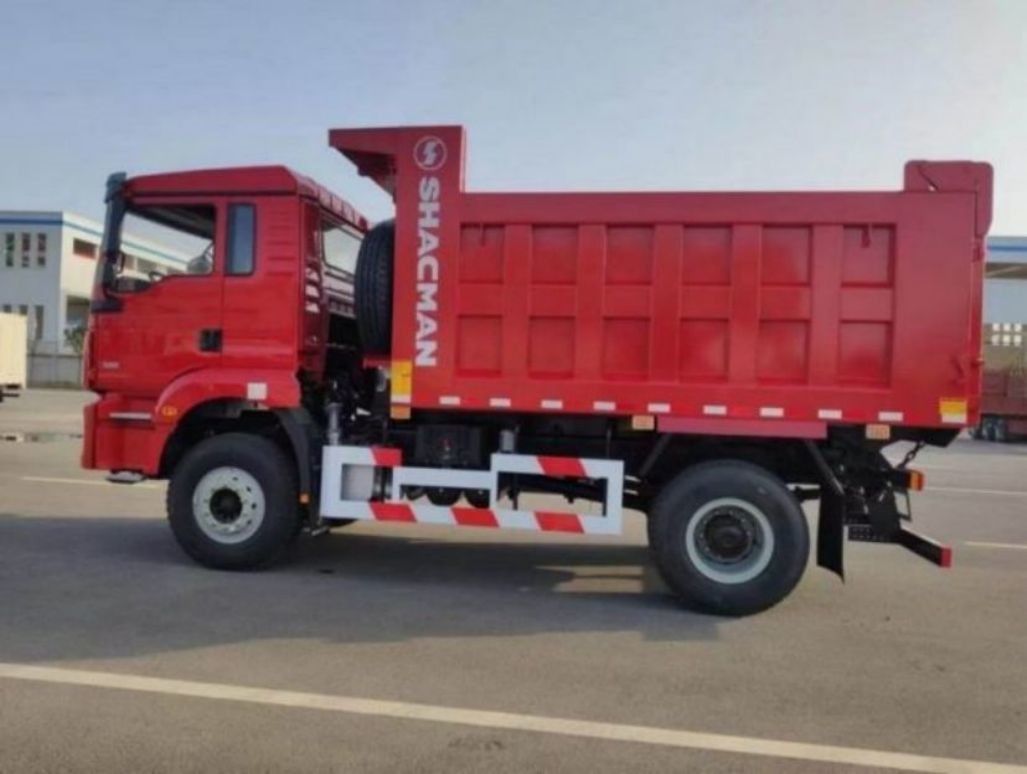

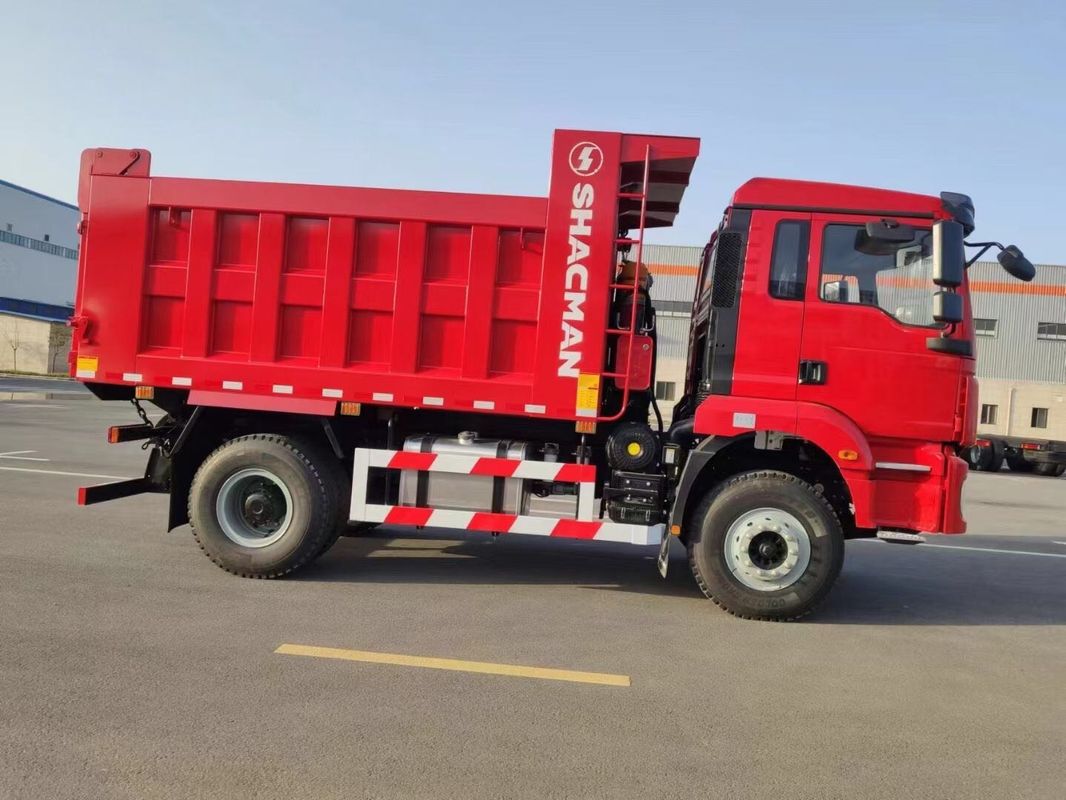

SHACMAN  Dumper Truck H3000 4x2 300HP EuroII 0





FAQ
1. Who are we?
We are based in Shaanxi, China, start in 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are a total of about 11-50 people in our office.


2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.


3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck,


4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, DAF, EXW, CIP, DDU;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French, Russian, Spanish
