Name: EuroII SHACMAN Yellow Dumper Truck F3000 8x4 Tipper Truck 380HP Right Driver
Brand: SHACMAN
SKU: F3000
Rating: 5 (127 reviews)

Home > products > Heavy Dump Truck >

EuroII SHACMAN Yellow Dumper Truck F3000 8x4 Tipper Truck 380HP Right Driver

EuroII SHACMAN Yellow Dumper Truck

Yellow Dumper Truck F3000

8x4 Tipper Truck 380HP

Place of Origin:

Shaanxi,China

Brand Name:

SHACMAN

Certification:

ISO9001/CCC

Model Number:

F3000

Request A Quote

Product Details

Modle:

SX3315DT366R

Engine:

WP10.380E22 WEICHAI

Transmission:

10JSD180+QH50 FAST

Axle:

MAN 9.5T /2*16 T Double-stage, Speed Ratio-4.769

Wheel Base:

1800+3575+1400 Mm

Tire:

12.00R20 (12+1)

Fuel Tank:

300L+300L

Clutch:

φ430 Diaphragm Spring Clutch

Air Inlet:

Common Air Filter

Chassis:

850×300（8+7）

Suspension:

Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts

Cabin:

Medium-length Flat Top

Color:

Neon Red/Mountain Green/Starry Blue/Aurora White/Klein Blue/Burgundy

Highlight:

EuroII SHACMAN Yellow Dumper Truck

Yellow Dumper Truck F3000

8x4 Tipper Truck 380HP

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiation

Packaging Details

Nude pack, with wax before shipment.

Delivery Time

45 working days

Payment Terms

L/C, T/T

Supply Ability

5000 units/month

RELATED PRODUCTS

Contact Now

Product Description

SHACMAN Dump Truck F3000 8x4 380HP EuroII

Detailed Product Description
Model: SX3315DT366R
Drive Type: 8X4 12 wheels
Engine Model: WP10.380E22 WEICHAI 280Kw/380Hp EuroII
Gearbox Brand: FAST 10JSD1480T-B +QH50

Dump Truck Parameters

Model	SX3315DT366R
Drive type	8x4
Weight	Gross Vehicle Weight	≤70
Dimensions	Wheelbase/(mm)	1800+3575+1400
Performance	Maximum speed/(km/h)	45～60/85
Performance	Ground clearance	>314
Engine	Brand	WEICHAI
	Model	WP10.380E22
	Power/(kw/HP)	279kw / 380Hp
	Maximum torque / (N.M)/rpm	1600 N·M
	Displacement/(L)	9.726 L
	Emission standard	Euro II
Gear box	Brand	FAST
Gear box	Model	10JSD180+QH50
Clutch	Type	φ430 Diaphragm spring clutch
Cooling	Type	Domestic heat sink
Air inlet	Type	Ordinary air filter
Brakes	Type	Drum brake
	Service brake	Double circuit air brake
	Park brake	Rear wheel spring brake
	Auxiliary brake	WEVB engine exhaust brake
Steering	Type	ZF8098 technology, circulating ball steering machine
Chassis	Type	Parallel trapezoidal frame with variable section
Chassis	Dimensions/(mm)	850×300(8+7)
Suspension	Front	Multi-layered leaf springs with 4 Main springs+4 U Bolts
Suspension	Rear	Multi-layered leaf springs with 4 Main springs+4 U Bolts
Axles	Brand	HANDE
	Front axle	9.5T front axle MAN technology
	Rear axle	16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.769
Tires	Type	12.00R20
Fuel tank	Tank capacity/(L)	300L+300L Aluminum tank
Electrics	Type	24V
Electrics	Battery	165Ah Maintenance-free battery
Cab	Type	SHACMAN F3000 Medium-length flat cab
Cab	Equipment	Hydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, manual flip, ordinary air filter, metal bumper, two-stage pedals, water tank protection grille, 165Ah maintenance-free Battery, SHACMAN logo, full English logo.

Advantages

The SHACMAN F3000 8x4 380HP Right Hand Drive Tipper is a versatile heavy-duty vehicle designed for a variety of applications, especially for industries that need to transport large quantities of materials over challenging terrain. Some of the key applications for this tipper include
The F3000 tipper is widely used in the construction industry for transporting building materials such as sand, gravel, crushed stone and other aggregates to building sites.

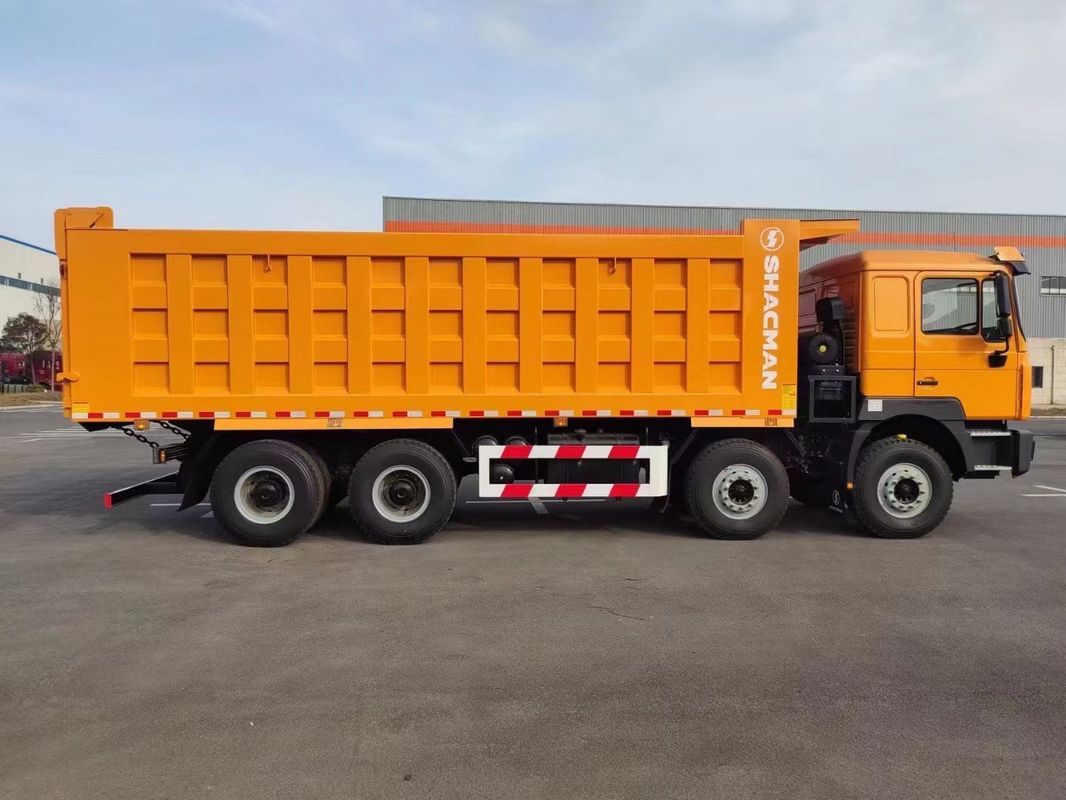

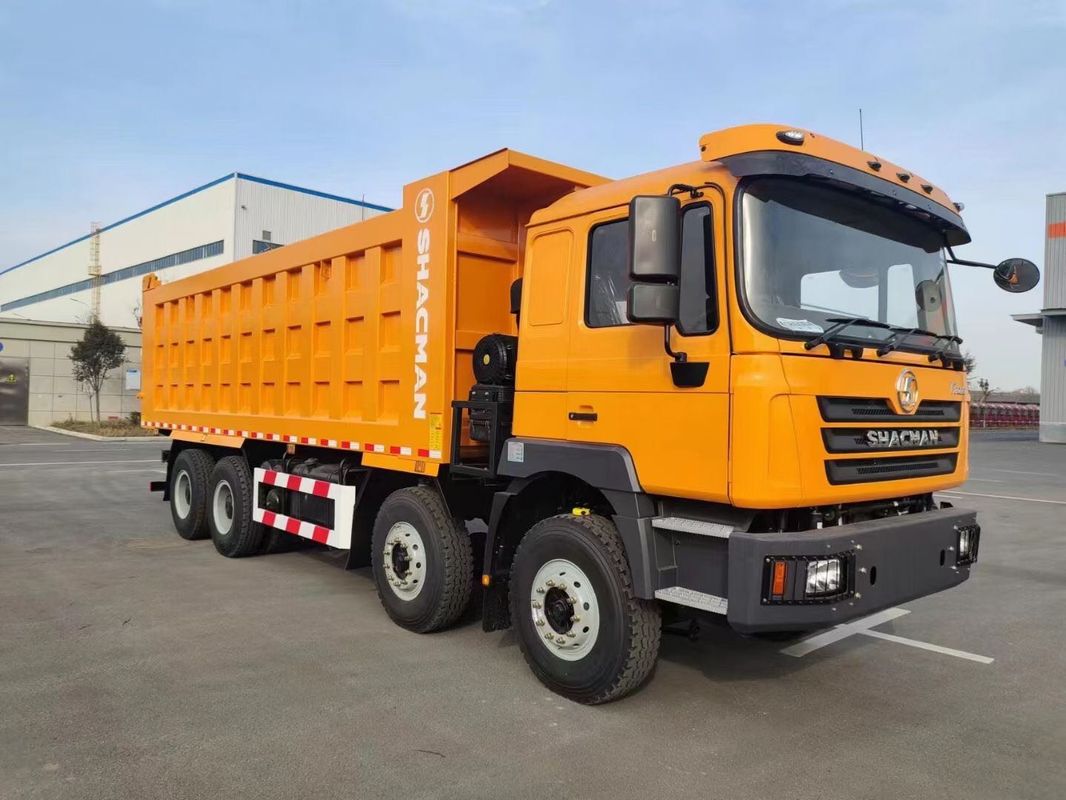

Truck Image

FAQ
1. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.

2. What can you buy from us?
SHACMAN Dump truck, track truck, lorry truck, Van truck, Mixer truck. Crance truck. Water truck

3. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF,
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
