Place of Origin:
Shaanxi,Xian
Brand Name:
SHACMAN
Certification:
ISO9001/CCC
Model Number:
F3000

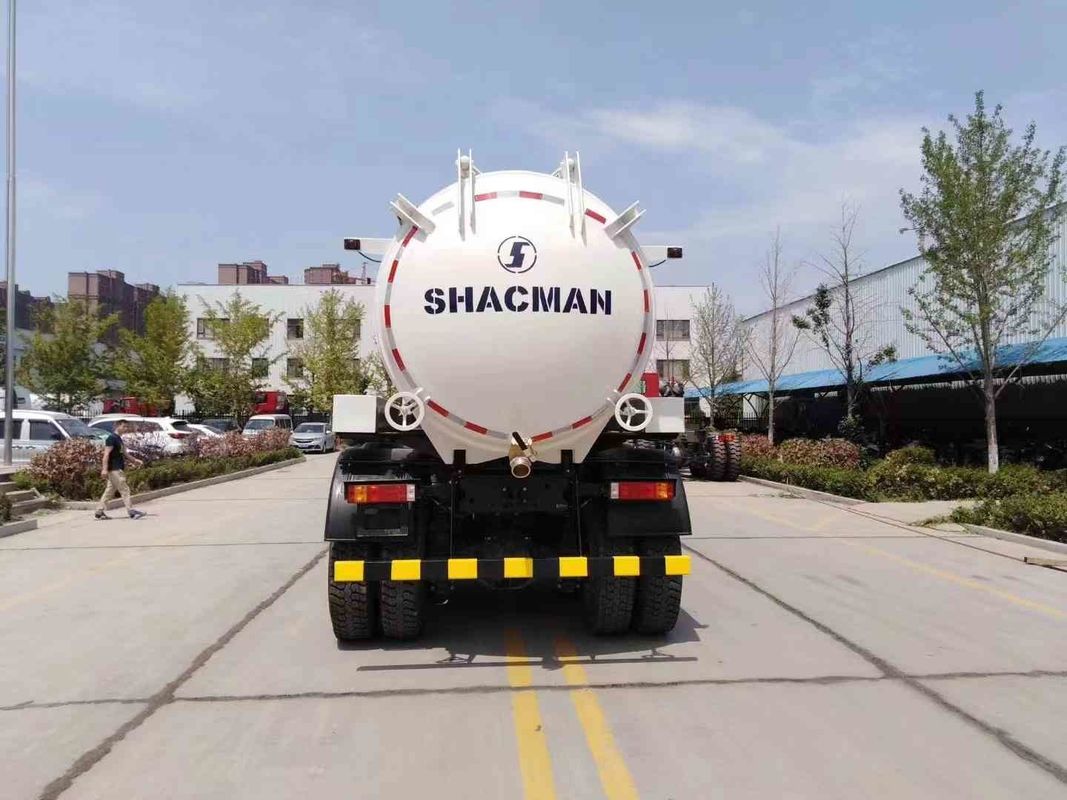

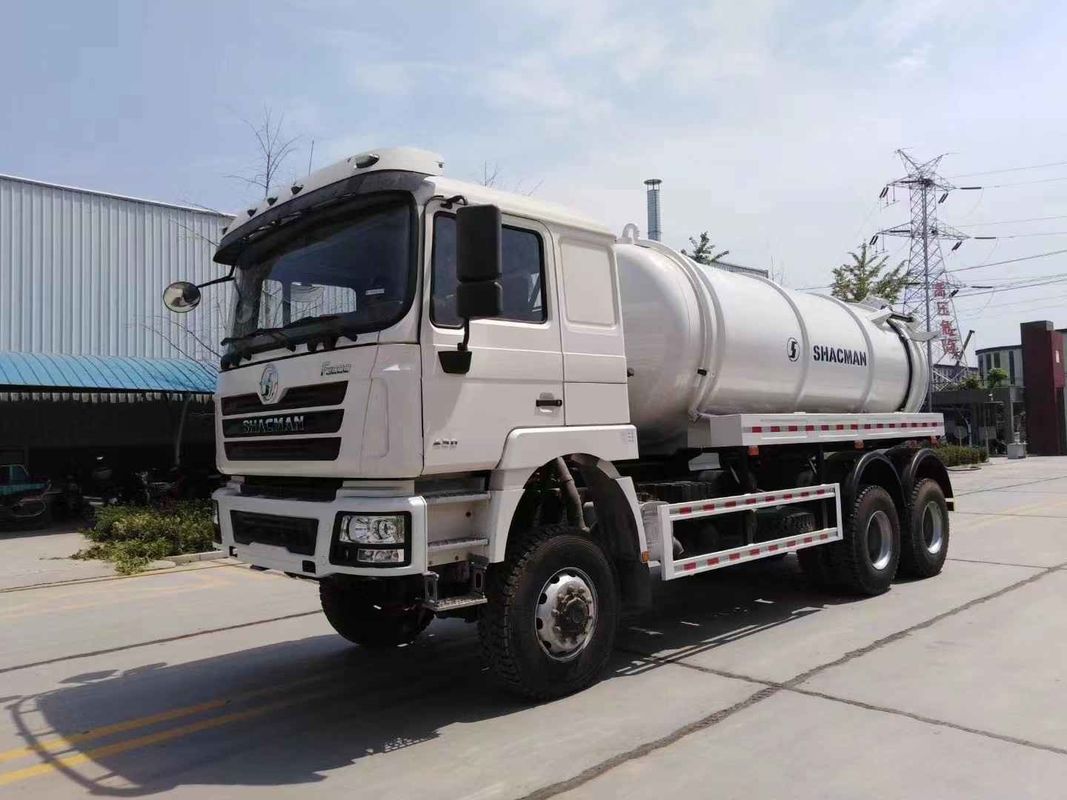

Road Cleaner Suction Street Sweeper Truck SHACMAN F3000 Pressure Vacuum Suction truck 6x4 430HP Euro II
Detailed Product Description
Model: SX5255GXWDR434
Drive type: 6x4
Weight: Gross Vehicle Weight≤50
Engine Brand: WEICHAI
Engine Model: WP10.340E22
Engine Power/(kw/HP): 250kw / 340Hp
Gear box Brand: FAST
Gear box Model: RTD-11509C+QH50 flange extractor
Suction Truck parameters
Model | SX5255GXWDR434 | |
Drive type | 6x4 | |
Weight | Gross Vehicle Weight | ≤50 |
Dimensions | Wheelbase/(mm) | 4375+1400 mm |
Performance | Maximum speed/(km/h) | 50~65/90 |
Ground clearance | >314 | |
Engine | Brand | WEICHAI |
Model | WP10.340E22 | |
Power/(kw/HP) | 250kw / 340Hp | |
Maximum torque / (N.M)/rpm | 1550 N·M | |
Displacement/(L) | 9.726 L | |
Emission standard | Euro/ II | |
Gear box | Brand | FAST |
Model | RTD-11509C+QH50 flange extractor | |
Clutch | Type | φ430 Diaphragm spring clutch |
Cooling | Type | Domestic heat sink |
Air inlet | Type | Ordinary air filter |
Brakes | Type | Drum brake |
Service brake | Double circuit air brake | |
Park brake | Rear wheel spring brake | |
Auxiliary brake | WEVB engine exhaust brake | |
Steering | Type | ZF8098 technology, circulating ball steering machine |
Chassis | Type | Parallel trapezoidal frame with variable section |
Dimensions/(mm) | 850×300(8+5) | |
Suspension | Front | Multi-layer plate spring 2 main plates + 2 U-shaped bolts |
Rear | Multi-layer plate spring 2 main plates + 2 U-shaped bolts | |
Axles | Brand | HANDE |
Front axle | 7.5T front axle MAN technology | |
Rear axle | 13T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.262 | |
Tires | Type | 12.00R20 |
Fuel tank | Tank capacity/(L) | 400L Aluminum tank |
Electrics | Type | 24V |
Battery | 165Ah Maintenance-free battery | |
Cab | Type | SHACMAN F3000 Medium-length flat cab |
Equipment | Hydraulic main seat, four-point hydraulic suspension cab, manual window crank, ordinary rear-view mirror, F3000 cooling system, square muffler, 165Ah maintenance-free battery, SHACMAN logo, full English logo. |
Overview
Model and Specifications: This is the SHACMAN F3000 model, customized for road cleaning and maintenance. It features a 6x4 drivetrain configuration, meaning it has six wheels with power supplied to four of them. The truck is equipped with a robust 430HP engine and adheres to Euro II emissions standards.
Function: This vehicle is designed for road cleaning and maintenance tasks, including street sweeping and suction operations. It combines pressure and vacuum suction capabilities, allowing it to clean streets effectively by removing debris, dirt, and other waste materials.
Detailed Image
