Name: X3000 Heavy Dump Truck 8x4 SHACMAN CNG Blue Dumper Truck Right Driver 430Hp
Brand: SHACMAN
SKU: X3000
Rating: 4.6 (185 reviews)

Home > products > Heavy Dump Truck >

X3000 Heavy Dump Truck 8x4 SHACMAN CNG Blue Dumper Truck Right Driver 430Hp

X3000 Heavy Dump Truck 8x4

CNG Blue Dumper Truck

Blue Dumper Truck 380Hp

Place of Origin:

Shaanxi,China

Brand Name:

SHACMAN

Certification:

ISO9001

Model Number:

X3000

Request A Quote

Product Details

Modle:

SX33184V486TR

Engine:

WP13NG430E52 CNG

Transmission:

12JSD200TA-B+QH50 Fast

Axle:

MAN 9.5T /2*16 T Double-stage,speed Ratio-5.262

Wheel Base:

1800+4775+1400

Tire:

12.00R20

Gas Cylinder:

Gas Cylinder 8×150L

Clutch:

φ430 Diaphragm Spring Clutch

Air Inlet:

Ordinary Air Filter

Chassis:

(970-850)×320（8+7+8）

Suspension:

Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts

Cabin:

Medium-length Flat Top

Color:

Starry Blue/Aurora White/Klein Blue/Burgundy

Highlight:

X3000 Heavy Dump Truck 8x4

CNG Blue Dumper Truck

Blue Dumper Truck 380Hp

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiation

Packaging Details

Nude pack, with wax before shipment.

Delivery Time

45 working days

Payment Terms

T/T, L/C

Supply Ability

5000 units/month

RELATED PRODUCTS

Contact Now

Product Description

SHACMAN X3000 8x4 CNG Dump Truck 430Hp

Detailed Product Description

Model: SX33184V486TR
Engine Model: WEICHAI WP13NG430E52 CNG
Transmission Model: FAST 12JSD200TA-B+QH50

Axle: MAN 9.5T /2*16 T Double-stage,speed ratio-5.262

Dump Truck Parameters

Model	SX33184V486TR
Drive type	8x4
Weight	Gross Vehicle Weight	≤70
Dimensions	Wheelbase/(mm)	1800+4775+1400
Performance	Maximum speed/(km/h)	45～55/75
Performance	Ground clearance	>314
Engine	Brand	WEICHAI
	Model	WP13NG430E52 CNG
	Power/(kw/HP)	316kw / 430Hp
	Maximum torque / (N.M)/rpm	2060 N·M
	Displacement/(L)	11.596 L
	Emission standard	Euro V
Gearbox	Brand	FAST
Gearbox	Model	12JSD200TA-B-QH50
Clutch	Type	φ430 Diaphragm spring clutch
Cooling	Type	Domestic heat sink
Air inlet	Type	desert air filter
Brakes	Type	Drum brake
	Service brake	Double circuit air brake
	Park brake	Rear wheel spring brake
	Auxiliary brake	WEVB engine exhaust brake
Steering	Type	ZF8098 technology, circulating ball steering machine
Chassis	Type	Parallel trapezoidal frame with variable section
Chassis	Dimensions/(mm)	970-850×320(8+7+8)
Suspension	Front	Multi-layered leaf springs with 4 Main springs+4 U Bolts
Suspension	Rear	Multi-layered leaf springs with 4 Main springs+4 U Bolts
Axles	Brand	HANDE
	Front axle	9.5T front axle MAN technology
	Rear axle	16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.262
Tires	Type	12.00R20
Gas cylinders	Type	Gas cylinders 8×150L cylinders/ECE standard gas cylinders/dual refueling integrated refueling compartment, snap-in NGV1+pin type (Russia)/steel shroud
Electrics	Type	24V
Electrics	Battery	180Ah Maintenance-free battery
Cab	Type	SHACMAN X3000 Mid-length flat roof cab
Cab	Equipment	Hydraulic main seat, four-point hydraulic suspension, ordinary rearview mirror, electric automatic thermostatic air conditioning, electric window shaker, manual flip, metal bumper, three-stage boarding pedal, desert air filter, water tank protection grille, taillight protection grille, iron gas storage brief, spare tire carrier, four-channel ABS, 180Ah maintenance-free battery, an electrostatic towing belt, 2kg fire extinguisher, parking wedge, SHACMAN logo, full English logo; rear surround guard, dual side door chrome horsepower mark, sunshade decorative light.

Features

The X3000 series benefits from the technological expertise of MAN, a globally renowned commercial vehicle manufacturer. Leveraging this collaboration, SHACMAN has integrated top-tier innovations into the X3000 series, resulting in trucks that boast both reliability and advanced features.
One of the defining characteristics of the X3000 series is its focus on operator comfort. The cabins are meticulously designed to offer a spacious, ergonomic, and driver-centric environment. Long-haul journeys become less arduous, as the cabin amenities cater to the well-being and reduced fatigue of the drivers.

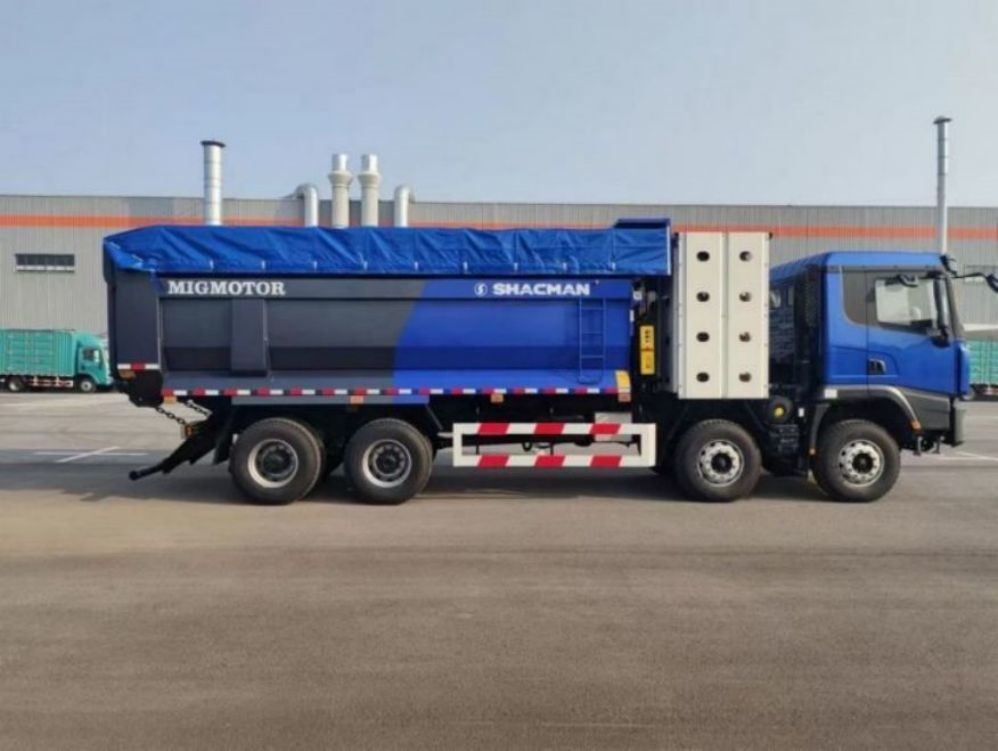

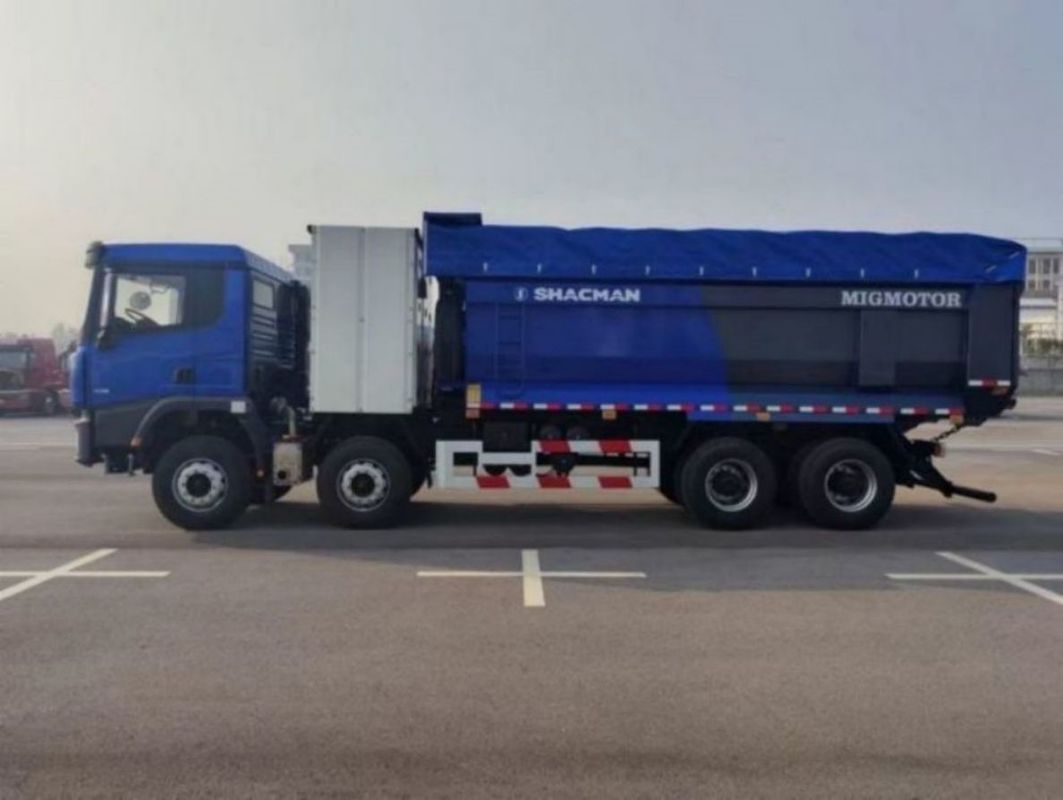

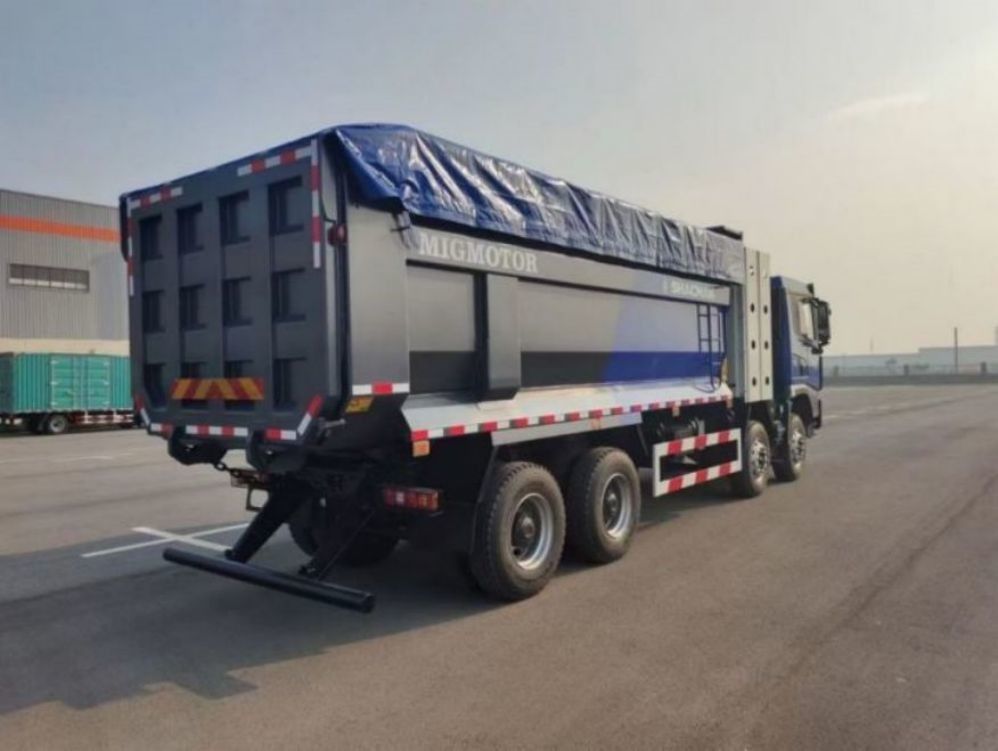

Truck lmage
X3000 Heavy Dump Truck 8x4 SHACMAN CNG Blue Dumper Truck Right Driver 430Hp 0

FAQ

1. Who are we?
Based in Shaanxi, China, we began our business journey in 2015. Our primary market segment is Africa, representing 70.00% of our sales. Moreover, we have a presence in Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), the Middle East (2.00%), Eastern Asia (2.00%), and South Asia (2.00%). At our office, we have a dedicated team of around 11-50 individuals.
2. How can we guarantee quality?
To ensure SHACMAN product integrity, a pre-production sample is meticulously inspected and tested to meet the desired standards before initiating mass manufacturing.
3. What can you buy from us?
Dump truck, tractor truck, lorry truck, Crane truck, Mixer truck. Sime-trucks.
4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU；
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
