Green 340Hp Water Tank Truck SHACMAN F3000 6x4 Water Transport Truck EruoII

Basic Information
Place of Origin: Shaanxi,Xian
Brand Name: SHACMAN
Certification: ISO 9001/CCC
Model Number: F3000
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude pack, with wax before shipment.
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 5000UNITS
Detail Information
Modle: SX5255GSSDR434 Engine: WP10.340E22
Transmission: RTD-11509C With QH50 Flange Extractor Axle: 7.5T/2*13 Double Stage Axle, Axle Speed-5.262
Wheel Base: 4375+1400 Tire: 12.00R20
Fuel Tank: 300L Clutch: φ430 Diaphragm Spring Clutch
Air Inlet: Ordinary Air Filter Chassis: 850×300(8+5)
Suspension: Front /rear Multi-layer Plate Spring 2 Main Plates + 2 U-shaped Bolts Cabin: Medium-length Flat Top
Color: Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy
Highlight:

Green 340Hp Water Tank Trucks

,

Water Tank Trucks SHACMAN F3000

,

F3000 6x4 Water Transport Truck


Product Description

SHACMAN F3000 6x4 Water Truck 340Hp EruoII Green



Detailed Product Description
Model: SX5255GSSDR434
Drive type: 6x4
Weight: Gross Vehicle Weight≤50
Engine Brand: WEICHAI
Engine Model: WP10.340E22
Engine Power/(kw/HP): 250kw / 340Hp
Gear box Brand: FAST
Gear box Model: RTD-11509C with QH50 flange extractor



Water Tank Truck Parameters

Model SX5255GSSDR434
Drive type 6x4
Weight Gross Vehicle Weight ≤50
Dimensions Wheelbase/(mm) 4375+1400
Performance Maximum speed/(km/h) 50~70/90
Ground clearance >314
Engine Brand WEICHAI
Model WP10.340E22
Power/(kw/HP) 250w / 340Hp
Maximum torque / (N.M)/rpm 1400 N·M
Displacement/(L) 9.726 L
Emission standard Euro/ II
Gear box Brand FAST
Model RTD-11509C with QH50 flange extractor
Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) 850×300(8+5)
Suspension Front Multi-layered leaf springs with 2 Main springs+2 U Bolts
Rear Multi-layered leaf springs with 2 Main springs+2 U Bolts
Axles Brand HANDE
Front axle MAN 7.5T
Rear axle 13T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.262
Tires Type 12.00R20
Fuel tank Tank capacity/(L) 300L Aluminum
Electrics Type 24V
Battery 165Ah Maintenance-free battery
Cab Type SHACMAN F3000 Medium-length flat cab
Equipment Hydraulic main seat, four-point hydraulic suspension cab, electronically controlled automatic constant temperature air conditioner, electric window crank, 165Ah maintenance-free battery, SHACMAN logo, full English logo.



Advantages

  • Mainly used for washing on urban roads, watering and greening on trees, green belts and lawn and dust full of construction
  • sites. And also used for drinking water delivery and fire fighting function etc.
  • The water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into
  • various rain shape.
  • Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform.



Detailed Image

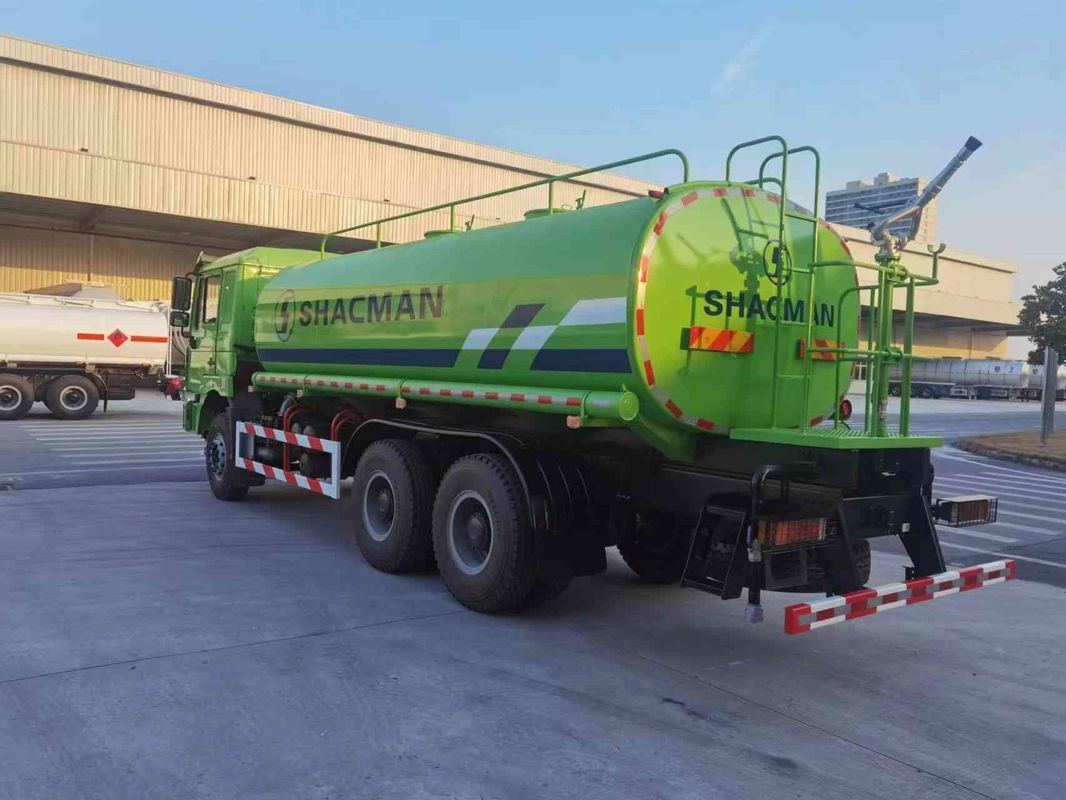

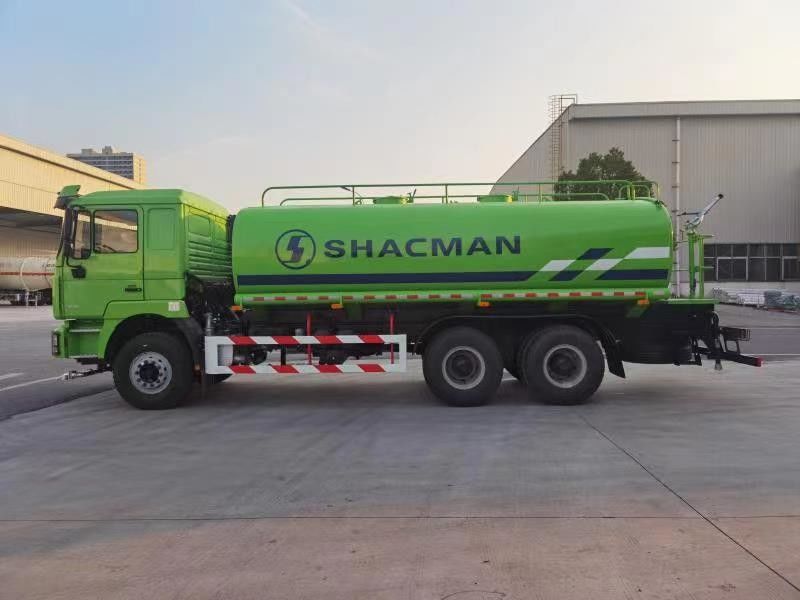

Green 340Hp Water Tank Truck SHACMAN F3000 6x4 Water Transport Truck EruoII 0
