SHACMAN F3000 6x4 Tractor Truck 430 HP EuroII Shacman Tractor Head

Basic Information
Place of Origin: Shaanxi,Xian
Brand Name: SHACMAN
Certification: ISO9001/CCC
Model Number: F3000
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Nude pack, with wax before shipment.
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 5000 units/month
Detail Information
Modle: SX4255DV324 Engine: WP12.430E201
Transmission: 12JSD200T-B Axle: 7.5T/2*13 Double Stage Axle, Axle Speed-4.769
Wheel Base: 3175+1400 Mm Tire: 12.00R20 (10+1)
Fuel Tank: 400L Clutch: φ430 Diaphragm Spring Clutch
Air Inlet: Ordinary Air Filter Chassis: 850×300(8+5)
Suspension: Front /rear Multi-layer Plate Spring 2 Main Plates + 2 U-shaped Bolts Cabin: Extended Flat Roof
Color: Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy
Highlight:

SHACMAN F3000 6x4 Tractor Truck

,

6x4 Tractor Truck 430 HP

,

EuroII Shacman Tractor Head


Product Description

SHACMAN F3000 Tractor Truck 6x4 430 HP EuroII



Detailed Product Description
Model: SX4255DV324

Drive type: 6x4
Weight: Gross Vehicle Weight≤50
Engine Brand: WEICHAI
Engine Model: WP12.430E201
Engine Power/(kw/HP): 316kw / 430Hp
Gear box Brand: FAST
Gear box Model: 12JSD200T-B



Tractor Truck Parameters

Model SX4255DV324
Drive type 6x4
Weight Gross Vehicle Weight ≤50
Dimensions Wheelbase/(mm) 3175+1400
Performance Maximum speed/(km/h) 45~60/90
Ground clearance >314
Engine Brand WEICHAI
Model WP12.430E201
Power/(kw/HP) 316kw / 430Hp
Maximum torque / (N.M)/rpm 2060 N·M
Displacement/(L) 11.596 L
Emission standard Euro II
Gear box Brand FAST
Model 12JSD200T-B
Clutch Type φ430 Diaphragm spring clutch
Cooling Type Domestic heat sink
Air inlet Type Ordinary air filter
Brakes Type Drum brake
Service brake Double circuit air brake
Park brake Rear wheel spring brake
Auxiliary brake WEVB engine exhaust brake
Steering Type ZF8098 technology, circulating ball steering machine
Chassis Type Parallel trapezoidal frame with variable section
Dimensions/(mm) 850×300(8+5)
Suspension Front Multi-layer plate spring 2 main plates + 2 U-shaped bolts
Rear Multi-layer plate spring 2 main plates + 2 U-shaped bolts
Axles Brand HANDE
Front axle 7.5T front axle MAN technology
Rear axle 13T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.769
Tires Type 12.00R20 (10+1)
Fuel tank Tank capacity/(L) 400L Aluminum tank
Electrics Type 24V
Battery 165Ah Maintenance-free battery
Cab Type SHACMAN F3000 Extended flat roof cab
Equipment Air main seat, four-point air-suspended cab, electronically controlled automatic temperature-controlled air conditioning, electric window rollers, manual flip, telescopic axle maneuvering, regular 50 saddle, split fenders, 165Ah maintenance-free battery, SHACMAN logo, full English logo.


Tractor Truck Advantages

  • The F3000 has ample storage space and efficient loading capacity for orderly handling of cargo.
  • Reliable and versatile, the F3000 tractor is the first choice for all transportation needs, whether local or long-distance, SHACMAN's F3000 tractor provides a reliable solution for efficient transportation.

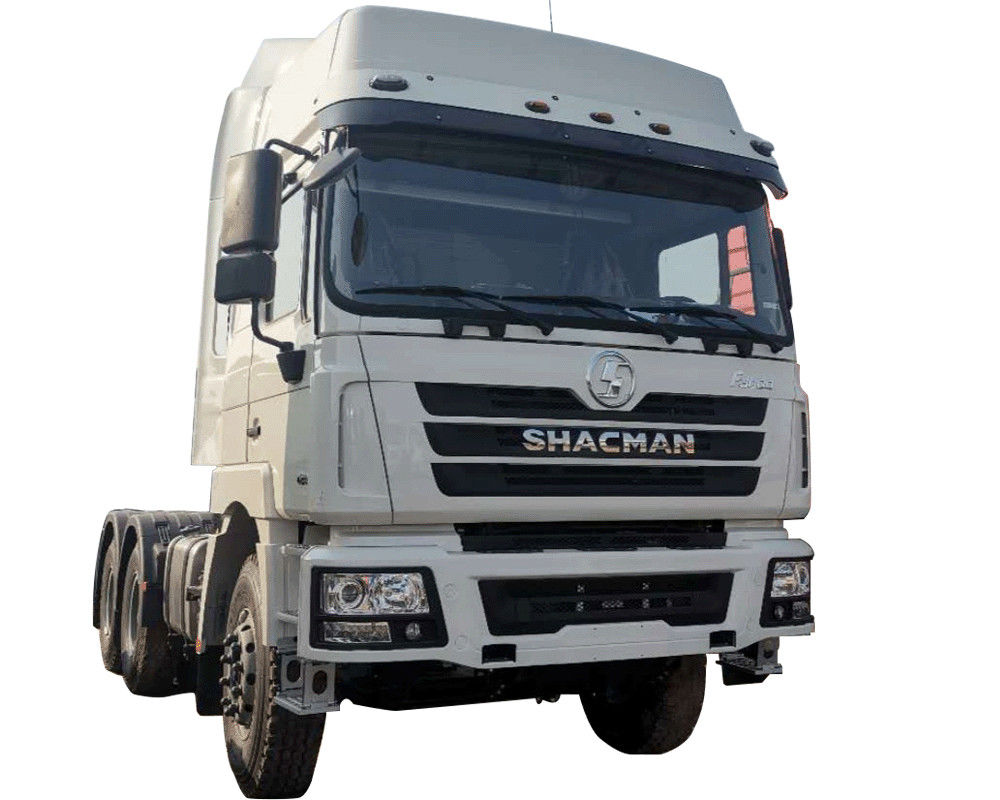

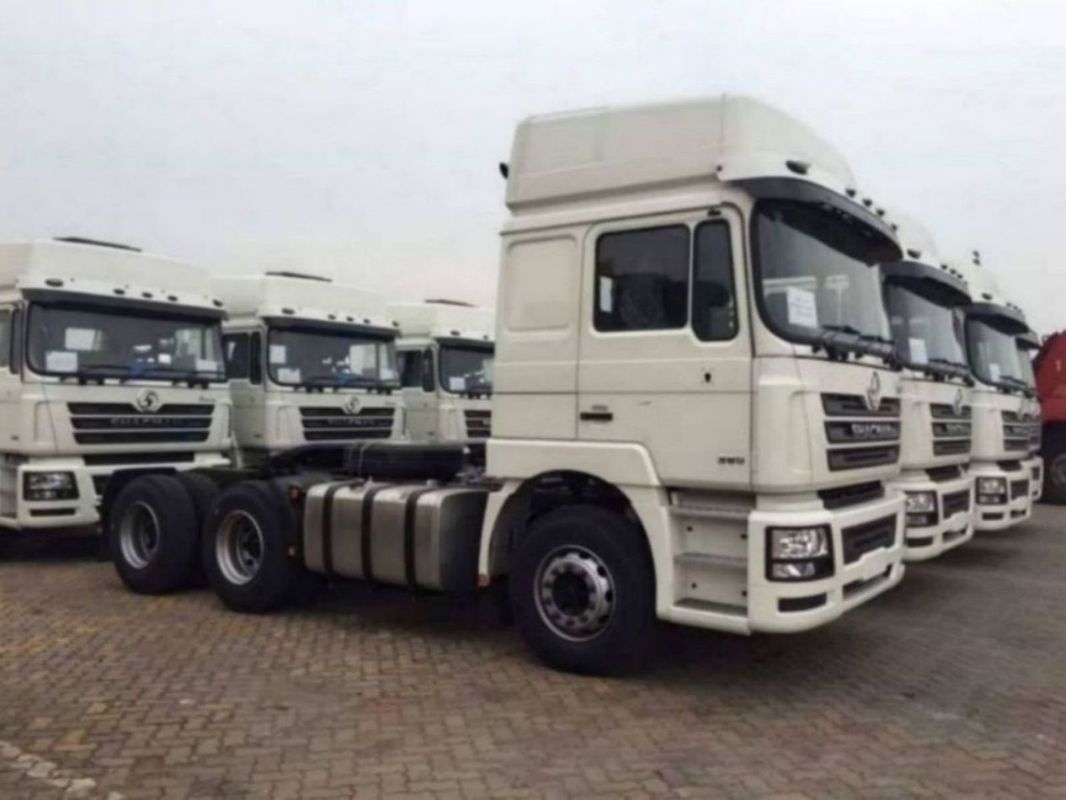

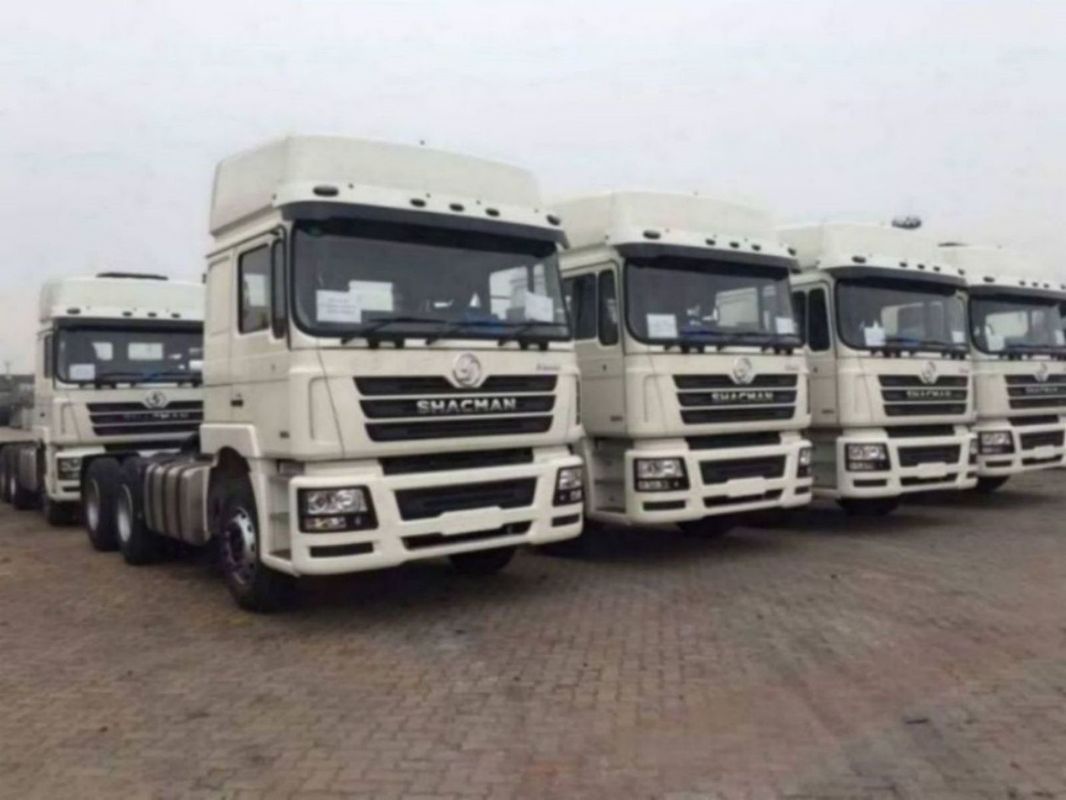

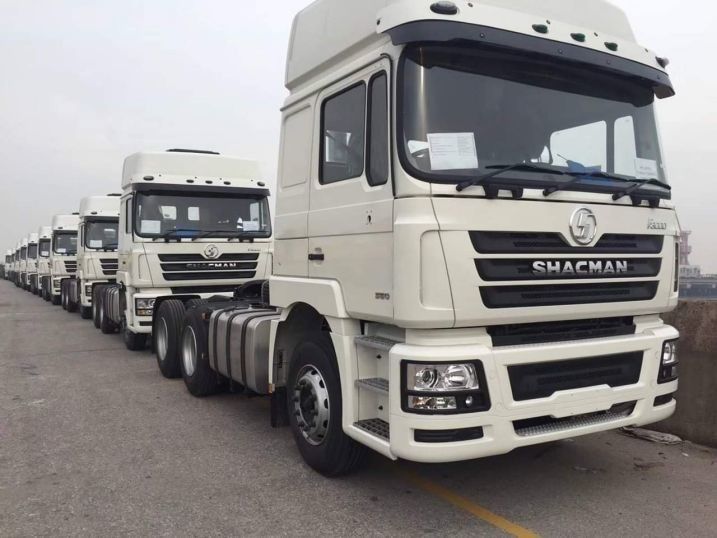

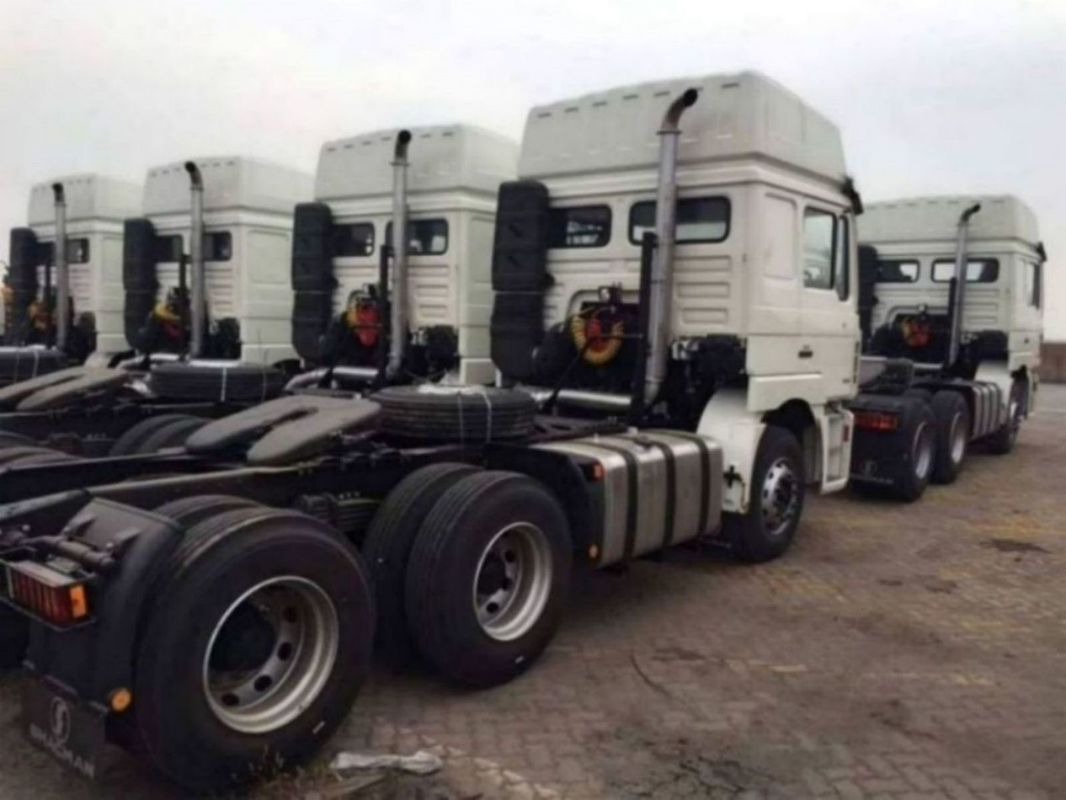

Truck Detailed Image

SHACMAN F3000 6x4 Tractor Truck 430 HP EuroII Shacman Tractor Head 0



FAQ
1. Who are we?
We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
A comprehensive final inspection is conducted prior to shipping to ensure the highest standards of quality and compliance are met.

3. What can you buy from us?
Dump truck, track truck, lorry truck, Van truck, Mixer truck.

4. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A
Language Spoken: English, French
