Place of Origin:
Shaanxi,China
Brand Name:
SHACMAN
Certification:
ISO9001/CCC
Model Number:
X5000
SHACMAN X5000 6x4 8x4 Dumper Truck 380/400/430Hp
Truck Detail Description
Model: SX33186V406R
Engine Model: WEICHAI WP12.430E50 316kw / 430Hp Euro V
Transmission Model: FAST 12JSD200+QH50
Axle:2*7.5T/2*16 Double-stage axle, Axle speed-5.262
Dump Truck Parameters
Model | SX33186V406R | |
Drive type | 8x4 | |
Weight | Gross Vehicle Weight | ≤70 |
Dimensions | Wheelbase/(mm) | 1800+3975+1400 |
Performance | Maximum speed/(km/h) | 43~60/80 |
Ground clearance | >314 | |
Engine | Brand | WEICHAI |
Model | WP12.430E50 | |
Power/(kw/HP) | 316kw / 430Hp | |
Maximum torque / (N.M)/rpm | 2000 N·M | |
Displacement/(L) | 11.596 L | |
Emission standard | Euro V | |
Gearbox | Brand | FAST |
Model | 12JSD200T-B+QH50 /spline | |
Clutch | Type | φ430 Diaphragm spring clutch |
Cooling | Type | Domestic heat sink |
Air inlet | Type | Ordinary air filter |
Brakes | Type | Drum brake |
Service brake | Double circuit air brake | |
Park brake | Rear wheel spring brake | |
Auxiliary brake | WEVB engine exhaust brake | |
Steering | Type | ZF8098 technology, circulating ball steering machine |
Chassis | Type | Parallel trapezoidal frame with variable section |
Dimensions/(mm) | 850×300(8+7) | |
Suspension | Front | Multi-layered leaf springs with 4 Main springs+4 U Bolts |
Rear | Multi-layered leaf springs with 4 Main springs+4 U Bolts | |
Axles | Brand | HANDE |
Front axle | 2*9.5T front axle MAN technology | |
Rear axle | 2*16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.769 | |
Tires | Type | 12.00R20 |
Fuel tank | Tank capacity/(L) | 400L Aluminum tank |
Electrics | Type | 24V |
Battery | 165Ah Maintenance-free battery | |
Cab | Type | SHACMAN X5000 Medium-length flat top cab |
Equipment | Hydraulic main seat, four-point hydraulic suspension cab, lever rear-view mirror, electric air conditioner, electric window shaker, manual flip, telescopic shaft control, ordinary air filter, metal bumper, two-stage pedals, water tank protection grille, 165Ah Maintenance-free battery, SHACMAN logo, full English logo. |
SHACMAN Truck Specialty

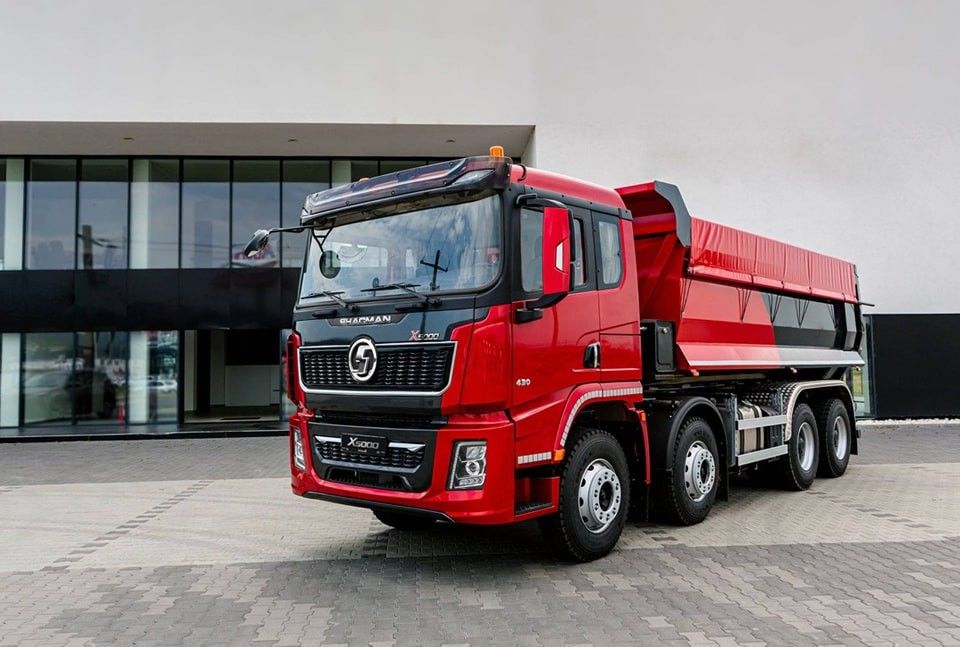

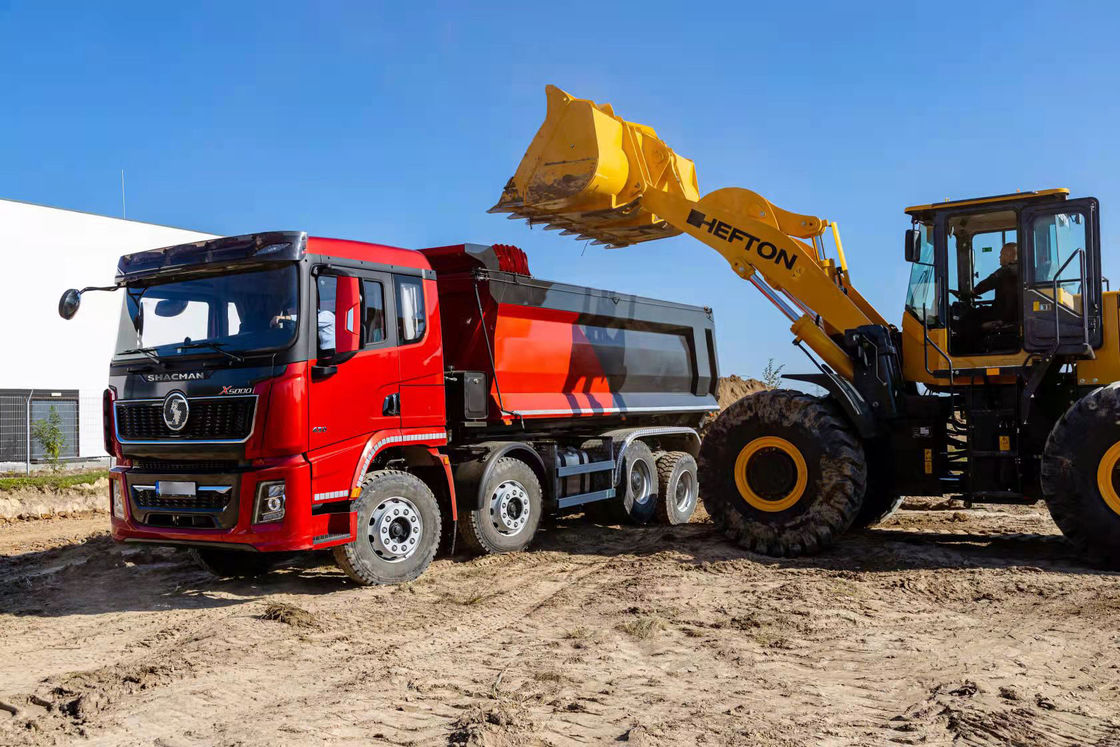

SHACMAN Truck Detailed Image
