| Place of Origin: | Shaanxi,Xian |
|---|---|
| Brand Name: | SHACMAN |
| Certification: | ISO 9001/CCC |
| Model Number: | F3000 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Nude pack, with wax before shipment. |
| Delivery Time: | 45 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 units/month |
| Modle: | SX3258DT464T | Engine: | WP12NG380E51 CNG |
|---|---|---|---|
| Transmission: | 10JSD180+QH50 Spline, Pull Up | Axle: | 9.5T /2*16 T Double-stage,Axle Speed Ratio-5.262 |
| Wheel Base: | 4375+1400mm | Tire: | 12.00R20 |
| CNG Tank: | 8×150L | Clutch: | φ430 Diaphragm Spring Clutch |
| Air Inlet: | Ordinary Air Filter | Chassis: | 970-850×300（8+7） |
| Suspension: | Front /rear Multi-layer Plate Spring 4 Main Plates + 4 U-shaped Bolts | Cabin: | Medium-length Flat Top |
| Color: | Neon Red/Green Mountain Green/Star And Moon Blue/Aurora White/Klein Blue/Brandy |
SHACMAN CNG Dump Truck F3000 6x4 380 EuroV Blue
Detailed Product Description
Model: SX3258DT464T
Drive type: 6x4
Engine Brand: WEICHAI
Engine Model: WP12NG380E51
Engine Power/(kw/HP): 279kw / 380Hp
Gear box Brand: FAST
Gear box Model: 10JSD180+QH50
Dump Truck Parameters
| Model | SX3258DT464T | |
| Drive type | 6x4 | |
| Weight | Gross Vehicle Weight | ≤50 |
| Dimensions | Wheelbase/(mm) | 3975+1400 |
| Performance | Maximum speed/(km/h) | 42～52/66 |
| Ground clearance | >314 | |
| Engine | Brand | WEICHAI |
| Model | WP10.380E22 | |
| Power/(kw/HP) | 279kw / 380Hp | |
| Maximum torque /(N.m)/rpm | 1600 N·m | |
| Displacement/(L) | 9.726 L | |
| Emission standard/ | Euro/ II | |
| Gear box | Brand | FAST |
| Model | 10JSD180+QH50 | |
| Clutch | Type | φ430 Diaphragm spring clutch |
| Cooling | Type | Domestic heat sink |
| Air inlet | Type | Ordinary air filter |
| Brakes | Type | Drum brake |
| Service brake | Double circuit air brake | |
| Park brake | Rear wheel spring brake | |
| Auxiliary brake | WEVB engine exhaust brake | |
| Steering | Type | ZF8098 technology, circulating ball steering machine |
| Chassis | Type | Parallel trapezoidal frame with variable section |
| Dimensions/(mm) | 850×300(8+7) | |
| Suspension | Front | Multi-layered leaf springs with 4 Main springs+4 U Bolts |
| Rear | Multi-layered leaf springs with 4 Main springs+4 U Bolts | |
| Axles | Brand | HANDE |
| Front axle | 9.5T front axle MAN technology | |
| Rear axle | 2*16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92 | |
| Tires | Type | 12.00R20 |
| Fuel tank | Tank capacity/(L) | 300L Aluminium tank |
| Electrics | Type | 24V |
| Battery | 165Ah Maintenance-free battery | |
| Cab | Type | SHACMAN F3000 Medium-length flat roof cab |
| Equipment | Hydraulic main seat, four-point hydraulic suspension cab, common rear view mirror, electric automatic thermostatic air conditioner, electric window shaker, manual flip, common air filter, metal bumper, two-stage pedal, water tank protection grill, 165Ah maintenance-free battery, SHACMAN logo, full English logo | |
Advantages
Manufacturer: SHACMAN is a reputable manufacturer with a history of producing heavy-duty vehicles, including dump trucks. They are known for their durability and reliability.
Model: The specific model mentioned is the "CNG Dump Truck F3000." This model is designed to operate using Compressed Natural Gas (CNG), offering environmental benefits compared to traditional diesel-powered trucks.
Configuration: The "6x4" configuration indicates that this dump truck has six wheels, with four of them being powered. This configuration is commonly used for medium-duty and some heavy-duty applications.

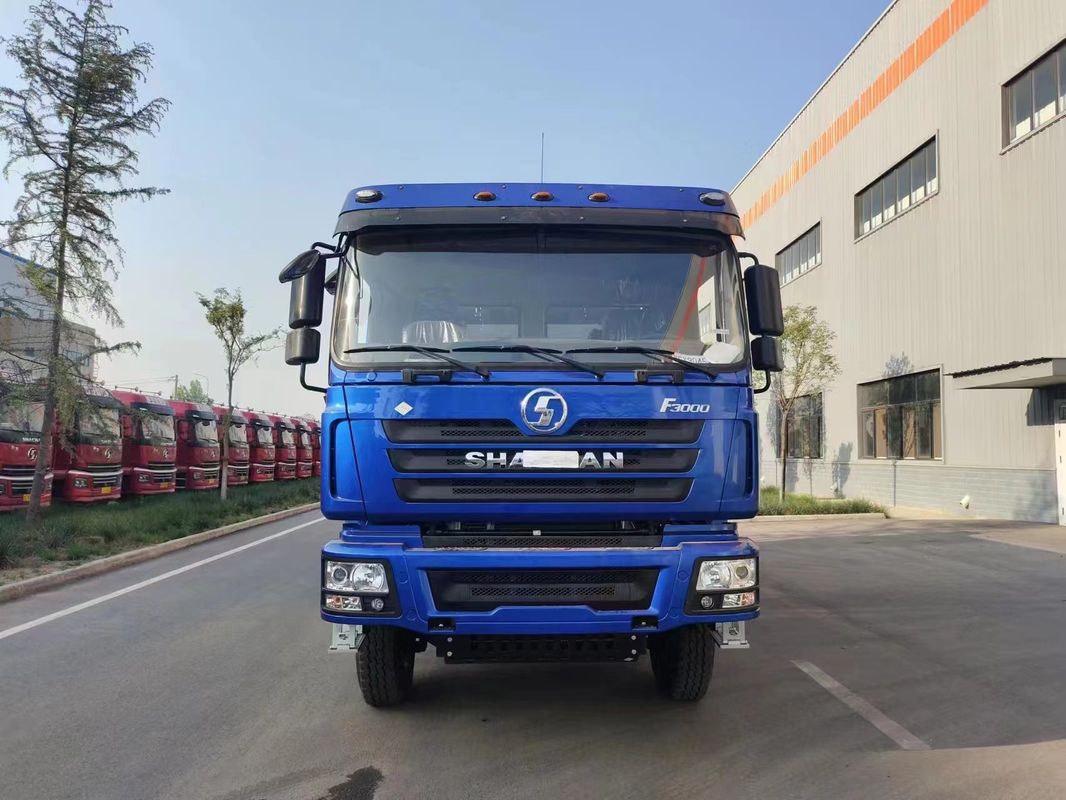

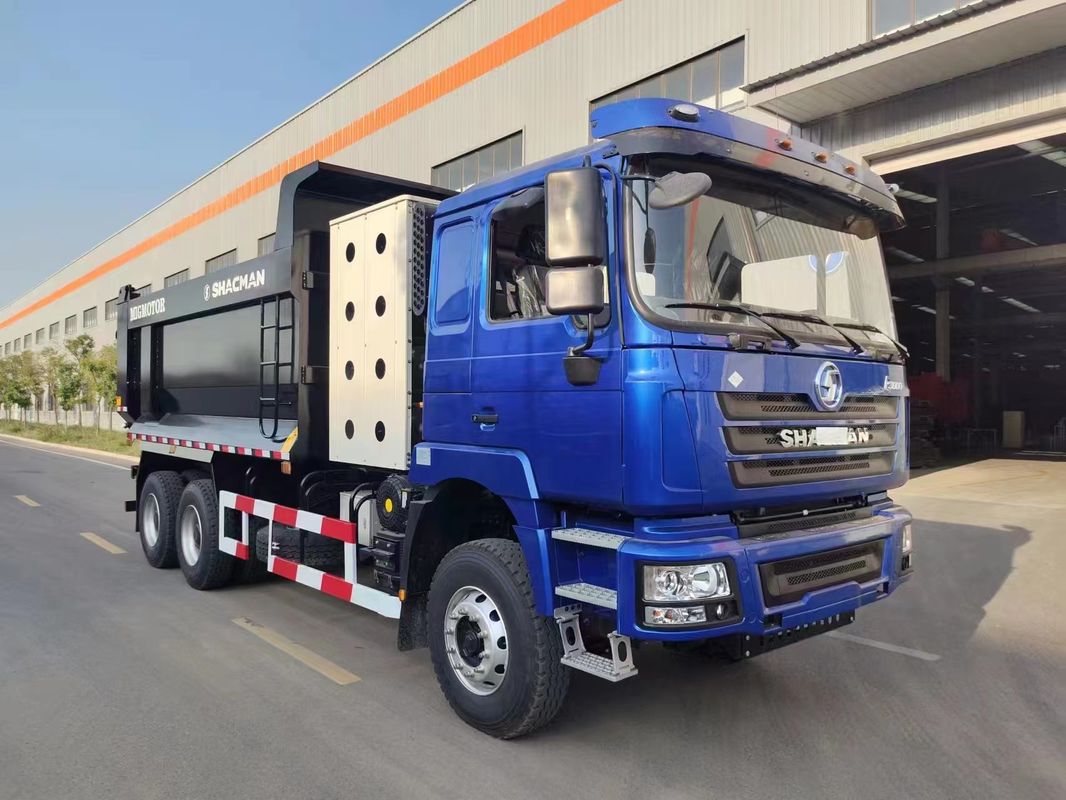

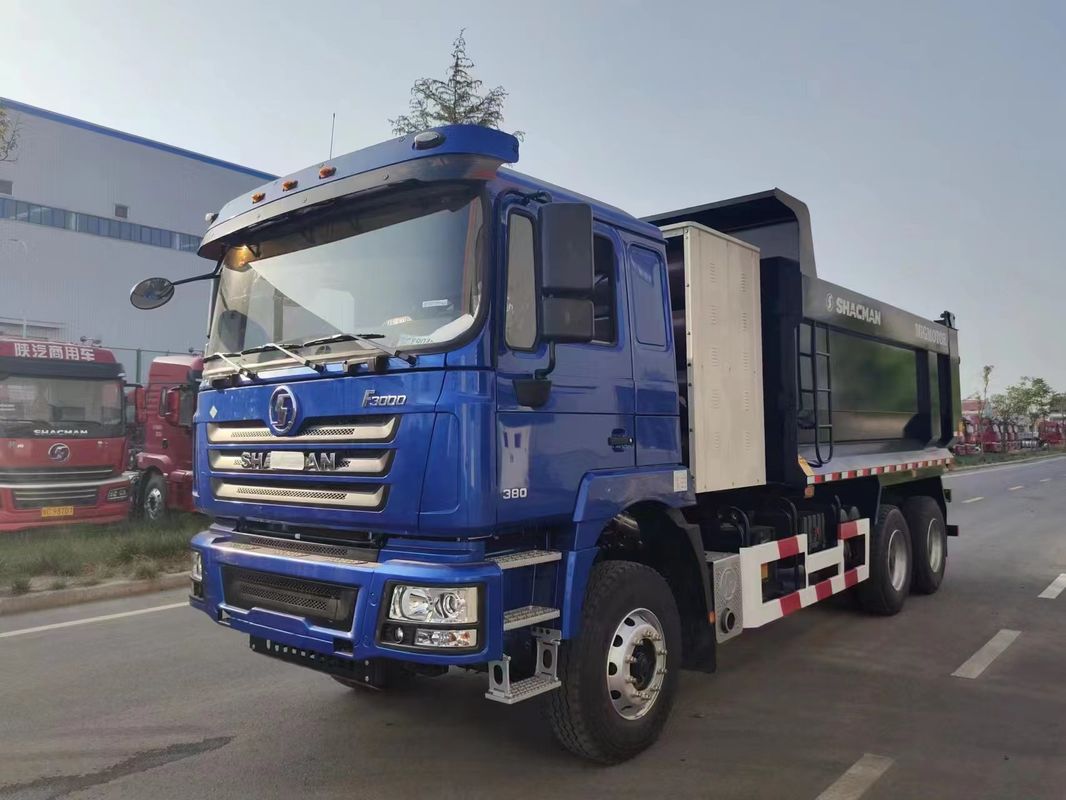

Detailed Image
